VG35-ENQE (1978)

Toyota Century

Production Nov 1978 - Sep 1982
Engine 4VEU
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7811- )

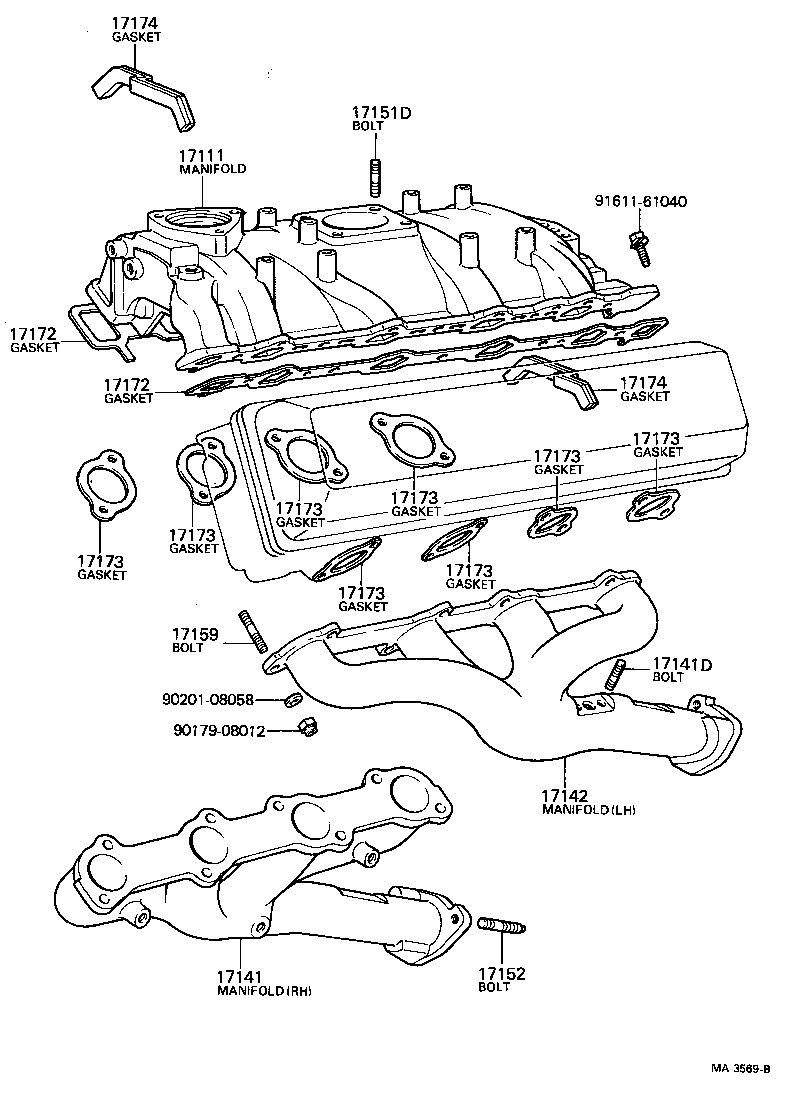

Click highlighted areas on diagram

diagram 17111 17141 17141D 17142 17151D 17152 17159 17172 17172 17173 17173 17173 17173 17173 17173 17173 17173 17174 17174 9017908012 9020108058 9161161040
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-52041

4VEU..VG35

 1
17101-52040

4VEU..VG35

 1
17141 - MANIFOLD, EXHAUST
17141-52050

4VEU..VG35

RH

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

4VEU..VG35

 4
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-52030

4VEU..VG35

LH

 1
17151D - BOLT, STUD(MANIFOLD TO THROTTLE BODY)
92122-40832

4VEU..VG35

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08077

4VEU..VG35

 16
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17177-52011

4VEU..VG35

 2
17177-52010

4VEU..VG35

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17177-52011

4VEU..VG35

 2
17177-52010

4VEU..VG35

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51010

4VEU..VG35

 8
17174 - GASKET, INTAKE MANIFOLD TO BLOCK
17174-51010

3V,4V#..VG2#,3#

 2
17174 - GASKET, INTAKE MANIFOLD TO BLOCK
17174-51010

3V,4V#..VG2#,3#

 2
Common parts
90179-08012
90201-08058
91611-61040
