VG30-ENQ (1977)
Toyota Century
Production
Jan 1977
-
Nov 1978
Engine
4VU
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7701-7811)

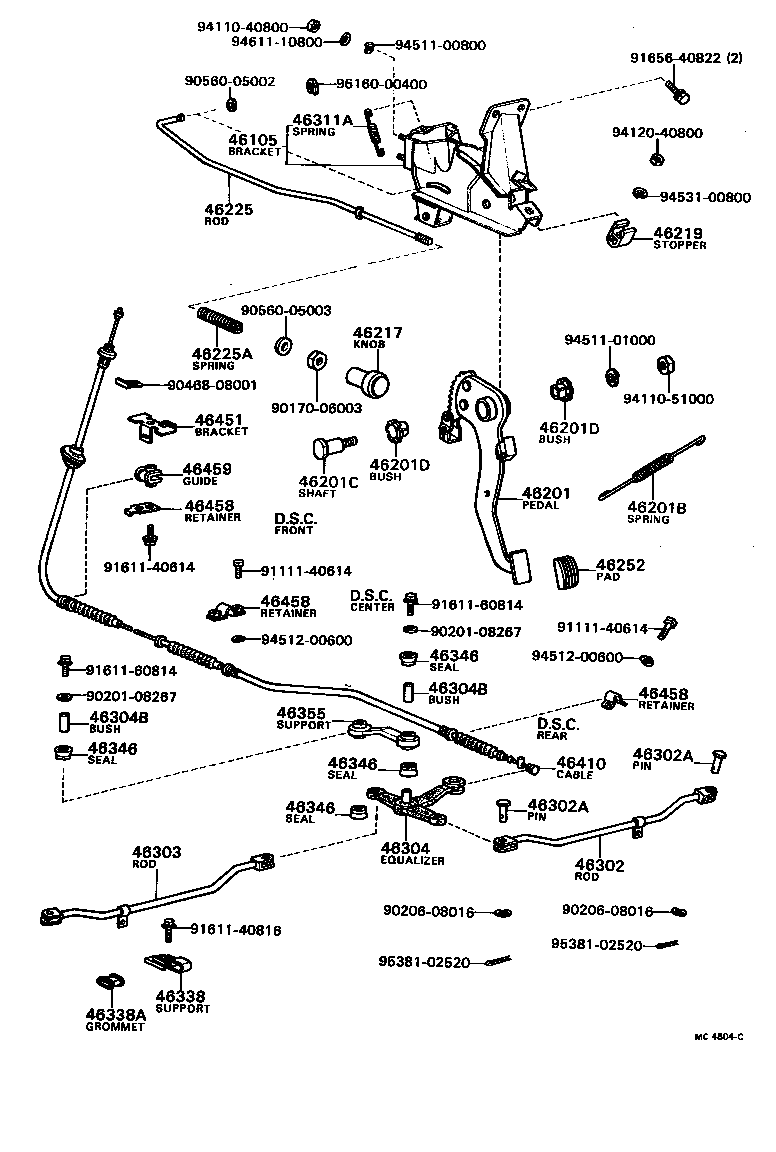

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-40010 |
VG30 |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46210-40010 |
VG30 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90506-14014 |
VG30 |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10098 |
VG30 |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-20010 |
VG30 |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 46219-30010 |
VG30 |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46225-40010 |
VG30 |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-40011 |
VG2#,30 |
1 | ||
| 46302A - PIN, W/HOLE(FOR PARKING BRAKE PULL ROD) | ||||
| 90240-08028 |
VG2#,3# |
4 | ||
| 46302A - PIN, W/HOLE(FOR PARKING BRAKE PULL ROD) | ||||
| 90240-08028 |
VG2#,3# |
4 | ||
| 46303 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.2 | ||||
| 46303-40011 |
VG2#,30 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-40011 |
VG2#,30 |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90386-13070 |
VG2#,30 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90386-13070 |
VG2#,30 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90506-08006 |
VG30 |
1 | ||
| 46338 - SUPPORT, PULL ROD | ||||
| 46338-40010 |
VG2#,3# |
1 | ||
| 46338A - GROMMET(FOR PULL ROD SUPPORT) | ||||
| 90480-01151 |
VG2#,3# |
1 | ||
| 46346 - SEAL, EQUALIZER PIVOT | ||||
| 46346-40011 |
VG2#,3# |
4 | ||
| 46346 - SEAL, EQUALIZER PIVOT | ||||
| 46346-40011 |
VG2#,3# |
4 | ||
| 46346 - SEAL, EQUALIZER PIVOT | ||||
| 46346-40011 |
VG2#,3# |
4 | ||
| 46346 - SEAL, EQUALIZER PIVOT | ||||
| 46346-40011 |
VG2#,3# |
4 | ||
| 46355 - SUPPORT, EQUALIZER | ||||
| 46355-40011 |
VG2#,30 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-40040 |
VG30 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46457-40010 |
VG2#,3# RR |
1 | ||
| 46455-40010 |
VG2#,3# CTR |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46457-40010 |
VG2#,3# RR |
1 | ||
| 46455-40010 |
VG2#,3# CTR |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46457-40010 |
VG2#,3# RR |
1 | ||
| 46455-40010 |
VG2#,3# CTR |
1 | ||
| Common parts | ||||
| 90170-06003 | ||||
| 90201-08267 | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 90560-05002 | ||||
| 90560-05003 | ||||
| 91111-40614 | ||||
| 91611-40614 | ||||
| 91611-40816 | ||||
| 91611-60814 | ||||
| 91656-40822 | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94512-00600 | ||||
| 94531-00800 | ||||
| 94611-10800 | ||||
| 95381-02520 | ||||
| 96160-00400 | ||||
