VG20-D (1967)

Toyota Century

Production Nov 1967 - Feb 1973
Engine 3V
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(6711- )ATM

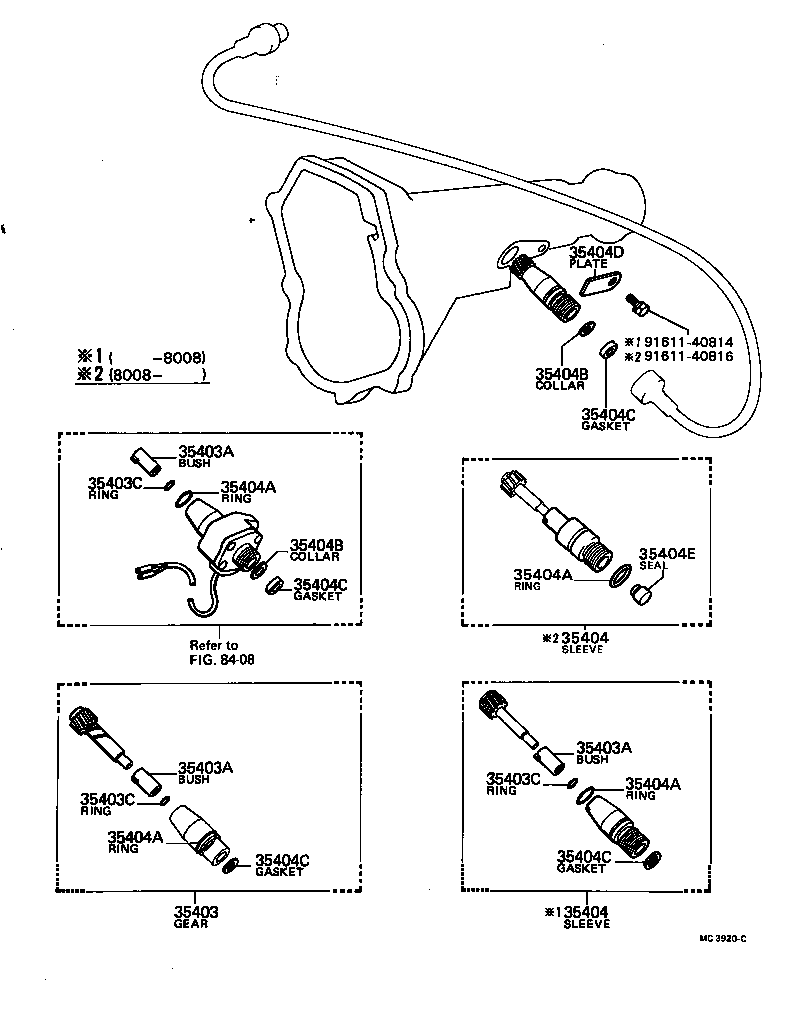

Click highlighted areas on diagram

diagram 35403 35403A 35403A 35403A 35403C 35403C 35403C 35404 35404 35404A 35404A 35404A 35404A 35404B 35404B 35404C 35404C 35404C 35404C 35404D 35404E 8408 9161140814 9161140816
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-69035

VG20..ATM

N=19,W/AUTO DRIVE

 1
33403-69036

VG20..ATM

N=19,W/AUTO DRIVE

 1
35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90386-09008

VG20..ATM

 1
35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90386-09008

VG20..ATM

 1
35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90386-09008

VG20..ATM

 1
35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

VG2#,3#..ATM

 1
35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

VG2#,3#..ATM

 1
35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

VG2#,3#..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

VG2#,3#..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

VG2#,3#..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

VG2#,3#..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

VG2#,3#..ATM

 1
Common parts
91611-40814
91611-40816
Linked diagrams
8408
