VG20-C (1967)
Toyota Century
Production
Nov 1967
-
Feb 1973
Engine
3V
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

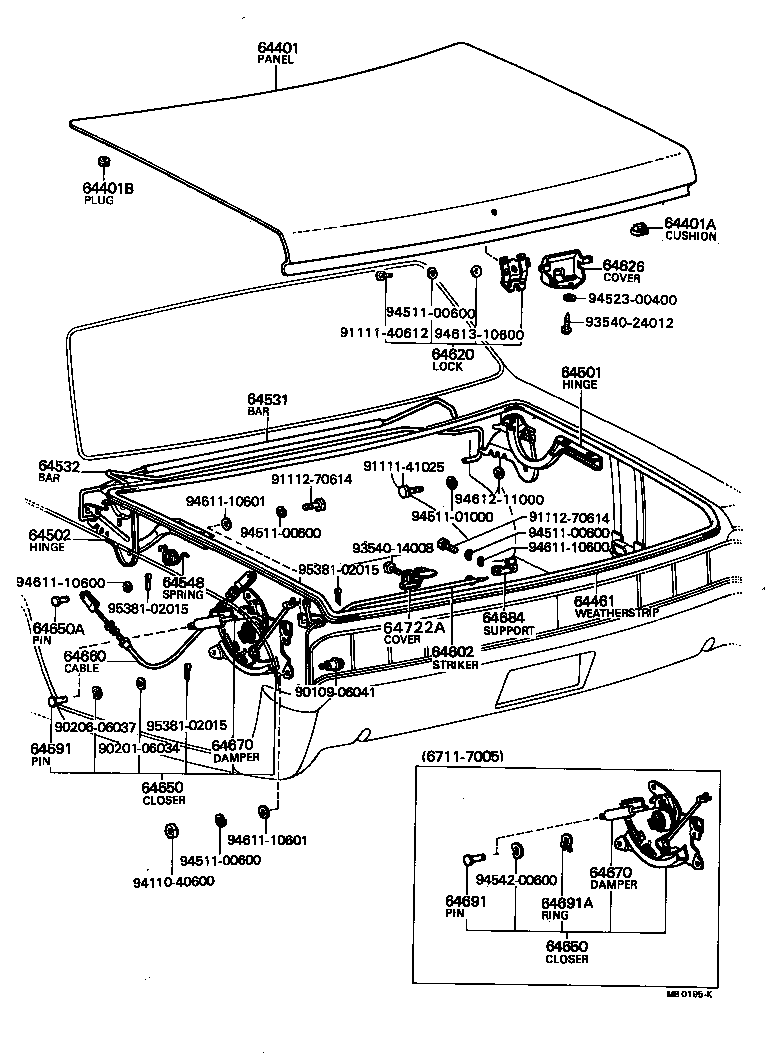

ILLUST NO. 1 OF 2(6711- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-91403 |
VG2#..A,C,D |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 64493-91401 |
VG2#,30 |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90480-15007 |
VG20..A,C,D OD=15,ID=7 |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64481-91402 |
VG2#,30 |
1 | ||
| 64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64503-91401 |
VG2#..ATM |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-91402 |
VG2#,3# |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-91402 |
VG2#,3# |
1 | ||
| 64548 - SPRING, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64548-91401 |
VG20..A,C,D |
1 | ||
| 90508-20225 |
VG20..A,C,D |
1 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64602-91901 |
VG20 |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-91901 |
VG20 |
1 | ||
| 64626 - COVER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64626-91401 |
VG2#..A,C,D |
1 | ||
| 64691 - PIN, CLOSER DAMPER | ||||
| 64691-40010 |
VG20..A,C,D |
2 | ||
| 64691 - PIN, CLOSER DAMPER | ||||
| 64691-40010 |
VG20..A,C,D |
2 | ||
| 64691A - RING, E(FOR CLOSER DAMPER PIN) | ||||
| 96160-00500 |
VG20..A,C,D |
2 | ||
| Common parts | ||||
| 90109-06041 | ||||
| 90201-06034 | ||||
| 90206-06037 | ||||
| 91111-40612 | ||||
| 91111-41025 | ||||
| 91112-70614 | ||||
| 93540-14008 | ||||
| 93540-24012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94523-00400 | ||||
| 94542-00600 | ||||
| 94611-10600 | ||||
| 94611-10601 | ||||
| 94612-11000 | ||||
| 94613-10600 | ||||
| 95381-02015 | ||||

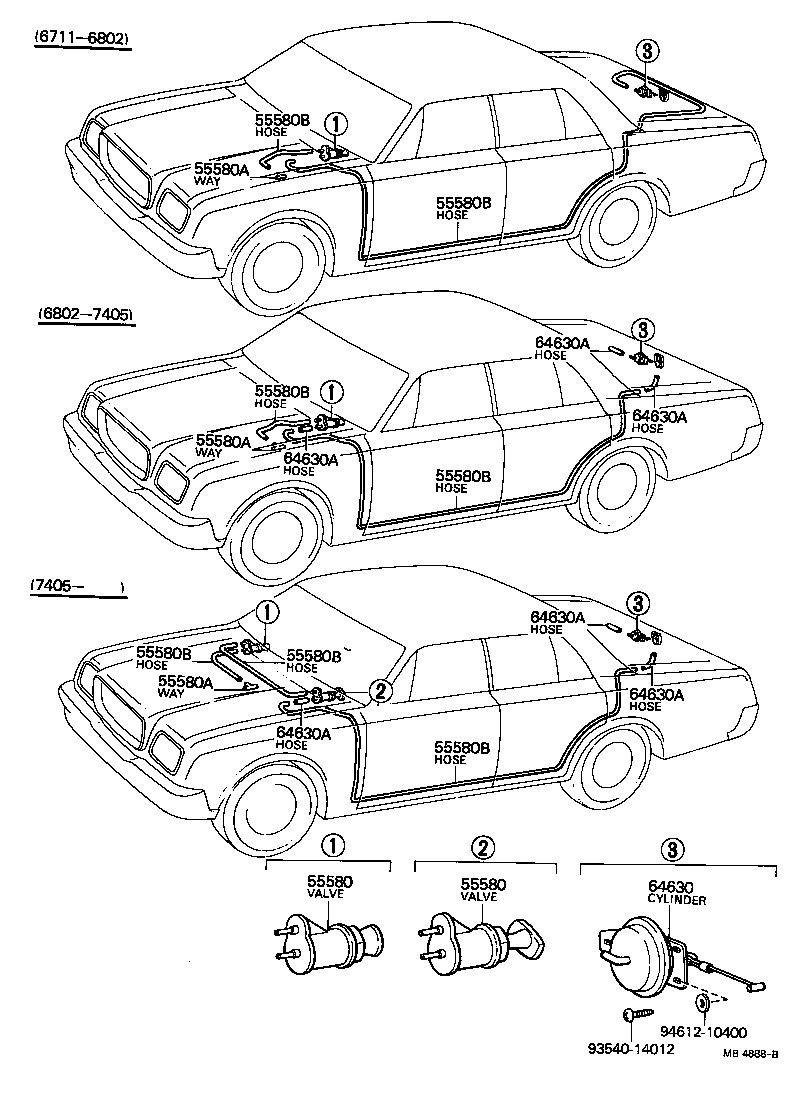

ILLUST NO. 2 OF 2(6711- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55580 - VALVE ASSY, LUGGAGE LOCK RELEASE | ||||
| 55580-40010 |
VG2#..A,C,D |
1 | ||
| 55580 - VALVE ASSY, LUGGAGE LOCK RELEASE | ||||
| 55580-40010 |
VG2#..A,C,D |
1 | ||
| 55580A - WAY, 3(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90413-04057 |
VG20..A,C,D |
1 | ||
| 55580A - WAY, 3(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90413-04057 |
VG20..A,C,D |
1 | ||
| 55580A - WAY, 3(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90413-04057 |
VG20..A,C,D |
1 | ||
| 55580B - HOSE(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90445-07090 |
VG20..A,C,D L=860 |
1 | ||
| 90445-07324 |
VG20..A,C,D L=6000 |
1 | ||
| 55580B - HOSE(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90445-07090 |
VG20..A,C,D L=860 |
1 | ||
| 90445-07324 |
VG20..A,C,D L=6000 |
1 | ||
| 55580B - HOSE(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90445-07090 |
VG20..A,C,D L=860 |
1 | ||
| 90445-07324 |
VG20..A,C,D L=6000 |
1 | ||
| 55580B - HOSE(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90445-07090 |
VG20..A,C,D L=860 |
1 | ||
| 90445-07324 |
VG20..A,C,D L=6000 |
1 | ||
| 55580B - HOSE(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90445-07090 |
VG20..A,C,D L=860 |
1 | ||
| 90445-07324 |
VG20..A,C,D L=6000 |
1 | ||
| 55580B - HOSE(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90445-07090 |
VG20..A,C,D L=860 |
1 | ||
| 90445-07324 |
VG20..A,C,D L=6000 |
1 | ||
| 55580B - HOSE(FOR LUGGAGE LOCK RELEASE VALVE) | ||||
| 90445-07090 |
VG20..A,C,D L=860 |
1 | ||
| 90445-07324 |
VG20..A,C,D L=6000 |
1 | ||
| 64630 - CYLINDER ASSY, LUGGAGE LOCK RELEASE | ||||
| 64630-40010 |
VG2#,3#..A,C,D |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
| 94612-10400 | ||||
