VG20-C (1967)
Toyota Century
Production
Nov 1967
-
Feb 1973
Engine
3V
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(6711-7302)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44607 - TUBE SUB-ASSY, CHECK VALVE | ||||
| 44607-40030 |
VG20 CHECK VALVE |
1 | ||
| 44607-40031 |
VG20 CHECK VALVE |
1 | ||
| 44607-40020 |
VG20 MASTER CYLINDER |
1 | ||
| 44607A - RING, HOLE SNAP(FOR CHECK VALVE TUBE) | ||||
| 96151-01600 |
VG20 |
1 | ||
| 90521-17027 |
VG20 |
1 | ||
| 90521-17027 |
VG20 |
2 | ||
| 44607B - RING, O(FOR CHECK VALVE TUBE) | ||||
| 90301-11079 |
VG20 |
1 | ||
| 90301-11079 |
VG20 |
2 | ||
| 96720-02011 |
VG20 |
1 | ||
| 44691 - BODY, CHECK VALVE | ||||
| 44691-40010 |
VG20 |
1 | ||
| 44693 - CONNECTOR, BOOSTER VALVE | ||||
| 44693-40010 |
VG20 |
1 | ||
| 44693A - SPRING, COMPRESSION(FOR BOOSTER VALVE CONNECTOR) | ||||
| 90501-03367 |
VG20 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-40011 |
VG20 |
1 | ||
| 44704-40010 |
VG20 |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 90445-14112 |
VG20 L=530 |
1 | ||
| 90445-14608 |
VG20 L=580 |
1 | ||
| 90445-14140 |
VG20 L=580 |
1 | ||
| 90445-14140 |
VG20 L=580 |
2 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 90445-14112 |
VG20 L=530 |
1 | ||
| 90445-14608 |
VG20 L=580 |
1 | ||
| 90445-14140 |
VG20 L=580 |
1 | ||
| 90445-14140 |
VG20 L=580 |
2 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90467-13015 |
VG20 |
4 | ||
| 90468-18055 |
VG20 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90467-13015 |
VG20 |
4 | ||
| 90468-18055 |
VG20 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90467-13015 |
VG20 |
4 | ||
| 90468-18055 |
VG20 DOUBLE CLIP |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 90467-13015 |
VG20 |
4 | ||
| 90468-18055 |
VG20 DOUBLE CLIP |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44693-40010 |
VG20 BOOSTER SIDE |
1 | ||
| 44730-40011 |
VG20 |
1 | ||
| 44730-40010 |
VG20 RESERVOIR SIDE |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||

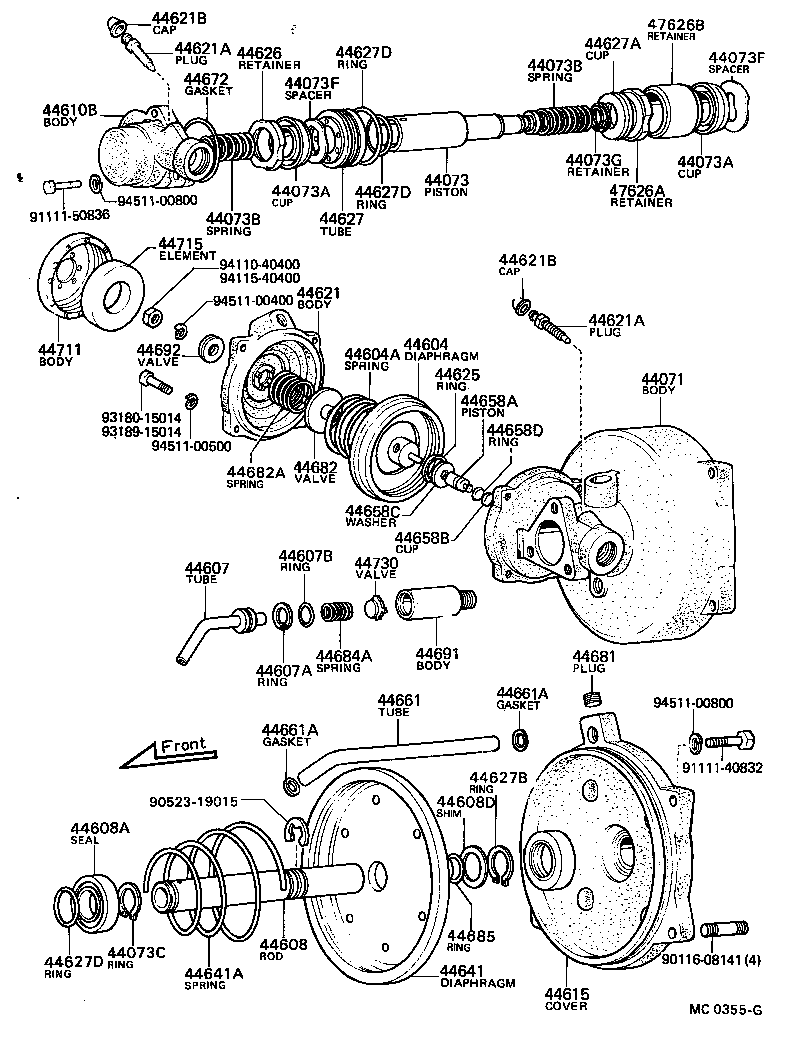

ILLUST NO. 1 OF 2(6711-6903)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44071 - BODY SUB-ASSY, BOOSTER | ||||
| 47211-40030 |
VG20 |
1 | ||
| 47211-40032 |
VG20 |
1 | ||
| 47211-40033 |
VG20 |
1 | ||
| 44073 - PISTON, BOOSTER HYDRAULIC REPLACEMENT | ||||
| 47204-40021 |
VG20 |
1 | ||
| 47204-40020 |
VG20 |
1 | ||
| 44073A - CUP, CYLINDER(FOR HYDRAULIC PISTON) | ||||
| 90947-01072 |
VG20 |
2 | ||
| 44073A - CUP, CYLINDER(FOR HYDRAULIC PISTON) | ||||
| 90947-01072 |
VG20 |
2 | ||
| 44073B - SPRING(FOR HYDRAULIC VALVE) | ||||
| 90501-18450 |
VG20 RR |
1 | ||
| 90501-18366 |
VG20 RR |
1 | ||
| 90501-16361 |
VG20 FR |
1 | ||
| 44073B - SPRING(FOR HYDRAULIC VALVE) | ||||
| 90501-18450 |
VG20 RR |
1 | ||
| 90501-18366 |
VG20 RR |
1 | ||
| 90501-16361 |
VG20 FR |
1 | ||
| 44073C - RING, HOLE SNAP(FOR BOOSTER HYDRAULIC PISTON) | ||||
| 90520-20095 |
VG20 |
1 | ||
| 44073F - SPACER, MASTER CYLINDER PISTON CUP | ||||
| 47242-40030 |
VG20 |
2 | ||
| 44073F - SPACER, MASTER CYLINDER PISTON CUP | ||||
| 47242-40030 |
VG20 |
2 | ||
| 44073G - RETAINER, PISTON RETURN SPRING | ||||
| 47245-40030 |
VG20 |
1 | ||
| 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE | ||||
| 44601-40010 |
VG20 |
1 | ||
| 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) | ||||
| 90501-14363 |
VG20 |
1 | ||
| 44607 - TUBE SUB-ASSY, CHECK VALVE | ||||
| 44607-40030 |
VG20 CHECK VALVE |
1 | ||
| 44607-40031 |
VG20 CHECK VALVE |
1 | ||
| 44607-40020 |
VG20 MASTER CYLINDER |
1 | ||
| 44607A - RING, HOLE SNAP(FOR CHECK VALVE TUBE) | ||||
| 96151-01600 |
VG20 |
1 | ||
| 90521-17027 |
VG20 |
1 | ||
| 90521-17027 |
VG20 |
2 | ||
| 44607B - RING, O(FOR CHECK VALVE TUBE) | ||||
| 90301-11079 |
VG20 |
1 | ||
| 90301-11079 |
VG20 |
2 | ||
| 96720-02011 |
VG20 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 47241-40030 |
VG20 |
1 | ||
| 47241-40031 |
VG20 |
1 | ||
| 44076-40010 |
VG20 |
1 | ||
| 44608A - SEAL, OIL(FOR PUSH ROD DUST) | ||||
| 90310-22025 |
VG20 |
2 | ||
| 44608D - SHIM(FOR BOOSTER PUSH ROD) | ||||
| 90564-22123 |
VG20 T=0.1 |
2 | ||
| 90564-22124 |
VG20 T=0.3 |
2 | ||
| 44610B - BODY, HYDRAULIC CYLINDER | ||||
| 47213-40020 |
VG20 |
1 | ||
| 44615 - COVER, BOOSTER SHELL | ||||
| 44612-40020 |
VG20 |
1 | ||
| 44621 - BODY, BOOSTER VALVE | ||||
| 44652-40020 |
VG20 |
1 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-40010 |
VG20 |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-40010 |
VG20 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 47548-20010 |
VG20 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 47548-20010 |
VG20 |
2 | ||
| 44625 - RING, BOOSTER STOP WASHER SNAP | ||||
| 44625-36020 |
VG20 |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 47249-40010 |
VG20 |
1 | ||
| 44627 - TUBE, BOOSTER CYLINDER | ||||
| 47216-40010 |
VG20 |
1 | ||
| 44627A - CUP, CYLINDER(FOR BOOSTER ROD) | ||||
| 90947-01073 |
VG20 |
1 | ||
| 44627B - RING, HOLE SNAP(FOR ROD CUP RETAINER) | ||||
| 90520-21094 |
VG20 |
1 | ||
| 44627D - RING, O(FOR BOOSTER CYLINDER TUBE) | ||||
| 90301-38119 |
VG20 ID=38.5 |
1 | ||
| 90301-21118 |
VG20 ID=21.8 |
2 | ||
| 44627D - RING, O(FOR BOOSTER CYLINDER TUBE) | ||||
| 90301-38119 |
VG20 ID=38.5 |
1 | ||
| 90301-21118 |
VG20 ID=21.8 |
2 | ||
| 44627D - RING, O(FOR BOOSTER CYLINDER TUBE) | ||||
| 90301-38119 |
VG20 ID=38.5 |
1 | ||
| 90301-21118 |
VG20 ID=21.8 |
2 | ||
| 44641 - DIAPHRAGM, BOOSTER | ||||
| 44641-40030 |
VG20 |
1 | ||
| 44075-40020 |
VG20 |
1 | ||
| 44641A - SPRING, COMPRESSION(FOR RETURN) | ||||
| 90502-35024 |
VG20 |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44657-40021 |
VG20 |
1 | ||
| 44657-40020 |
VG20 |
1 | ||
| 44657-40022 |
VG20 |
1 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-36020 |
VG20 |
1 | ||
| 90947-01074 |
VG20 |
1 | ||
| 44658C - WASHER, BOOSTER PISTON STOP | ||||
| 44626-36020 |
VG20 |
1 | ||
| 44658D - RING, O(FOR BOOSTER CONTROL VALVE) | ||||
| 90301-06147 |
VG20 |
1 | ||
| 90301-05116 |
VG20 |
1 | ||
| 44661 - TUBE, BOOSTER VACUUM | ||||
| 44666-40010 |
VG20 |
1 | ||
| 44661A - GASKET OR RING, O(FOR BOOSTER VACUUM TUBE) | ||||
| 96720-01010 |
VG20 |
2 | ||
| 44661A - GASKET OR RING, O(FOR BOOSTER VACUUM TUBE) | ||||
| 96720-01010 |
VG20 |
2 | ||
| 44672 - GASKET, BOOSTER OR RING, O | ||||
| 90301-41117 |
VG20 |
1 | ||
| 44681 - PLUG, BOOSTER | ||||
| 90344-51010 |
VG20 |
1 | ||
| 44682 - VALVE, BOOSTER VACUUM | ||||
| 44603-40011 |
VG20 |
1 | ||
| 44603-40010 |
VG20 |
1 | ||
| 44682A - SPRING, COMPRESSION(FOR VACUUM VALVE) | ||||
| 90501-08362 |
VG20 |
1 | ||
| 44684A - SPRING, BOOSTER CHECK VALVE | ||||
| 90501-03367 |
VG20 |
1 | ||
| 44685 - RING, O OR GROMMET(FOR BOOSTER PISTON ROD END) | ||||
| 96720-02018 |
VG20 |
1 | ||
| 44691 - BODY, CHECK VALVE | ||||
| 44691-40010 |
VG20 |
1 | ||
| 44692 - VALVE, BOOSTER AIR | ||||
| 44692-36020 |
VG20 |
1 | ||
| 44711 - BODY, AIR CLEANER(FOR BOOSTER) | ||||
| 44712-40010 |
VG20 |
1 | ||
| 44711-22010 |
VG20 |
1 | ||
| 44715 - ELEMENT, AIR CLEANER(FOR BOOSTER) | ||||
| 44715-20020 |
VG20 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44693-40010 |
VG20 BOOSTER SIDE |
1 | ||
| 44730-40011 |
VG20 |
1 | ||
| 44730-40010 |
VG20 RESERVOIR SIDE |
1 | ||
| 47626A - RETAINER, MASTER CYLINDER PISTON CUP, NO.1 | ||||
| 47248-40010 |
VG20 |
1 | ||
| 47626B - RETAINER, MASTER CYLINDER PISTON CUP, NO.2 | ||||
| 47243-40020 |
VG20 |
1 | ||
| Common parts | ||||
| 90116-08141 | ||||
| 90523-19015 | ||||
| 91111-40832 | ||||
| 91111-50836 | ||||
| 93180-15014 | ||||
| 93189-15014 | ||||
| 94110-40400 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||

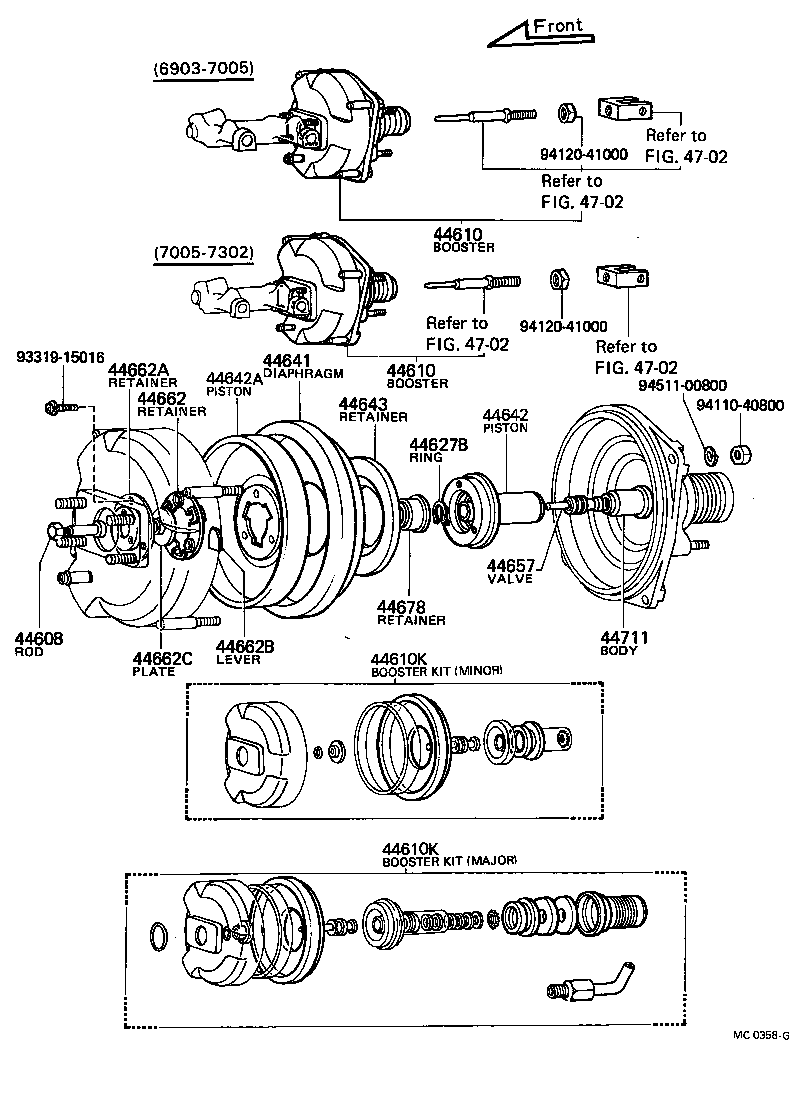

ILLUST NO. 1 OF 2(6903-7302)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 47241-40030 |
VG20 |
1 | ||
| 47241-40031 |
VG20 |
1 | ||
| 44076-40010 |
VG20 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-40010 |
VG20 |
1 | ||
| 44610-40011 |
VG20 |
1 | ||
| 44610-40043 |
VG20 |
1 | ||
| 44610-40012 |
VG20 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-40010 |
VG20 |
1 | ||
| 44610-40011 |
VG20 |
1 | ||
| 44610-40043 |
VG20 |
1 | ||
| 44610-40012 |
VG20 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-40010 |
VG20 MAJOR KIT |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-40010 |
VG20 MAJOR KIT |
1 | ||
| 44627B - RING, HOLE SNAP(FOR ROD CUP RETAINER) | ||||
| 90520-21094 |
VG20 |
1 | ||
| 44641 - DIAPHRAGM, BOOSTER | ||||
| 44641-40030 |
VG20 |
1 | ||
| 44075-40020 |
VG20 |
1 | ||
| 44642A - PISTON, BOOSTER, NO.2 | ||||
| 44645-40010 |
VG20 |
1 | ||
| 44657 - VALVE, BOOSTER AIR | ||||
| 44652-40030 |
VG20 |
1 | ||
| 44657-40030 |
VG20 |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44672-40010 |
VG20 |
1 | ||
| 44663-40020 |
VG20 |
1 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44658-40020 |
VG20 |
1 | ||
| 44653-40020 |
VG20 |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-40010 |
VG20 |
1 | ||
| 44711 - BODY, AIR CLEANER(FOR BOOSTER) | ||||
| 44712-40010 |
VG20 |
1 | ||
| 44711-22010 |
VG20 |
1 | ||
| Common parts | ||||
| 93319-15016 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
