VG20-C (1967)

Toyota Century

Production Nov 1967 - Feb 1973
Engine 3V
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(6711- )ATM

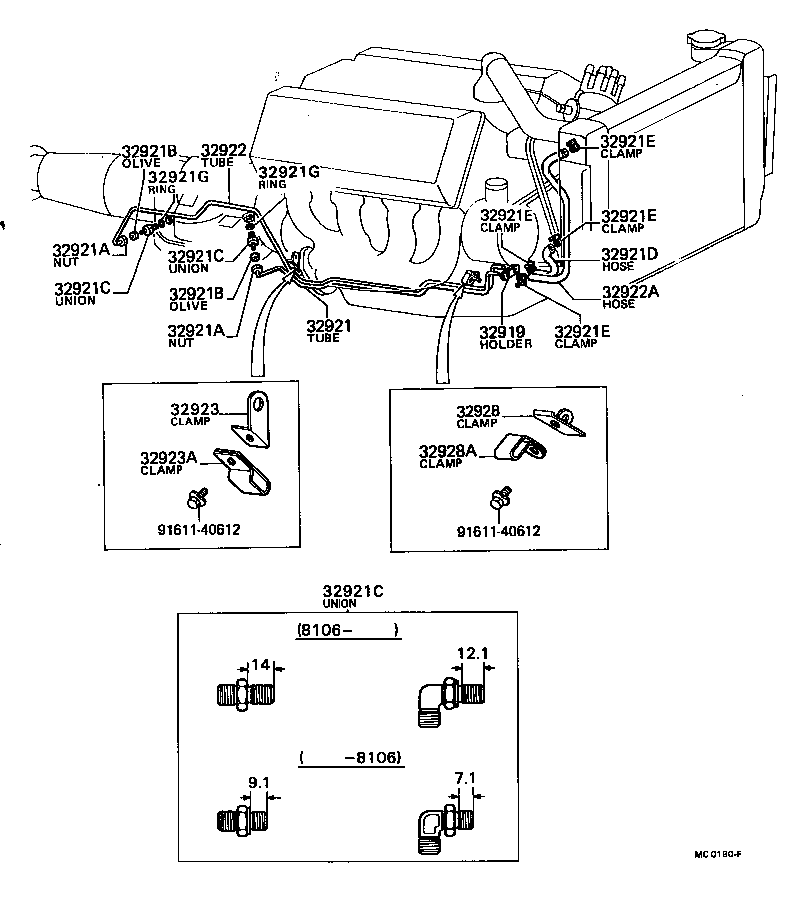

Click highlighted areas on diagram

diagram 32919 32921 32921A 32921A 32921B 32921B 32921C 32921C 32921C 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32922 32922A 32923 32923A 32928 32928A 9161140612 9161140612
Part # Description Qty Price
32919 - HOLDER, OIL COOLER TUBE
32919-40010

VG20..ATM

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-40020

VG20..ATM

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

VG2#,3#..ATM

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

VG2#,3#..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

VG2#,3#..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

VG2#,3#..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

VG2#,3#..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

VG2#,3#..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13105

VG2#,3#..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-14407

VG20..ATM

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-01075

VG20..ATM

 4
90460-14045

VG20..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-01075

VG20..ATM

 4
90460-14045

VG20..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-01075

VG20..ATM

 4
90460-14045

VG20..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-01075

VG20..ATM

 4
90460-14045

VG20..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-40020

VG20..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-14230

VG20..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-40010

VG2#,3#..ATM

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08076

VG2#..ATM

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-40010

VG20..ATM

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-08292

VG2#,3#..ATM

 1
Common parts
91611-40612
