VG20-B (1967)
Toyota Century
Production
Nov 1967
-
Feb 1973
Engine
3V
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)

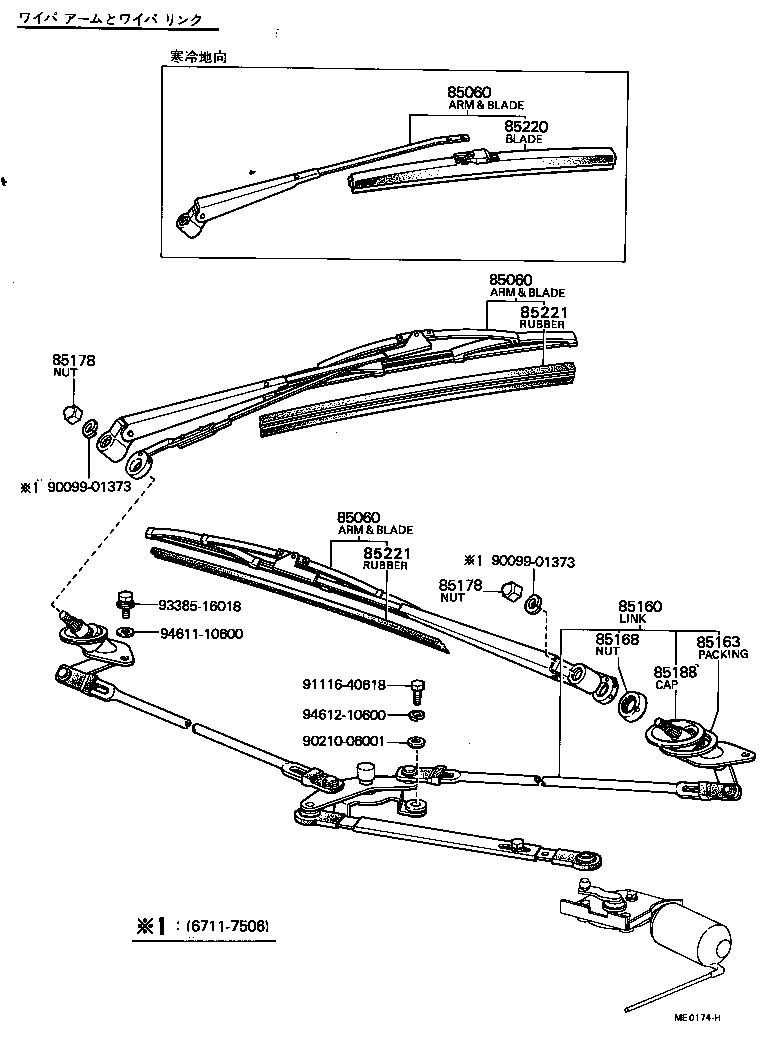

ILLUST NO. 1 OF 2(6711- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85060 - ARM AND BLADE ASSY, WINDSHIELD WIPER | ||||
| 85060-40021 |
VG20 RH,MARK=A |
1 | ||
| 85070-40030 |
VG20 LH,MARK=B |
1 | ||
| 85060-40022 |
VG20 RH,MARK=A |
1 | ||
| 85070-40022 |
VG20 LH,MARK=A |
1 | ||
| 85060-40031 |
VG20 RH,MARK=B |
1 | ||
| 85060-40030 |
VG20 RH,MARK=B |
1 | ||
| 85070-40021 |
VG20 LH,MARK=A |
1 | ||
| 85070-40031 |
VG20 LH,MARK=B |
1 | ||
| 85070-40023 |
VG20 LH |
1 | ||
| 85060-40023 |
VG20 RH |
1 | ||
| 85060 - ARM AND BLADE ASSY, WINDSHIELD WIPER | ||||
| 85060-40021 |
VG20 RH,MARK=A |
1 | ||
| 85070-40030 |
VG20 LH,MARK=B |
1 | ||
| 85060-40022 |
VG20 RH,MARK=A |
1 | ||
| 85070-40022 |
VG20 LH,MARK=A |
1 | ||
| 85060-40031 |
VG20 RH,MARK=B |
1 | ||
| 85060-40030 |
VG20 RH,MARK=B |
1 | ||
| 85070-40021 |
VG20 LH,MARK=A |
1 | ||
| 85070-40031 |
VG20 LH,MARK=B |
1 | ||
| 85070-40023 |
VG20 LH |
1 | ||
| 85060-40023 |
VG20 RH |
1 | ||
| 85060 - ARM AND BLADE ASSY, WINDSHIELD WIPER | ||||
| 85060-40021 |
VG20 RH,MARK=A |
1 | ||
| 85070-40030 |
VG20 LH,MARK=B |
1 | ||
| 85060-40022 |
VG20 RH,MARK=A |
1 | ||
| 85070-40022 |
VG20 LH,MARK=A |
1 | ||
| 85060-40031 |
VG20 RH,MARK=B |
1 | ||
| 85060-40030 |
VG20 RH,MARK=B |
1 | ||
| 85070-40021 |
VG20 LH,MARK=A |
1 | ||
| 85070-40031 |
VG20 LH,MARK=B |
1 | ||
| 85070-40023 |
VG20 LH |
1 | ||
| 85060-40023 |
VG20 RH |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-40032 |
VG20 |
1 | ||
| 85163 - PACKING, WINDSHIELD WIPER PIVOT | ||||
| 85163-40021 |
VG2#,3# |
2 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 90099-05098 |
VG2#,3# |
2 | ||
| 85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1 | ||||
| 85181-40021 |
VG2# RH |
1 | ||
| 85182-40021 |
VG2# LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-30063 |
VG20 COLD SPEC |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-40021 |
VG20 |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-40021 |
VG20 |
2 | ||
| Common parts | ||||
| 90099-01373 | ||||
| 90210-06001 | ||||
| 91116-40618 | ||||
| 93385-16018 | ||||
| 94611-10600 | ||||
| 94612-10600 | ||||

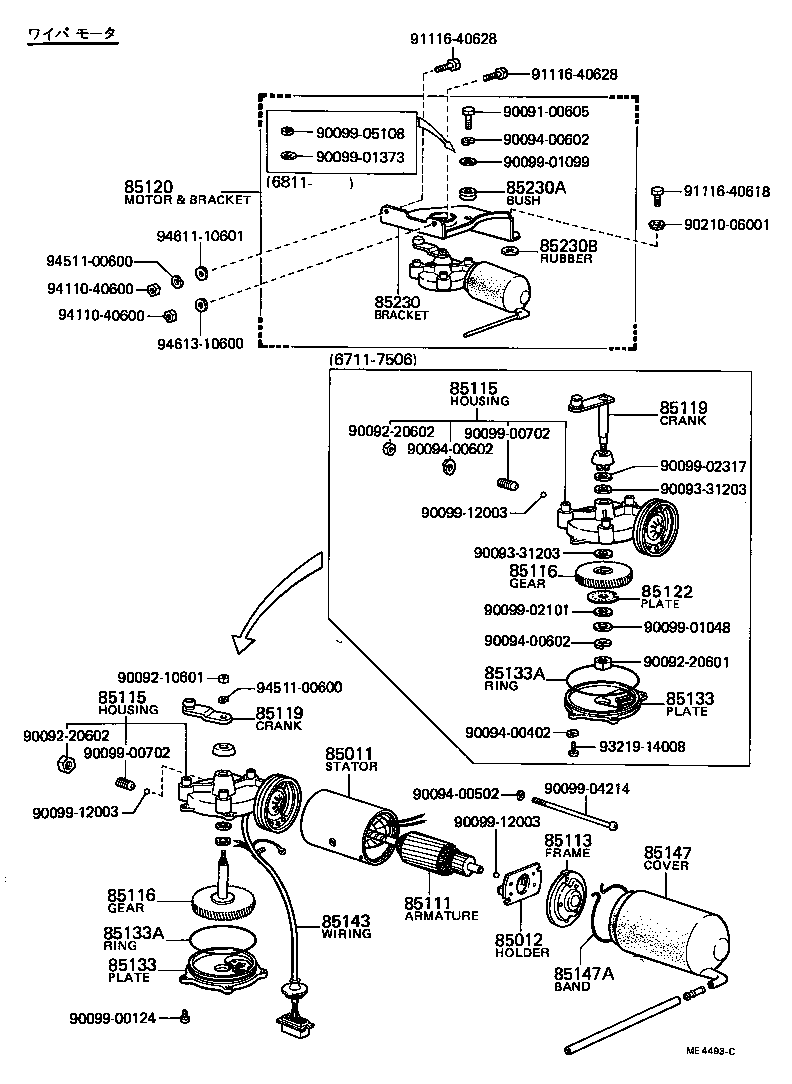

ILLUST NO. 2 OF 2(6711- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85011 - STATOR SUB-ASSY, WINDSHIELD WIPER MOTOR | ||||
| 85011-40020 |
VG2#,3# |
1 | ||
| 85012 - HOLDER SUB-ASSY, WINDSHIELD WIPER MOTOR BRUSH | ||||
| 85012-10010 |
VG2#,3# |
1 | ||
| 85111 - ARMATURE, WINDSHIELD WIPER MOTOR | ||||
| 85111-40011 |
VG20 |
1 | ||
| 85111-40010 |
VG20 |
1 | ||
| 85113 - FRAME, WINDSHIELD WIPER MOTOR END | ||||
| 85113-30020 |
VG2#,3# |
1 | ||
| 85115 - HOUSING, WINDSHIELD WIPER MOTOR GEAR | ||||
| 85115-40021 |
VG2# |
1 | ||
| 85115 - HOUSING, WINDSHIELD WIPER MOTOR GEAR | ||||
| 85115-40021 |
VG2# |
1 | ||
| 85116 - GEAR, WINDSHIELD WIPER MOTOR | ||||
| 85116-40021 |
VG20 |
1 | ||
| 85116 - GEAR, WINDSHIELD WIPER MOTOR | ||||
| 85116-40021 |
VG20 |
1 | ||
| 85119 - CRANK, WINDSHIELD WIPER MOTOR | ||||
| 85014-40022 |
VG2# |
1 | ||
| 85119 - CRANK, WINDSHIELD WIPER MOTOR | ||||
| 85014-40022 |
VG2# |
1 | ||
| 85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER | ||||
| 85120-40022 |
VG20 |
1 | ||
| 85122 - PLATE, WINDSHIELD WIPER MOTOR CAM | ||||
| 85122-12010 |
VG2# |
1 | ||
| 85133 - PLATE, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER | ||||
| 85133-40021 |
VG2# |
1 | ||
| 85133 - PLATE, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER | ||||
| 85133-40021 |
VG2# |
1 | ||
| 85133A - RING, O (FOR WINDSHIELD WIPER MOTOR GEAR HOUSING COVER) | ||||
| 90099-14024 |
VG2#,3# |
1 | ||
| 85133A - RING, O (FOR WINDSHIELD WIPER MOTOR GEAR HOUSING COVER) | ||||
| 90099-14024 |
VG2#,3# |
1 | ||
| 85143 - WIRING, WINDSHIELD WIPER MOTOR LEAD | ||||
| 85143-40022 |
VG20 |
1 | ||
| 85147 - COVER, WINDSHIELD WIPER MOTOR | ||||
| 85135-40020 |
VG2#,3# |
1 | ||
| 85147A - BAND, WINDSHIELD WIPER MOTOR COVER | ||||
| 85147-40020 |
VG2#,3# |
1 | ||
| 85230 - BRACKET ASSY, WINDSHIELD WIPER | ||||
| 85231-40021 |
VG2#,3# |
1 | ||
| 85230A - BUSH, WINDSHIELD WIPER BRACKET | ||||
| 85235-30020 |
VG20 |
3 | ||
| 85230B - RUBBER, WINDSHIELD WIPER BRACKET | ||||
| 85174-40020 |
VG20 |
4 | ||
| Common parts | ||||
| 90091-00605 | ||||
| 90092-10601 | ||||
| 90092-20601 | ||||
| 90092-20602 | ||||
| 90093-31203 | ||||
| 90094-00402 | ||||
| 90094-00502 | ||||
| 90094-00602 | ||||
| 90099-00124 | ||||
| 90099-00702 | ||||
| 90099-01048 | ||||
| 90099-01099 | ||||
| 90099-01373 | ||||
| 90099-02101 | ||||
| 90099-02317 | ||||
| 90099-04214 | ||||
| 90099-05108 | ||||
| 90099-12003 | ||||
| 90210-06001 | ||||
| 91116-40618 | ||||
| 91116-40628 | ||||
| 93219-14008 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 94613-10600 | ||||
