VG20-A (1967)
Toyota Century
Production
Nov 1967
-
Sep 1971
Engine
3V
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

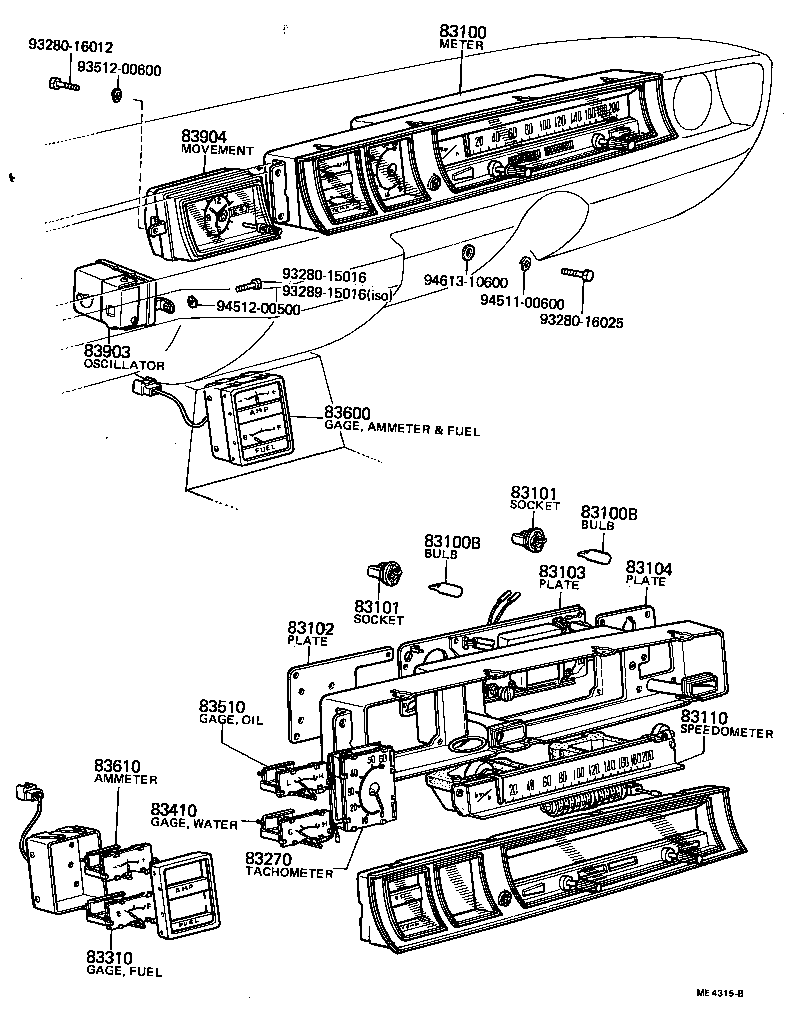

ILLUST NO. 1 OF 2(6711-7109)A
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83100-40040 |
VG20..A |
1 | ||
| 83100-40041 |
VG20..A |
1 | ||
| 83100-40042 |
VG20..A |
1 | ||
| 83100-40043 |
VG20..A |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
VG2#,3# 12V 3.4W,12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
VG2#,3# 12V 3.4W,12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12010 |
VG2#,3# |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12010 |
VG2#,3# |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-40040 |
VG20..A |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83102-40031 |
VG20 |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83102-40010 |
VG2#,3# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-40010 |
VG20 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-40010 |
VG20..A |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-40020 |
VG20..A |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-40020 |
VG20 |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83510-40020 |
VG2#,3# |
1 | ||
| 83600 - GAGE ASSY, AMMETER AND OIL PRESSURE OR FUEL RECEIVER | ||||
| 83600-40010 |
VG20..A |
1 | ||
| 83610 - AMMETER ASSY | ||||
| 83610-40010 |
VG20 |
1 | ||
| 83903 - OSCILLATOR SUB-ASSY, CLOCK | ||||
| 83903-40010 |
VG20 |
1 | ||
| 83904 - MOVEMENT SUB-ASSY, CLOCK | ||||
| 83904-40010 |
VG2# |
1 | ||
| Common parts | ||||
| 93280-15016 | ||||
| 93280-16012 | ||||
| 93280-16025 | ||||
| 93289-15016 | ||||
| 93512-00600 | ||||
| 94511-00600 | ||||
| 94512-00500 | ||||
| 94613-10600 | ||||

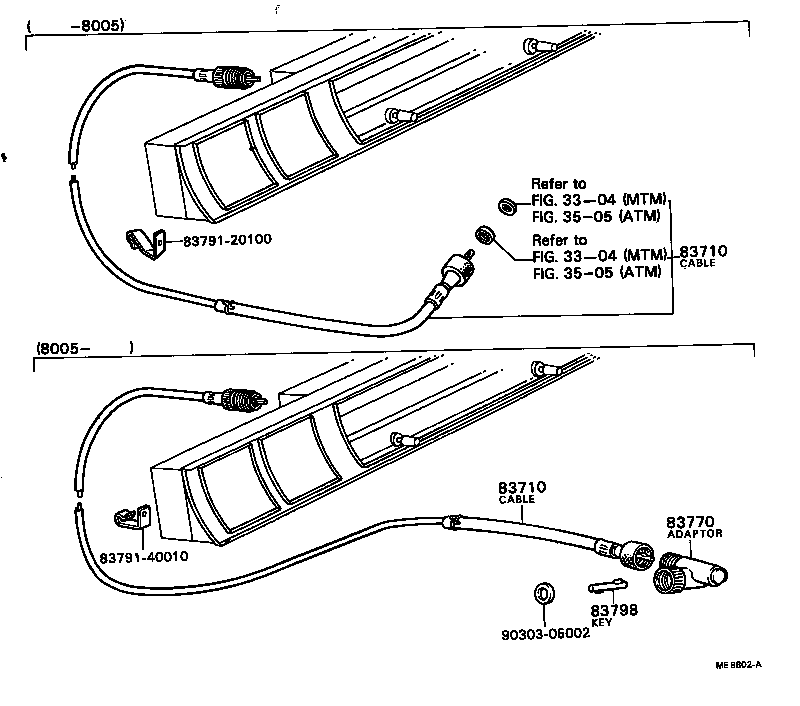

ILLUST NO. 2 OF 2(6711- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-59015 |
VG20 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-59015 |
VG20 |
1 | ||
| Common parts | ||||
| 83791-20100 | ||||
| 83791-40010 | ||||
| 90303-05002 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
