VG20-A (1967)
Toyota Century
Production
Nov 1967
-
Sep 1971
Engine
3V
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6711- )

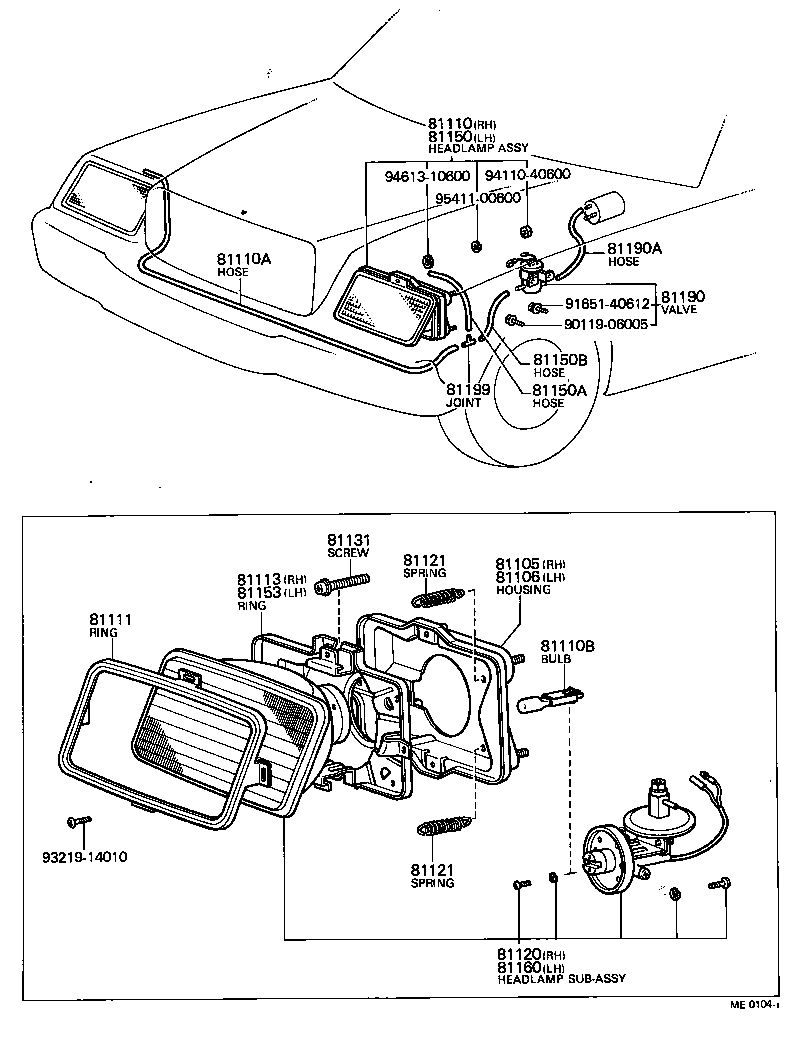

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-40030 |
VG2#,3# |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-40020 |
VG2#,3# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-49016 |
VG2#,3# |
1 | ||
| 81110A - HOSE(FOR HEADLAMP RH TO JOINT) | ||||
| 90445-07269 |
VG20 L=1800 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-11008 |
VG2#,3# 12V 75W |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-40030 |
VG2#,3# RH |
1 | ||
| 81151-40020 |
VG2#,3# LH |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-40030 |
VG20 |
1 | ||
| 81120 - HEADLAMP SUB-ASSY, RH | ||||
| 81120-40031 |
VG2#,3# |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-40030 |
VG2#,3# LWR |
2 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-40030 |
VG2#,3# LWR |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-40030 |
VG2#,3# |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-49016 |
VG2#,3# |
1 | ||
| 81150A - HOSE(FOR HEADLAMP LH TO JOINT) | ||||
| 90445-07268 |
VG2#,3# L=580 |
1 | ||
| 81150B - HOSE(FOR HEADLAMP HOSE JOINT TO MAGNET VALVE) | ||||
| 90445-07267 |
VG2# L=480 |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-40020 |
VG20 |
1 | ||
| 81160 - HEADLAMP SUB-ASSY, LH | ||||
| 81160-40021 |
VG2#,3# |
1 | ||
| 81190 - VALVE ASSY, HEADLAMP MAGNET | ||||
| 81190-49015 |
VG2#,3# |
1 | ||
| 81190A - HOSE, MAGNET VALVE TO SWITCH | ||||
| 90445-07241 |
VG2# L=1040 |
1 | ||
| 81199 - JOINT, HEADLAMP HOSE | ||||
| 81199-40010 |
VG2#,3# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91651-40612 | ||||
| 93219-14010 | ||||
| 94110-40600 | ||||
| 94613-10600 | ||||
| 95411-00600 | ||||
