VG20-A (1967)

Toyota Century

Production Nov 1967 - Sep 1971
Engine 3V
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(6711- )

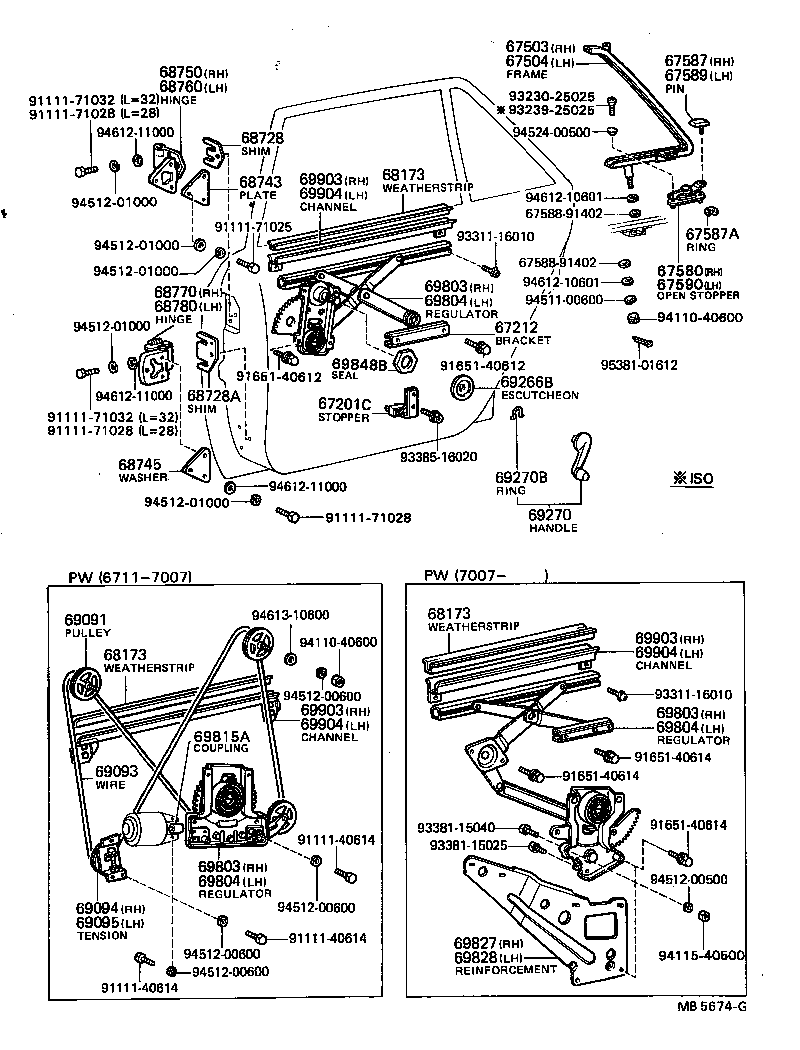

Click highlighted areas on diagram

diagram 67201C 67212 67503 67504 67580 67587 67587A 6758891402 6758891402 67589 67590 68173 68173 68173 68728 68728A 68743 68745 68750 68760 68770 68780 69091 69093 69094 69095 69266B 69270 69270B 69803 69803 69803 69804 69804 69804 69815A 69827 69828 69848B 69903 69903 69903 69904 69904 69904 9111140614 9111140614 9111140614 9111171025 9111171028 9111171028 9111171028 9111171032 9111171032 9165140612 9165140612 9165140614 9165140614 9165140614 9323025025 9323925025 9331116010 9331116010 9338115025 9338115040 9338516020 9411040600 9411040600 9411540500 9451100600 9451200500 9451200600 9451200600 9451200600 9451200600 9451201000 9451201000 9451201000 9451201000 9451201000 9452400500 9461210601 9461210601 9461211000 9461211000 9461211000 9461310600 9538101612
Part # Description Qty Price
67503 - FRAME SUB-ASSY, REAR DOOR VENTILATING WINDOW, RH
67503-91403

VG2#..A,C,D

 1
67504 - FRAME SUB-ASSY, REAR DOOR VENTILATING WINDOW, LH
67504-91403

VG2#..A,C,D

 1
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
68173-40010

VG20..A,C,D

W/*PW

 2
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
68173-40010

VG20..A,C,D

W/*PW

 2
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
68173-40010

VG20..A,C,D

W/*PW

 2
68728 - SHIM, REAR DOOR HINGE, UPPER
68727-91402

VG20

 1
68728A - SHIM, REAR DOOR HINGE, LOWER
68728-91401

VG20

 1
68743 - PLATE, REAR DOOR HINGE, UPPER
68743-91402

VG20

 2
68745 - WASHER, REAR DOOR HINGE, LOWER
68745-91401

VG20

 2
68744-91402

VG20

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-40020

VG20

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68710-40020

VG20

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-40020

VG20

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-40020

VG20

 1
69091 - PULLEY SUB-ASSY, DOOR WINDOW REGULATOR
69091-40020

VG20..A,C,D

 4
69093 - WIRE SUB-ASSY, DOOR WINDOW REGULATOR
69905-40020

VG20..A,C,D

 2
69094 - TENSION SUB-ASSY, WINDOW REGULATOR, NO.1
69092-40020

VG20..A,C,D

 1
69095 - TENSION SUB-ASSY, WINDOW REGULATOR, NO.2
69093-40020

VG20..A,C,D

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-40021

VG20..A,C,D

*PW

 1
69803-40020

VG20..A,C,D

*PW

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-40021

VG20..A,C,D

*PW

 1
69803-40020

VG20..A,C,D

*PW

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-40021

VG20..A,C,D

*PW

 1
69803-40020

VG20..A,C,D

*PW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-40020

VG20..A,C,D

*PW

 1
69804-40021

VG20..A,C,D

*PW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-40020

VG20..A,C,D

*PW

 1
69804-40021

VG20..A,C,D

*PW

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-40020

VG20..A,C,D

*PW

 1
69804-40021

VG20..A,C,D

*PW

 1
69815A - COUPLING, DOOR POWER WINDOW REGULATOR(FOR REAR DOOR)
69815-40020

VG20..A,C,D

 2
69848B - SEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)
69848-30010

VG2#,3#

 2
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69903-40020

VG20..A,C,D

W/*PW

 1
69901-91401

VG20..A,C,D

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69903-40020

VG20..A,C,D

W/*PW

 1
69901-91401

VG20..A,C,D

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69903-40020

VG20..A,C,D

W/*PW

 1
69901-91401

VG20..A,C,D

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69901-91401

VG20..A,C,D

 1
69904-40020

VG20..A,C,D

W/*PW

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69901-91401

VG20..A,C,D

 1
69904-40020

VG20..A,C,D

W/*PW

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69901-91401

VG20..A,C,D

 1
69904-40020

VG20..A,C,D

W/*PW

 1
Common parts
67588-91402
91111-40614
91111-71025
91111-71028
91111-71032
91651-40612
91651-40614
93230-25025
93239-25025
93311-16010
93381-15025
93381-15040
93385-16020
94110-40600
94115-40500
94511-00600
94512-00500
94512-00600
94512-01000
94524-00500
94612-10601
94612-11000
94613-10600
95381-01612
