VG20-A (1967)

Toyota Century

Production Nov 1967 - Sep 1971
Engine 3V
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(6711- )

Click highlighted areas on diagram

diagram 67001 67001B 67001C 67001C 67002 6704 67041 67042 67106 67271 67272 67274 67639 67639 67838 68101 68102 68141 68141 68141 68231 9111140614 9321014012 9324028012 9324028012 9338516020 9451100400 9451100600 9452200800 9452200800 9461210401 9461410600
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-91404

VG20..A,C,D

 1
67001-91409

VG20..A,C,D

 1
67001C - GROMMET(FOR FRONT DOOR PANEL)
90015-30025

VG20

OD=20,ID=16

 2
90015-30029

VG20

OD=35,ID=29

 2
67001C - GROMMET(FOR FRONT DOOR PANEL)
90015-30025

VG20

OD=20,ID=16

 2
90015-30029

VG20

OD=35,ID=29

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-91410

VG20..A,C,D

 1
67002-91404

VG20..A,C,D

 1
67041 - FRAME SUB-ASSY, FRONT DOOR WINDOW, RH
67041-91401

VG2#,3#

 1
67042 - FRAME SUB-ASSY, FRONT DOOR WINDOW, LH
67042-91401

VG2#,3#

 1
67271 - DUCT, FRONT DOOR AIR, RH
67271-91401

VG20

 1
67272 - DUCT, FRONT DOOR AIR, LH
67272-91401

VG20

 1
67639 - WEATHERSTRIP, DOOR CORNER
67638-91402

VG2#,3#

 4
67639 - WEATHERSTRIP, DOOR CORNER
67638-91402

VG2#,3#

 4
67838 - PACKING, FRONT DOOR LOCK HOLE
67851-91401

VG20

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-91401

VG2#,3#

*TT,T=5.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-91401

VG2#,3#

*TT,T=5.0

 1
68141 - RUN, FRONT DOOR GLASS
68140-91401

VG20

FR

 2
68130-91401

VG20

RR

 2
68141 - RUN, FRONT DOOR GLASS
68140-91401

VG20

FR

 2
68130-91401

VG20

RR

 2
68141 - RUN, FRONT DOOR GLASS
68140-91401

VG20

FR

 2
68130-91401

VG20

RR

 2
68231 - SEAL, FRONT DOOR DRAIN HOLE DUST
68231-91401

VG2#,3#

 4
Common parts
91111-40614
93210-14012
93240-28012
93385-16020
94511-00400
94511-00600
94522-00800
94612-10401
94614-10600
Linked diagrams
6704

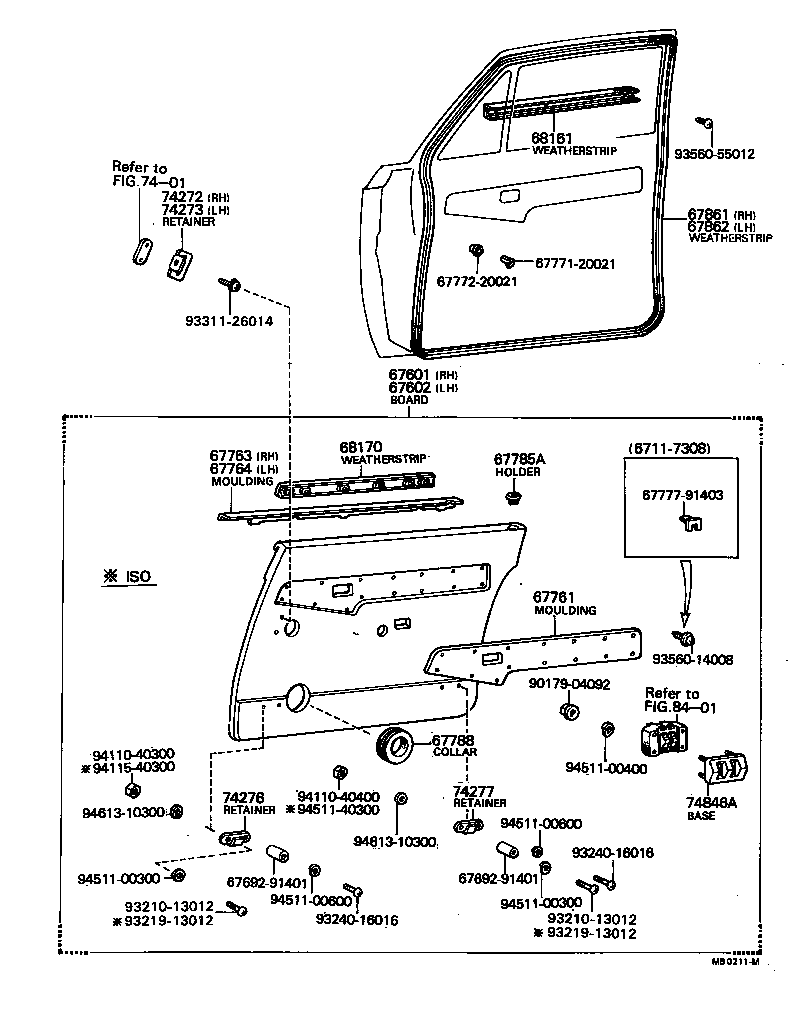

ILLUST NO. 2 OF 2(6711- )

Click highlighted areas on diagram

diagram 67601 67602 6769291401 6769291401 67761 67763 67764 6777120021 6777220021 6777791403 67785A 67788 67861 67862 68161 68170 7401 74272 74273 74276 74277 74846A 8401 9017904092 9321013012 9321013012 9321913012 9321913012 9324016016 9324016016 9331126014 9356014008 9356055012 9411040300 9411040400 9411540300 9451100300 9451100300 9451100400 9451100600 9451100600 9451140300 9461310300 9461310300
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9140701

VG20..A

BLACK,BLACK

 1
67610-9140702

VG20..A

RED,RED/MAROON

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9140702

VG20..A

RED,RED/MAROON

 1
67620-9140701

VG20..A

BLACK,BLACK

 1
67761 - MOULDING, FRONT DOOR TRIM
67762-91403

VG2#..A,C,D

LH

 1
67761-91403

VG2#..A,C,D

RH

 1
67763 - MOULDING, FRONT DOOR TRIM, UPPER RH
67765-91401

VG2#,30

 1
67764 - MOULDING, FRONT DOOR TRIM, UPPER LH
67766-91401

VG2#,30

 1
67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67887-91401

VG2#,3#

 2
67788 - COLLAR, FRONT DOOR TRIM
67788-91401

VG2#

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-91401

VG20

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-91401

VG20

 1
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-91401

VG20

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-91402

VG2#,30

 2
74272 - RETAINER, FRONT DOOR ARMREST FRONT, RH
74272-91401

VG2#,3#

 1
74273 - RETAINER, FRONT DOOR ARMREST FRONT, LH
74273-91401

VG2#,3#

 1
74276 - RETAINER, DOOR ARMREST LOWER, NO.1
67775-91401

VG2#,30

FR-RH,RR-LH

 2
74277 - RETAINER, DOOR ARMREST LOWER, NO.2
67776-91401

VG2#,30

FR-LH,RR-RH

 2
74846A - BASE, FRONT DOOR WINDOW SWITCH
74846-91401

VG20..A,C,D

 2
Common parts
67692-91401
67771-20021
67772-20021
67777-91403
90179-04092
93210-13012
93219-13012
93240-16016
93311-26014
93560-14008
93560-55012
94110-40300
94110-40400
94115-40300
94511-00300
94511-00400
94511-00600
94511-40300
94613-10300
Linked diagrams
7401
8401
