VG20-A (1967)
Toyota Century
Production
Nov 1967
-
Sep 1971
Engine
3V
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6711-6903)

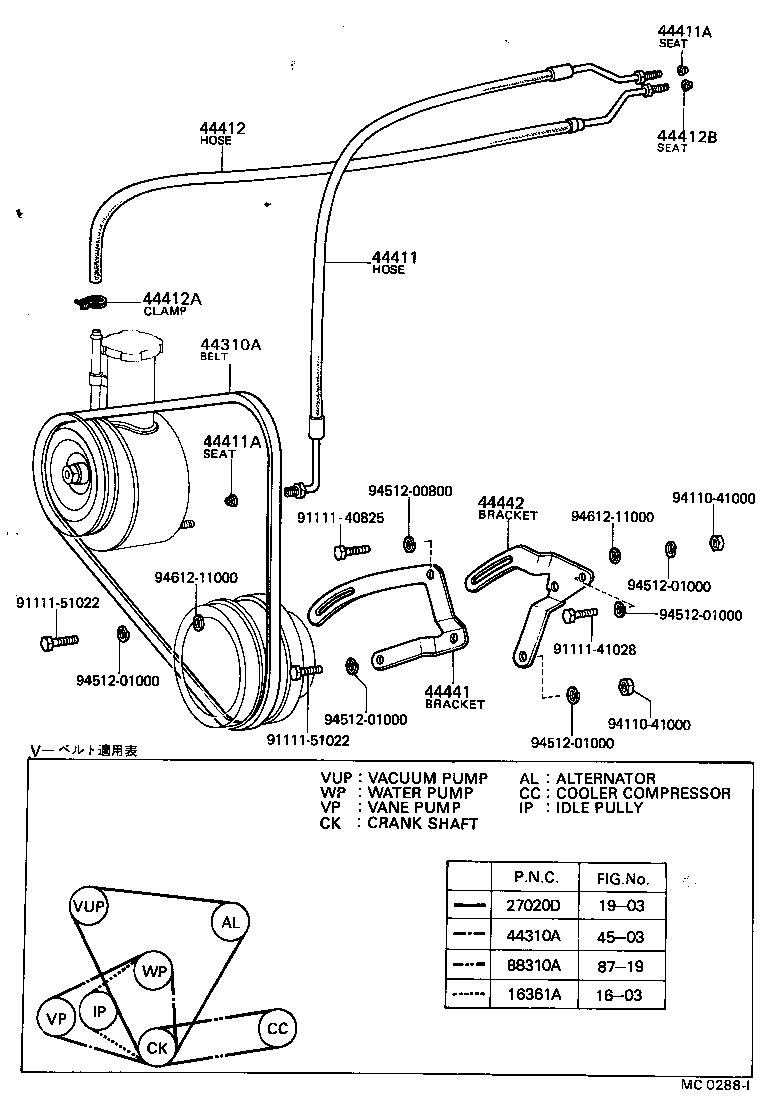

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99522-11000 |
3V..VG20 |
1 | ||
| 27020D - BELT, FAN(FOR ALTERNATOR) | ||||
| 90916-02029 |
3V,4V..VG2# 12V 65A,80A |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99522-11164 |
VG20 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99522-11164 |
VG20 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-40031 |
VG20 |
1 | ||
| 44411-40021 |
VG20 |
1 | ||
| 44411-40032 |
VG20 |
1 | ||
| 44411A - SEAT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90410-06023 |
VG20 VANE PUMP |
1 | ||
| 90410-06022 |
VG20 GEAR HOUSING |
2 | ||
| 44411A - SEAT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90410-06023 |
VG20 VANE PUMP |
1 | ||
| 90410-06022 |
VG20 GEAR HOUSING |
2 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-40021 |
VG20 |
1 | ||
| 44412-40031 |
VG20 |
1 | ||
| 44412-40032 |
VG20 |
1 | ||
| 44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE) | ||||
| 90460-18011 |
VG2# |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-40022 |
VG20 |
1 | ||
| 44442 - BRACKET, PUMP, REAR | ||||
| 44442-40020 |
VG20 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99523-10875 |
VG20 |
1 | ||
| Common parts | ||||
| 91111-40825 | ||||
| 91111-41028 | ||||
| 91111-51022 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1903 | ||||
| 4503 | ||||
| 8719 | ||||
