VG20-A (1967)
Toyota Century
Production
Nov 1967
-
Sep 1971
Engine
3V
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6711-7302)MTM

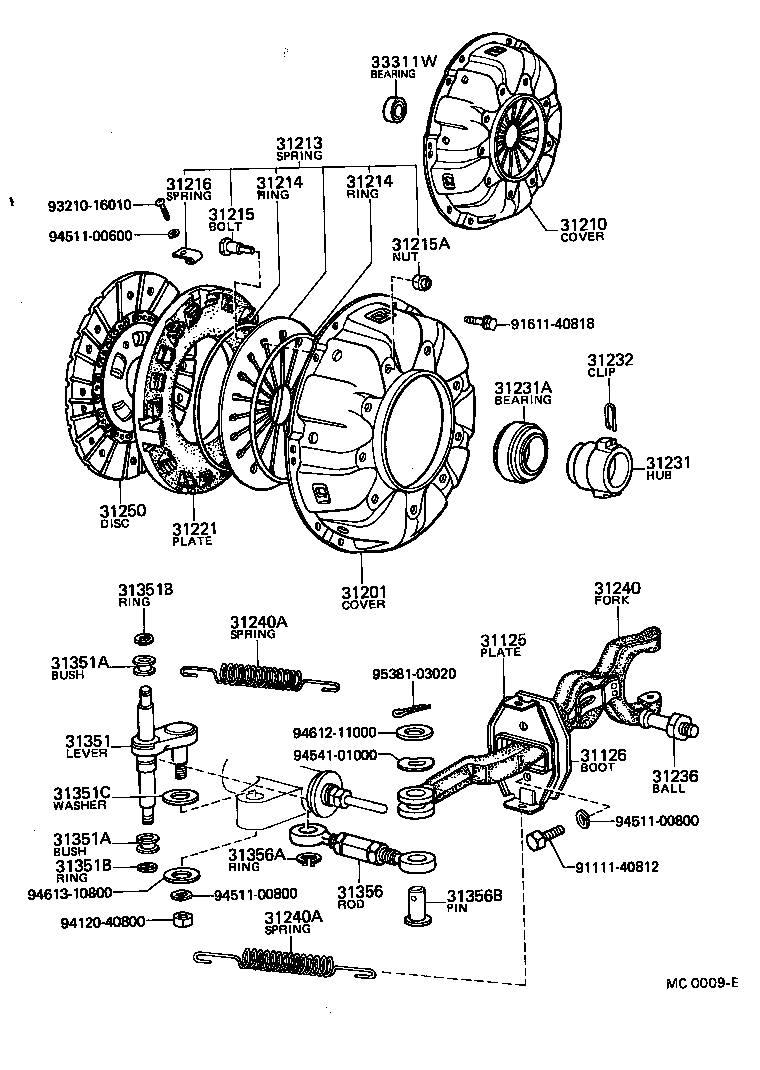

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31125 - PLATE, RELEASE FORK BOOT | ||||
| 31125-40010 |
VG2#..MTM |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-30060 |
VG2#..MTM |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31211-40020 |
VG20..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-40021 |
VG20..MTM |
1 | ||
| 31213 - SPRING, CLUTCH DIAPHRAGM | ||||
| 31213-49016 |
VG20..MTM |
1 | ||
| 31213-49017 |
VG20..MTM |
1 | ||
| 31214 - RING, CLUTCH PIVOT | ||||
| 31214-40020 |
VG20..MTM |
2 | ||
| 31214 - RING, CLUTCH PIVOT | ||||
| 31214-40020 |
VG20..MTM |
2 | ||
| 31215 - BOLT, CLUTCH DIAPHRAGM SPRING SET | ||||
| 31215-40021 |
VG20..MTM |
9 | ||
| 31215A - NUT(FOR CLUTCH DIAPHRAGM SPRING SETTING BOLT) | ||||
| 90179-06006 |
VG2#..MTM |
9 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
VG2#..MTM |
6 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-40020 |
VG20..MTM |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-40010 |
VG20..MTM |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-38009 |
VG20..MTM |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30010 |
VG2#..MTM |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-30020 |
VG2#..MTM |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-40010 |
VG2#..MTM |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-24184 |
VG20..MTM |
2 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-24184 |
VG20..MTM |
2 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-40012 |
VG20..MTM |
1 | ||
| 31351 - LEVER, OVER CENTER | ||||
| 31307-40011 |
VG2#..MTM |
1 | ||
| 31351A - BUSH(FOR OVER CENTER LEVER) | ||||
| 90386-06088 |
VG2#..MTM |
2 | ||
| 31351A - BUSH(FOR OVER CENTER LEVER) | ||||
| 90386-06088 |
VG2#..MTM |
2 | ||
| 31351B - RING, E(FOR OVER CENTER LEVER) | ||||
| 90523-05006 |
VG20..MTM |
2 | ||
| 31351B - RING, E(FOR OVER CENTER LEVER) | ||||
| 90523-05006 |
VG20..MTM |
2 | ||
| 31351C - WASHER(FOR OVER CENTER LEVER) | ||||
| 90202-10060 |
VG20..MTM |
1 | ||
| 31356 - ROD, OVER CENTER ADJUSTING | ||||
| 31038-40011 |
VG2#..MTM |
1 | ||
| 31356A - RING, SNAP(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90520-09081 |
VG20..MTM |
1 | ||
| 31356B - PIN, W/HOLE(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90240-10089 |
VG2#..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 97143-06201 |
VG2#..MTM |
1 | ||
| Common parts | ||||
| 91111-40812 | ||||
| 91611-40818 | ||||
| 93210-16010 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94541-01000 | ||||
| 94612-11000 | ||||
| 94613-10800 | ||||
| 95381-03020 | ||||
