VG20-A (1967)
Toyota Century
Production
Nov 1967
-
Sep 1971
Engine
3V
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(6711-7302)

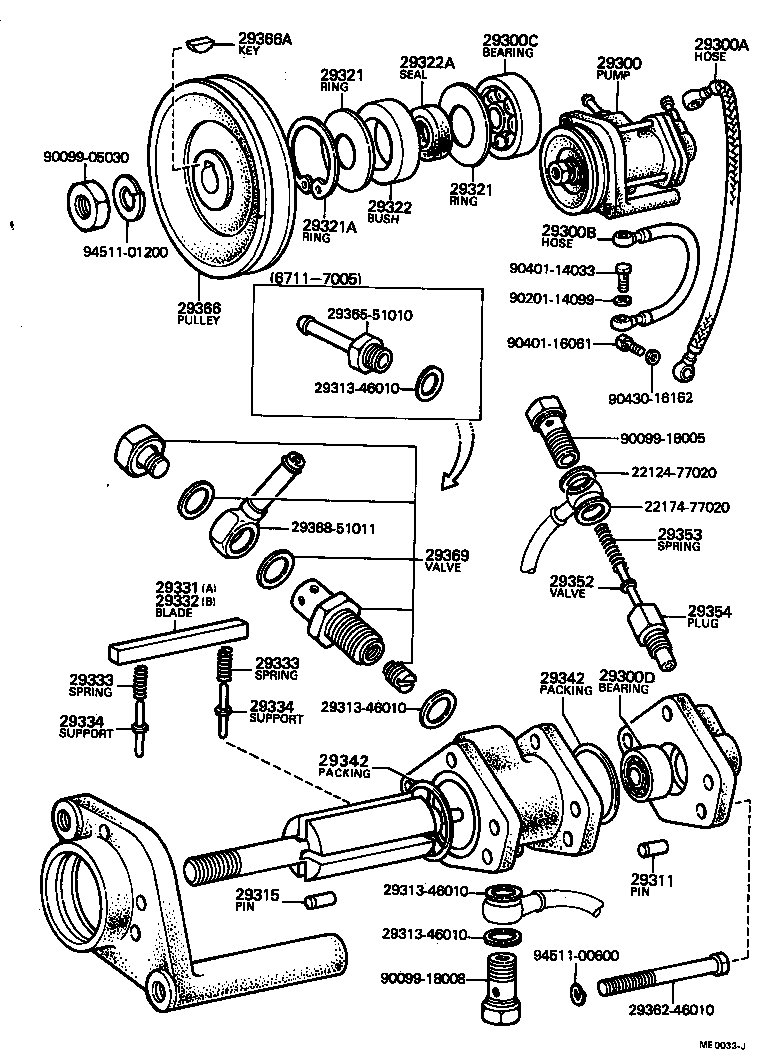

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-51010 |
3V..VG20 |
1 | ||
| 29300A - HOSE, VACUUM PUMP OIL INLET | ||||
| 90923-02013 |
3V,4V..VG2# |
1 | ||
| 29300B - HOSE, VACUUM PUMP OIL OUTLET | ||||
| 90923-02014 |
3V,4V..VG2# |
1 | ||
| 29300C - BEARING, VACUUM PUMP ROTOR, FRONT | ||||
| 97103-06303 |
3V,4V..VG2# |
1 | ||
| 29300D - BEARING, VACUUM PUMP ROTOR, REAR | ||||
| 90099-10019 |
3V..VG20 |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-46010 |
3V,4V#..VG2#,3# |
2 | ||
| 29315 - PIN, VACUUM PUMP DOWEL, NO.2 | ||||
| 29315-46010 |
3V,4V#..VG2#,3# |
2 | ||
| 29321 - RING, OIL SEAL STOP, VACUUM PUMP | ||||
| 90099-01360 |
3V,4V..VG2# |
2 | ||
| 29321 - RING, OIL SEAL STOP, VACUUM PUMP | ||||
| 90099-01360 |
3V,4V..VG2# |
2 | ||
| 29321A - RING, SNAP, VACUUM PUMP | ||||
| 90099-07097 |
3V..VG20 |
1 | ||
| 29322 - BUSH, OIL SEAL, VACUUM PUMP | ||||
| 29322-51010 |
3V,4V..VG2# |
1 | ||
| 29322A - SEAL, VACUUM PUMP OIL | ||||
| 90099-15012 |
3V,4V..VG2# |
1 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-46010 |
3V,4V#..VG2#,3# |
2 | ||
| 29332 - BLADE, VACUUM PUMP, B | ||||
| 29332-46010 |
3V,4V#..VG2#,3# |
2 | ||
| 29333 - SPRING, VACUUM PUMP BLADE | ||||
| 29333-46010 |
3V,4V#..VG2#,3# |
8 | ||
| 29333 - SPRING, VACUUM PUMP BLADE | ||||
| 29333-46010 |
3V,4V#..VG2#,3# |
8 | ||
| 29334 - SUPPORT, VACUUM PUMP BLADE SPRING | ||||
| 29334-46010 |
3V,4V#..VG2#,3# |
4 | ||
| 29334 - SUPPORT, VACUUM PUMP BLADE SPRING | ||||
| 29334-46010 |
3V,4V#..VG2#,3# |
4 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-46010 |
3V,4V#..VG2#,3# |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-46010 |
3V,4V#..VG2#,3# |
2 | ||
| 29352 - VALVE, VACUUM PUMP | ||||
| 29352-46010 |
3V..VG20 |
1 | ||
| 29353 - SPRING, OIL VALVE | ||||
| 29353-76010 |
3V,4V#..VG2#,3# |
1 | ||
| 29354 - PLUG, VACUUM PUMP OIL | ||||
| 29354-46010 |
3V,4V#..VG2#,3# |
1 | ||
| 29366 - PULLEY, VACUUM PUMP | ||||
| 29366-51010 |
3V,4V..VG2# |
1 | ||
| 29366A - KEY, VACUUM PUMP | ||||
| 90099-00405 |
3V,4V#..VG2#,3# |
1 | ||
| Common parts | ||||
| 22124-77020 | ||||
| 22174-77020 | ||||
| 29313-46010 | ||||
| 29362-46010 | ||||
| 29365-51010 | ||||
| 29368-51011 | ||||
| 90099-05030 | ||||
| 90099-18005 | ||||
| 90099-18008 | ||||
| 90201-14099 | ||||
| 90401-14033 | ||||
| 90401-16061 | ||||
| 90430-16162 | ||||
| 94511-00600 | ||||
| 94511-01200 | ||||
