UWG60-AEXGH (2018)
Toyota Century
Production
Jun 2018
-
Sep 9999
Engine
2URFSE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

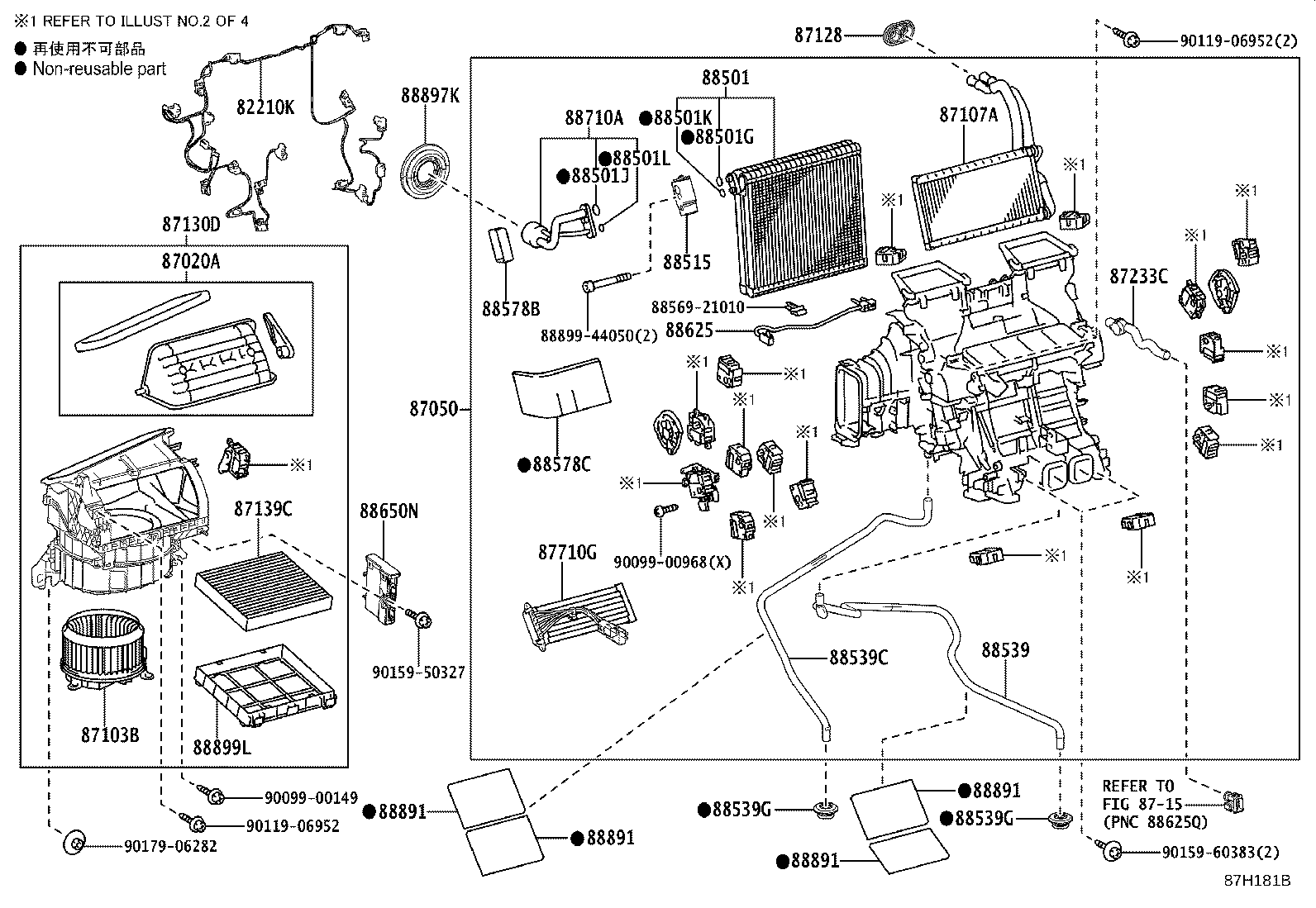

ILLUST NO. 1 OF 4(1806- )
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-40010 |
UWG60 |
1 | ||
| 87020A - DAMPER ASSY, HEATER AIR | ||||
| 87020-50010 |
UWG60 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-40030 |
UWG60 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-50151 |
UWG60 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-50071 |
UWG60 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-35020 |
UWG60 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50131 |
UWG60 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
UWG60 花粉･脱臭ﾌｨﾙﾀ,工場装着品 |
1 | ||
| 87233C - HOSE, AIR | ||||
| 87233-40010 |
UWG60 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-50030 |
UWG60 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50253 |
UWG60 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
UWG60 内径=13.4,外径=18.2 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
UWG60 内径=13.4,外径=18.2 |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90099-14120 |
UWG60 内径=10.8,外径=15.6 |
1 | ||
| 88501L - O-RING, COOLER EVAPORATOR NO.2(LIQUID) | ||||
| 90099-14119 |
UWG60 内径=6.7,外径=10.3 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50250 |
UWG60 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-50110 |
UWG60 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-50121 |
UWG60 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
UWG60 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
UWG60 |
2 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-30830 |
UWG60 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-30840 |
UWG60 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50020 |
UWG60 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-40290 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)) |
1 | ||
| 88650-40300 |
UWG60 |
1 | ||
| 88650-40290 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50820 |
UWG60 |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-50260 |
UWG60 |
4 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-50260 |
UWG60 |
4 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-50260 |
UWG60 |
4 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-50260 |
UWG60 |
4 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35030 |
UWG60 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-3A080 |
UWG60 |
1 | ||
| Common parts | ||||
| 88569-21010 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90099-00968 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||

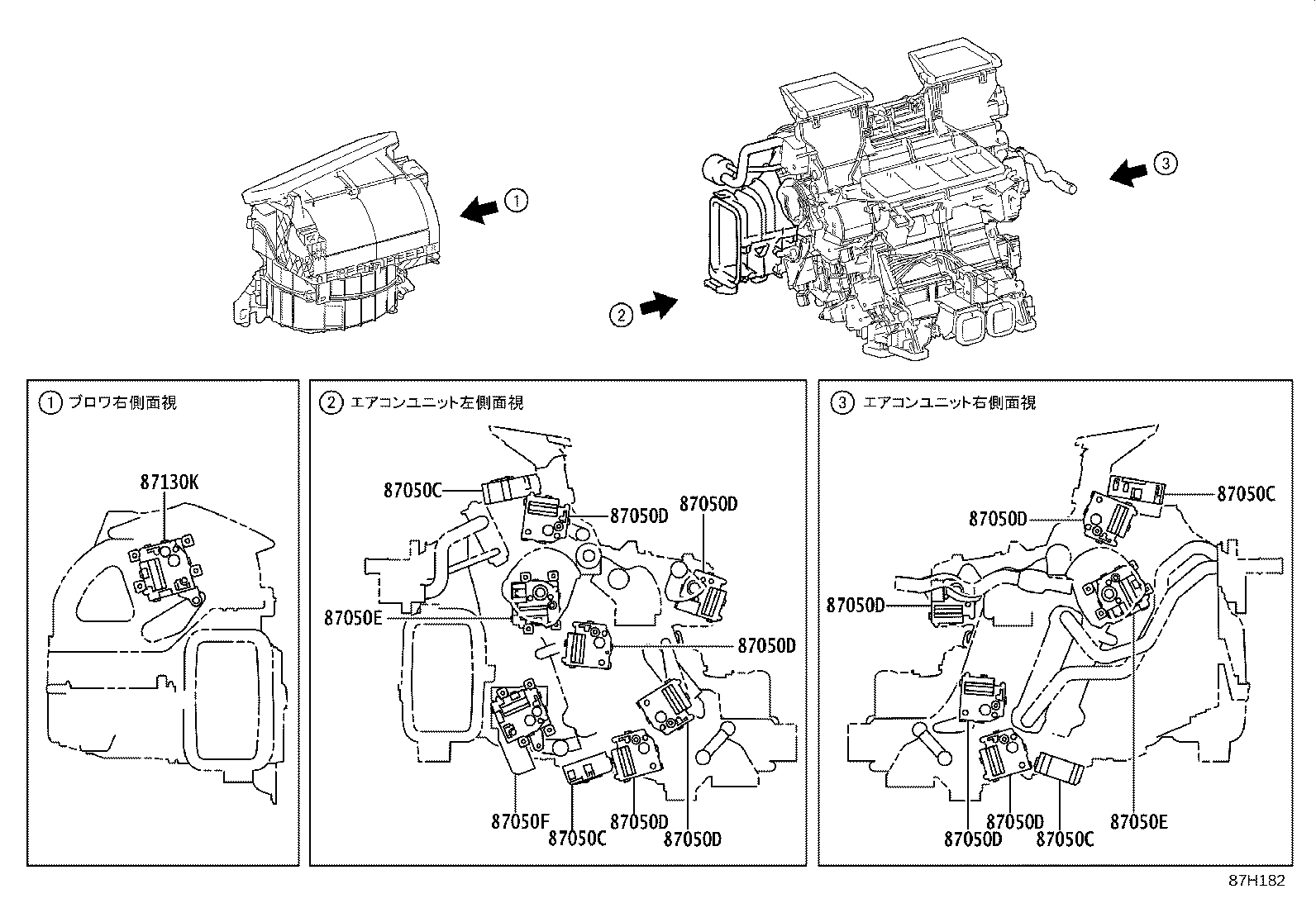

ILLUST NO. 2 OF 4(1806- )
Click highlighted areas on diagram
ﾌﾛﾝﾄ ﾀﾞﾝﾊﾟｻｰﾎﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50370 |
UWG60 |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50370 |
UWG60 |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50370 |
UWG60 |
4 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50370 |
UWG60 |
4 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50381 |
UWG60 |
9 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-50550 |
UWG60 |
2 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-50550 |
UWG60 |
2 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-50570 |
UWG60 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50590 |
UWG60 |
1 | ||

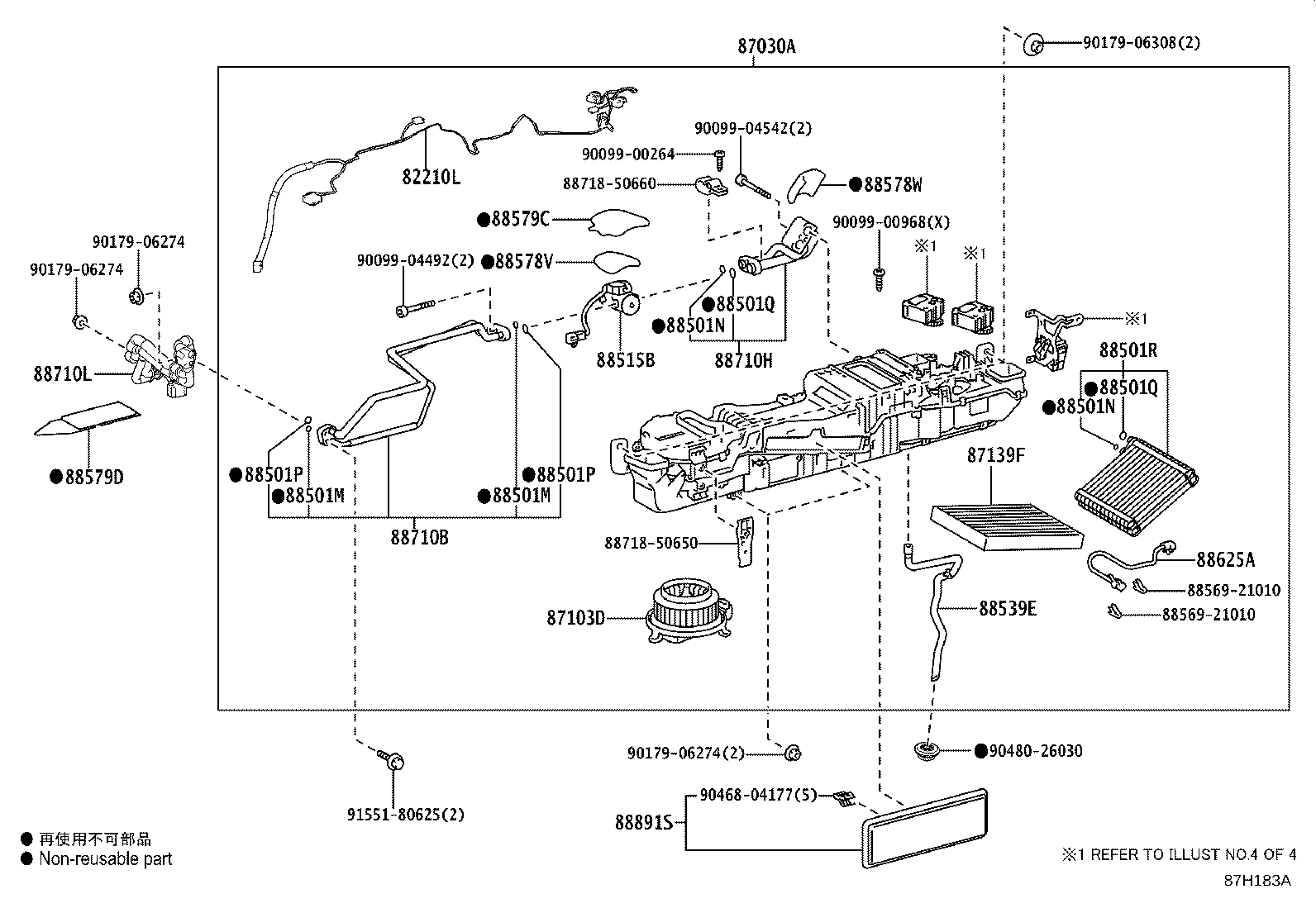

ILLUST NO. 3 OF 4(1806- )
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-40020 |
UWG60 |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-40030 |
UWG60 |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-40030 |
UWG60 |
1 | ||
| 87139F - FILTER, CLEAN AIR, REAR | ||||
| 87139-50090 |
UWG60 標準仕様,工場装着品 |
1 | ||
| 88501M - O-RING, COOLER EVAPORATOR NO.3(LIQUID) | ||||
| 90099-14119 |
UWG60 内径=6.7,外径=10.3 |
2 | ||
| 88501M - O-RING, COOLER EVAPORATOR NO.3(LIQUID) | ||||
| 90099-14119 |
UWG60 内径=6.7,外径=10.3 |
2 | ||
| 88501N - O-RING, COOLER EVAPORATOR NO.4(LIQUID) | ||||
| 90099-14120 |
UWG60 内径=10.8,外径=15.6 |
2 | ||
| 88501N - O-RING, COOLER EVAPORATOR NO.4(LIQUID) | ||||
| 90099-14120 |
UWG60 内径=10.8,外径=15.6 |
2 | ||
| 88501P - O-RING, COOLER EVAPORATOR NO.3(SUCTION) | ||||
| 90099-14120 |
UWG60 内径=10.8,外径=15.6 |
2 | ||
| 88501P - O-RING, COOLER EVAPORATOR NO.3(SUCTION) | ||||
| 90099-14120 |
UWG60 内径=10.8,外径=15.6 |
2 | ||
| 88501Q - O-RING, COOLER EVAPORATOR NO.4(SUCTION) | ||||
| 90099-14121 |
UWG60 内径=13.4,外径=18.2 |
2 | ||
| 88501Q - O-RING, COOLER EVAPORATOR NO.4(SUCTION) | ||||
| 90099-14121 |
UWG60 内径=13.4,外径=18.2 |
2 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-50300 |
UWG60 |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-50290 |
UWG60 |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-50170 |
UWG60 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-50270 |
UWG60 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-50300 |
UWG60 |
1 | ||
| 88579C - PACKING, COOLING UNIT, NO.5 | ||||
| 88578-50310 |
UWG60 |
1 | ||
| 88579D - PACKING, COOLING UNIT, NO.6 | ||||
| 88578-40030 |
UWG60 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-60190 |
UWG60 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50A20 |
UWG60 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-50A30 |
UWG60 |
1 | ||
| 88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-50A10 |
UWG60 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50110 |
UWG60 |
1 | ||
| Common parts | ||||
| 88569-21010 | ||||
| 88718-50650 | ||||
| 88718-50660 | ||||
| 90099-00264 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-04542 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| 90468-04177 | ||||
| 90480-26030 | ||||
| 91551-80625 | ||||

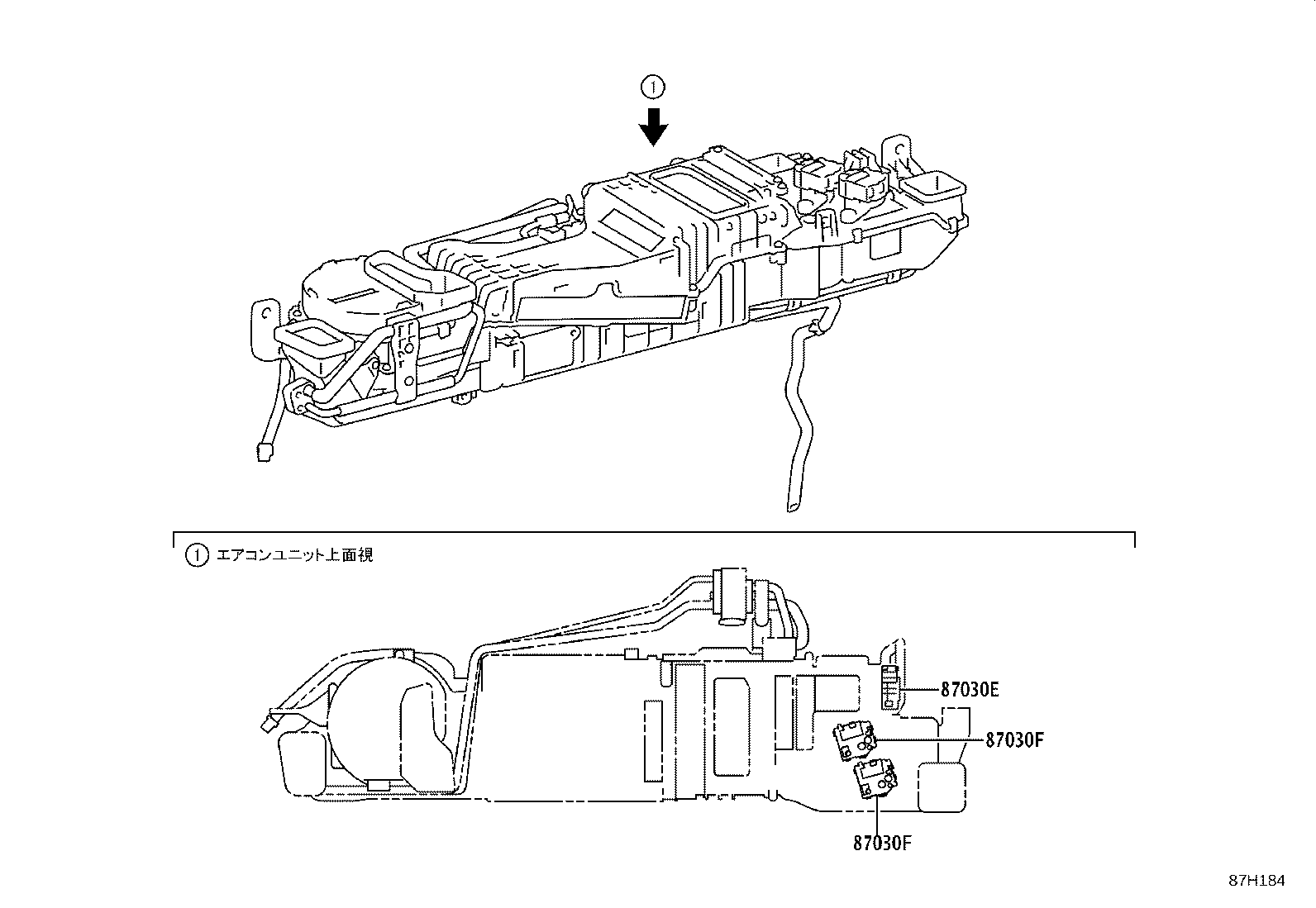

ILLUST NO. 4 OF 4(1806- )
Click highlighted areas on diagram
ﾘﾔ ﾀﾞﾝﾊﾟｻｰﾎﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-40010 |
UWG60 |
1 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-40020 |
UWG60 |
2 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-40020 |
UWG60 |
2 | ||
