UWG60-AEXGH (2018)

Toyota Century

Production Jun 2018 - Sep 9999
Engine 2URFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

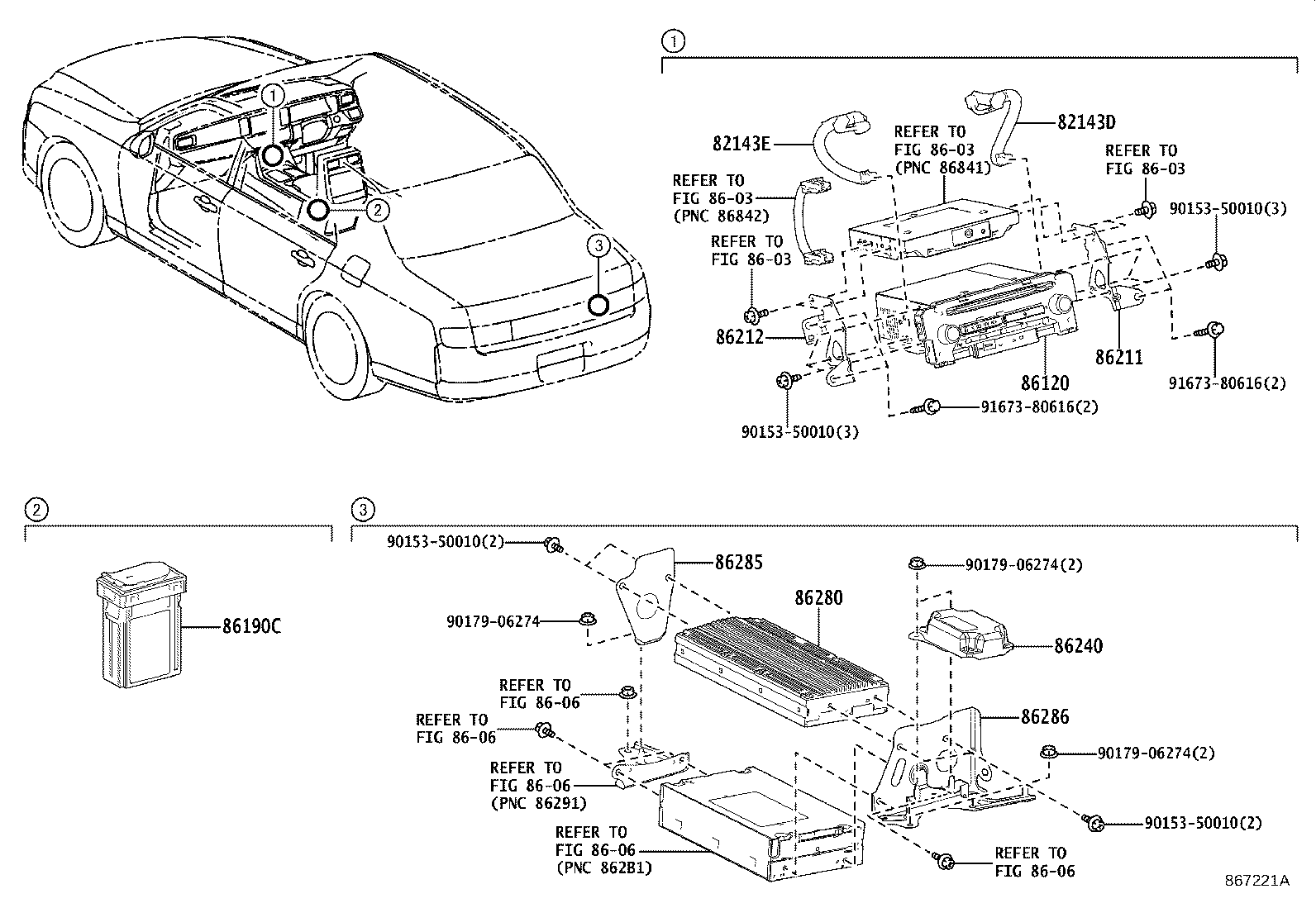

ILLUST NO. 1 OF 2(1806- )

Click highlighted areas on diagram

ﾚｼｰﾊﾞ & ｱﾝﾌﾟ

diagram 82143D 82143E 8603 8603 8603 8603 8606 8606 8606 8606 8606 86120 86190C 86211 86212 86240 86280 86285 86286 9015350010 9015350010 9015350010 9015350010 9017906274 9017906274 9017906274 9167380616 9167380616
Part # Description Qty Price
82143D - WIRE, INSTRUMENT PANEL, NO.1
82143-40010

UWG60

 1
82143E - WIRE, INSTRUMENT PANEL, NO.2
82143-40020

UWG60

 1
86120 - RECEIVER ASSY, RADIO
86120-40170

UWG60

PANASONIC

 1
86120-40160

UWG60

PANASONIC

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-40020

UWG60

 1
86211 - BRACKET, RADIO, NO.1
86211-40080

UWG60

 1
86212 - BRACKET, RADIO, NO.2
86212-40080

UWG60

 1
86240 - EQUALIZER ASSY,STEREO COMPONENT
86240-40010

UWG60

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-40130

UWG60

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-40060

UWG60

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-40040

UWG60

 1
Common parts
90153-50010
90179-06274
91673-80616
Linked diagrams
8603
8606

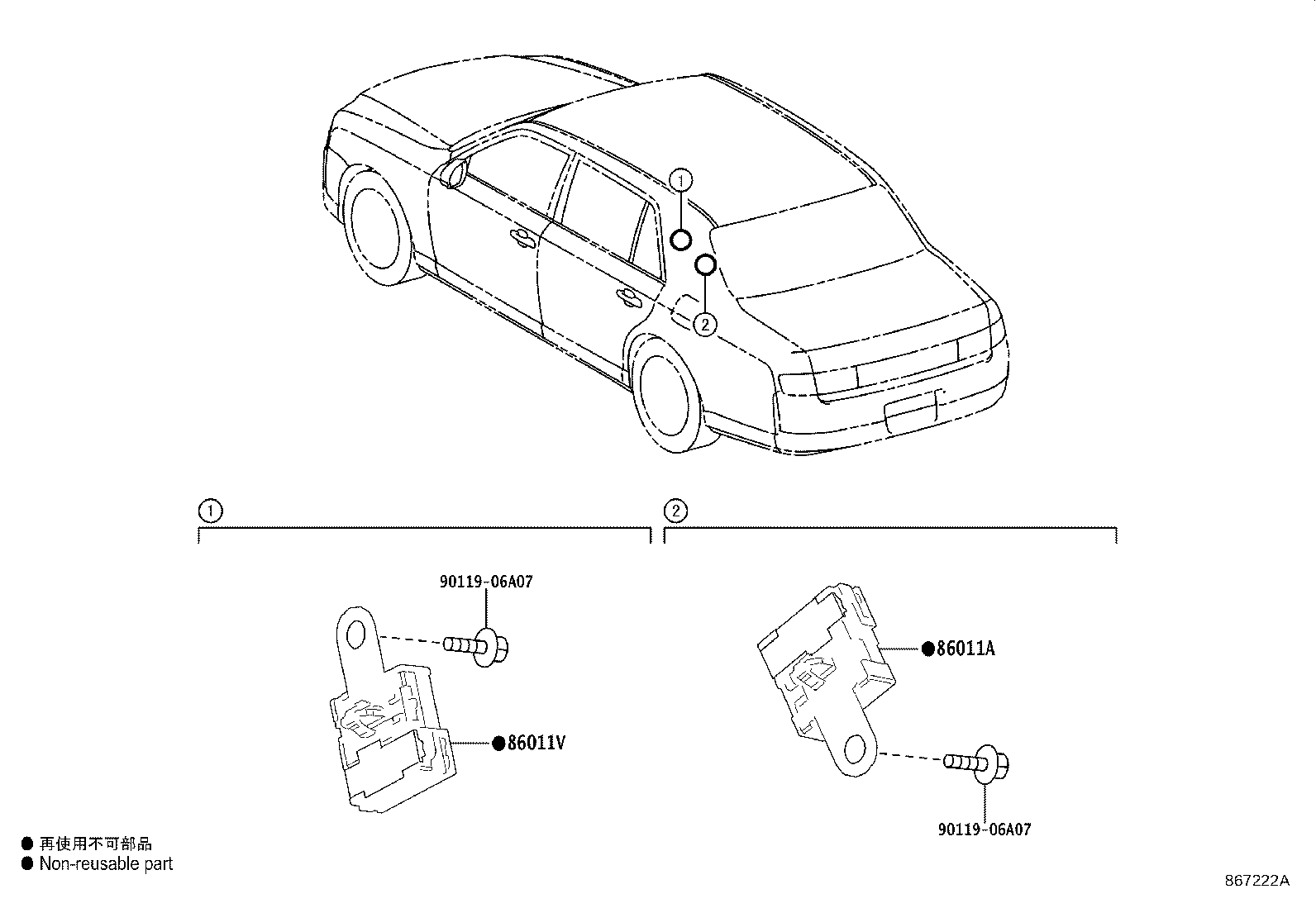

ILLUST NO. 2 OF 2(1806- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 86011V 9011906A07 9011906A07
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

UWG60

 1
86011V - CONDENSER, RADIO SETTING
90980-04189

UWG60

 1
Common parts
90119-06A07
