UWG60-AEXGH (2018)
Toyota Century

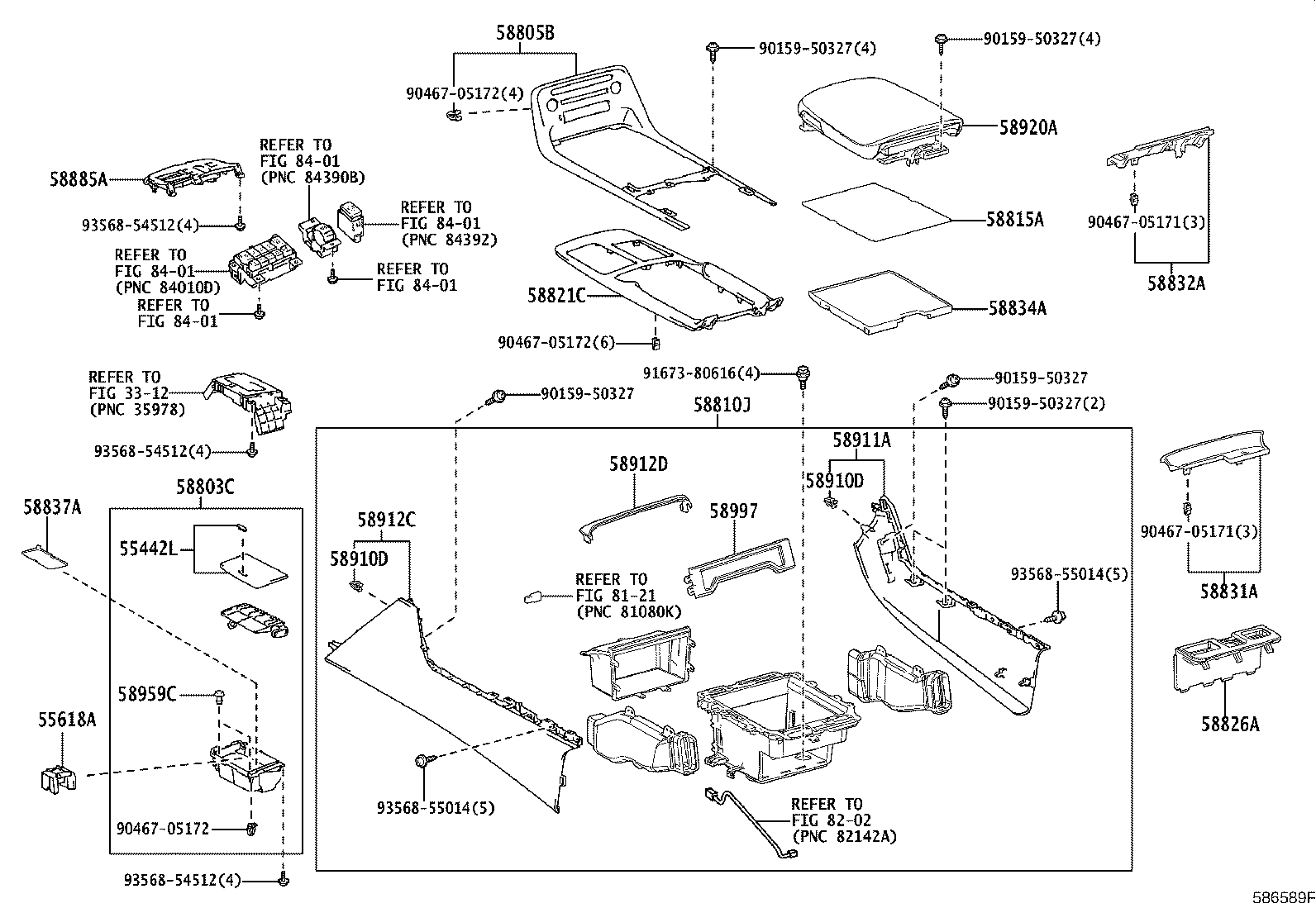

ILLUST NO. 1 OF 2(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55442L - DOOR, INSTRUMENT PANEL | ||||
| 55442-40030A1 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 55442-40030B1 |
UWG60 CHATEAU,TRIM40 |
1 | ||
| 55442-40030B2 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 55442-40030C1 |
UWG60 BLACK,TRIM2# |
1 | ||
| 55442-40030E2 |
UWG60 KURO KOHAKU,TRIM41 |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-33010 |
UWG60 |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-40040B1 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58803-40040C0 |
UWG60 BLACK,TRIM2# |
1 | ||
| 58803-40040A0 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 58803-40040E0 |
UWG60 KURO KOHAKU,TRIM41 |
1 | ||
| 58803-40040B0 |
UWG60 CHATEAU,TRIM40 |
1 | ||
| 58805B - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-40040 |
UWG60 |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-40270A1 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 58810-40270E2 |
UWG60 KUROKOHAKU,TRIM41 |
1 | ||
| 58810-40270B1 |
UWG60 CHATEAU,TRIM40 |
1 | ||
| 58810-40270B2 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58810-40270C1 |
UWG60 BLACK,TRIM2# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-40060 |
UWG60 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-40140B2 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58821-40140B1 |
UWG60 CHATEAU,TRIM40 |
1 | ||
| 58821-40140A1 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 58821-40140C1 |
UWG60 BLACK,TRIM2# |
1 | ||
| 58821-40140E2 |
UWG60 KURO KOHAKU,TRIM41 |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-40030 |
UWG60 |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-40090 |
UWG60 |
1 | ||
| 58832A - GARNISH, CONSOLE UPPER PANEL, REAR | ||||
| 58832-40020 |
UWG60 |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-40040 |
UWG60 |
1 | ||
| 58837A - PAD, CONSOLE BOX SILENCER, NO.2 | ||||
| 58837-30040 |
UWG60 |
1 | ||
| 58885A - PANEL, EQUIPMENT SET | ||||
| 58885-40020 |
UWG60 |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05172 |
UWG60 |
9 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05172 |
UWG60 |
9 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-40040A1 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 58911-40040B1 |
UWG60 CHATEAU,TRIM40 |
1 | ||
| 58911-40040C1 |
UWG60 BLACK,TRIM2# |
1 | ||
| 58911-40040E2 |
UWG60 KUROKOHAKU,TRIM41 |
1 | ||
| 58911-40040B2 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-40030B1 |
UWG60 CHATEAU,TRIM40 |
1 | ||
| 58912-40030A1 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 58912-40030B2 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58912-40030C1 |
UWG60 BLACK,TRIM2# |
1 | ||
| 58912-40030E2 |
UWG60 KUROKOHAKU,TRIM41 |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58913-40050B1 |
UWG60 CHATEAU,TRIM40 |
1 | ||
| 58913-40050A1 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 58913-40050E2 |
UWG60 KUROKOHAKU,TRIM41 |
1 | ||
| 58913-40050C1 |
UWG60 BLACK,TRIM2# |
1 | ||
| 58913-40050B2 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-40050E4 |
UWG60 DK.BROWN,TRIM41 |
1 | ||
| 58920-40050C2 |
UWG60 BLACK,TRIM2# |
1 | ||
| 58920-40050B2 |
UWG60 NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58920-40050A2 |
UWG60 FROMAGE,TRIM0# |
1 | ||
| 58920-40050E8 |
UWG60 SAND BEIGE,TRIM40 |
1 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
UWG60 |
2 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-58031 |
UWG60 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 93568-54512 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||

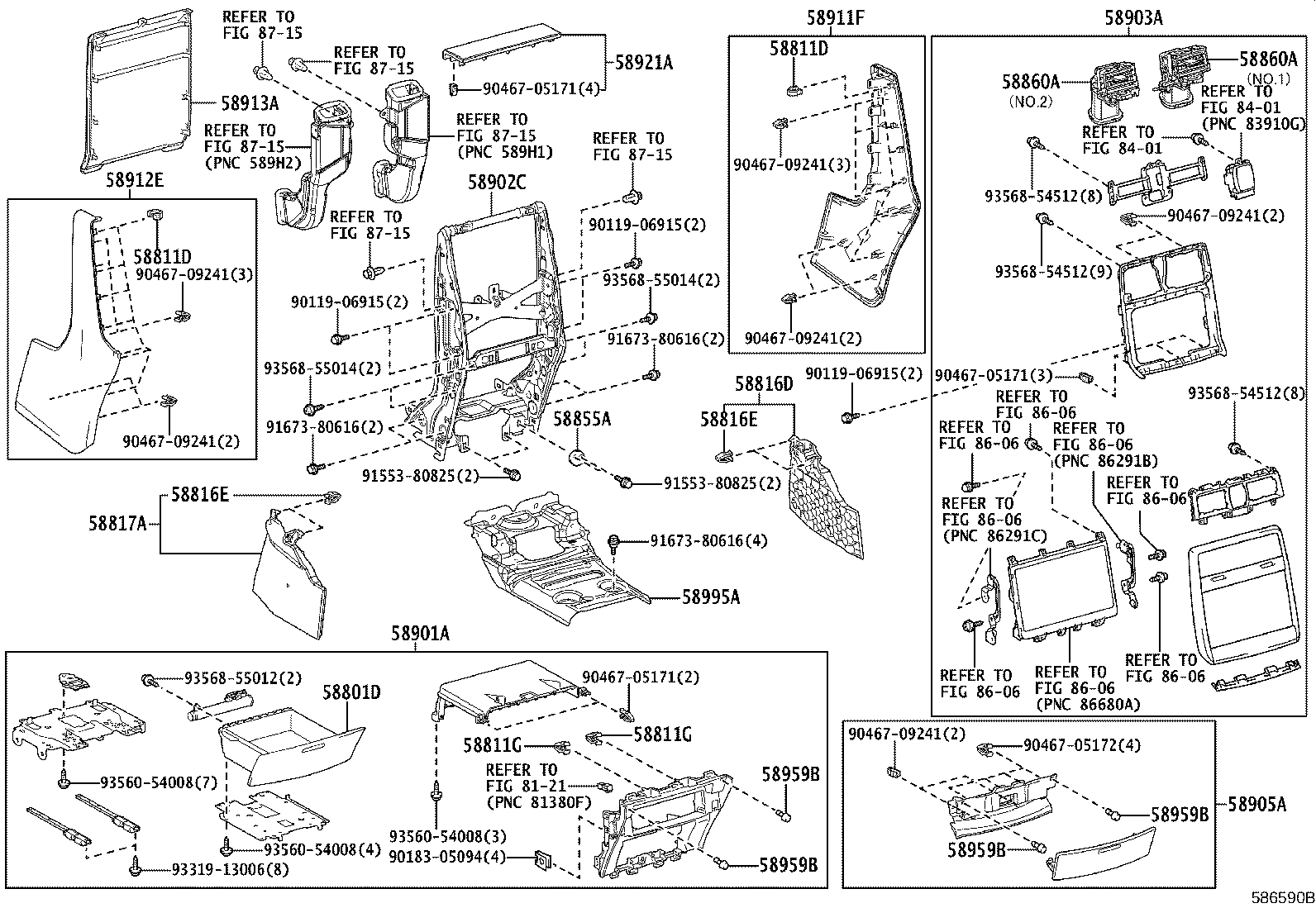

ILLUST NO. 2 OF 2(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58801D - BOX ASSY, CONSOLE | ||||
| 58801-40100 |
UWG60 |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
UWG60 |
14 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
UWG60 |
14 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-09241 |
UWG60 |
2 | ||
| 58811G - CLIP(CONSOL BOX) | ||||
| 90467-09241 |
UWG60 |
2 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-40060 |
UWG60 |
1 | ||
| 58816E - CLIP, CONSOLE BOX INSERT, FRONT | ||||
| 90467-09241 |
UWG60 |
4 | ||
| 58816E - CLIP, CONSOLE BOX INSERT, FRONT | ||||
| 90467-09241 |
UWG60 |
4 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-40050 |
UWG60 |
1 | ||
| 58855A - STOPPER, LOWER CONSOLE BOX | ||||
| 58855-40010 |
UWG60 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-40020 |
UWG60 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 58860-40030 |
UWG60 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-40020 |
UWG60 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 58860-40030 |
UWG60 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-40080A0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),FROMAGE,TRIM0# |
1 | ||
| 58901-40070E0 |
UWG60 BEIGE,TRIM40 |
1 | ||
| 58901-40070B0 |
UWG60 GRAY,TRIM1# |
1 | ||
| 58901-40080C0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),BLACK,TRIM2# |
1 | ||
| 58901-40080A0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),FROMAGE,TRIM0# |
1 | ||
| 58901-40070E1 |
UWG60 BROWN,TRIM41 |
1 | ||
| 58901-40080C0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),BLACK,TRIM2# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-40030 |
UWG60 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-40060 |
UWG60 |
1 | ||
| 58903-40070 |
UWG60 |
1 | ||
| 58903-40071 |
UWG60 |
1 | ||
| 58905A - DOOR SUB-ASSY, CONSOLE COMPARTMENT, REAR | ||||
| 58906-40050B0 |
UWG60 GRAY,TRIM1# |
1 | ||
| 58906-40060A0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),FROMAGE,TRIM0# |
1 | ||
| 58906-40060A0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),FROMAGE,TRIM0# |
1 | ||
| 58906-40050E0 |
UWG60 BEIGE,TRIM40 |
1 | ||
| 58906-40060C0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),BLACK,TRIM2# |
1 | ||
| 58906-40050E1 |
UWG60 BROWN,TRIM41 |
1 | ||
| 58906-40060C0 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),BLACK,TRIM2# |
1 | ||
| 58911F - PANEL, BOX SIDE, NO.3 | ||||
| 58911-40020E1 |
UWG60 BROWN,TRIM41 |
1 | ||
| 58911-40020B0 |
UWG60 GRAY,TRIM1# |
1 | ||
| 58911-40020E0 |
UWG60 BEIGE,TRIM40 |
1 | ||
| 58911-40030A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),FROMAGE,TRIM0# |
1 | ||
| 58911-40030C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),BLACK,TRIM2# |
1 | ||
| 58911-40030C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),BLACK,TRIM2# |
1 | ||
| 58911-40030A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),FROMAGE,TRIM0# |
1 | ||
| 58912E - PANEL, BOX SIDE, NO.4 | ||||
| 58912-40020C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),BLACK,TRIM2# |
1 | ||
| 58912-40010E0 |
UWG60 BEIGE,TRIM40 |
1 | ||
| 58912-40010E1 |
UWG60 BROWN,TRIM41 |
1 | ||
| 58912-40020A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),FROMAGE,TRIM0# |
1 | ||
| 58912-40010B0 |
UWG60 GRAY,TRIM1# |
1 | ||
| 58912-40020A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),FROMAGE,TRIM0# |
1 | ||
| 58912-40020C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-40040C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),BLACK,TRIM2# |
1 | ||
| 58913-40030E0 |
UWG60 BEIGE,TRIM40 |
1 | ||
| 58913-40040A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),FROMAGE,TRIM0# |
1 | ||
| 58913-40030E1 |
UWG60 BROWN,TRIM41 |
1 | ||
| 58913-40040C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),BLACK,TRIM2# |
1 | ||
| 58913-40030B0 |
UWG60 GRAY,TRIM1# |
1 | ||
| 58913-40040A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),FROMAGE,TRIM0# |
1 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-40030B0 |
UWG60 GRAY,TRIM1# |
1 | ||
| 58921-40040A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),FROMAGE,TRIM0# |
1 | ||
| 58921-40030E0 |
UWG60 BEIGE,TRIM40 |
1 | ||
| 58921-40040C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),BLACK,TRIM2# |
1 | ||
| 58921-40040C1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ｼﾙﾊﾞｰ)),BLACK,TRIM2# |
1 | ||
| 58921-40040A1 |
UWG60 本革仕様(ｵｰﾅﾒﾝﾄﾊﾟﾈﾙ(ﾌﾞﾗｳﾝ)),FROMAGE,TRIM0# |
1 | ||
| 58921-40030E1 |
UWG60 BROWN,TRIM41 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
UWG60 |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
UWG60 |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
UWG60 |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
UWG60 |
4 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-40040 |
UWG60 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09241 | ||||
| 91553-80825 | ||||
| 91673-80616 | ||||
| 93319-13006 | ||||
| 93560-54008 | ||||
| 93568-54512 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
| 8606 | ||||
| 8715 | ||||
