UWG60-AEXGH (2018)
Toyota Century
Production
Jun 2018
-
Sep 9999
Engine
2URFSE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1806- )

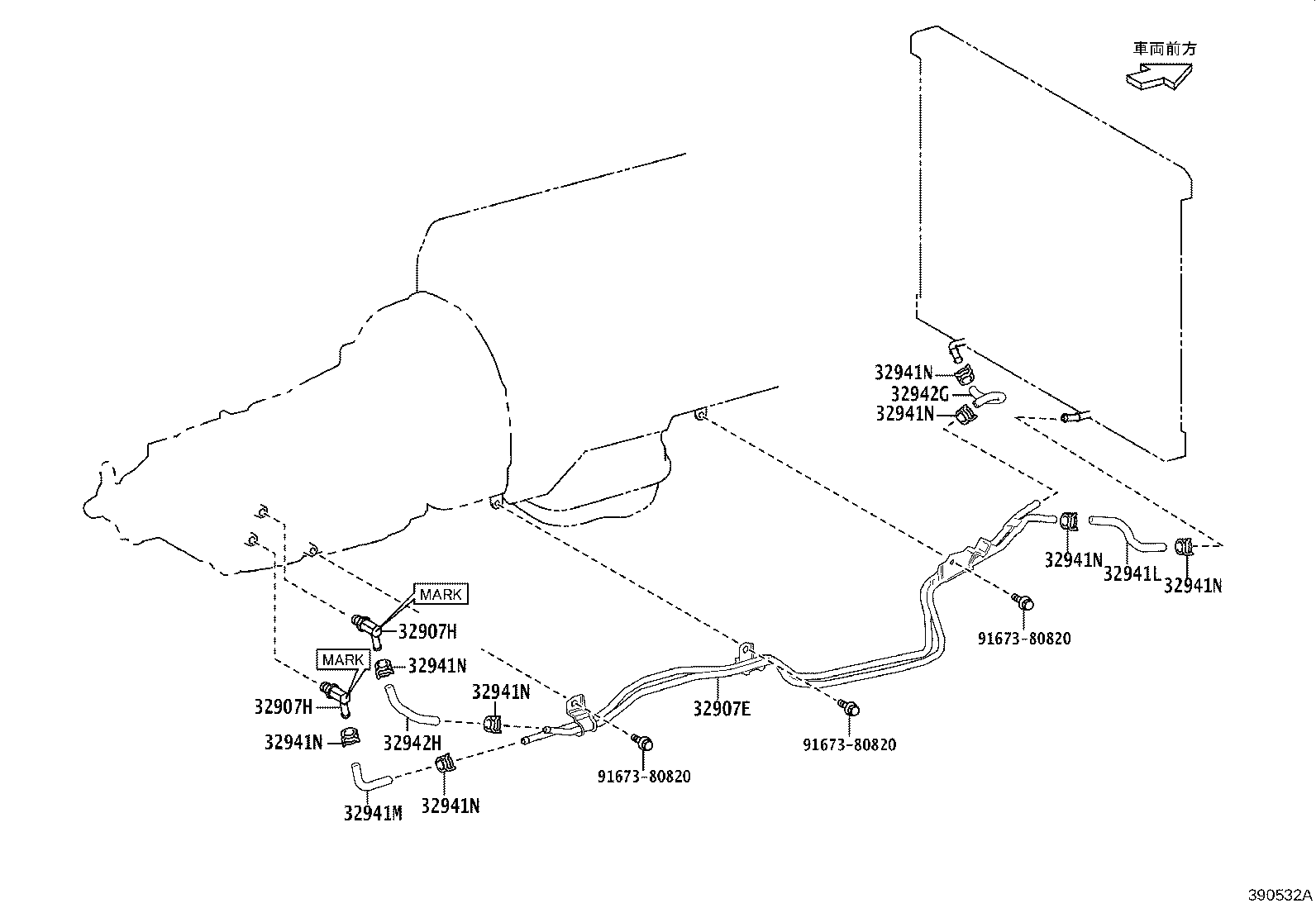

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907E - TUBE SUB-ASSY, OIL COOLER W/O HOSE | ||||
| 32907-40030 |
UWG60 |
1 | ||
| 32907H - ELBOW | ||||
| 90407-14033 |
UWG60 識別色 = ﾋﾟﾝｸ |
2 | ||
| 90407-14034 |
UWG60 識別色 = 青色 |
2 | ||
| 32907H - ELBOW | ||||
| 90407-14033 |
UWG60 識別色 = ﾋﾟﾝｸ |
2 | ||
| 90407-14034 |
UWG60 識別色 = 青色 |
2 | ||
| 32941L - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-50060 |
UWG60 |
1 | ||
| 32941M - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32941-50050 |
UWG60 |
1 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
UWG60 |
8 | ||
| 32942G - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-50060 |
UWG60 |
1 | ||
| 32942H - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 32942-50050 |
UWG60 |
1 | ||
| Common parts | ||||
| 91673-80820 | ||||
