UWG60-AEXGH (2018)

Toyota Century

Production Jun 2018 - Sep 9999
Engine 2URFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

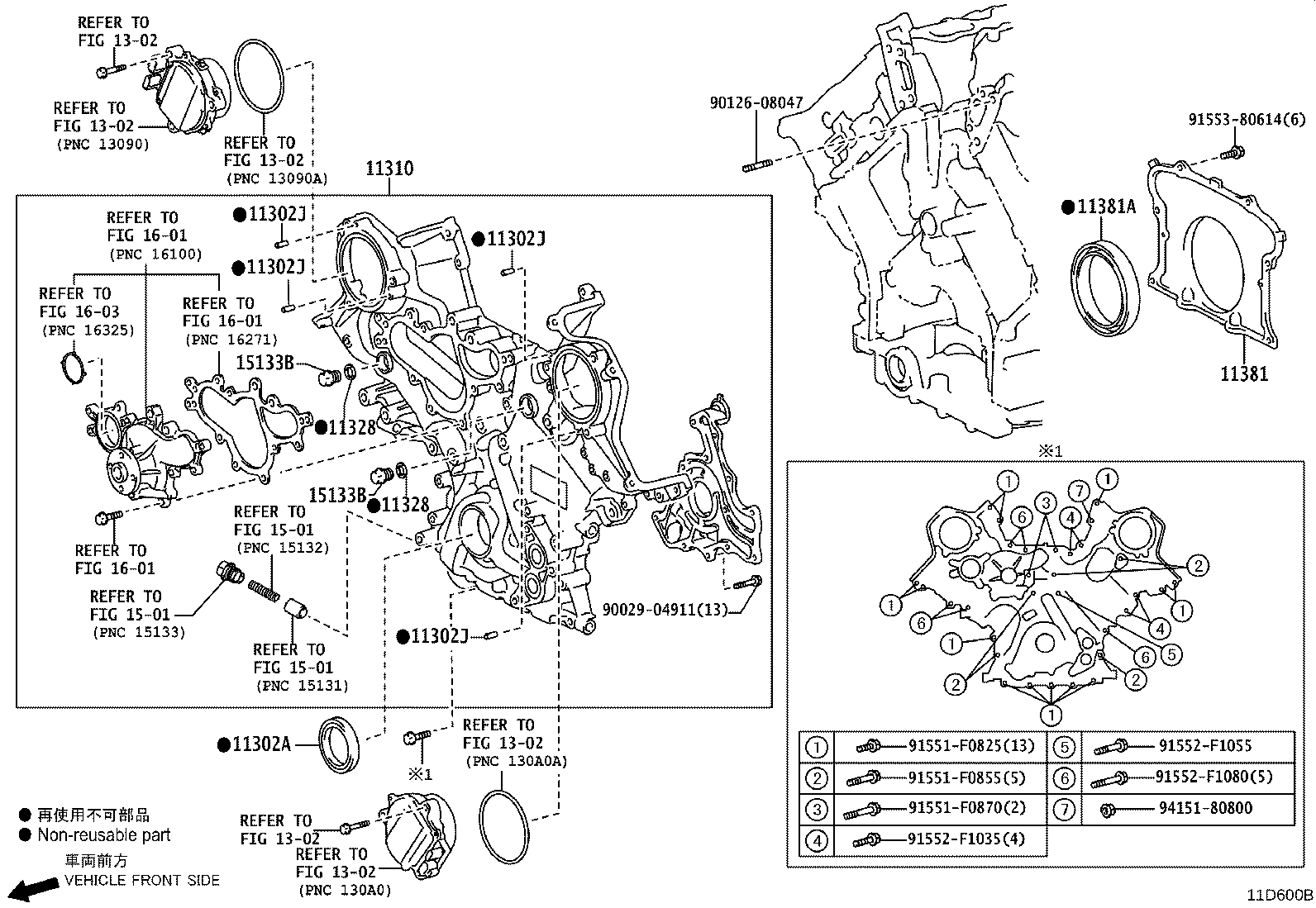

Click highlighted areas on diagram

diagram 11302A 11302J 11302J 11302J 11302J 11310 11328 11328 11381 11381A 1302 1302 1302 1302 1302 1302 1501 1501 1501 15133B 15133B 1601 1601 1601 1603 9002904911 9012608047 91551F0825 91551F0855 91551F0870 91552F1035 91552F1055 91552F1080 9155380614 9415180800
Part # Description Qty Price
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-42036

2URFSE..UWG60

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URFSE..UWG60

 4
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URFSE..UWG60

 4
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URFSE..UWG60

 4
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

2URFSE..UWG60

 4
11310 - COVER ASSY, TIMING CHAIN
11310-38080

2URFSE..UWG60

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38030

2URFSE..UWG60

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38030

2URFSE..UWG60

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38020

2URFSE..UWG60

 1
11381A - SEAL, ENGINE REAR OIL
90311-95013

2URFSE..UWG60

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

2URFSE..UWG60

 2
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

2URFSE..UWG60

 2
Common parts
90029-04911
90126-08047
91551-F0825
91551-F0855
91551-F0870
91552-F1035
91552-F1055
91552-F1080
91553-80614
94151-80800
Linked diagrams
1302
1501
1601
1603
