GZG50-AETGK (2005)
Toyota Century
Production
Jan 2005
-
Jan 2017
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

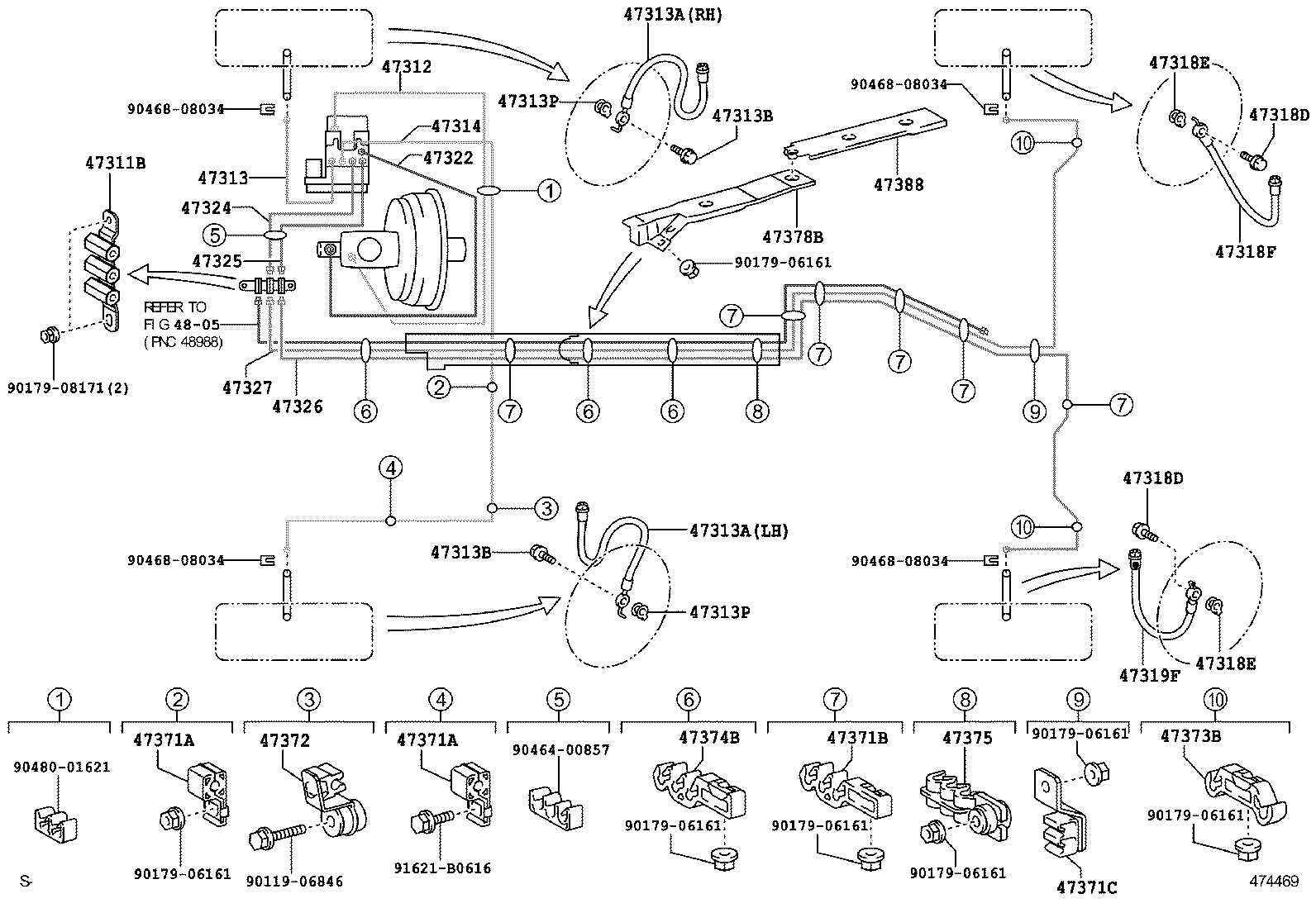

ILLUST NO. 1 OF 2(0501- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12048 |
GZG50 |
1 | ||
| 90904-12048 |
GZG50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-40110 |
GZG50 |
1 | ||
| 47312-40080 |
GZG50 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-40090 |
GZG50 |
1 | ||
| 47313-40130 |
GZG50 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A04 |
GZG50 |
2 | ||
| 90947-02902 |
GZG50 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A04 |
GZG50 |
2 | ||
| 90947-02902 |
GZG50 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 90401-10058 |
GZG50 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 90401-10058 |
GZG50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47389-50020 |
GZG50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47389-50020 |
GZG50 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-40120 |
GZG50 |
1 | ||
| 47314-40090 |
GZG50 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 90401-10058 |
GZG50 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 90401-10058 |
GZG50 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47389-50020 |
GZG50 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47389-50020 |
GZG50 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02903 |
GZG50 |
1 | ||
| 90947-02903 |
GZG50 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02903 |
GZG50 |
1 | ||
| 90947-02903 |
GZG50 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-40070 |
GZG50 |
1 | ||
| 47322-40100 |
GZG50 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-40050 |
GZG50 |
1 | ||
| 47324-40090 |
GZG50 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-40030 |
GZG50 |
1 | ||
| 47325-40070 |
GZG50 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-40030 |
GZG50 |
1 | ||
| 47326-40030 |
GZG50 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-40010 |
GZG50 |
1 | ||
| 47327-40010 |
GZG50 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30190 |
GZG50 |
2 | ||
| 47371-30190 |
GZG50 |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30190 |
GZG50 |
2 | ||
| 47371-30190 |
GZG50 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-50090 |
GZG50 |
6 | ||
| 47371-50090 |
GZG50 |
6 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-50170 |
GZG50 |
1 | ||
| 47371-50170 |
GZG50 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-40010 |
GZG50 |
1 | ||
| 47372-40010 |
GZG50 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-24070 |
GZG50 |
2 | ||
| 47371-24070 |
GZG50 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30170 |
GZG50 |
3 | ||
| 47371-30170 |
GZG50 |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-40030 |
GZG50 |
1 | ||
| 47371-40030 |
GZG50 |
1 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 47378-40010 |
GZG50 |
1 | ||
| 47378-40010 |
GZG50 |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-40010 |
GZG50 |
1 | ||
| 47388-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06846 | ||||
| 90179-06161 | ||||
| 90179-08171 | ||||
| 90464-00857 | ||||
| 90468-08034 | ||||
| 90480-01621 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 4805 | ||||

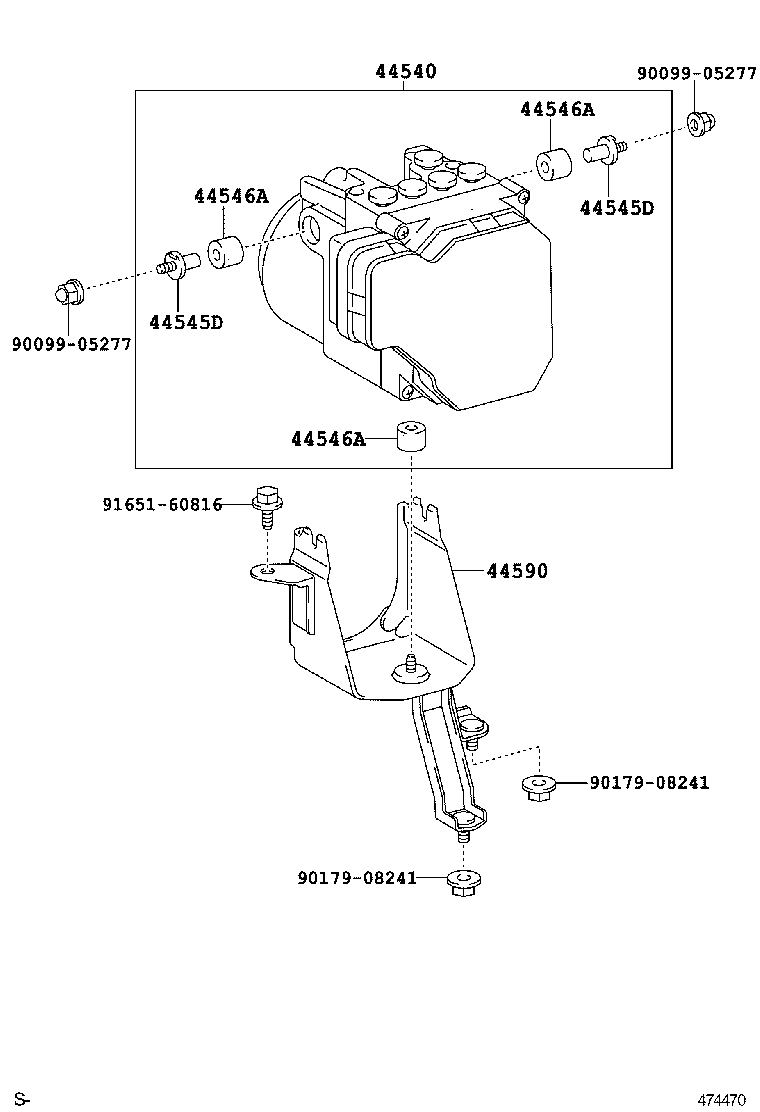

ILLUST NO. 2 OF 2(0501- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-40040 |
GZG50 |
1 | ||
| 44050-40042 |
GZG50 |
1 | ||
| 44050-40090 |
GZG50 |
1 | ||
| 44540-24010 |
GZG50 |
1 | ||
| 44050-40041 |
GZG50 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
GZG50 |
2 | ||
| 44545-42020 |
GZG50 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42090 |
GZG50 |
2 | ||
| 44545-42020 |
GZG50 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44546-42090 |
GZG50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44546-42090 |
GZG50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44546-42090 |
GZG50 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-40030 |
GZG50 |
1 | ||
| 44590-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90179-08241 | ||||
| 91651-60816 | ||||
