GZG50-AESGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704-0501)

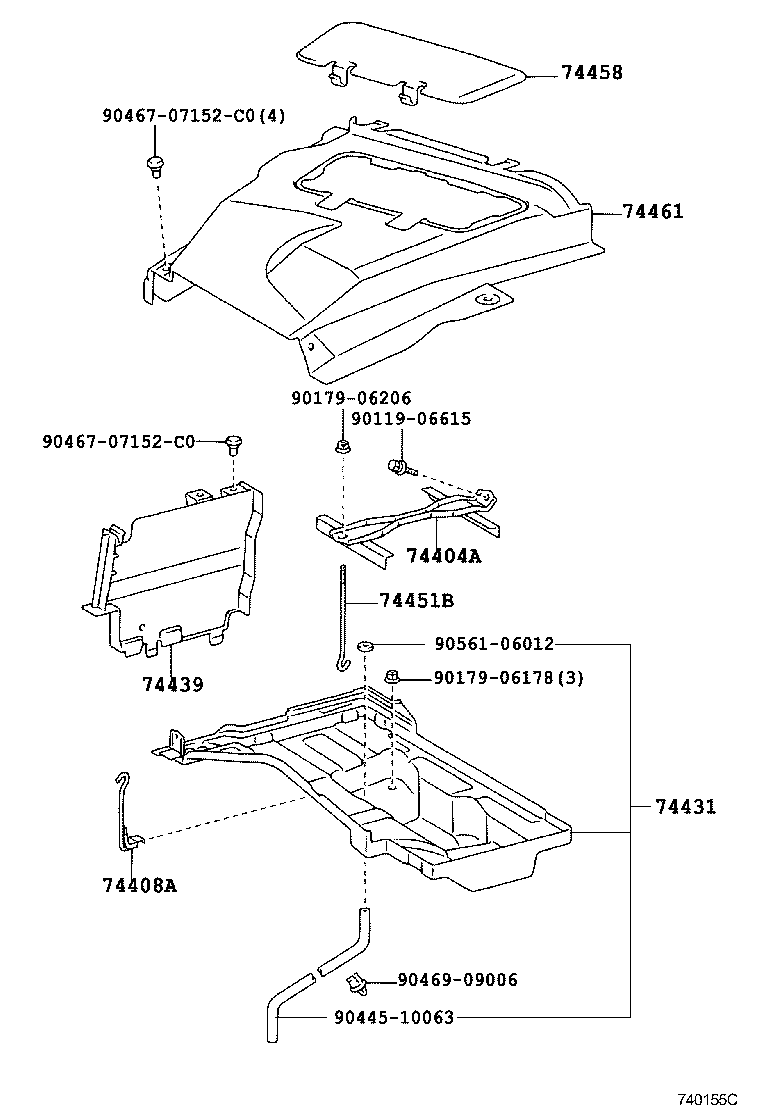

Click highlighted areas on diagram

diagram 74404A 74408A 74431 74439 74451B 74458 74461 9011906615 9017906178 9017906206 9044510063 9046707152C0 9046707152C0 9046909006 9056106012
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-40010

GZG50

1
74408A - BOLT SUB-ASSY, BATTERY CLAMP, NO.2
74408-40010

GZG50

1
74431 - TRAY, BATTERY
74431-40010

GZG50

1
74439 - PLATE, BATTERY INSULATOR
74439-40010

GZG50

1
74451B - BOLT, BATTERY CLAMP
74451-40010

GZG50

1
74458 - LID, BATTERY COVER, NO.1
74458-40010

GZG50

1
74461 - COVER, BATTERY
74461-40010

GZG50

1
Common parts
90119-06615
90179-06178
90179-06206
90445-10063
90467-07152C0
90469-09006
90561-06012
