GZG50-AESGK (1997)
Toyota Century

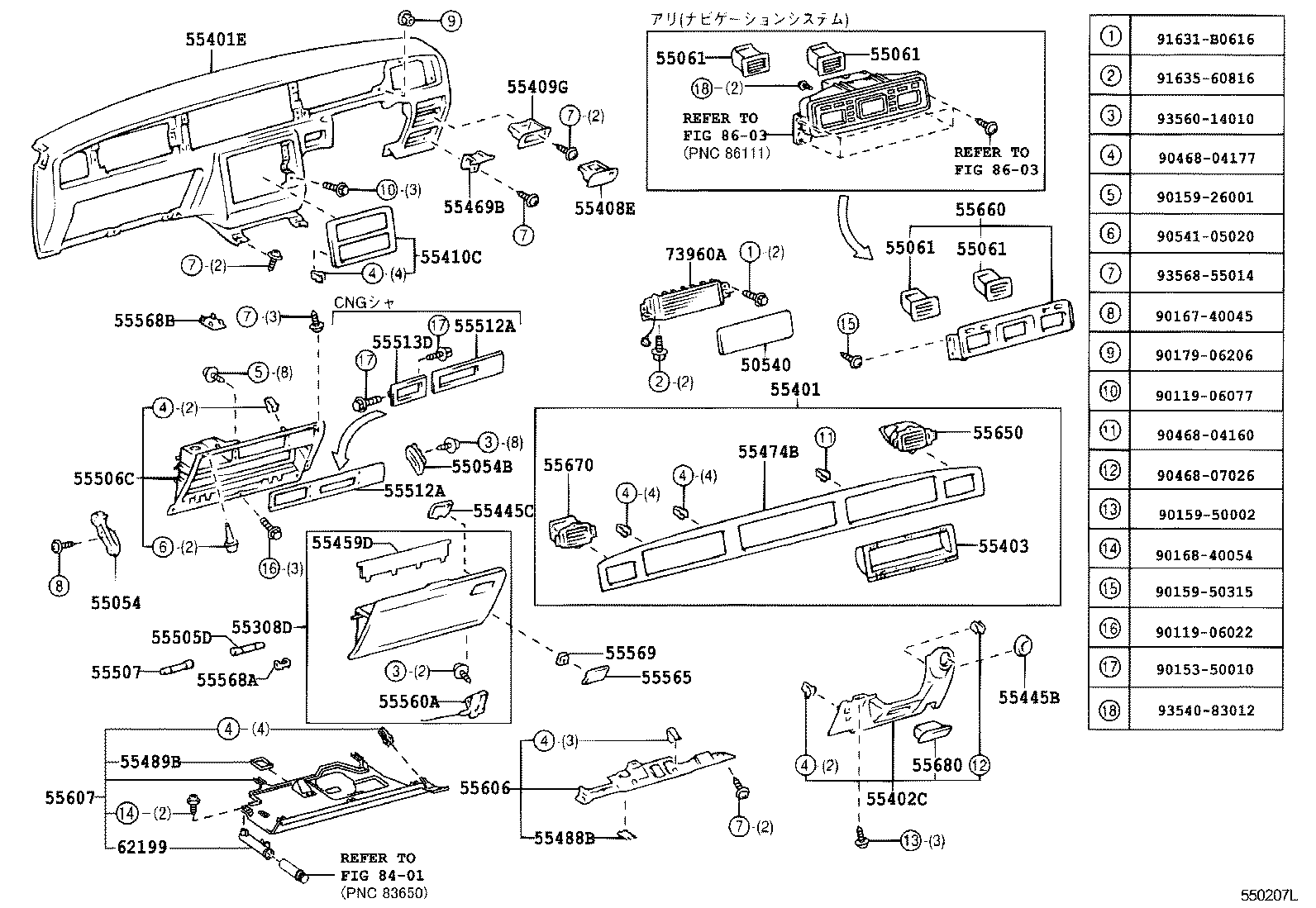

ILLUST NO. 1 OF 2(9704-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-40010 |
GZG50 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-40020 |
GZG50 |
1 | ||
| 55054B - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-40030 |
GZG50 |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-40010 |
GZG50 |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-40010 |
GZG50 |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-40010 |
GZG50 |
2 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-40010 |
GZG50 |
2 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55308-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55308-40030E0 |
GZG50 CNGｼﾔ,ORCHID,TRIM4# |
1 | ||
| 55308-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55308-40030B1 |
GZG50 CNGｼﾔ,DK.BLUE GRAY,TRIM8# |
1 | ||
| 55308-40030B0 |
GZG50 CNGｼﾔ,MD.GRAY,TRIM1# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-40020 |
GZG50 |
1 | ||
| 55404-40030 |
GZG50 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55404-40080 |
GZG50 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-40050C0 |
GZG50 BLACK,TRIM1# |
1 | ||
| 55401-40050C1 |
GZG50 BLACK,TRIM8# |
1 | ||
| 55401-40051C1 |
GZG50 BLACK,TRIM8# |
1 | ||
| 55401-40050E0 |
GZG50 ORCHID BROWN,TRIM4# |
1 | ||
| 55401-40051C0 |
GZG50 BLACK,TRIM1# |
1 | ||
| 55401-40051E0 |
GZG50 ORCHID BROWN,TRIM4# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-40040B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55402-40060B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55402-40040E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55402-40040B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55402-40060B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55402-40060E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-40030 |
GZG50 |
1 | ||
| 55403-40040 |
GZG50 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55408-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55408-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55409G - RETAINER SUB-ASSY, COIN BOX | ||||
| 55409-40040 |
GZG50 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-40020 |
GZG50 |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55445-40020B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55445-30160E3 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55445-30160B4 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55445-30160B2 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55445-40020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-50010 |
GZG50 |
1 | ||
| 55445-40030 |
GZG50 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-40030 |
GZG50 |
1 | ||
| 55469B - INSERT, INSTRUMENT PANEL LOWER PAD SUB | ||||
| 55469-40010 |
GZG50 |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-40100 |
GZG50 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 55474-40050 |
GZG50 |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55489-50010 |
GZG50 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
GZG50 |
1 | ||
| 55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-40020 |
GZG50 |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-40020 |
GZG50 |
1 | ||
| 55506-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-40010 |
GZG50 |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-40020 |
GZG50 |
1 | ||
| 55512-40050 |
GZG50 CNGｼﾔ |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-40020 |
GZG50 |
1 | ||
| 55512-40050 |
GZG50 CNGｼﾔ |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-40010 |
GZG50 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-50010B3 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55565-50010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55565-50010B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55568A - PLATE, SHELL BOX FINISH | ||||
| 55568-40010 |
GZG50 |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-50030 |
GZG50 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-50010B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55569-50010B3 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55569-50010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-40020 |
GZG50 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-40020B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 55607-40020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55607-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-40020 |
GZG50 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-40010 |
GZG50 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-40010 |
GZG50 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-22020B2 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 55680-22020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 55680-22020S4 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 62199-50010 |
GZG50 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90119-06077 | ||||
| 90153-50010 | ||||
| 90159-26001 | ||||
| 90159-50002 | ||||
| 90159-50315 | ||||
| 90167-40045 | ||||
| 90168-40054 | ||||
| 90179-06206 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90468-07026 | ||||
| 90541-05020 | ||||
| 91631-B0616 | ||||
| 91635-60816 | ||||
| 93540-83012 | ||||
| 93560-14010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||

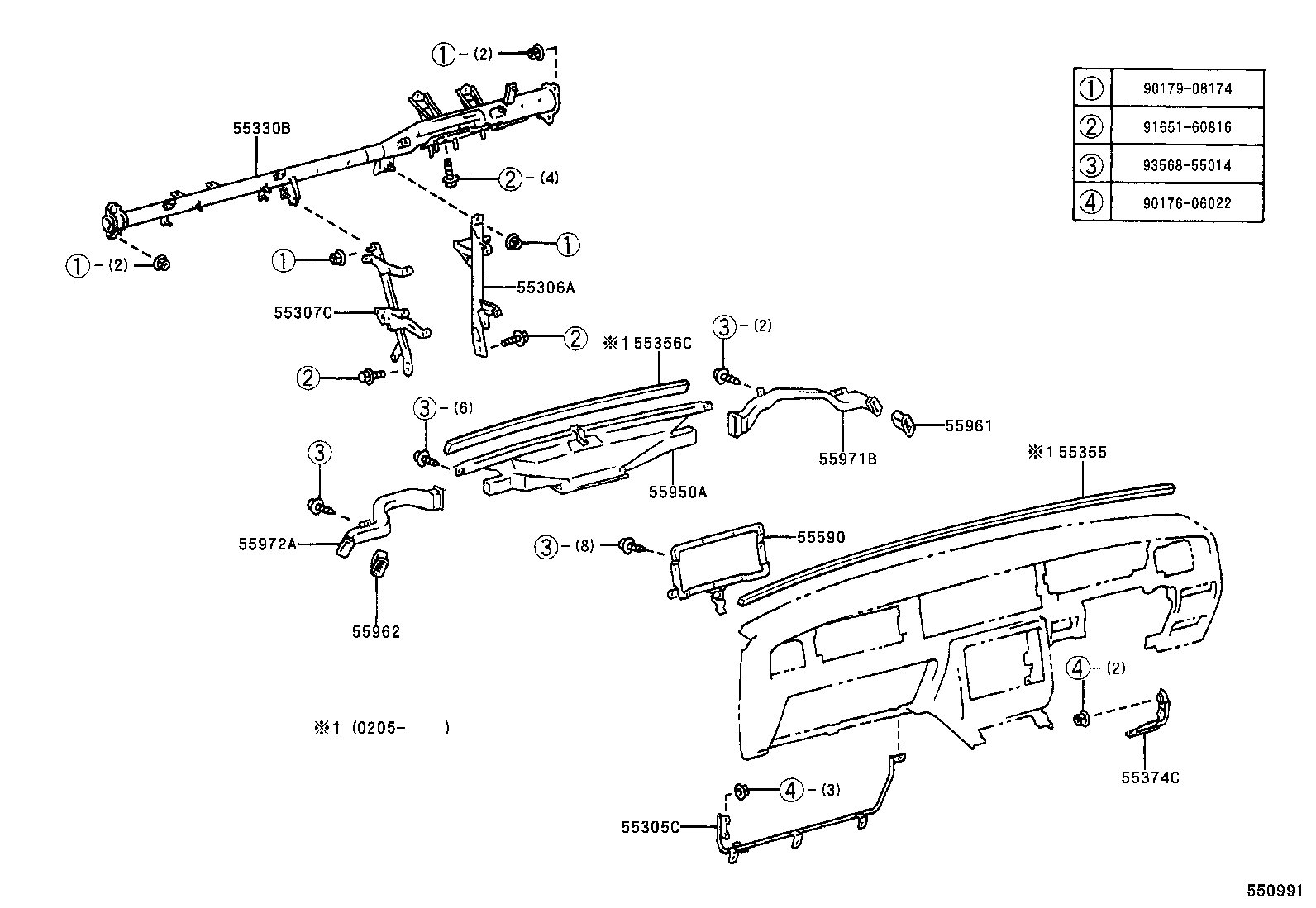

ILLUST NO. 2 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-40020 |
GZG50 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-40020 |
GZG50 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-40020 |
GZG50 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 55330-40010 |
GZG50 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-40030 |
GZG50 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-40020 |
GZG50 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-40010 |
GZG50 |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-40010 |
GZG50 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-40010 |
GZG50 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-40020E0 |
GZG50 ORCHID BROWN,TRIM4# |
1 | ||
| 55961-40020C0 |
GZG50 BLACK,TRIM1#,8# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-40020C0 |
GZG50 BLACK,TRIM1#,8# |
1 | ||
| 55962-40020E0 |
GZG50 ORCHID BROWN,TRIM4# |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-40010 |
GZG50 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90176-06022 | ||||
| 90179-08174 | ||||
| 91651-60816 | ||||
| 93568-55014 | ||||
