GZG50-AESGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704-0501)

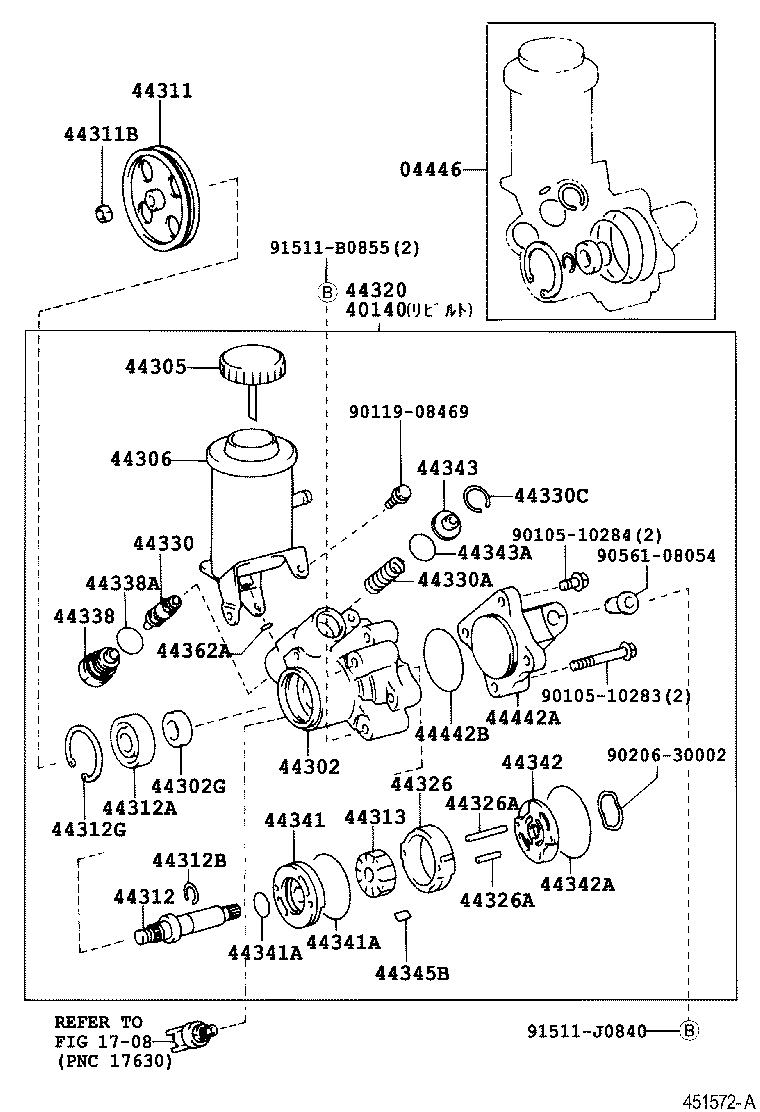

Click highlighted areas on diagram

diagram 04446 1708 40140 44302 44302G 44305 44306 44311 44311B 44312 44312A 44312B 44312G 44313 44320 44326 44326A 44326A 44330 44330A 44330C 44338 44338A 44341 44341A 44341A 44342 44342A 44343 44343A 44345B 44362A 44442A 44442B 9010510283 9010510284 9011908469 9020630002 9056108054 91511B0855 91511J0840
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-24011

GZG50

 1
04446-24012

GZG50

 1
40140 - PUMP ASSY,VANE REBUILT
40140-40070

GZG50

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-40020

GZG50

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004

GZG50

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-50010

GZG50

 1
44306 - RESERVOIR SUB-ASSY, VANE PUMP OIL
44306-40050

GZG50

 1
44311 - PULLEY, VANE PUMP
44311-40050

GZG50

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

GZG50

 1
90179-12022

GZG50

 1
44312 - SHAFT, VANE PUMP
44312-50010

GZG50

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17017

GZG50

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005

GZG50

 1
44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)
90521-51003

GZG50

 1
44313 - ROTOR, VANE PUMP
44313-40020

GZG50

ﾏｰｸ無し

 1
44313-40040

GZG50

ﾏｰｸ 2

 1
44313-40030

GZG50

ﾏｰｸ 1

 1
44313-40060

GZG50

ﾏｰｸ 4

 1
44313-40050

GZG50

ﾏｰｸ 3

 1
44320 - PUMP ASSY, VANE
44320-40070

GZG50

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-35040

GZG50

ﾏｰｸ 3

 1
44325-35050

GZG50

ﾏｰｸ 4

 1
44325-50010

GZG50

ﾏｰｸ無し

 1
44325-50040

GZG50

ﾏｰｸ 3

 1
44325-50050

GZG50

ﾏｰｸ 4

 1
44325-50020

GZG50

ﾏｰｸ 1

 1
44325-35030

GZG50

ﾏｰｸ 2

 1
44325-35010

GZG50

ﾏｰｸ無し

 1
44325-35020

GZG50

ﾏｰｸ 1

 1
44325-50030

GZG50

ﾏｰｸ 2

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04080

GZG50

長さ=48

 1
90250-04047

GZG50

長さ=28,外径=4.0

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04080

GZG50

長さ=48

 1
90250-04047

GZG50

長さ=28,外径=4.0

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-40080

GZG50

ﾏｰｸ B

 1
44330-40090

GZG50

ﾏｰｸ C

 1
44330-40070

GZG50

ﾏｰｸ A

 1
44330-40120

GZG50

ﾏｰｸ F

 1
44330-40110

GZG50

ﾏｰｸ E

 1
44330-40100

GZG50

ﾏｰｸ D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

GZG50

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-02200

GZG50

 1
44338 - UNION, PRESSURE PORT
44338-24080

GZG50

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19018

GZG50

内径=19.2,外径=22.3

 1
90301-19013

GZG50

内径=19.2,外径=22.3

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-30050

GZG50

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-53004

GZG50

外側

 1
90301-28005

GZG50

内側

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-53004

GZG50

外側

 1
90301-28005

GZG50

内側

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-20010

GZG50

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53004

GZG50

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-50010

GZG50

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
90301-18006

GZG50

 1
90301-18013

GZG50

 1
44345B - PLATE, VANE PUMP
44345-12020

GZG50

長さ=14.995

 10
44345-12050

GZG50

長さ=14.989

 10
44345-12030

GZG50

長さ=14.993

 10
44345-12040

GZG50

長さ=14.991

 10
44345-12010

GZG50

長さ=14.997

 10
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90301-11016

GZG50

 1
44442A - BRACKET, VANE PUMP, REAR
44442-40050

GZG50

 1
44442B - RING, O(FOR VANE PUMP BRACKET REAR)
90301-53007

GZG50

 1
90301-53006

GZG50

 1
Common parts
90105-10283
90105-10284
90119-08469
90206-30002
90561-08054
91511-B0855
91511-J0840
Linked diagrams
1708
