GZG50-AESGK (1997)
Toyota Century

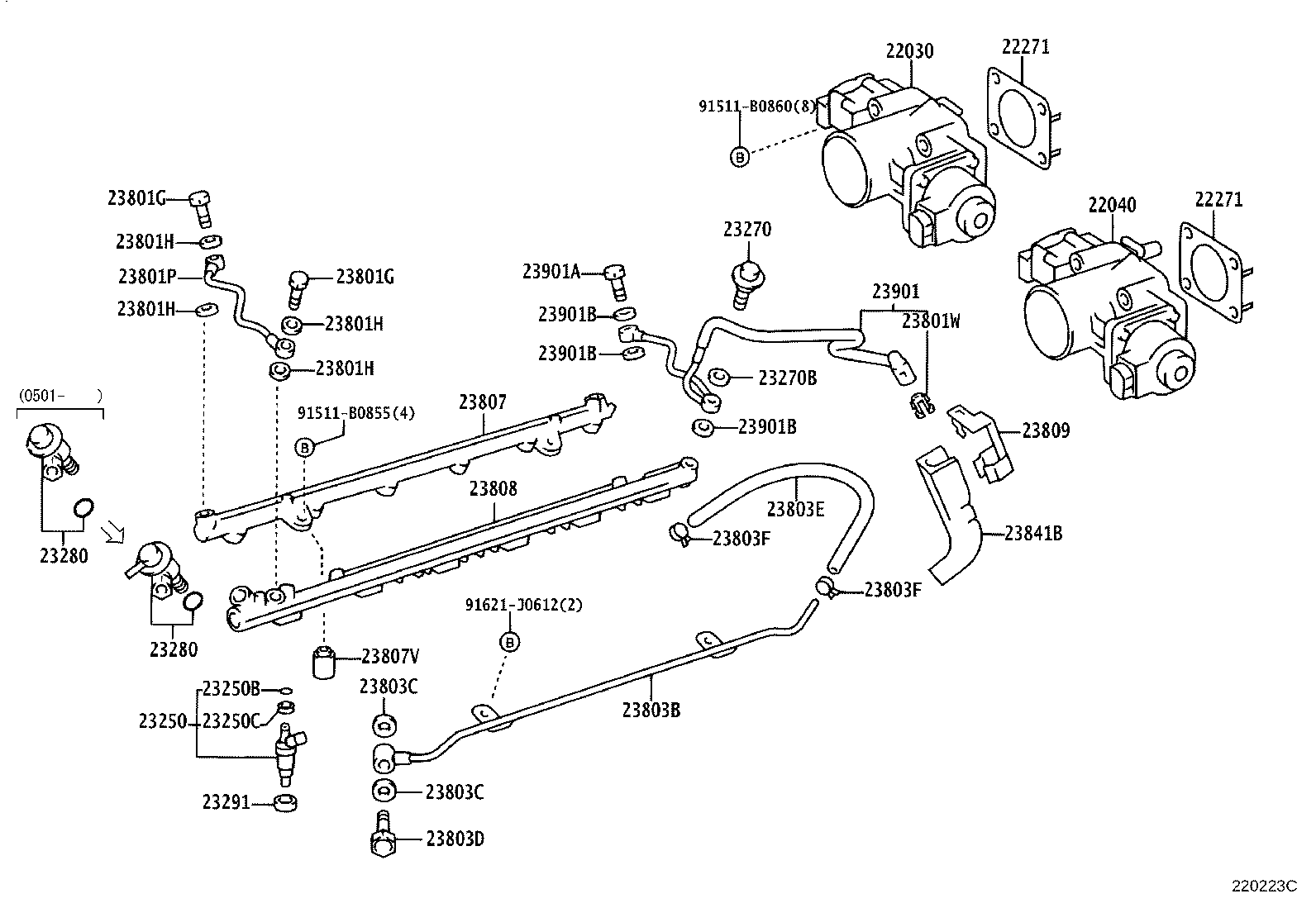

ILLUST NO. 1 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-32010 |
1GZFE..GZG50 |
1 | ||
| 22040 - BODY ASSY, THROTTLE W/MOTOR, LH | ||||
| 22040-32010 |
1GZFE..GZG50 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-32020 |
1GZFE..GZG50 CNGｼﾔ |
12 | ||
| 23209-32010 |
1GZFE..GZG50 |
12 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1GZFE..GZG50 |
12 | ||
| 90301-07024 |
1GZFE..GZG50 |
12 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1GZFE..GZG50 |
12 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-37011 |
1GZFE..GZG50 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-41081 |
1GZFE..GZG50 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-32010 |
1GZFE..GZG50 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-32010 |
1GZFE..GZG50 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
1GZFE..GZG50 |
12 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12023 |
1GZFE..GZG50 |
2 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12023 |
1GZFE..GZG50 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GZFE..GZG50 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GZFE..GZG50 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GZFE..GZG50 |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
1GZFE..GZG50 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-32030 |
1GZFE..GZG50 |
1 | ||
| 23801W - CLIP, FUEL TUBE CONNECTOR | ||||
| 90923-07002 |
1GZFE..GZG50 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-32010 |
1GZFE..GZG50 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-10012 |
1GZFE..GZG50 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-10012 |
1GZFE..GZG50 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-10038 |
1GZFE..GZG50 |
1 | ||
| 23803E - HOSE, FUEL | ||||
| 95334-08026 |
1GZFE..GZG50 |
1 | ||
| 23803F - CLIP | ||||
| 96135-51300 |
1GZFE..GZG50 |
2 | ||
| 23803F - CLIP | ||||
| 96135-51300 |
1GZFE..GZG50 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-32011 |
1GZFE..GZG50 |
1 | ||
| 23807-32030 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 23807-32010 |
1GZFE..GZG50 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08020 |
1GZFE..GZG50 |
4 | ||
| 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 | ||||
| 23808-32010 |
1GZFE..GZG50 |
1 | ||
| 23808-32011 |
1GZFE..GZG50 |
1 | ||
| 23808-32030 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23809-32010 |
1GZFE..GZG50 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-32050 |
1GZFE..GZG50 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-32010 |
1GZFE..GZG50 |
1 | ||
| 23901A - BOLT, UNION(FOR FUEL TUBE) | ||||
| 90401-12023 |
1GZFE..GZG50 |
1 | ||
| 23901B - GASKET(FOR FUEL TUBE) | ||||
| 90430-12026 |
1GZFE..GZG50 |
3 | ||
| 23901B - GASKET(FOR FUEL TUBE) | ||||
| 90430-12026 |
1GZFE..GZG50 |
3 | ||
| 23901B - GASKET(FOR FUEL TUBE) | ||||
| 90430-12026 |
1GZFE..GZG50 |
3 | ||
| Common parts | ||||
| 91511-B0855 | ||||
| 91511-B0860 | ||||
| 91621-J0612 | ||||

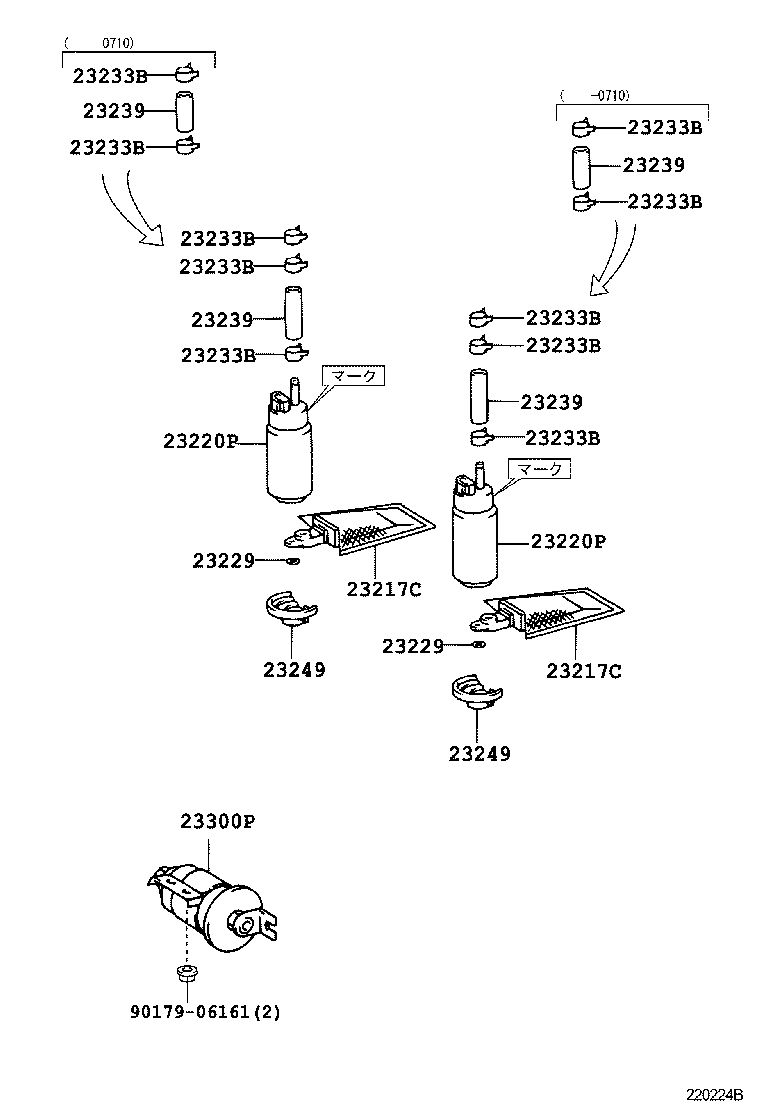

ILLUST NO. 2 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217C - FILTER, SUCTION | ||||
| 23217-76040 |
1GZFE..GZG50 |
2 | ||
| 23217C - FILTER, SUCTION | ||||
| 23217-76040 |
1GZFE..GZG50 |
2 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-50060 |
1GZFE..GZG50 |
2 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-50060 |
1GZFE..GZG50 |
2 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1GZFE..GZG50 |
2 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1GZFE..GZG50 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
1GZFE..GZG50 |
4 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
1GZFE..GZG50 |
2 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
1GZFE..GZG50 |
2 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
1GZFE..GZG50 |
2 | ||
| 23239 - HOSE | ||||
| 23239-63010 |
1GZFE..GZG50 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1GZFE..GZG50 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
1GZFE..GZG50 |
2 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-50060 |
1GZFE..GZG50 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||

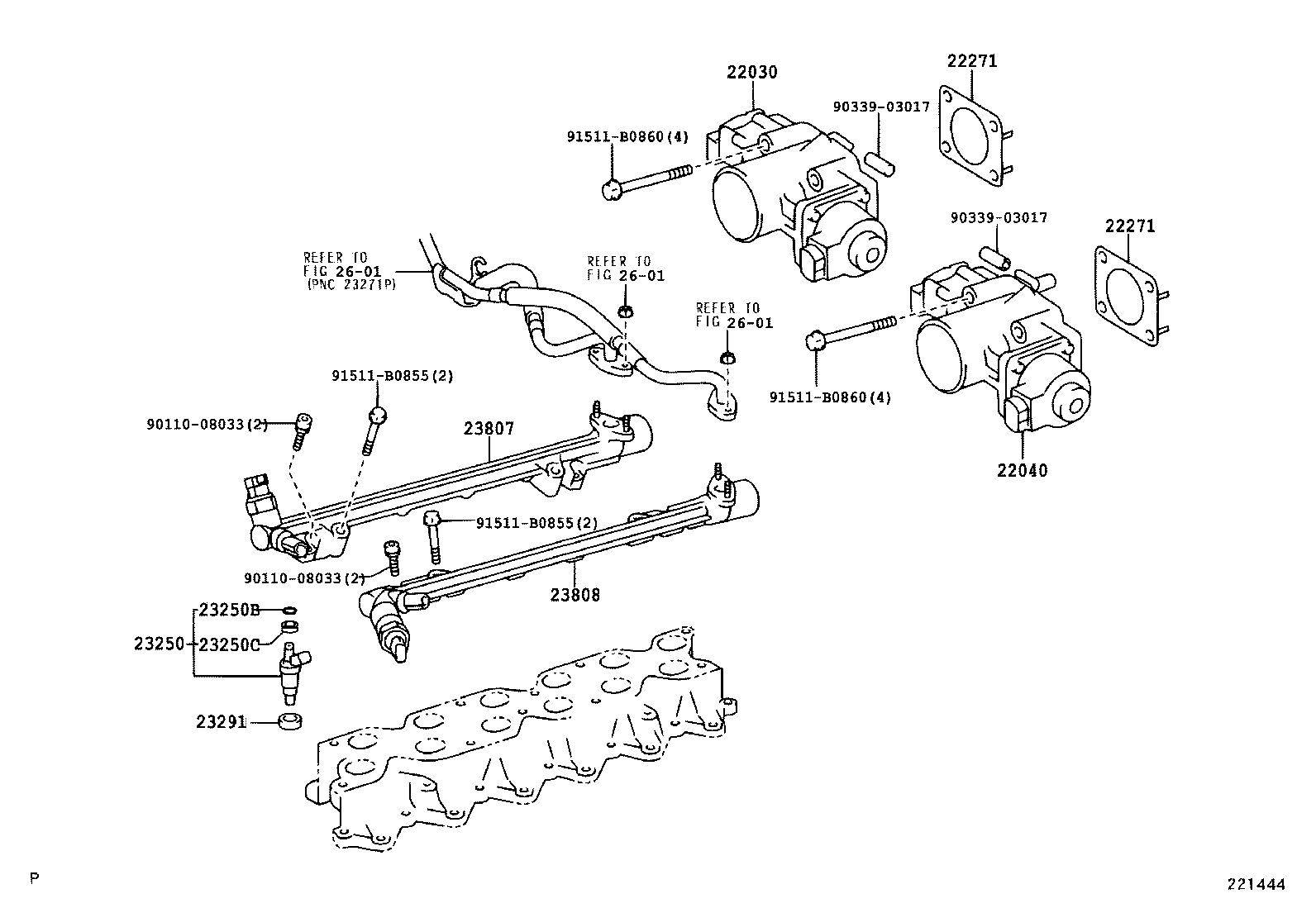

(0301-0501)
CNGｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-32010 |
1GZFE..GZG50 |
1 | ||
| 22040 - BODY ASSY, THROTTLE W/MOTOR, LH | ||||
| 22040-32010 |
1GZFE..GZG50 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-32020 |
1GZFE..GZG50 CNGｼﾔ |
12 | ||
| 23209-32010 |
1GZFE..GZG50 |
12 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1GZFE..GZG50 |
12 | ||
| 90301-07024 |
1GZFE..GZG50 |
12 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1GZFE..GZG50 |
12 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
1GZFE..GZG50 |
12 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-32011 |
1GZFE..GZG50 |
1 | ||
| 23807-32030 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 23807-32010 |
1GZFE..GZG50 |
1 | ||
| 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 | ||||
| 23808-32010 |
1GZFE..GZG50 |
1 | ||
| 23808-32011 |
1GZFE..GZG50 |
1 | ||
| 23808-32030 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| Common parts | ||||
| 90110-08033 | ||||
| 90339-03017 | ||||
| 91511-B0855 | ||||
| 91511-B0860 | ||||
| Linked diagrams | ||||
| 2601 | ||||
