GZG50-AESGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

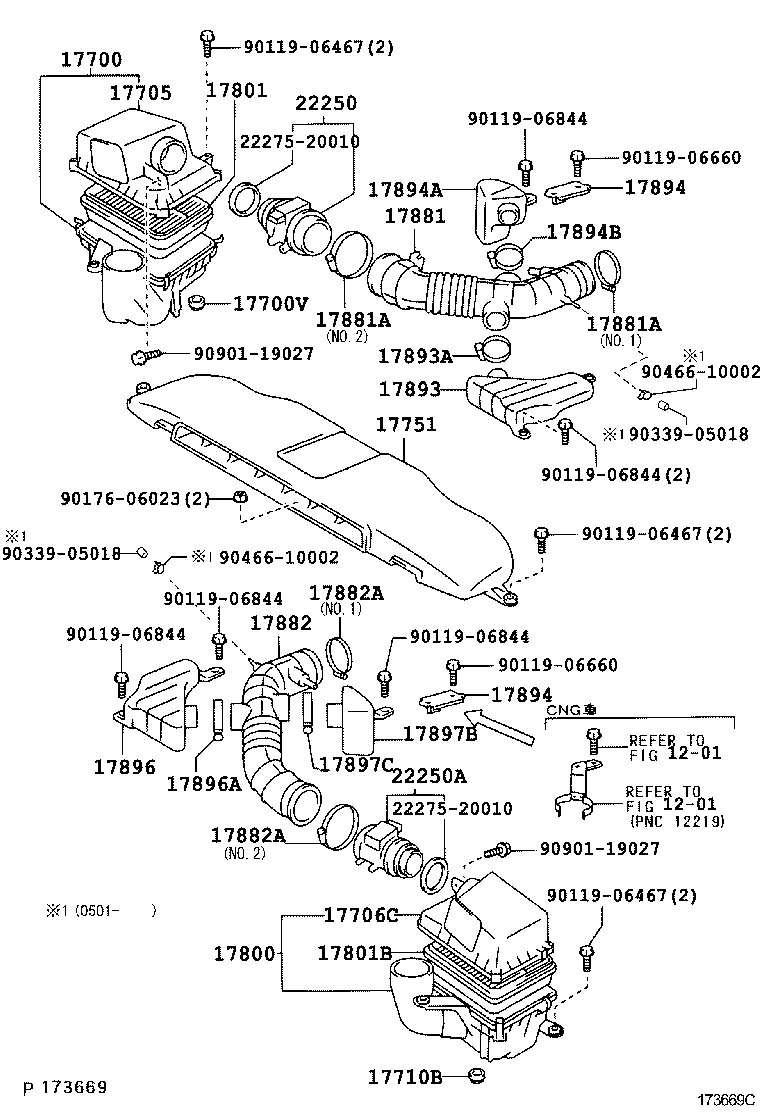

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-32080 |
1GZFE..GZG50 |
1 | ||
| 17700V - BUSH(FOR AIR CLEANER) | ||||
| 90480-17030 |
1GZFE..GZG50 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-32020 |
1GZFE..GZG50 |
1 | ||
| 17706C - CAP SUB-ASSY, AIR CLEANER, LH | ||||
| 17706-32010 |
1GZFE..GZG50 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-17030 |
1GZFE..GZG50 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-32010 |
1GZFE..GZG50 |
1 | ||
| 17800 - CLEANER ASSY, AIR W/ELEMENT, LH | ||||
| 17800-32010 |
1GZFE..GZG50 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-35020 |
1GZFE..GZG50 |
1 | ||
| 17801B - ELEMENT SUB-ASSY, AIR CLEANER FILTER, NO.2 | ||||
| 17801-35020 |
1GZFE..GZG50 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-32030 |
1GZFE..GZG50 |
1 | ||
| 17881-32031 |
1GZFE..GZG50 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-85001 |
1GZFE..GZG50 NO.2 |
1 | ||
| 90460-75006 |
1GZFE..GZG50 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-85001 |
1GZFE..GZG50 NO.2 |
1 | ||
| 90460-75006 |
1GZFE..GZG50 NO.1 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-32121 |
1GZFE..GZG50 |
1 | ||
| 17882-32120 |
1GZFE..GZG50 |
1 | ||
| 17882-32130 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-85001 |
1GZFE..GZG50 NO.2 |
1 | ||
| 90460-75006 |
1GZFE..GZG50 NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-85001 |
1GZFE..GZG50 NO.2 |
1 | ||
| 90460-75006 |
1GZFE..GZG50 NO.1 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-32010 |
1GZFE..GZG50 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 90460-57002 |
1GZFE..GZG50 |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-32020 |
1GZFE..GZG50 |
2 | ||
| 17894-32020 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-32020 |
1GZFE..GZG50 |
2 | ||
| 17894-32020 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-32010 |
1GZFE..GZG50 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 90460-50002 |
1GZFE..GZG50 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-32010 |
1GZFE..GZG50 |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 90460-57002 |
1GZFE..GZG50 |
1 | ||
| 17897B - RESONATOR, INTAKE AIR, NO.4 | ||||
| 17897-32010 |
1GZFE..GZG50 |
1 | ||
| 17897C - CLAMP(FOR INTAKE AIR RESONATOR, NO.4) | ||||
| 90460-50002 |
1GZFE..GZG50 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-46040 |
1GZFE..GZG50 |
1 | ||
| 22250A - METER ASSY, INTAKE AIR FLOW, NO.2 | ||||
| 22250-46040 |
1GZFE..GZG50 |
1 | ||
| Common parts | ||||
| 22275-20010 | ||||
| 90119-06467 | ||||
| 90119-06660 | ||||
| 90119-06844 | ||||
| 90176-06023 | ||||
| 90339-05018 | ||||
| 90466-10002 | ||||
| 90901-19027 | ||||
| Linked diagrams | ||||
| 1201 | ||||
