GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

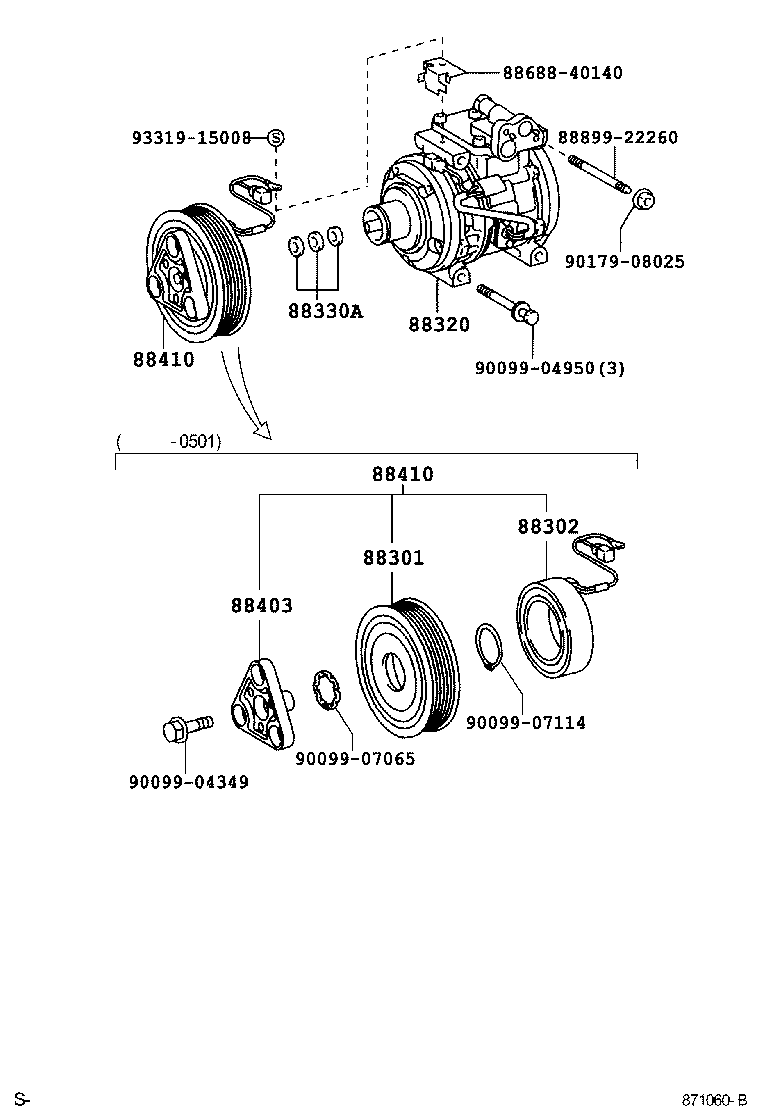

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-40040 |
GZG50 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-40050 |
GZG50 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-40070 |
GZG50 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GZG50 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-2A010 |
GZG50 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-40070 |
GZG50 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-40070 |
GZG50 |
1 | ||
| Common parts | ||||
| 88688-40140 | ||||
| 88899-22260 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||
