GZG50-AEPGK (1997)
Toyota Century

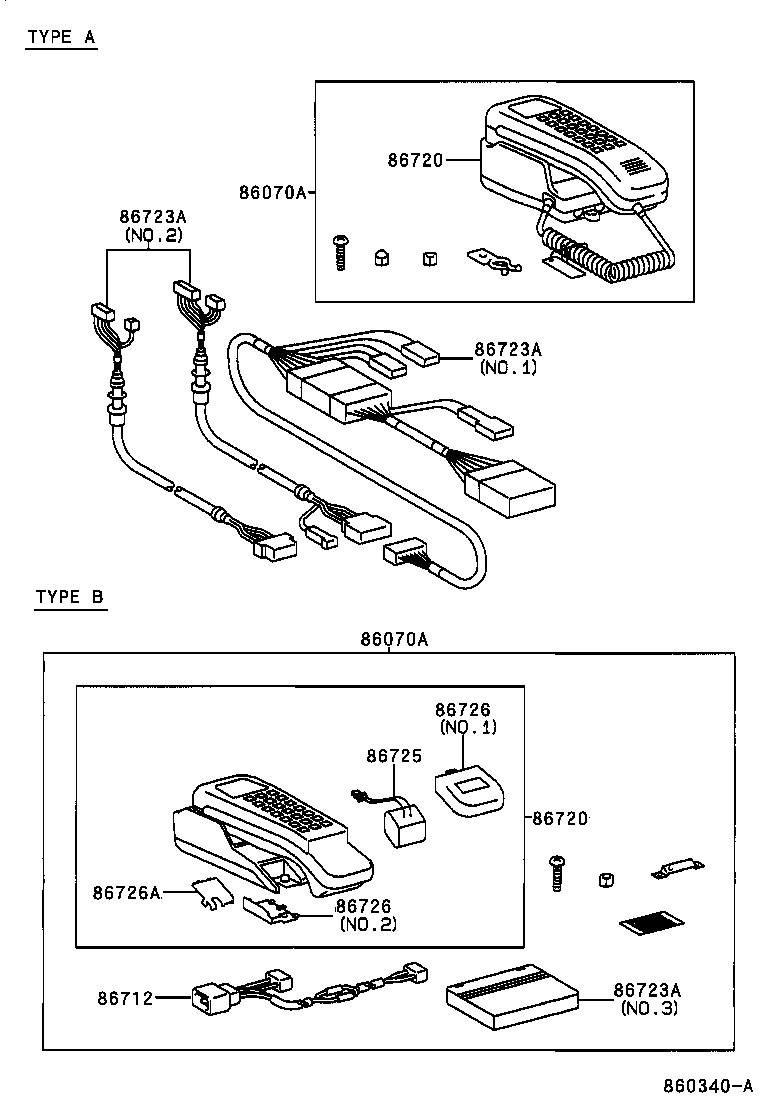

ILLUST NO. 1 OF 3(9704-0501)
ﾃﾚﾎﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET) | ||||
| 86070-30170 |
GZG50..4FC,4HC TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86070-30150 |
GZG50..4FC,4HC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86070A - MOBILEPHONE & ACCESSORY ASSY (HANDSET) | ||||
| 86070-30170 |
GZG50..4FC,4HC TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86070-30150 |
GZG50..4FC,4HC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86712 - WIRE, TELEPHONE | ||||
| 86712-50040 |
GZG50..4FC,4HC |
1 | ||
| 86720 - MOBILEPHONE ASSY | ||||
| 86720-30060 |
GZG50..4FC,4HC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86720-30090 |
GZG50..4FC,4HC TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86720 - MOBILEPHONE ASSY | ||||
| 86720-30060 |
GZG50..4FC,4HC TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86720-30090 |
GZG50..4FC,4HC TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86723A - WIRE, MOBILEPHONE | ||||
| 86723-30090 |
GZG50..4FC,4HC NO.2 |
1 | ||
| 86723-40050 |
GZG50..4FC,4HC NO.1 |
1 | ||
| 86723-50030 |
GZG50..4FC,4HC NO.3 |
1 | ||
| 86723-40080 |
GZG50..4FC,4HC NO.4 |
1 | ||
| 86723A - WIRE, MOBILEPHONE | ||||
| 86723-30090 |
GZG50..4FC,4HC NO.2 |
1 | ||
| 86723-40050 |
GZG50..4FC,4HC NO.1 |
1 | ||
| 86723-50030 |
GZG50..4FC,4HC NO.3 |
1 | ||
| 86723-40080 |
GZG50..4FC,4HC NO.4 |
1 | ||
| 86723A - WIRE, MOBILEPHONE | ||||
| 86723-30090 |
GZG50..4FC,4HC NO.2 |
1 | ||
| 86723-40050 |
GZG50..4FC,4HC NO.1 |
1 | ||
| 86723-50030 |
GZG50..4FC,4HC NO.3 |
1 | ||
| 86723-40080 |
GZG50..4FC,4HC NO.4 |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-50010 |
GZG50..4FC,4HC |
1 | ||
| 86726 - COVER, MOBILEPHONE | ||||
| 86726-30010 |
GZG50..4FC,4HC NO.1 |
1 | ||
| 86726-30020 |
GZG50..4FC,4HC NO.2 |
1 | ||
| 86726 - COVER, MOBILEPHONE | ||||
| 86726-30010 |
GZG50..4FC,4HC NO.1 |
1 | ||
| 86726-30020 |
GZG50..4FC,4HC NO.2 |
1 | ||
| 86726A - COVER, MOBILEPHONE, NO.2 | ||||
| 86726-30030 |
GZG50..4FC,4HC |
1 | ||

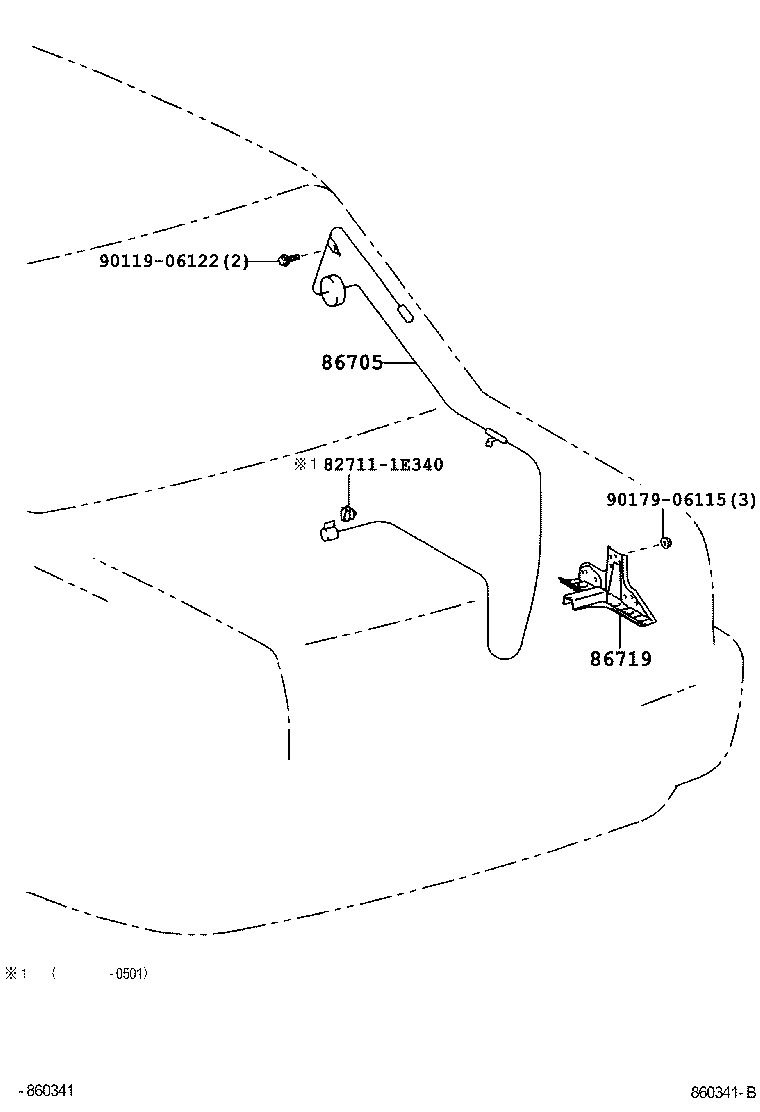

ILLUST NO. 2 OF 3(9704- )
ﾃﾚﾎﾝ ｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86705 - CORD SUB-ASSY, TELEPHONE ANTENNA | ||||
| 86705-40050 |
GZG50 |
1 | ||
| 86719 - BRACKET, TELEPHONE | ||||
| 86719-40050 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ, ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 86719-50070 |
GZG50 |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 90119-06122 | ||||
| 90179-06115 | ||||

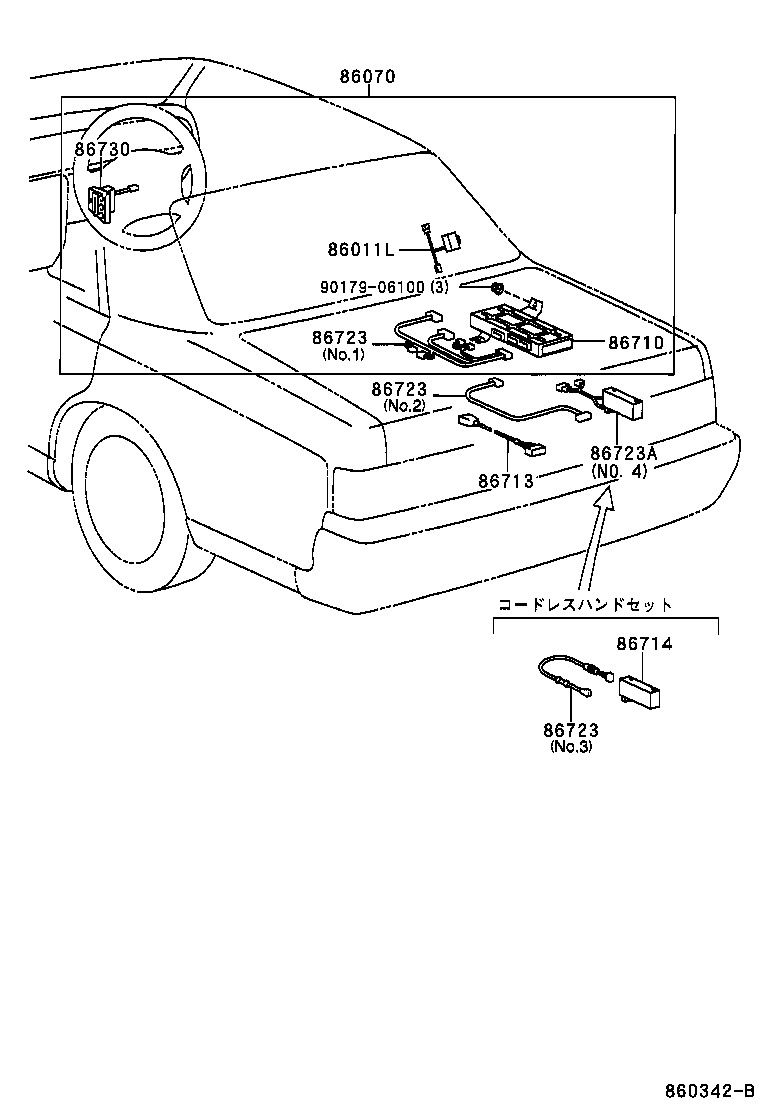

ILLUST NO. 3 OF 3(9704-0004)
ﾊﾝﾄﾞﾌﾘ- ﾃﾚﾎﾝ & ｺ-ﾄﾞﾚｽﾊﾝﾄﾞｾﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011L - FILTER, NOISE | ||||
| 90980-05280 |
GZG50..4FC,4HC |
1 | ||
| 86070 - MOBILEPHONE & ACCESSORY ASSY | ||||
| 86070-40010 |
GZG50..4FC,4HC ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86070-40020 |
GZG50..4FC,4HC |
1 | ||
| 86710 - COMPUTER ASSY, TELEPHONE | ||||
| 86710-40050 |
GZG50 |
1 | ||
| 86710-40060 |
GZG50 |
1 | ||
| 86070-50180 |
GZG50 |
1 | ||
| 86710-40040 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86713 - WIRE, TELEPHONE COMPUTER | ||||
| 86713-30040 |
GZG50 NO.2 |
1 | ||
| 86713-40070 |
GZG50 NO.1 |
1 | ||
| 86713-40060 |
GZG50 |
1 | ||
| 86714 - CONTROLLER, TELEPHONE | ||||
| 86714-40010 |
GZG50..4FC,4HC |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-40070 |
GZG50 NO.3 |
1 | ||
| 86723-30100 |
GZG50 NO.1 |
1 | ||
| 86723-30110 |
GZG50 NO.2 |
1 | ||
| 86723-30170 |
GZG50 |
1 | ||
| 86723-40040 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-40070 |
GZG50 NO.3 |
1 | ||
| 86723-30100 |
GZG50 NO.1 |
1 | ||
| 86723-30110 |
GZG50 NO.2 |
1 | ||
| 86723-30170 |
GZG50 |
1 | ||
| 86723-40040 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-40070 |
GZG50 NO.3 |
1 | ||
| 86723-30100 |
GZG50 NO.1 |
1 | ||
| 86723-30110 |
GZG50 NO.2 |
1 | ||
| 86723-30170 |
GZG50 |
1 | ||
| 86723-40040 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86723A - WIRE, MOBILEPHONE | ||||
| 86723-30090 |
GZG50..4FC,4HC NO.2 |
1 | ||
| 86723-40050 |
GZG50..4FC,4HC NO.1 |
1 | ||
| 86723-50030 |
GZG50..4FC,4HC NO.3 |
1 | ||
| 86723-40080 |
GZG50..4FC,4HC NO.4 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-40020 |
GZG50 NO.1 |
1 | ||
| 86730-51010 |
GZG50 NO.2 |
1 | ||
| 86730-50040 |
GZG50 |
1 | ||
| Common parts | ||||
| 90179-06100 | ||||

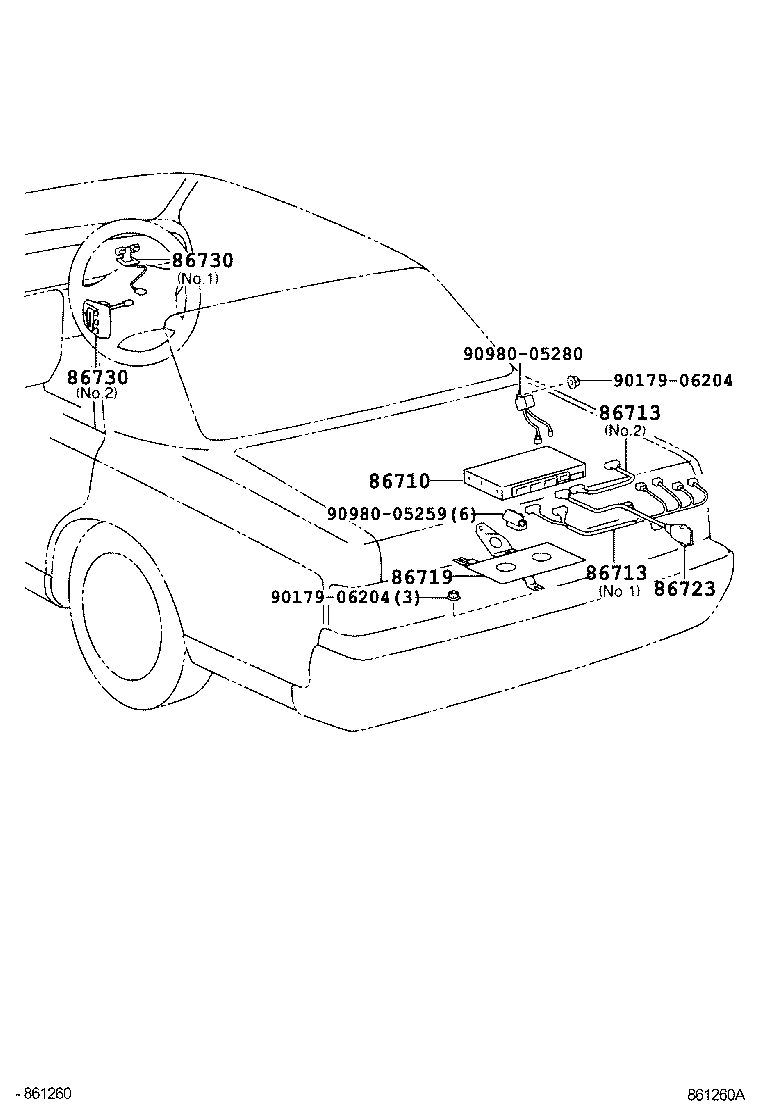

ILLUST NO. 3 OF 3(0004-0501)
EMV & ﾊﾝﾄﾞﾌﾘ- ﾃﾚﾎﾝ & ｺ-ﾄﾞﾚｽﾊﾝﾄﾞｾﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86710 - COMPUTER ASSY, TELEPHONE | ||||
| 86710-40050 |
GZG50 |
1 | ||
| 86710-40060 |
GZG50 |
1 | ||
| 86070-50180 |
GZG50 |
1 | ||
| 86710-40040 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86713 - WIRE, TELEPHONE COMPUTER | ||||
| 86713-30040 |
GZG50 NO.2 |
1 | ||
| 86713-40070 |
GZG50 NO.1 |
1 | ||
| 86713-40060 |
GZG50 |
1 | ||
| 86713 - WIRE, TELEPHONE COMPUTER | ||||
| 86713-30040 |
GZG50 NO.2 |
1 | ||
| 86713-40070 |
GZG50 NO.1 |
1 | ||
| 86713-40060 |
GZG50 |
1 | ||
| 86719 - BRACKET, TELEPHONE | ||||
| 86719-40050 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ, ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 86719-50070 |
GZG50 |
1 | ||
| 86723 - WIRE, MOBILEPHONE | ||||
| 86723-40070 |
GZG50 NO.3 |
1 | ||
| 86723-30100 |
GZG50 NO.1 |
1 | ||
| 86723-30110 |
GZG50 NO.2 |
1 | ||
| 86723-30170 |
GZG50 |
1 | ||
| 86723-40040 |
GZG50 ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ),NO.1 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-40020 |
GZG50 NO.1 |
1 | ||
| 86730-51010 |
GZG50 NO.2 |
1 | ||
| 86730-50040 |
GZG50 |
1 | ||
| 86730 - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-40020 |
GZG50 NO.1 |
1 | ||
| 86730-51010 |
GZG50 NO.2 |
1 | ||
| 86730-50040 |
GZG50 |
1 | ||
| Common parts | ||||
| 90179-06204 | ||||
| 90980-05259 | ||||
| 90980-05280 | ||||
