GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

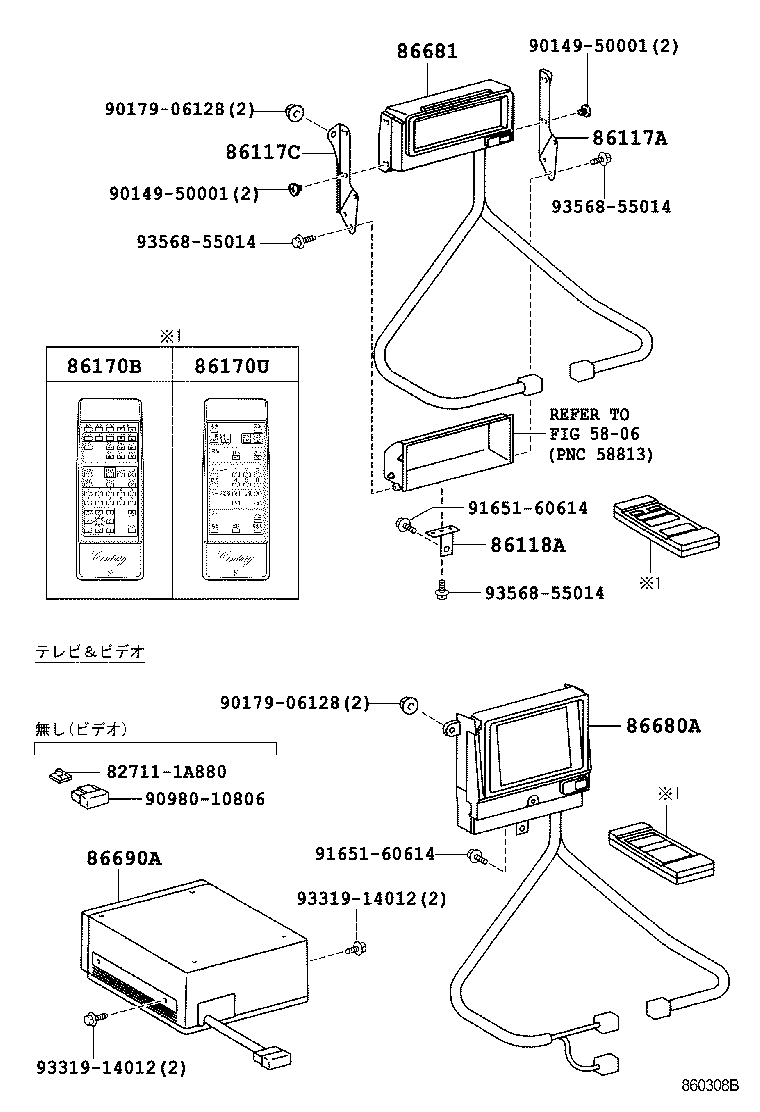

ILLUST NO. 1 OF 2(9704-0501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86117A - BRACKET, TELEVISION DISPLAY, A | ||||
| 86117-40020 |
GZG50 |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-40030 |
GZG50 |
1 | ||
| 86118A - BRACKET, TELEVISION DISPLAY, B | ||||
| 86118-40010 |
GZG50 |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-40100 |
GZG50 |
1 | ||
| 86170-40090 |
GZG50 |
1 | ||
| 86170U - SWITCH & VOLUME ASSY, REAR | ||||
| 86170-40120 |
GZG50 |
1 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-40062 |
GZG50 FUJITSU TEN |
1 | ||
| 86680-40060 |
GZG50 FUJITSU TEN |
1 | ||
| 86680-40061 |
GZG50 FUJITSU TEN |
1 | ||
| 86680-40030 |
GZG50 FUJITSU TEN |
1 | ||
| 86681 - DIVIDER, ANTENNA | ||||
| 86681-40010 |
GZG50 |
1 | ||
| 86681-40020 |
GZG50 |
1 | ||
| 86690A - VIDEO DECK ASSY | ||||
| 86690-26010 |
GZG50 |
1 | ||
| Common parts | ||||
| 82711-1A880 | ||||
| 90149-50001 | ||||
| 90179-06128 | ||||
| 90980-10806 | ||||
| 91651-60614 | ||||
| 93319-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5806 | ||||

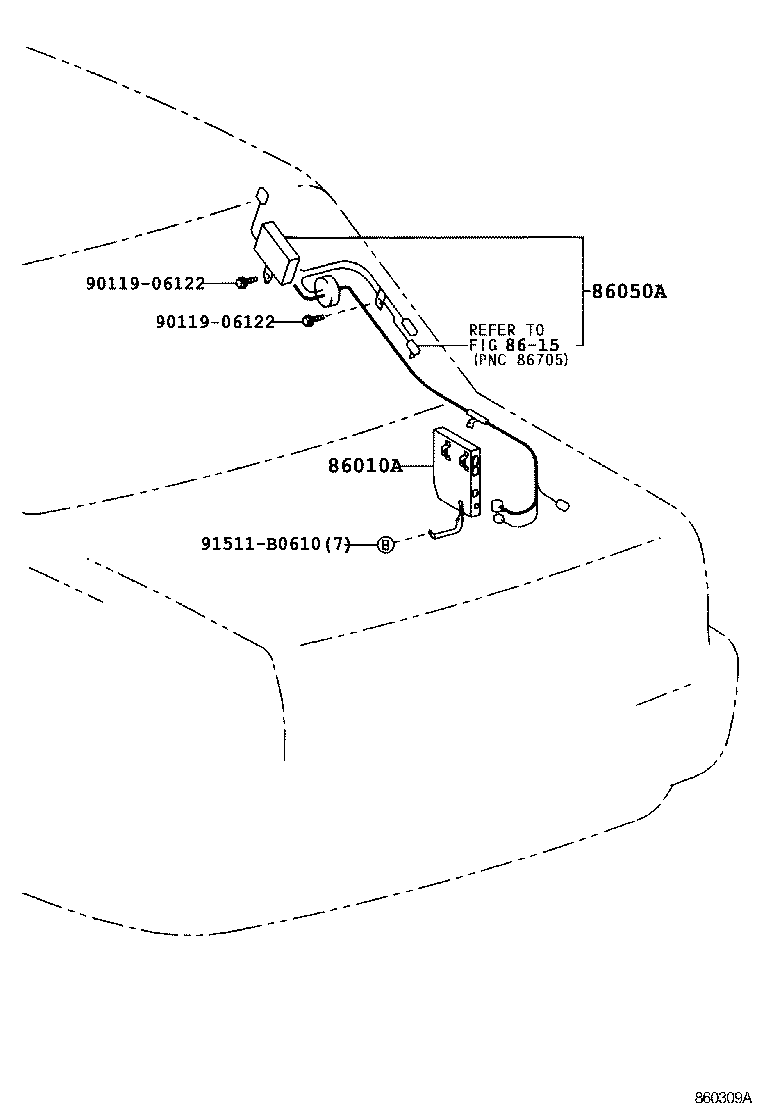

ILLUST NO. 2 OF 2(9704-0501)
Click highlighted areas on diagram
ﾃﾚﾋﾞ ﾁﾕ-ﾅ & ｱﾝﾃﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86010A - TUNER ASSY, TELEVISION | ||||
| 86010-40011 |
GZG50 |
1 | ||
| 86010-40010 |
GZG50 |
1 | ||
| 86010-40021 |
GZG50 |
1 | ||
| 86010-40020 |
GZG50 |
1 | ||
| 86050A - ANTENNA ASSY, TELEVISION | ||||
| 86050-40040 |
GZG50 |
1 | ||
| 86050-40080 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 91511-B0610 | ||||
| Linked diagrams | ||||
| 8615 | ||||
