Toyota Century GZG50 NAVIGATION & FRONT MONITOR DISPLAY

Manufacturers Home
Toyota
JP
CENTURY
GZG50-AEPGK (1997)
8603 - NAVIGATION & FRONT MONITOR DISPLAY

GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005

Engine 1GZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

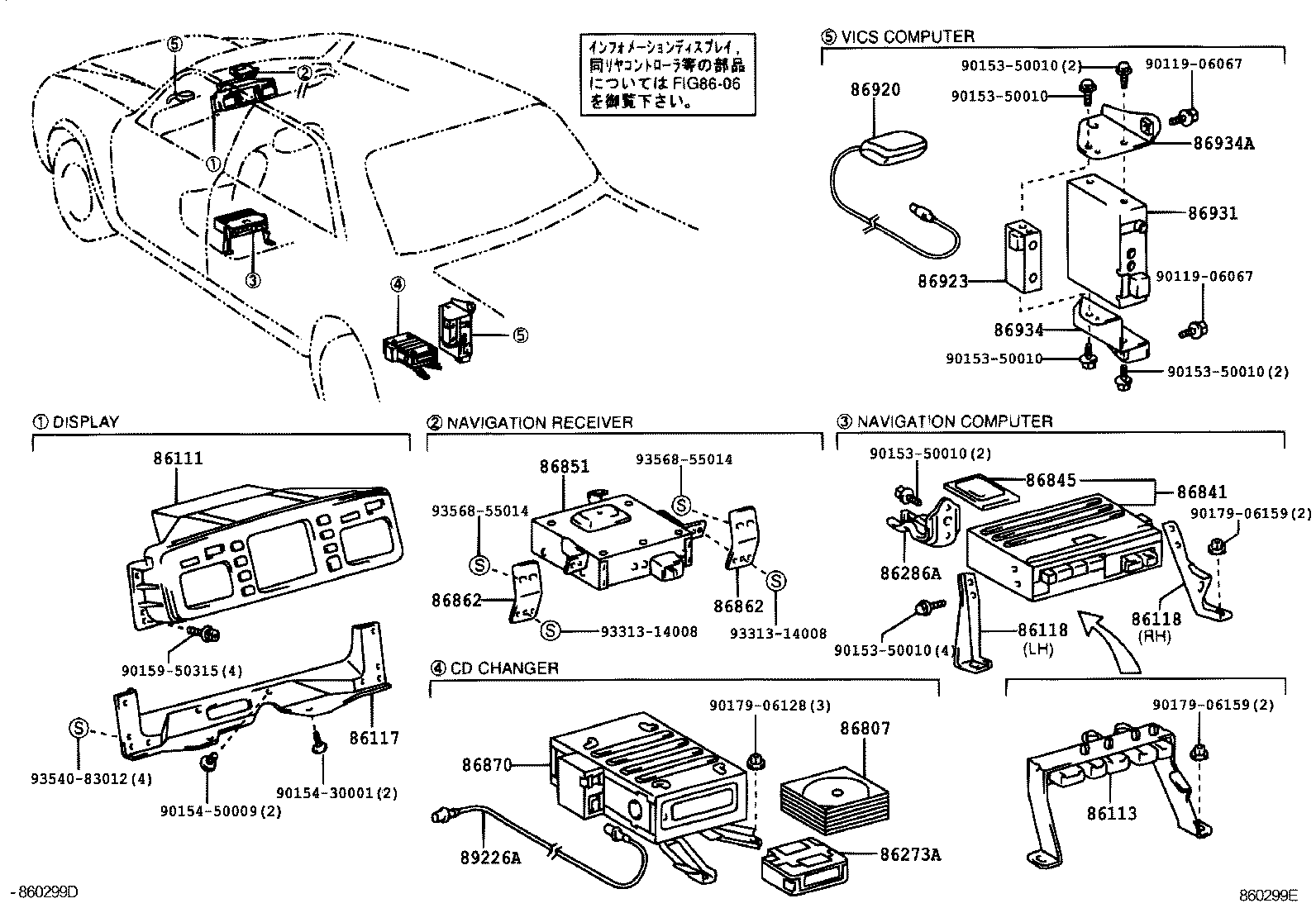

(9704-0004)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86111 - MULTI-DISPLAY
86111-40020	GZG50 DENSO	04/1997 - 04/2000	1
86111-40010	GZG50 DENSO	04/2000 - 01/2005	1
86113 - BLOCK, MULTI-DISPLAY JUNCTION
86113-40010	GZG50	04/1997 - 04/2000	1
86113-40030	GZG50 NO.2	04/2000 - 01/2005	1
86113-40020	GZG50 NO.1	04/2000 - 01/2005	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-40010	GZG50	04/1997 - 04/2000	1
86117-40050	GZG50	04/2000 - 01/2005	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86117-40060	GZG50 右側	04/2000 - 01/2005	1
86117-40040	GZG50 右側	04/1997 - 04/2000	1
86118-40030	GZG50 左側	04/2000 - 01/2005	1
86118-40020	GZG50 左側	04/1997 - 04/2000	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86117-40060	GZG50 右側	04/2000 - 01/2005	1
86117-40040	GZG50 右側	04/1997 - 04/2000	1
86118-40030	GZG50 左側	04/2000 - 01/2005	1
86118-40020	GZG50 左側	04/1997 - 04/2000	1
86273A - MAGAZINE, DISC PLAYER
86273-30020	GZG50..4FC,4HC	04/1997 - 04/2000	1
86286A - BRACKET, AMPLIFIER, NO.2
86286-40010	GZG50..4FC,4HC	04/1997 - 04/2000	2
86807 - DISC KIT, CD-ROM
86807-40011	GZG50..4FC,4HC	11/1997 - 11/1998	1
86807-40013	GZG50..4FC,4HC	10/1999 - 04/2000	1
86807-40010	GZG50..4FC,4HC	04/1997 - 11/1997	1
86807-40012	GZG50..4FC,4HC	11/1998 - 10/1999	1
86841 - COMPUTER, NAVIGATION
86841-40011	GZG50	11/1997 - 05/1998	1
86841-40010	GZG50	04/1997 - 11/1997	1
86841-40012	GZG50	05/1998 - 04/2000	1
86841-40030	GZG50	04/2000 - 09/2000	1
86841-40031	GZG50	09/2000 - 05/2001	1
86841-40020	GZG50	05/2001 - 01/2005	1
86845 - CARD, NAVIGATION
86845-40010	GZG50..4FC,4HC	04/1997 - 06/1997	1
86845-40011	GZG50..4FC,4HC	06/1997 - 11/1997	1
86845-40012	GZG50..4FC,4HC	11/1997 - 04/2000	1
86851 - RECEIVER, NAVIGATION
86851-40010	GZG50	04/1997 - 04/2000	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-40020	GZG50	04/2000 - 01/2005	2
86862-40010	GZG50	04/1997 - 04/2000	2
86862 - BRACKET, NAVIGATION ANTENNA
86862-40020	GZG50	04/2000 - 01/2005	2
86862-40010	GZG50	04/1997 - 04/2000	2
86870 - PLAYER ASSY, CD-ROM
86871-40030	GZG50..4FC,4HC	04/1997 - 04/2000	1
86920 - ANTENNA ASSY, TRAFFIC INFORMATION
86920-50020	GZG50	04/2000 - 05/2001	1
86920-40020	GZG50	05/2001 - 01/2005	1
86920-40010	GZG50	04/1997 - 04/2000	1
86923 - DETECTOR, TRAFFIC INFORMATION
86923-40010	GZG50	04/1997 - 05/2001	1
86923-40020	GZG50	05/2001 - 01/2005	1
86931 - COMPUTER, TRAFFIC INFORMATION
86931-40020	GZG50	05/2001 - 01/2005	1
86931-40010	GZG50	04/1997 - 05/2001	1
86934 - BRACKET, TRAFFIC INFORMATION, NO.1
86934-40010	GZG50	04/1997 - 01/2005	1
86934A - BRACKET, TRAFFIC INFORMATION, NO.2
86934-40020	GZG50	04/1997 - 01/2005	1
89226A - FIBER, OPTICAL
89226-40050	GZG50..4FC,4HC	04/1997 - 04/2000	1
Common parts
90119-06067
90153-50010
90154-30001
90154-50009
90159-50315
90179-06128
90179-06159
93313-14008
93540-83012
93568-55014

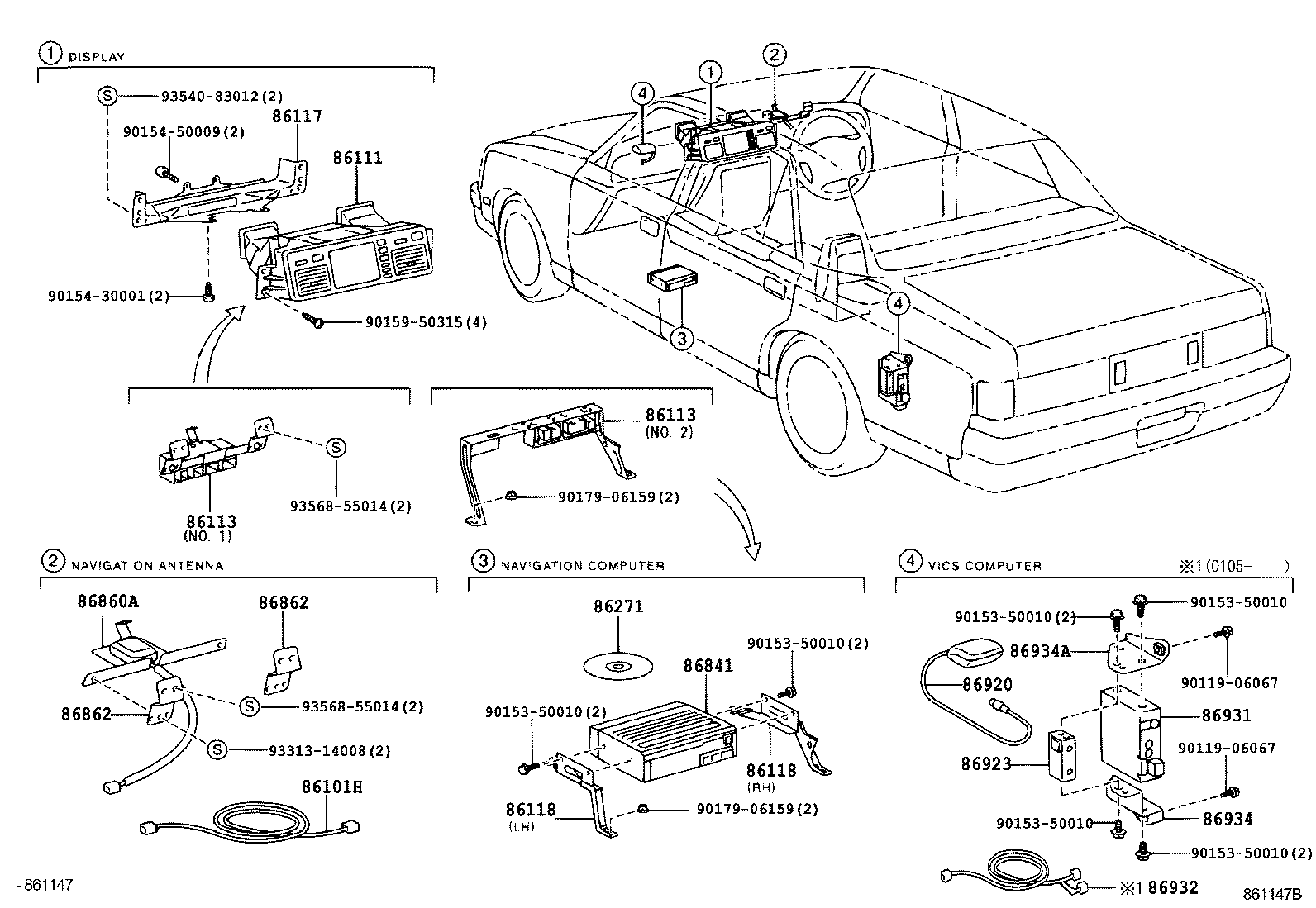

(0004-0501)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86101H - CORD SUB-ASSY, ANTENNA
86101-40060	GZG50	04/2000 - 01/2005	1
86111 - MULTI-DISPLAY
86111-40020	GZG50 DENSO	04/1997 - 04/2000	1
86111-40010	GZG50 DENSO	04/2000 - 01/2005	1
86113 - BLOCK, MULTI-DISPLAY JUNCTION
86113-40010	GZG50	04/1997 - 04/2000	1
86113-40030	GZG50 NO.2	04/2000 - 01/2005	1
86113-40020	GZG50 NO.1	04/2000 - 01/2005	1
86113 - BLOCK, MULTI-DISPLAY JUNCTION
86113-40010	GZG50	04/1997 - 04/2000	1
86113-40030	GZG50 NO.2	04/2000 - 01/2005	1
86113-40020	GZG50 NO.1	04/2000 - 01/2005	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-40010	GZG50	04/1997 - 04/2000	1
86117-40050	GZG50	04/2000 - 01/2005	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86117-40060	GZG50 右側	04/2000 - 01/2005	1
86117-40040	GZG50 右側	04/1997 - 04/2000	1
86118-40030	GZG50 左側	04/2000 - 01/2005	1
86118-40020	GZG50 左側	04/1997 - 04/2000	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86117-40060	GZG50 右側	04/2000 - 01/2005	1
86117-40040	GZG50 右側	04/1997 - 04/2000	1
86118-40030	GZG50 左側	04/2000 - 01/2005	1
86118-40020	GZG50 左側	04/1997 - 04/2000	1
86271 - DISC, DISC PLAYER
86271-30470	GZG50	04/2000 - 05/2001	1
86271-13030	GZG50	05/2001 - 03/2004	1
86271-13032	GZG50	03/2004 - 10/2004	1
86271-13033	GZG50	10/2004 - 01/2005	1
86841 - COMPUTER, NAVIGATION
86841-40011	GZG50	11/1997 - 05/1998	1
86841-40010	GZG50	04/1997 - 11/1997	1
86841-40012	GZG50	05/1998 - 04/2000	1
86841-40030	GZG50	04/2000 - 09/2000	1
86841-40031	GZG50	09/2000 - 05/2001	1
86841-40020	GZG50	05/2001 - 01/2005	1
86860A - ANTENNA, NAVIGATION
86861-40010	GZG50	04/2000 - 01/2005	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-40020	GZG50	04/2000 - 01/2005	2
86862-40010	GZG50	04/1997 - 04/2000	2
86862 - BRACKET, NAVIGATION ANTENNA
86862-40020	GZG50	04/2000 - 01/2005	2
86862-40010	GZG50	04/1997 - 04/2000	2
86920 - ANTENNA ASSY, TRAFFIC INFORMATION
86920-50020	GZG50	04/2000 - 05/2001	1
86920-40020	GZG50	05/2001 - 01/2005	1
86920-40010	GZG50	04/1997 - 04/2000	1
86923 - DETECTOR, TRAFFIC INFORMATION
86923-40010	GZG50	04/1997 - 05/2001	1
86923-40020	GZG50	05/2001 - 01/2005	1
86931 - COMPUTER, TRAFFIC INFORMATION
86931-40020	GZG50	05/2001 - 01/2005	1
86931-40010	GZG50	04/1997 - 05/2001	1
86932 - WIRE, TRAFFIC INFORMATION
86932-40010	GZG50	05/2001 - 01/2005	1
86934 - BRACKET, TRAFFIC INFORMATION, NO.1
86934-40010	GZG50	04/1997 - 01/2005	1
86934A - BRACKET, TRAFFIC INFORMATION, NO.2
86934-40020	GZG50	04/1997 - 01/2005	1
Common parts
90119-06067
90153-50010
90154-30001
90154-50009
90159-50315
90179-06159
93313-14008
93540-83012
93568-55014

GZG50-AEPGK (1997)

(9704-0004)

(0004-0501)
