GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

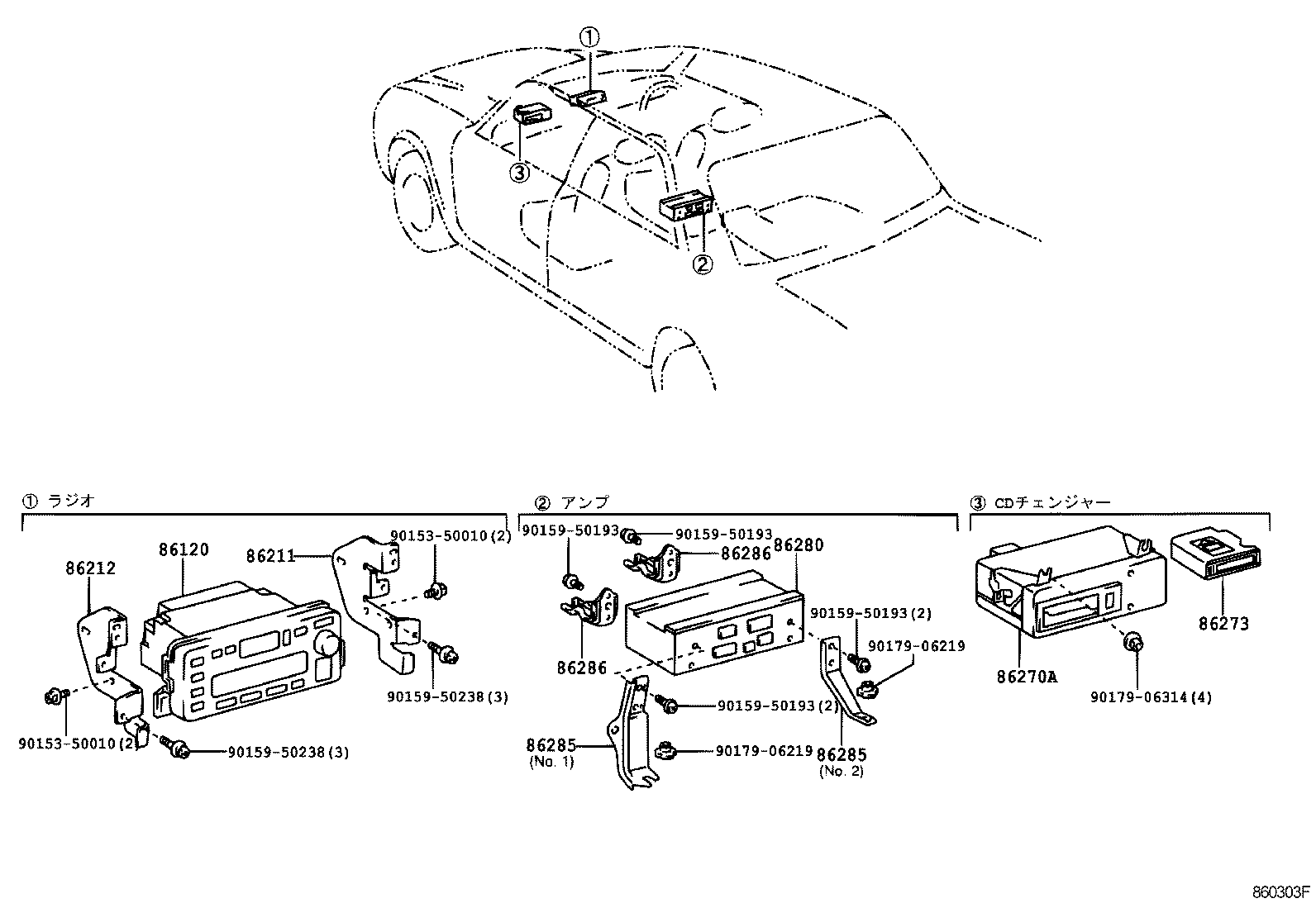

ILLUST NO. 1 OF 3(9704-0501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-40130 |
GZG50 MATSUSHITA,ID=50701 |
1 | ||
| 86120-40132 |
GZG50 MATSUSHITA, ID=50703 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-40070 |
GZG50 |
1 | ||
| 86211-40050 |
GZG50 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-40070 |
GZG50 |
1 | ||
| 86212-40050 |
GZG50 |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-40040 |
GZG50 |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-50060 |
GZG50 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-40090 |
GZG50 |
1 | ||
| 86280-40100 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 86280-40101 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 86280-40091 |
GZG50 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-40030 |
GZG50 NO.2 |
1 | ||
| 86285-40020 |
GZG50 NO.1 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-40030 |
GZG50 NO.2 |
1 | ||
| 86285-40020 |
GZG50 NO.1 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-40010 |
GZG50 |
2 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-40010 |
GZG50 |
2 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90159-50193 | ||||
| 90159-50238 | ||||
| 90179-06219 | ||||
| 90179-06314 | ||||
ILLUST NO. 2 OF 3(9704-0501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86040 - HEADPHONE ASSY, STEREO | ||||
| 86040-40020 |
GZG50 |
1 | ||
| 86171 - BASE, RADIO REMOTE CONTROL | ||||
| 86171-40040 |
GZG50 |
1 | ||
| 86210B - CONVERTER ASSY, VOLTAGE | ||||
| 86210-40020 |
GZG50 |
1 | ||
| 86215 - BRACKET, RADIO, NO.5 | ||||
| 86215-40030 |
GZG50 |
2 | ||
| 86215 - BRACKET, RADIO, NO.5 | ||||
| 86215-40030 |
GZG50 |
2 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-40080 |
GZG50 |
1 | ||
| 86290A - AMPLIFIER ASSY, MICROPHONE | ||||
| 86290-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90168-40059 | ||||

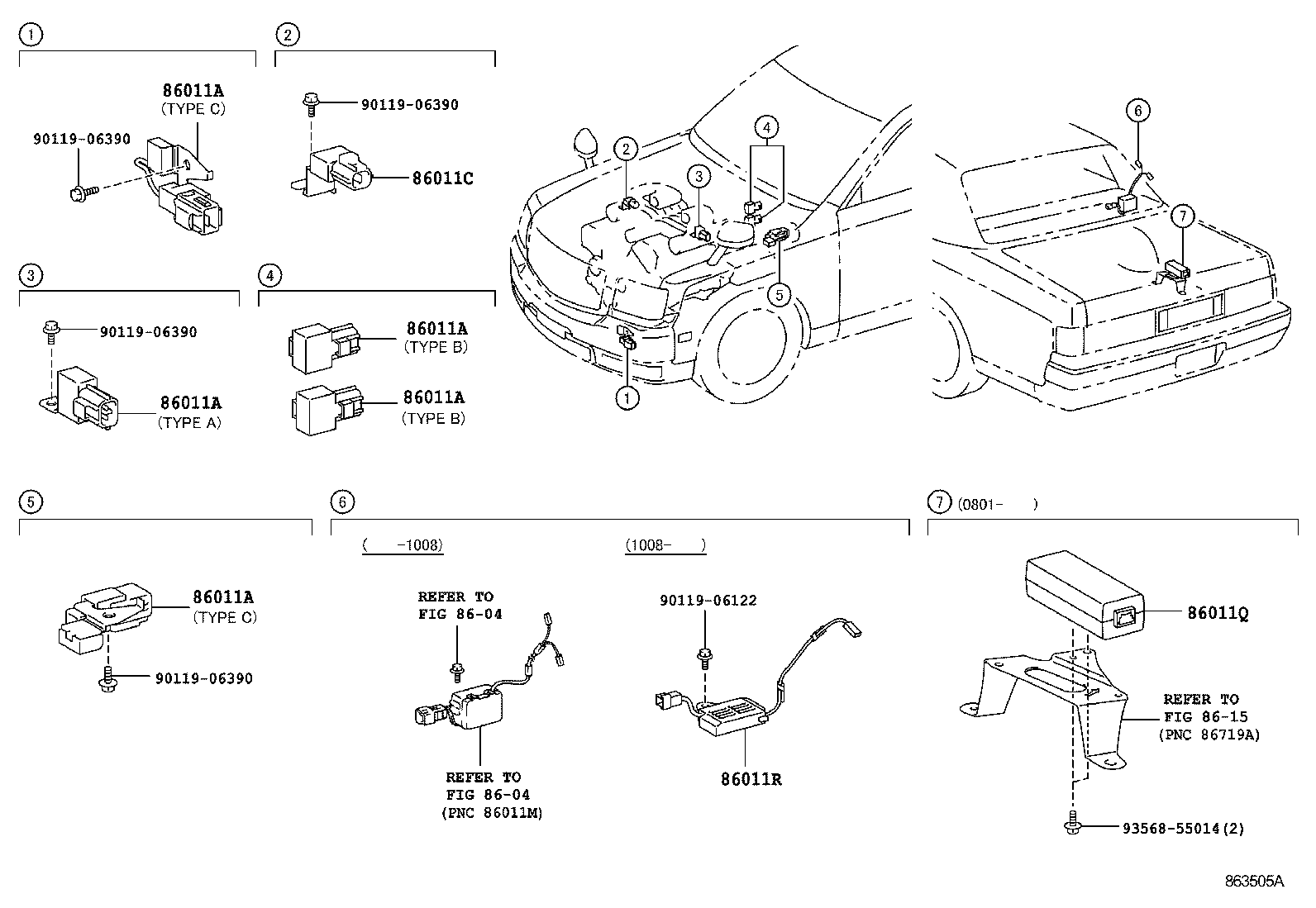

ILLUST NO. 3 OF 3(9704- )
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ & ﾉｲｽﾞﾌｨﾙﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 90980-04077 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90980-04125 |
GZG50 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 90980-04077 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90980-04125 |
GZG50 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 90980-04077 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90980-04125 |
GZG50 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 90980-04077 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90980-04125 |
GZG50 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 90980-04077 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90980-04125 |
GZG50 TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 86011C - FILTER, NOISE | ||||
| 90084-98014 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90119-06390 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8604 | ||||
| 8615 | ||||
