GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704-0004)

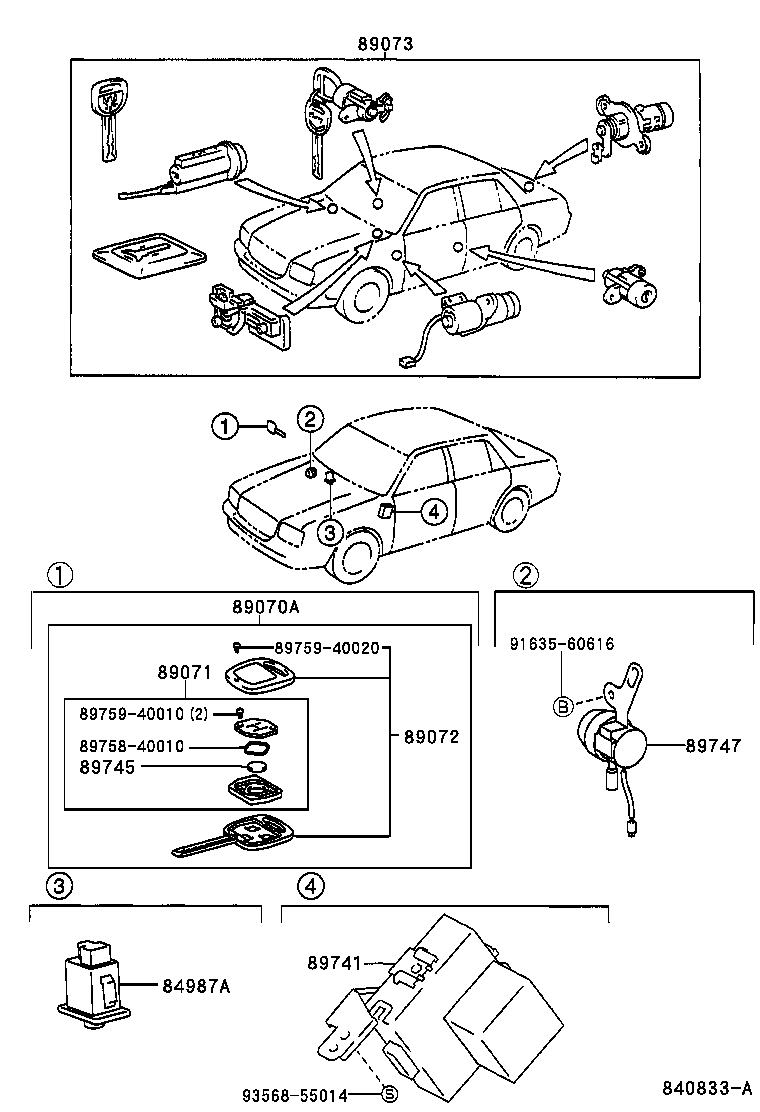

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84987A - SWITCH, KEYLESS ENTRY CANCEL | ||||
| 84987-50040 |
GZG50 |
1 | ||
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-40030 |
GZG50 |
1 | ||
| 89070-40250 |
GZG50 |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-50081 |
GZG50 |
1 | ||
| 89071-50080 |
GZG50 |
1 | ||
| 89071-40010 |
GZG50 |
1 | ||
| 89072 - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-40030 |
GZG50..4FC,4HC |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-40010 |
GZG50 |
1 | ||
| 89073-40150 |
GZG50 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-40010 |
GZG50 |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-40010 |
GZG50 |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-50030 |
GZG50 |
1 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-40020 | ||||
| 91635-60616 | ||||
| 93568-55014 | ||||
(0004- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84987A - SWITCH, KEYLESS ENTRY CANCEL | ||||
| 84987-50040 |
GZG50 |
1 | ||
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-40030 |
GZG50 |
1 | ||
| 89070-40250 |
GZG50 |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-50081 |
GZG50 |
1 | ||
| 89071-50080 |
GZG50 |
1 | ||
| 89071-40010 |
GZG50 |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-40010 |
GZG50 |
1 | ||
| 89073-40150 |
GZG50 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-40010 |
GZG50 |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-40010 |
GZG50 |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-50030 |
GZG50 |
1 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-40020 | ||||
| 91635-60616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8424 | ||||
