GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

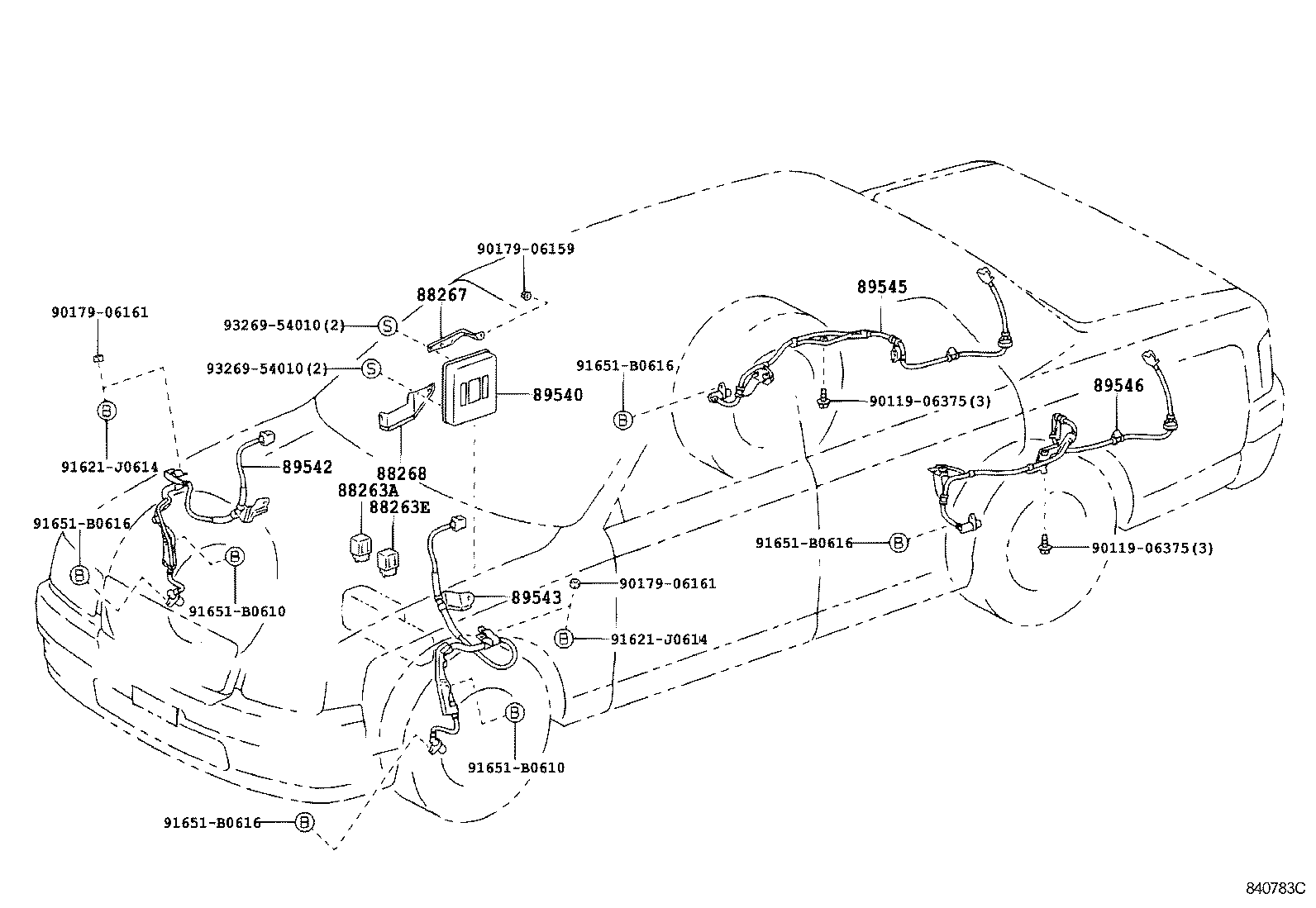

(9704-0004)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-24020 |
GZG50 |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
GZG50 |
1 | ||
| 88267 - BRACKET, SKID CONTROL COMPUTER, NO.1 | ||||
| 88267-40070 |
GZG50 |
1 | ||
| 88268 - BRACKET, SKID CONTROL COMPUTER, NO.2 | ||||
| 88268-40070 |
GZG50 |
1 | ||
| 88268-40090 |
GZG50 NO.1 |
1 | ||
| 88268-40070 |
GZG50 NO.2 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-40041 |
GZG50 |
1 | ||
| 89541-40060 |
GZG50 |
1 | ||
| 89541-40042 |
GZG50 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-50041 |
GZG50 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-50041 |
GZG50 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-50030 |
GZG50 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-50030 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90179-06159 | ||||
| 90179-06161 | ||||
| 91621-J0614 | ||||
| 91651-B0610 | ||||
| 91651-B0616 | ||||
| 93269-54010 | ||||

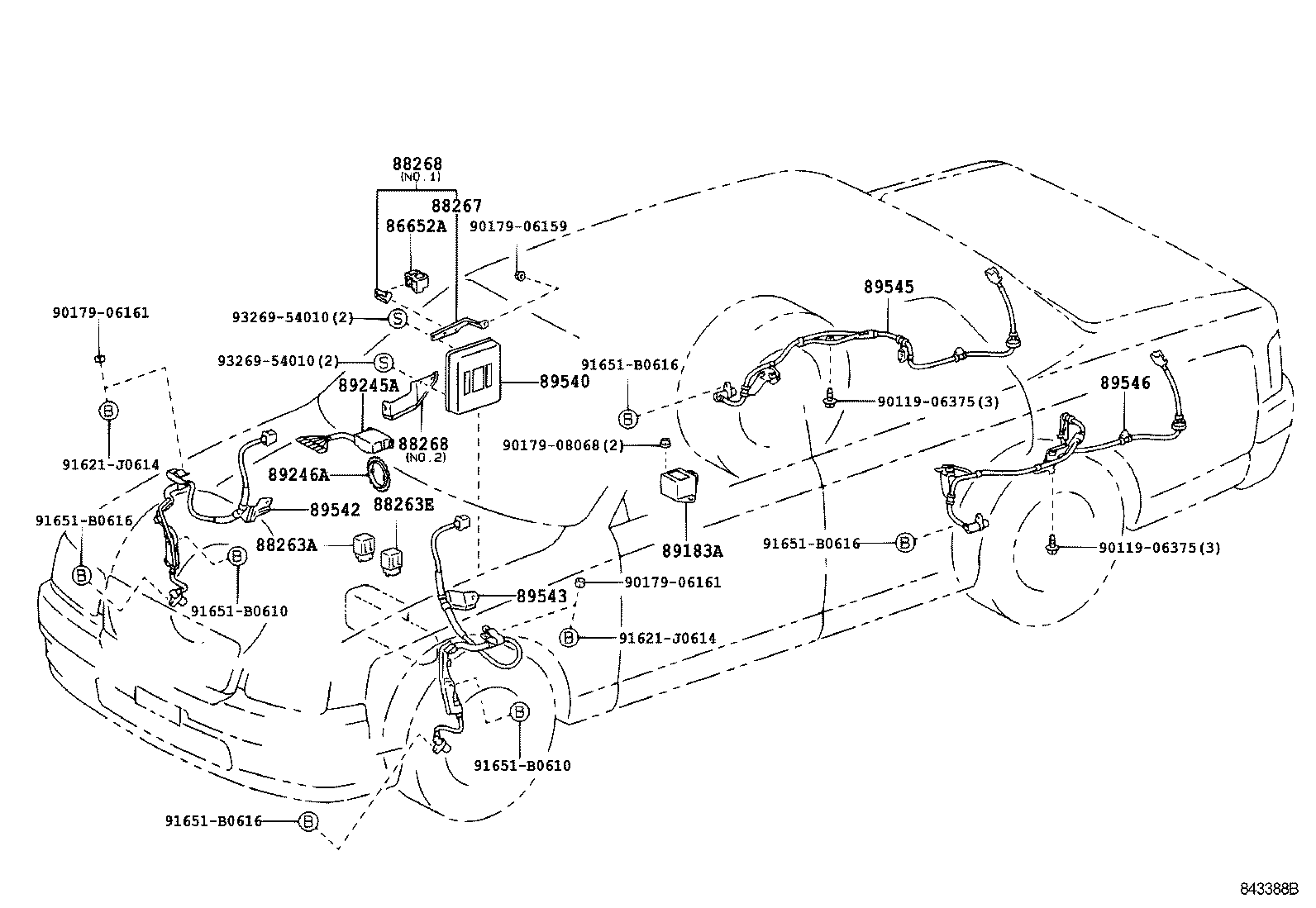

(0004-0501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-51010 |
GZG50 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-24020 |
GZG50 |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
GZG50 |
1 | ||
| 88267 - BRACKET, SKID CONTROL COMPUTER, NO.1 | ||||
| 88267-40070 |
GZG50 |
1 | ||
| 88268 - BRACKET, SKID CONTROL COMPUTER, NO.2 | ||||
| 88268-40070 |
GZG50 |
1 | ||
| 88268-40090 |
GZG50 NO.1 |
1 | ||
| 88268-40070 |
GZG50 NO.2 |
1 | ||
| 88268 - BRACKET, SKID CONTROL COMPUTER, NO.2 | ||||
| 88268-40070 |
GZG50 |
1 | ||
| 88268-40090 |
GZG50 NO.1 |
1 | ||
| 88268-40070 |
GZG50 NO.2 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-30060 |
GZG50 |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-60010 |
GZG50 |
1 | ||
| 89246A - DISC, SENSOR STEERING | ||||
| 89246-50010 |
GZG50 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-40041 |
GZG50 |
1 | ||
| 89541-40060 |
GZG50 |
1 | ||
| 89541-40042 |
GZG50 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-50041 |
GZG50 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-50041 |
GZG50 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-50030 |
GZG50 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-50030 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90179-06159 | ||||
| 90179-06161 | ||||
| 90179-08068 | ||||
| 91621-J0614 | ||||
| 91651-B0610 | ||||
| 91651-B0616 | ||||
| 93269-54010 | ||||
