GZG50-AEPGK (1997)
Toyota Century

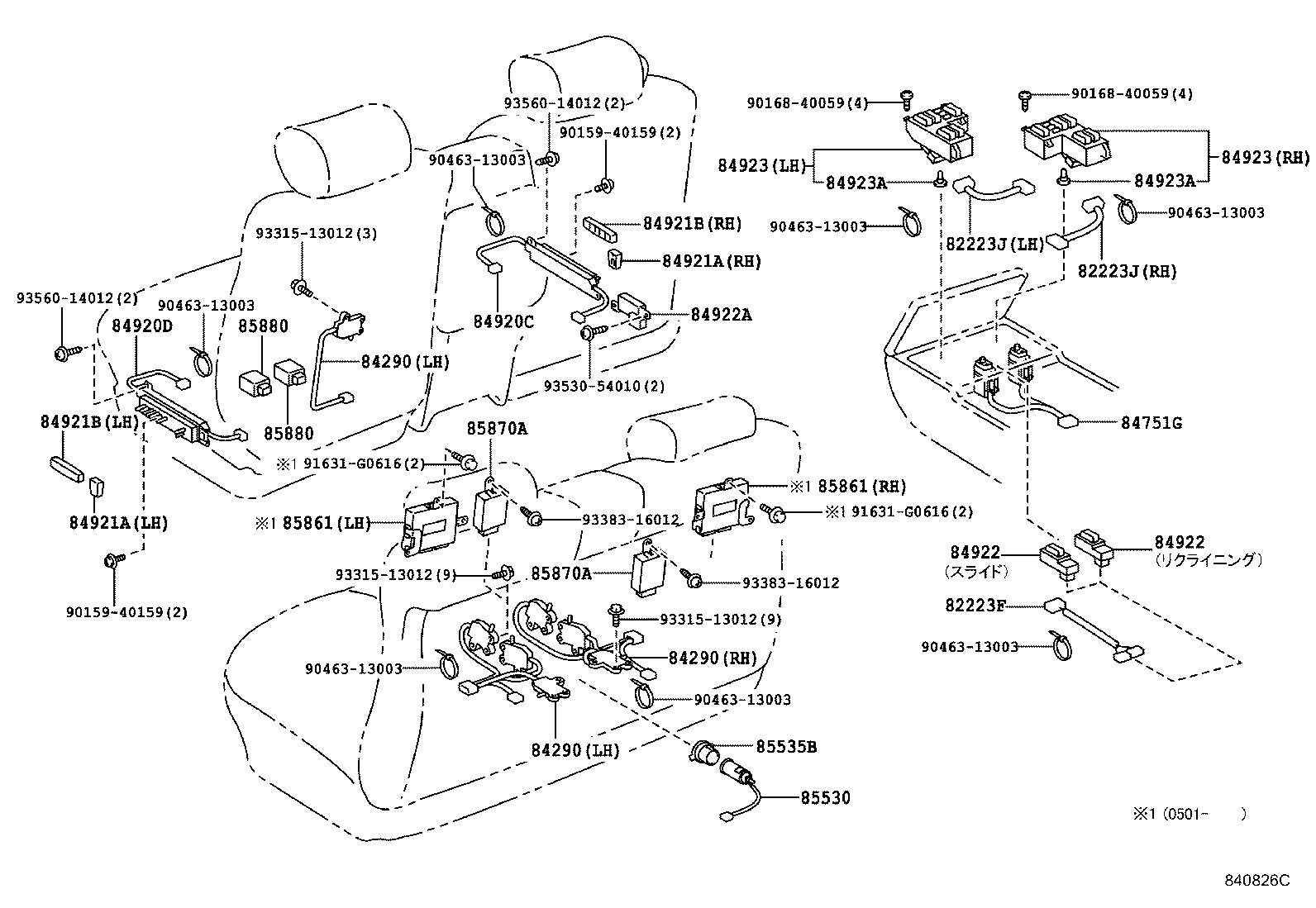

ILLUST NO. 6 OF 8(9704- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223F - WIRE, SWITCH | ||||
| 82223-40010 |
GZG50 |
1 | ||
| 82223J - WIRE, SWITCH | ||||
| 82223-40020 |
GZG50 左側 |
1 | ||
| 82223-40030 |
GZG50 右側 |
1 | ||
| 82223J - WIRE, SWITCH | ||||
| 82223-40020 |
GZG50 左側 |
1 | ||
| 82223-40030 |
GZG50 右側 |
1 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-40050 |
GZG50 ﾘﾔ左側 |
1 | ||
| 84290-40060 |
GZG50 ﾌﾛﾝﾄ左側 |
1 | ||
| 84290-40040 |
GZG50 ﾘﾔ右側 |
1 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-40050 |
GZG50 ﾘﾔ左側 |
1 | ||
| 84290-40060 |
GZG50 ﾌﾛﾝﾄ左側 |
1 | ||
| 84290-40040 |
GZG50 ﾘﾔ右側 |
1 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-40050 |
GZG50 ﾘﾔ左側 |
1 | ||
| 84290-40060 |
GZG50 ﾌﾛﾝﾄ左側 |
1 | ||
| 84290-40040 |
GZG50 ﾘﾔ右側 |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-50201 |
GZG50 |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-40280 |
GZG50 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-50030E0 |
GZG50 ORCHID,TRIM4#,左側 |
1 | ||
| 84921-50030B1 |
GZG50 MD.GRAY,TRIM1#,左側 |
1 | ||
| 84921-50050B2 |
GZG50 DK.BLUE GRAY,TRIM8#,右側 |
1 | ||
| 84921-50030B2 |
GZG50 DK.BLUE GRAY,TRIM8#,左側 |
1 | ||
| 84921-50050E0 |
GZG50 ORCHID,TRIM4#,右側 |
1 | ||
| 84921-50050B1 |
GZG50 MD.GRAY,TRIM1#,右側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-50030E0 |
GZG50 ORCHID,TRIM4#,左側 |
1 | ||
| 84921-50030B1 |
GZG50 MD.GRAY,TRIM1#,左側 |
1 | ||
| 84921-50050B2 |
GZG50 DK.BLUE GRAY,TRIM8#,右側 |
1 | ||
| 84921-50030B2 |
GZG50 DK.BLUE GRAY,TRIM8#,左側 |
1 | ||
| 84921-50050E0 |
GZG50 ORCHID,TRIM4#,右側 |
1 | ||
| 84921-50050B1 |
GZG50 MD.GRAY,TRIM1#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-40010B0 |
GZG50 MD.GRAY,TRIM1#,左側 |
1 | ||
| 84921-40020E0 |
GZG50 ORCHID,TRIM4#,右側 |
1 | ||
| 84921-40020B0 |
GZG50 MD.GRAY,TRIM1#,右側 |
1 | ||
| 84921-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8#,左側 |
1 | ||
| 84921-40010E0 |
GZG50 ORCHID,TRIM4#,左側 |
1 | ||
| 84921-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-40010B0 |
GZG50 MD.GRAY,TRIM1#,左側 |
1 | ||
| 84921-40020E0 |
GZG50 ORCHID,TRIM4#,右側 |
1 | ||
| 84921-40020B0 |
GZG50 MD.GRAY,TRIM1#,右側 |
1 | ||
| 84921-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8#,左側 |
1 | ||
| 84921-40010E0 |
GZG50 ORCHID,TRIM4#,左側 |
1 | ||
| 84921-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8#,右側 |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-40031 |
GZG50 ｽﾗｲﾄﾞ用,ﾌﾛﾝﾄ |
1 | ||
| 84922-40041 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用,ﾌﾛﾝﾄ |
1 | ||
| 84922-40030 |
GZG50 ｽﾗｲﾄﾞ用 |
2 | ||
| 84922-40040 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用 |
2 | ||
| 84922-40031 |
GZG50..4FC,4HC ｽﾗｲﾄﾞ用 |
2 | ||
| 84922-40090 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用,ﾘﾔ |
1 | ||
| 84922-40041 |
GZG50..4FC,4HC ﾘｸﾗｲﾆﾝｸﾞ用 |
2 | ||
| 84922-40080 |
GZG50 ｽﾗｲﾄﾞ用,ﾘﾔ |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-40031 |
GZG50 ｽﾗｲﾄﾞ用,ﾌﾛﾝﾄ |
1 | ||
| 84922-40041 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用,ﾌﾛﾝﾄ |
1 | ||
| 84922-40030 |
GZG50 ｽﾗｲﾄﾞ用 |
2 | ||
| 84922-40040 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用 |
2 | ||
| 84922-40031 |
GZG50..4FC,4HC ｽﾗｲﾄﾞ用 |
2 | ||
| 84922-40090 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用,ﾘﾔ |
1 | ||
| 84922-40041 |
GZG50..4FC,4HC ﾘｸﾗｲﾆﾝｸﾞ用 |
2 | ||
| 84922-40080 |
GZG50 ｽﾗｲﾄﾞ用,ﾘﾔ |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84922-50040B3 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 84922-50040E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 84922-50040B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-40061 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),右側 |
1 | ||
| 84923-40060 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),右側 |
1 | ||
| 84923-40071 |
GZG50 左側 |
1 | ||
| 84923-40050 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),左側 |
1 | ||
| 84923-40051 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),左側 |
1 | ||
| 84923-40072 |
GZG50 左側 |
1 | ||
| 84923-40081 |
GZG50 右側 |
1 | ||
| 84923-40080 |
GZG50 右側 |
1 | ||
| 84923-40070 |
GZG50 左側 |
1 | ||
| 84923-40062 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),右側 |
1 | ||
| 84923-40052 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),左側 |
1 | ||
| 84923-40082 |
GZG50 右側 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-40061 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),右側 |
1 | ||
| 84923-40060 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),右側 |
1 | ||
| 84923-40071 |
GZG50 左側 |
1 | ||
| 84923-40050 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),左側 |
1 | ||
| 84923-40051 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),左側 |
1 | ||
| 84923-40072 |
GZG50 左側 |
1 | ||
| 84923-40081 |
GZG50 右側 |
1 | ||
| 84923-40080 |
GZG50 右側 |
1 | ||
| 84923-40070 |
GZG50 左側 |
1 | ||
| 84923-40062 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),右側 |
1 | ||
| 84923-40052 |
GZG50 ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ),左側 |
1 | ||
| 84923-40082 |
GZG50 右側 |
1 | ||
| 84923A - BULB, REAR POWER SEAT SWITCH | ||||
| 90010-01014 |
GZG50..4FC,4HC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ) |
6 | ||
| 90010-01076 |
GZG50..4FC,4HC 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-01014 |
GZG50..4FC,4HC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-01076 |
GZG50..4FC,4HC 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ) |
6 | ||
| 90010-01075 |
GZG50..4FC,4HC 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｳｴﾙｷﾔﾌﾞ |
3 | ||
| 84923A - BULB, REAR POWER SEAT SWITCH | ||||
| 90010-01014 |
GZG50..4FC,4HC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ) |
6 | ||
| 90010-01076 |
GZG50..4FC,4HC 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-01014 |
GZG50..4FC,4HC 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 90010-01076 |
GZG50..4FC,4HC 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱﾘ(ﾈﾂｸﾚｽﾄ & ﾍﾂﾄﾞﾚｽﾄ & ﾗﾝﾊﾞ-ｻﾎﾟ-ﾄ ｽｲﾂﾁ) |
6 | ||
| 90010-01075 |
GZG50..4FC,4HC 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｳｴﾙｷﾔﾌﾞ |
3 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-40010 |
GZG50 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-40010 |
GZG50 |
1 | ||
| 85870A - COMPUTER ASSY, VIBRATION SEAT | ||||
| 85870-40030 |
GZG50 |
2 | ||
| 85870A - COMPUTER ASSY, VIBRATION SEAT | ||||
| 85870-40030 |
GZG50 |
2 | ||
| 85880 - RELAY ASSY, POWER SEAT | ||||
| 85880-40050 |
GZG50 P/N LABEL=8588040050;ｱﾘ(ｳｴﾙｷﾔﾌﾞ) |
1 | ||
| 85880-40070 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ);P/N LABEL=8588040070 |
1 | ||
| 85880-40070 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),品番ﾗﾍﾞﾙ=85880−40070 |
1 | ||
| 85880-40050 |
GZG50 |
2 | ||
| 85880-40050 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),品番ﾗﾍﾞﾙ=85880−40050 |
1 | ||
| 85880 - RELAY ASSY, POWER SEAT | ||||
| 85880-40050 |
GZG50 P/N LABEL=8588040050;ｱﾘ(ｳｴﾙｷﾔﾌﾞ) |
1 | ||
| 85880-40070 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ);P/N LABEL=8588040070 |
1 | ||
| 85880-40070 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),品番ﾗﾍﾞﾙ=85880−40070 |
1 | ||
| 85880-40050 |
GZG50 |
2 | ||
| 85880-40050 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),品番ﾗﾍﾞﾙ=85880−40050 |
1 | ||
| Common parts | ||||
| 90159-40159 | ||||
| 90168-40059 | ||||
| 90463-13003 | ||||
| 91631-G0616 | ||||
| 93315-13012 | ||||
| 93383-16012 | ||||
| 93530-54010 | ||||
| 93560-14012 | ||||

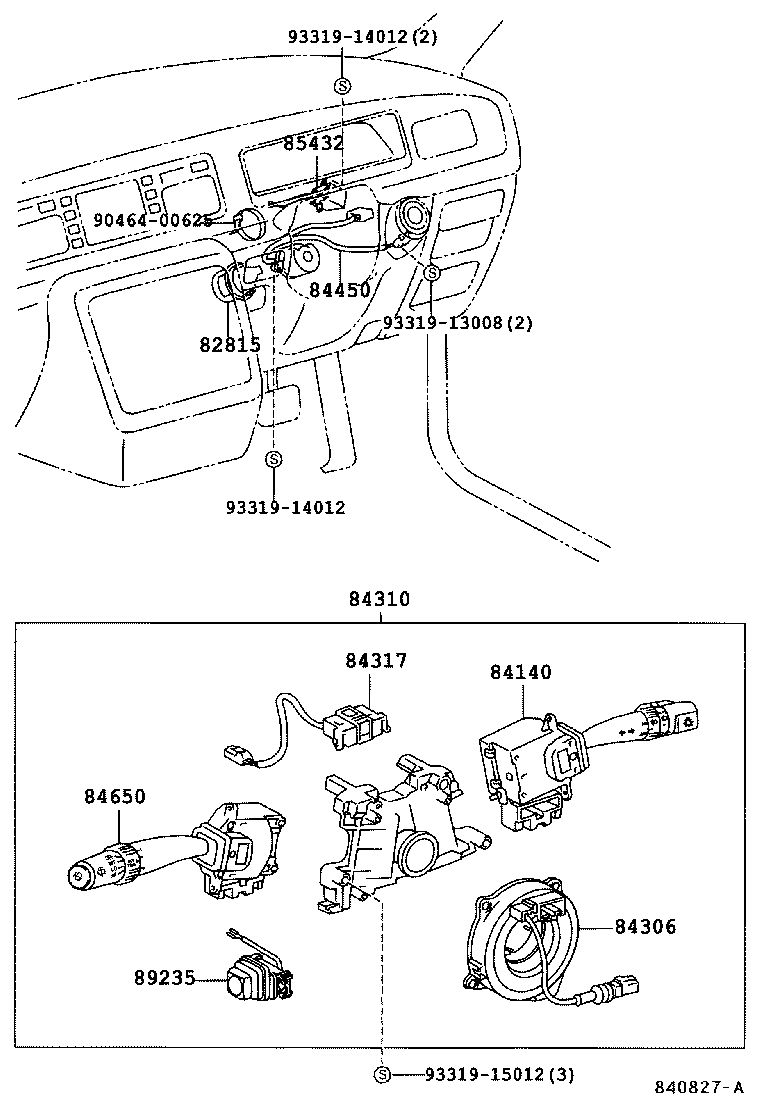

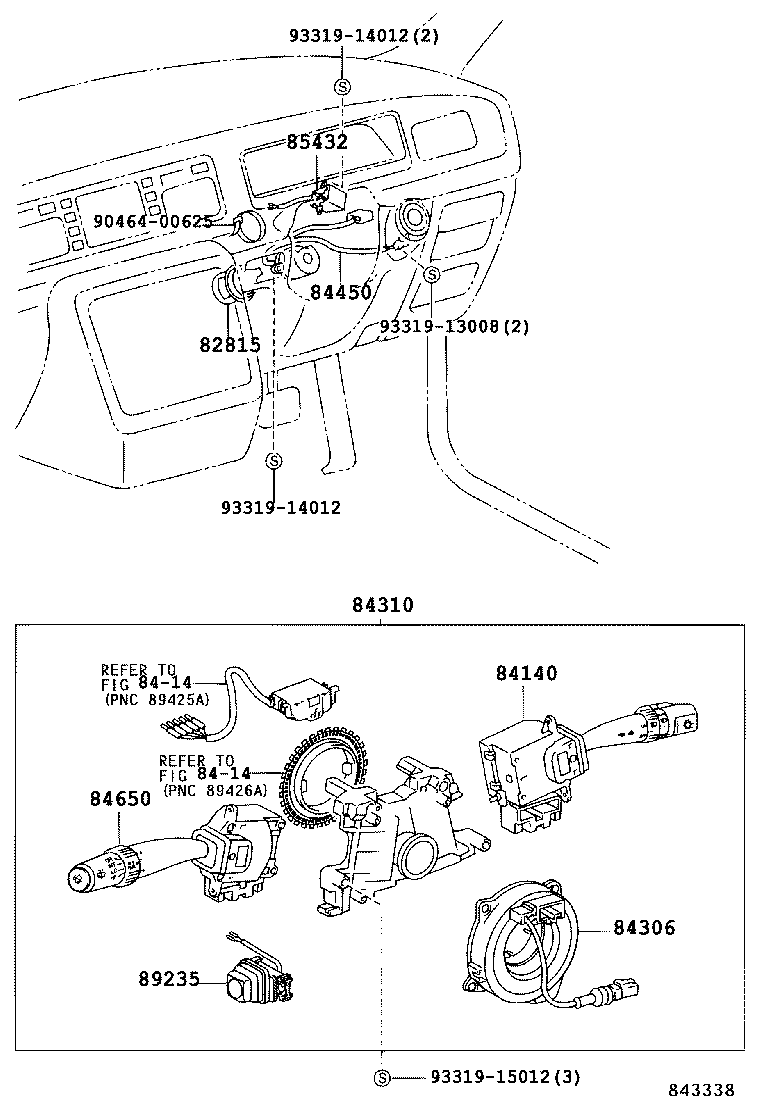

ILLUST NO. 5 OF 8(9704-0004)
ｺﾝﾋﾞﾈｰｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815 - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-50010 |
GZG50 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30190 |
GZG50 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-30080 |
GZG50 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-40070 |
GZG50 |
1 | ||
| 84310-40090 |
GZG50 |
1 | ||
| 84317 - SENSOR, STEERING POSITION | ||||
| 84317-50050 |
GZG50..4FC,4HC |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-40050 |
GZG50 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-40060 |
GZG50 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-40010 |
GZG50 |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-50070 |
GZG50 |
1 | ||
| Common parts | ||||
| 90464-00625 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

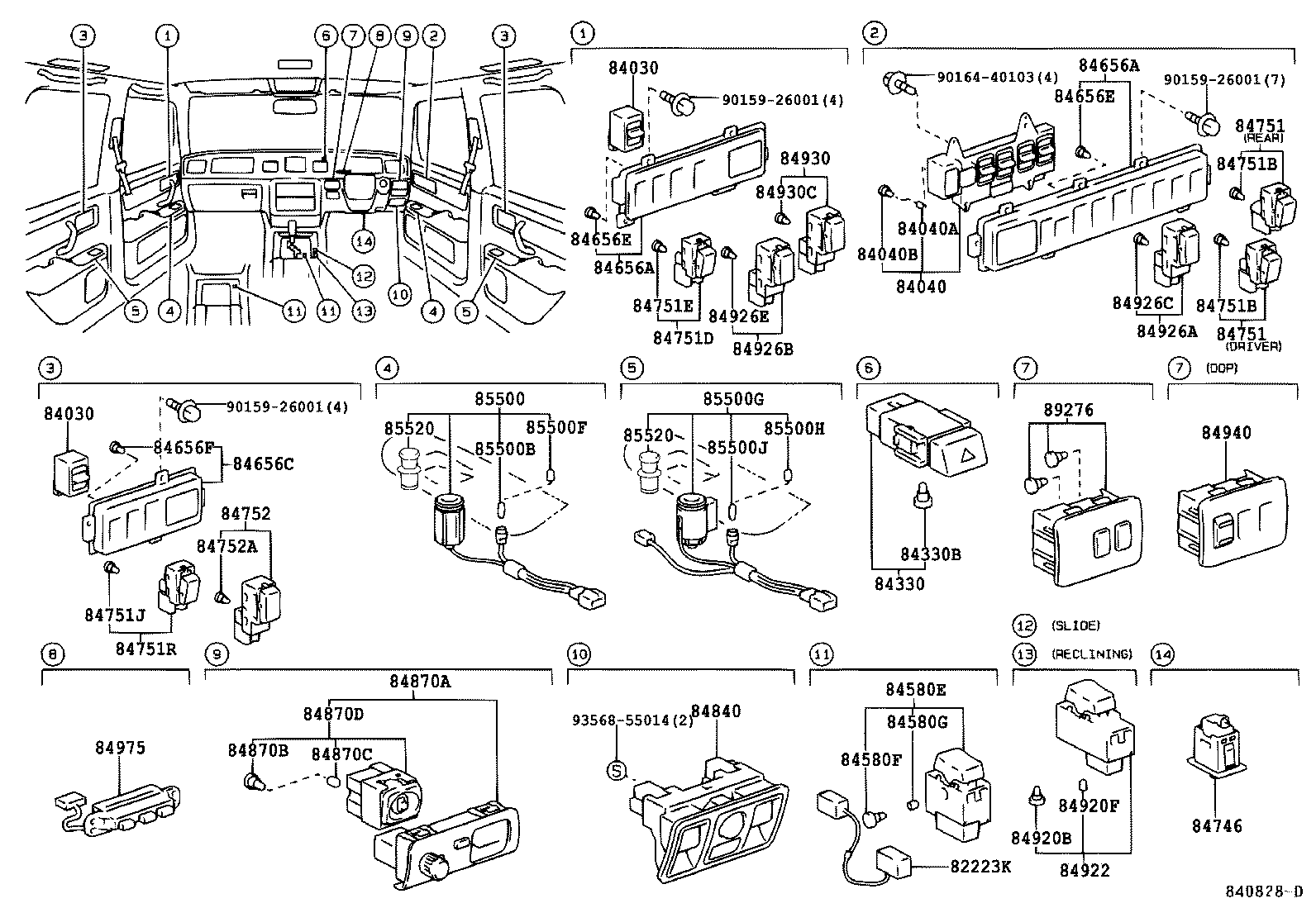

ILLUST NO. 4 OF 8(9704-0501)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-40010 |
GZG50 |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-40010 |
GZG50 |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-40010 |
GZG50 |
1 | ||
| 84040A - CAP, MULTIPLEX NETWORK MASTER SWITCH BULB | ||||
| 84998-10280 |
GZG50 |
1 | ||
| 84040B - BULB, MULTIPLEX NETWORK MASTER SWITCH | ||||
| 84999-10450 |
GZG50 14V 1.4W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22130 |
GZG50 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GZG50 14V 0.91W |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84580-40020 |
GZG50..4FC |
1 | ||
| 84580F - BULB, THROTTLE POSITION SWITCH | ||||
| 84999-10710 |
GZG50..4FC 14V 0.56W |
1 | ||
| 84580G - CAP, THROTTLE POSITION SWITCH BULB | ||||
| 84998-10670 |
GZG50..4FC |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-40010 |
GZG50 右側 |
1 | ||
| 84656-40020 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),右側 |
1 | ||
| 84656-40040 |
GZG50 左側 |
1 | ||
| 84656-40030 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾌﾛﾝﾄ & ﾘﾔ)),右側 |
1 | ||
| 84656-40050 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),左側 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-40010 |
GZG50 右側 |
1 | ||
| 84656-40020 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾘﾔ)),右側 |
1 | ||
| 84656-40040 |
GZG50 左側 |
1 | ||
| 84656-40030 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ(ﾌﾛﾝﾄ & ﾘﾔ)),右側 |
1 | ||
| 84656-40050 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),左側 |
1 | ||
| 84656C - BEZEL, SWITCH NO.2 | ||||
| 84656-40070 |
GZG50 右側 |
1 | ||
| 84656-40060 |
GZG50 左側 |
1 | ||
| 84656-40090 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),右側 |
1 | ||
| 84656-40080 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),左側 |
1 | ||
| 84656E - BULB, BEZEL SWITCH | ||||
| 90010-01027 |
GZG50 14V 1.3W,助手席側 |
1 | ||
| 90010-01027 |
GZG50 14V 1.3W,運転席側 |
3 | ||
| 84656E - BULB, BEZEL SWITCH | ||||
| 90010-01027 |
GZG50 14V 1.3W,助手席側 |
1 | ||
| 90010-01027 |
GZG50 14V 1.3W,運転席側 |
3 | ||
| 84656F - BULB, BEZEL SWITCH NO.2 | ||||
| 90010-01027 |
GZG50 14V 1.3W |
2 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-40010 |
GZG50 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-40030 |
GZG50 運転席 |
1 | ||
| 84751-40020 |
GZG50 ﾘﾔ |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-40030 |
GZG50 運転席 |
1 | ||
| 84751-40020 |
GZG50 ﾘﾔ |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01020 |
GZG50 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱﾘ(ｼ-ﾄﾋ-ﾀ(ｳﾝﾃﾝｾｷ)) |
2 | ||
| 90010-01020 |
GZG50 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01020 |
GZG50 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｱﾘ(ｼ-ﾄﾋ-ﾀ(ｳﾝﾃﾝｾｷ)) |
2 | ||
| 90010-01020 |
GZG50 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84751D - SWITCH, SEAT HEATER(FRONT) | ||||
| 84751-40010 |
GZG50 |
1 | ||
| 84751E - BULB, SEAT HEATER SWITCH(FRONT) | ||||
| 90010-01020 |
GZG50 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84751J - BULB, SEAT HEATER SWITCH(REAR) | ||||
| 90010-01020 |
GZG50 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
2 | ||
| 84751R - SWITCH, SEAT HEATER(REAR) | ||||
| 84751-40030 |
GZG50 右側 |
1 | ||
| 84751-40030 |
GZG50 右側 |
1 | ||
| 84751-40010 |
GZG50 左側 |
1 | ||
| 84751-40010 |
GZG50 左側 |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-40020 |
GZG50 左側 |
1 | ||
| 84752-40030 |
GZG50 右側 |
1 | ||
| 84752A - BULB, REFRESHING SEAT SWITCH | ||||
| 90010-01019 |
GZG50 14V 80MA,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
2 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30150B3 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 84840-30150E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 84840-30150B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-40020E0 |
GZG50 ﾌｴﾝﾀﾞ ﾐﾗｰ ｼｷ,ORCHID,TRIM4# |
1 | ||
| 84870-40030B0 |
GZG50..4FC ﾄﾞｱ ﾐﾗｰ ｼｷ,MD.GRAY,TRIM1# |
1 | ||
| 84870-40020B0 |
GZG50 ﾌｴﾝﾀﾞ ﾐﾗｰ ｼｷ,MD.GRAY,TRIM1# |
1 | ||
| 84870-40030B1 |
GZG50..4FC ﾄﾞｱ ﾐﾗｰ ｼｷ,DK.BLUE GRAY,TRIM8# |
1 | ||
| 84870-40020B1 |
GZG50 ﾌｴﾝﾀﾞ ﾐﾗｰ ｼｷ,DK.BLUE GRAY,TRIM8# |
1 | ||
| 84870-40030E0 |
GZG50..4FC ﾄﾞｱ ﾐﾗｰ ｼｷ,ORCHID,TRIM4# |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
GZG50 14V 1.12W |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
GZG50 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84870-50180 |
GZG50 |
1 | ||
| 84920B - BULB (FOR POWER SEAT SWITCH) | ||||
| 84999-10520 |
GZG50 14V 1.12W |
2 | ||
| 90010-01075 |
GZG50 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
2 | ||
| 90010-01075 |
GZG50 14V0.56W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
2 | ||
| 84920F - CAP(FOR POWER SEAT SWITCH) | ||||
| 84998-10280 |
GZG50..4FC,4HC |
2 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-40031 |
GZG50 ｽﾗｲﾄﾞ用,ﾌﾛﾝﾄ |
1 | ||
| 84922-40041 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用,ﾌﾛﾝﾄ |
1 | ||
| 84922-40030 |
GZG50 ｽﾗｲﾄﾞ用 |
2 | ||
| 84922-40040 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用 |
2 | ||
| 84922-40031 |
GZG50..4FC,4HC ｽﾗｲﾄﾞ用 |
2 | ||
| 84922-40090 |
GZG50 ﾘｸﾗｲﾆﾝｸﾞ用,ﾘﾔ |
1 | ||
| 84922-40041 |
GZG50..4FC,4HC ﾘｸﾗｲﾆﾝｸﾞ用 |
2 | ||
| 84922-40080 |
GZG50 ｽﾗｲﾄﾞ用,ﾘﾔ |
1 | ||
| 84926A - SWITCH, HEIGHT ADJUSTABLE ANCHOR | ||||
| 84926-40010 |
GZG50 |
1 | ||
| 84926B - SWITCH, HEIGHT ADJUSTABLE ANCHOR | ||||
| 84926-40010 |
GZG50 |
1 | ||
| 84926C - BULB, HEIGHT ADJUSTABLE ANCHOR SWITCH | ||||
| 90010-01019 |
GZG50 14V 80MA,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84926E - BULB, HEIGHT ADJUSTABLE ANCHOR SWITCH | ||||
| 90010-01019 |
GZG50 14V 80MA,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-40050 |
GZG50 |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90010-01019 |
GZG50..4FC,4HC 14V 80MA,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84940 - SWITCH ASSY, CURTAIN | ||||
| 84940-40010E0 |
GZG50 ﾅｼ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),ORCHID,TRIM4# |
1 | ||
| 84940-40010B0 |
GZG50 ﾅｼ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 84940-40020B0 |
GZG50 ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 84940-40010B1 |
GZG50 ﾅｼ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 84940-40020E0 |
GZG50 ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),ORCHID,TRIM4# |
1 | ||
| 84940-40010B0 |
GZG50 MD.GRAY,TRIM1#,無し(ﾘﾔﾌｫｸﾞ) |
1 | ||
| 84940-40020E0 |
GZG50 ORCHID,TRIM4#,有り(ﾘﾔﾌｫｸﾞ) |
1 | ||
| 84940-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8#,無し(ﾘﾔﾌｫｸﾞ) |
1 | ||
| 84940-40010E0 |
GZG50 ORCHID,TRIM4#,無し(ﾘﾔﾌｫｸﾞ) |
1 | ||
| 84940-40020B0 |
GZG50 MD.GRAY,TRIM1#,有り(ﾘﾔﾌｫｸﾞ) |
1 | ||
| 84940-40020B1 |
GZG50 ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 84940-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8#,有り(ﾘﾔﾌｫｸﾞ) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-40010 |
GZG50 ｱﾘ(EMV) |
1 | ||
| 84975-40020 |
GZG50 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-40030 |
GZG50 |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GZG50 14V 1.4W |
2 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GZG50 |
2 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-40040 |
GZG50 |
2 | ||
| 85500H - CAP, CIGARETTE LIGHTER BULB, REAR | ||||
| 84998-10510 |
GZG50 |
2 | ||
| 85500J - BULB, CIGARETTE LIGHTER, REAR | ||||
| 90981-11014 |
GZG50 14V 1.4W |
2 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GZG50 |
4 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GZG50 |
4 | ||
| 89276 - SWITCH, HEIGHT CONTROL | ||||
| 89276-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 89276-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 89276-40020B1 |
GZG50 ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 89276-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 89276-40020B0 |
GZG50 ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),MD.GRAY,TRIM1# |
1 | ||
| 89276-40020E0 |
GZG50 ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),ORCHID,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-26001 | ||||
| 90164-40103 | ||||
| 93568-55014 | ||||

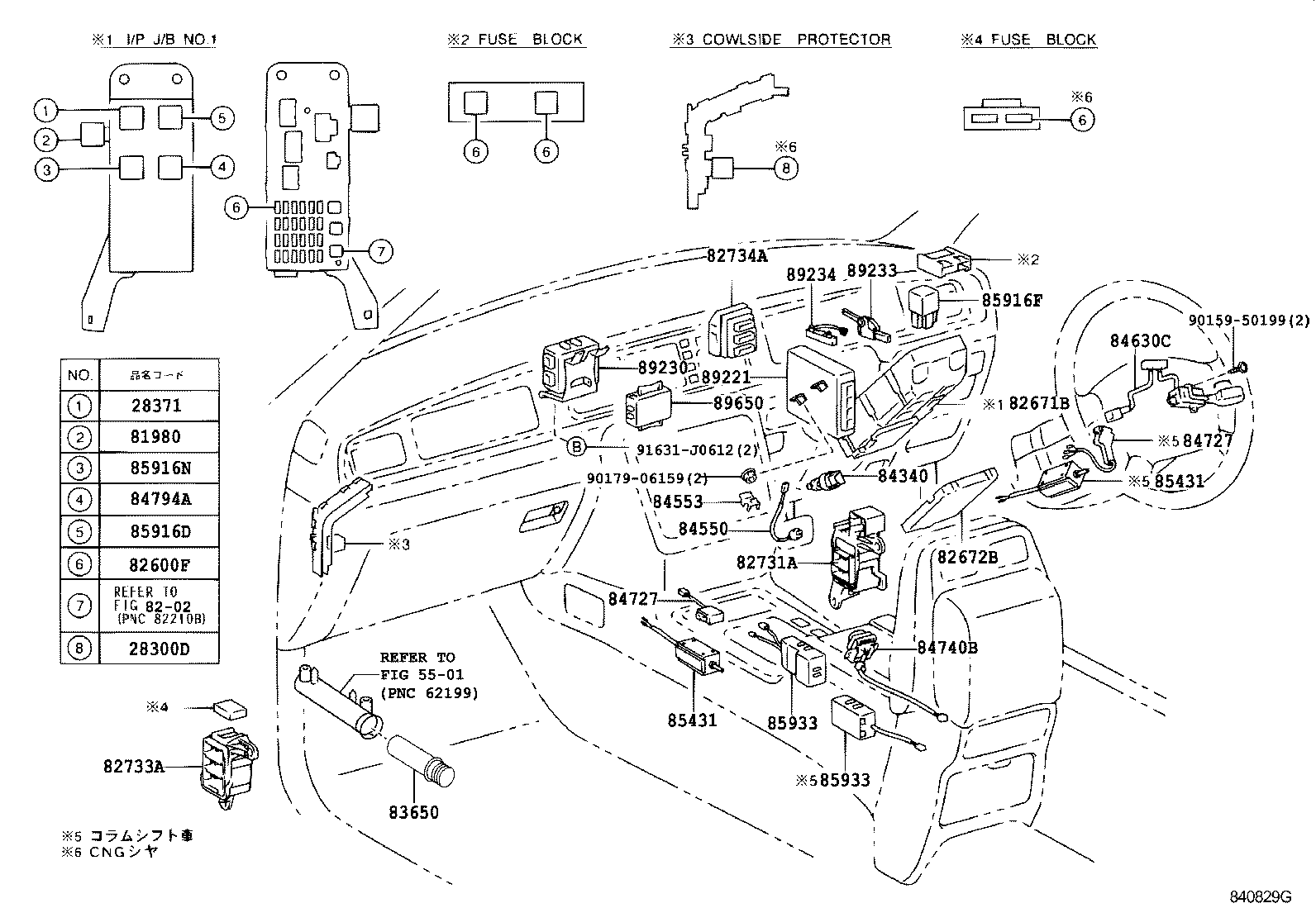

ILLUST NO. 3 OF 8(9704-0501)
ｶｳﾙ & ｺﾝｿｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-04004 |
1GZFE..GZG50 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02009 |
1GZFE..GZG50 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50010 |
GZG50 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
GZG50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
GZG50 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
GZG50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GZG50 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82732-50010 |
GZG50 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-40010 |
GZG50 |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82733-50010 |
GZG50 |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82731-50010 |
GZG50 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-50010 |
GZG50 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GZG50 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-40030 |
GZG50 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-40010 |
GZG50 |
1 | ||
| 84553 - COVER, PARKING BRAKE SWITCH | ||||
| 84553-50010 |
GZG50 |
1 | ||
| 84630C - SWITCH ASSY, SPEED CONTROL MAIN | ||||
| 84630-60020 |
GZG50 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-50030 |
GZG50..4FC |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-50030 |
GZG50..4FC |
1 | ||
| 84740B - SWITCH ASSY, AIR PURIFIER | ||||
| 84740-40030 |
GZG50 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02009 |
GZG50 |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-50040 |
GZG50..4FC |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-50040 |
GZG50..4FC |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
GZG50 |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02009 |
GZG50 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
GZG50 |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-40030 |
GZG50..4FC |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-40030 |
GZG50..4FC |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-40031 |
GZG50 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 89220-40021 |
GZG50 |
1 | ||
| 89220-40030 |
GZG50 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 89220-40020 |
GZG50 |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-40010 |
GZG50 |
1 | ||
| 89233 - SENSOR, TILT POSITION | ||||
| 89233-22010 |
GZG50 |
1 | ||
| 89234 - SENSOR, TELESCOPIC POSITION | ||||
| 89234-40010 |
GZG50 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-40060 |
GZG50 JTEKT |
1 | ||
| 89650-40040 |
GZG50 JTEKT |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90179-06159 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8202 | ||||

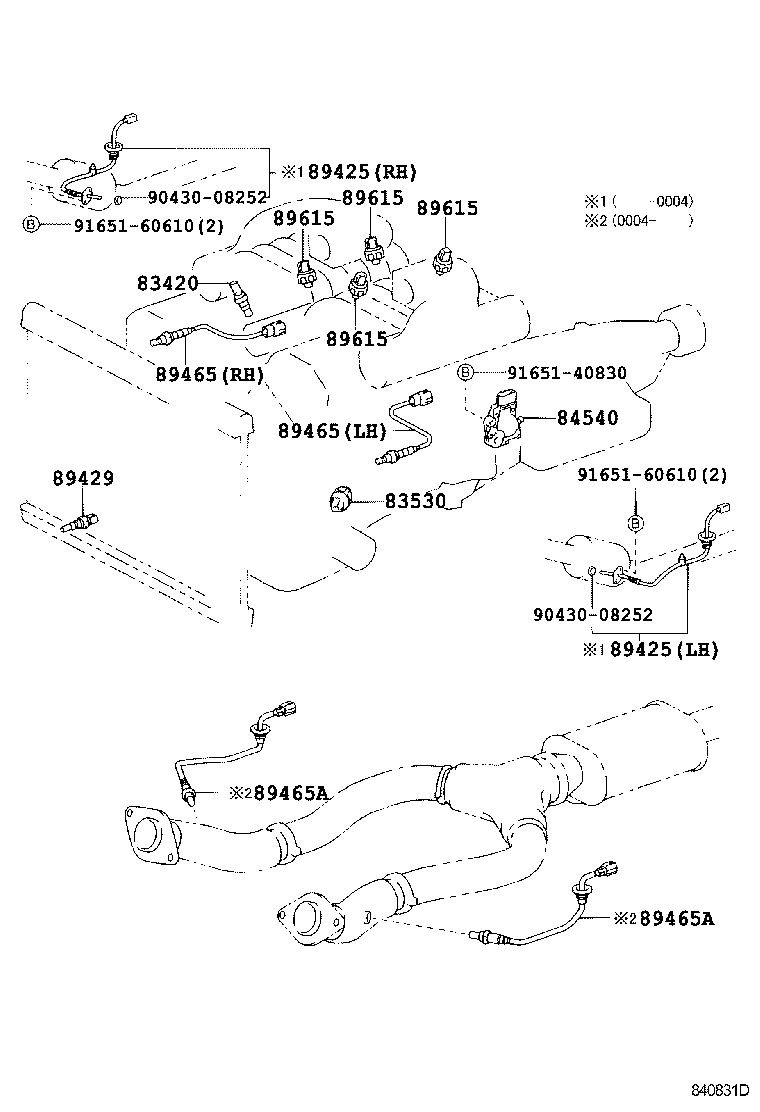

ILLUST NO. 1 OF 8(9704-0501)
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
GZG50 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GZG50 |
1 | ||
| 83530-60020 |
GZG50 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30270 |
GZG50 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-49075 |
GZG50..4FC,4HC 右側 |
1 | ||
| 89425-49085 |
GZG50..4FC,4HC 左側 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-49075 |
GZG50..4FC,4HC 右側 |
1 | ||
| 89425-49085 |
GZG50..4FC,4HC 左側 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89429-24020 |
GZG50 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-40090 |
GZG50 左側 |
1 | ||
| 89465-40040 |
GZG50 左側 |
1 | ||
| 89465-40120 |
GZG50 CNGｼﾔ,左側 |
1 | ||
| 89465-40130 |
GZG50 CNGｼﾔ,右側 |
1 | ||
| 89465-40100 |
GZG50 右側 |
1 | ||
| 89465-40050 |
GZG50 右側 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-40090 |
GZG50 左側 |
1 | ||
| 89465-40040 |
GZG50 左側 |
1 | ||
| 89465-40120 |
GZG50 CNGｼﾔ,左側 |
1 | ||
| 89465-40130 |
GZG50 CNGｼﾔ,右側 |
1 | ||
| 89465-40100 |
GZG50 右側 |
1 | ||
| 89465-40050 |
GZG50 右側 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-40140 |
GZG50 CNGｼﾔ |
2 | ||
| 89465-40110 |
GZG50 |
2 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-40140 |
GZG50 CNGｼﾔ |
2 | ||
| 89465-40110 |
GZG50 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-40010 |
GZG50 |
4 | ||
| 89615-40020 |
GZG50 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-40010 |
GZG50 |
4 | ||
| 89615-40020 |
GZG50 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-40010 |
GZG50 |
4 | ||
| 89615-40020 |
GZG50 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-40010 |
GZG50 |
4 | ||
| 89615-40020 |
GZG50 |
4 | ||
| Common parts | ||||
| 90430-08252 | ||||
| 91651-40830 | ||||
| 91651-60610 | ||||

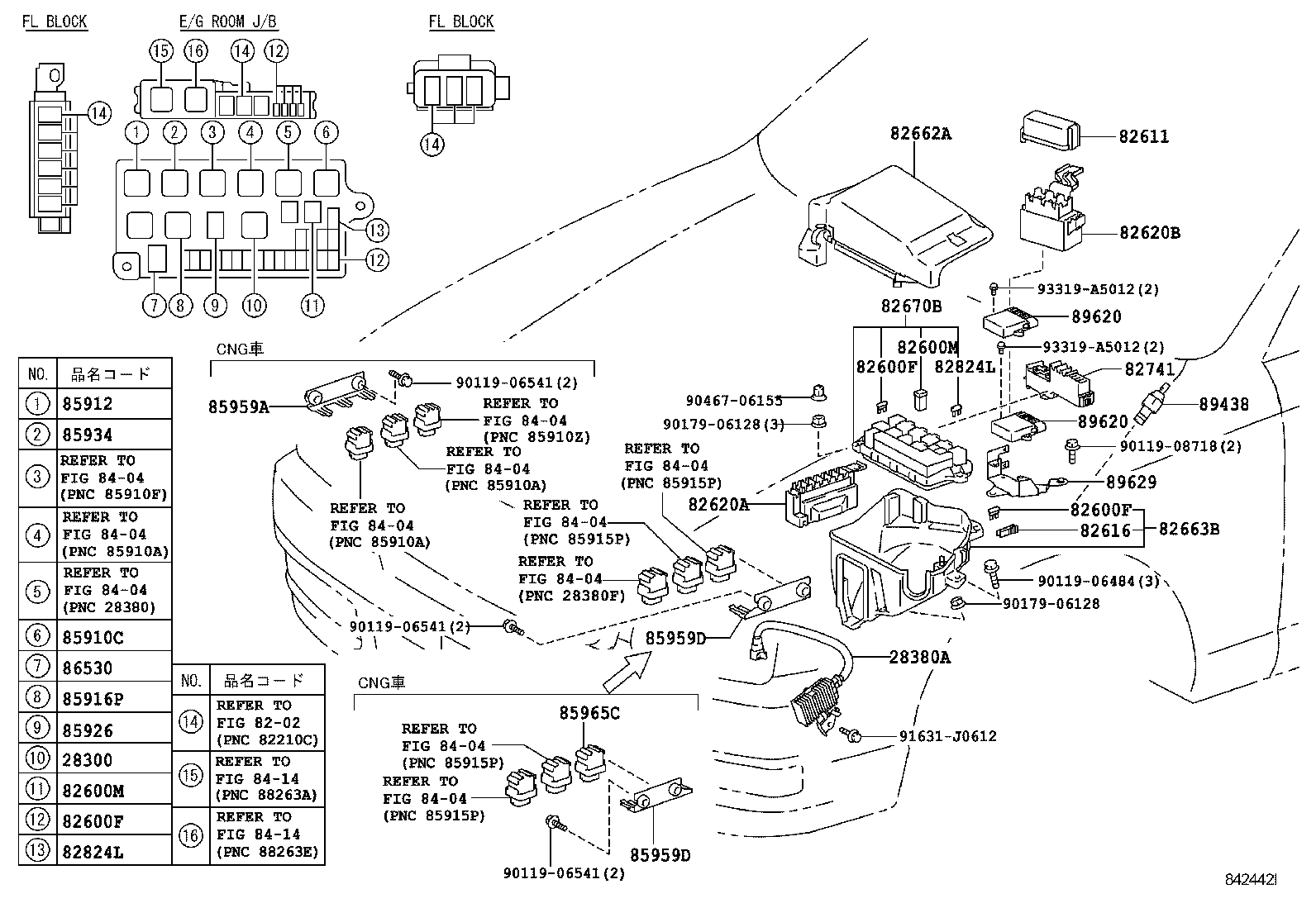

ILLUST NO. 2 OF 8(9704-0501)
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1GZFE..GZG50 |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-32010 |
1GZFE..GZG50 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
GZG50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
GZG50 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
GZG50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GZG50 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
GZG50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
GZG50 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
GZG50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GZG50 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
GZG50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
GZG50 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
GZG50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GZG50 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-08280 |
GZG50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08280 |
GZG50 30A,ﾒｽ端子,桃 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-08280 |
GZG50 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08280 |
GZG50 30A,ﾒｽ端子,桃 |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-40030 |
GZG50 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
GZG50 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-40010 |
GZG50 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-40020 |
GZG50 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-40070 |
GZG50 CNGｼﾔ |
1 | ||
| 82662-40050 |
GZG50 |
1 | ||
| 82662-40010 |
GZG50 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-50030 |
GZG50 |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82720-40011 |
GZG50 |
1 | ||
| 82720-40040 |
GZG50 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-50010 |
GZG50 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
GZG50 |
1 | ||
| 82824-20140 |
GZG50 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
GZG50 |
1 | ||
| 82824-20140 |
GZG50 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GZG50 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02006 |
GZG50 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GZG50 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
GZG50 |
1 | ||
| 85926-50010 |
GZG50 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02009 |
GZG50 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-40010 |
GZG50 CNGｼﾔ |
1 | ||
| 85959D - HOLDER, RELAY | ||||
| 85959-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 85959-40010 |
GZG50 |
1 | ||
| 85959D - HOLDER, RELAY | ||||
| 85959-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 85959-40010 |
GZG50 |
1 | ||
| 85965C - RELAY | ||||
| 28381-32010 |
GZG50 CNGｼﾔ,ﾊﾞﾙﾌﾞ用 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GZG50 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
GZG50 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-35020 |
GZG50 |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-35020 |
GZG50 |
2 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06484 | ||||
| 90119-06541 | ||||
| 90119-08718 | ||||
| 90179-06128 | ||||
| 90467-06155 | ||||
| 91631-J0612 | ||||
| 93319-A5012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

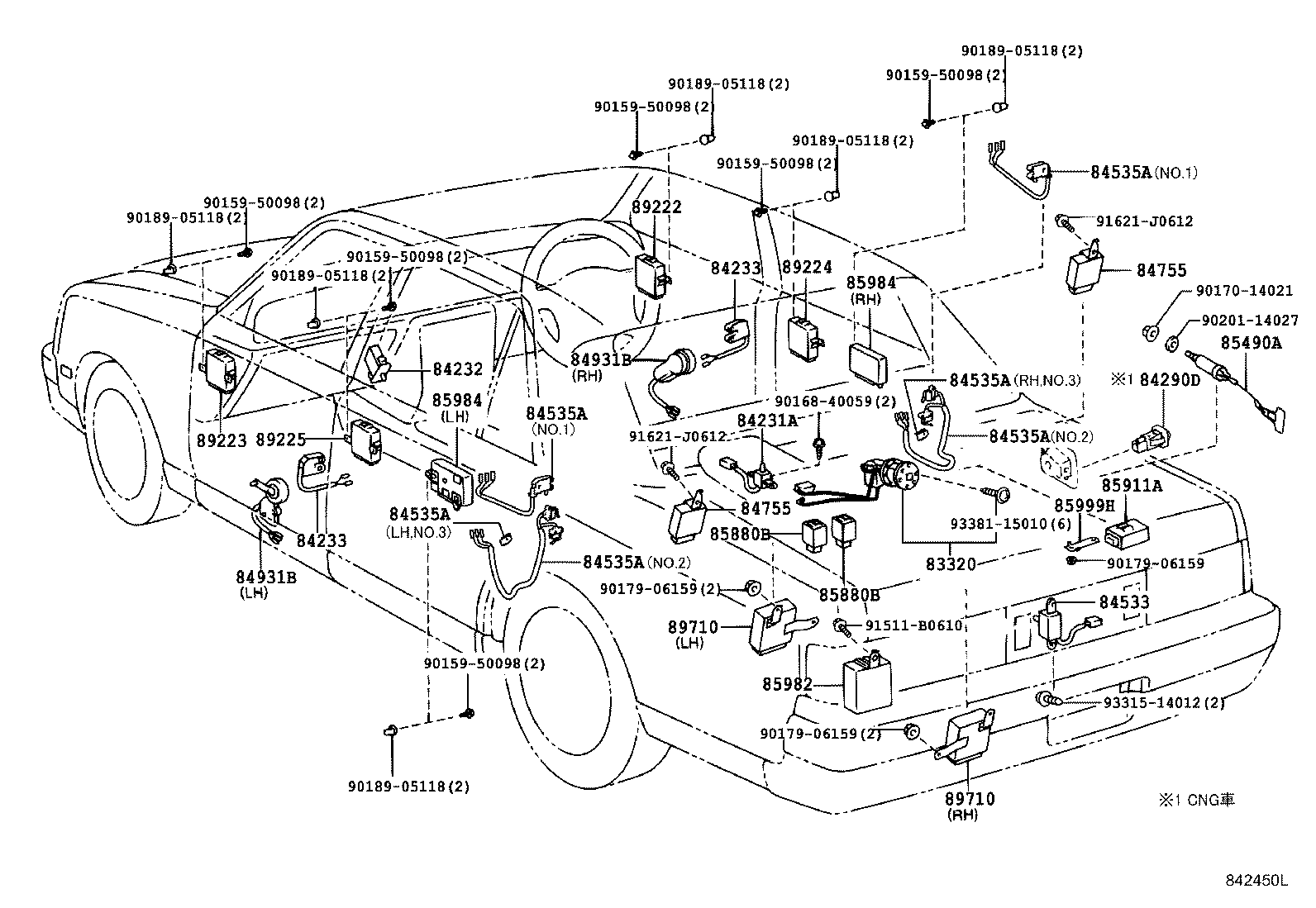

ILLUST NO. 7 OF 8(9704- )
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49085 |
GZG50 |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-40041 |
GZG50 |
1 | ||
| 84231-40040 |
GZG50 |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20030 |
GZG50 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-40030 |
GZG50 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-40030 |
GZG50 |
2 | ||
| 84290D - SWITCH ASSY, LIMIT | ||||
| 84290-40070 |
GZG50 CNGｼﾔ |
1 | ||
| 84533 - SWITCH, LUGGAGE CLOSER LIMIT | ||||
| 84533-40020 |
GZG50 |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-40040 |
GZG50 NO.1 |
2 | ||
| 84535-40060 |
GZG50 左側,NO.3 |
1 | ||
| 84535-40050 |
GZG50 右側,NO.3 |
1 | ||
| 84535-40030 |
GZG50 NO.2 |
2 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-40040 |
GZG50 NO.1 |
2 | ||
| 84535-40060 |
GZG50 左側,NO.3 |
1 | ||
| 84535-40050 |
GZG50 右側,NO.3 |
1 | ||
| 84535-40030 |
GZG50 NO.2 |
2 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-40040 |
GZG50 NO.1 |
2 | ||
| 84535-40060 |
GZG50 左側,NO.3 |
1 | ||
| 84535-40050 |
GZG50 右側,NO.3 |
1 | ||
| 84535-40030 |
GZG50 NO.2 |
2 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-40040 |
GZG50 NO.1 |
2 | ||
| 84535-40060 |
GZG50 左側,NO.3 |
1 | ||
| 84535-40050 |
GZG50 右側,NO.3 |
1 | ||
| 84535-40030 |
GZG50 NO.2 |
2 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-40040 |
GZG50 NO.1 |
2 | ||
| 84535-40060 |
GZG50 左側,NO.3 |
1 | ||
| 84535-40050 |
GZG50 右側,NO.3 |
1 | ||
| 84535-40030 |
GZG50 NO.2 |
2 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-40040 |
GZG50 NO.1 |
2 | ||
| 84535-40060 |
GZG50 左側,NO.3 |
1 | ||
| 84535-40050 |
GZG50 右側,NO.3 |
1 | ||
| 84535-40030 |
GZG50 NO.2 |
2 | ||
| 84755 - RELAY, SEAT SWITCH | ||||
| 84755-40010 |
GZG50 |
1 | ||
| 84755 - RELAY, SEAT SWITCH | ||||
| 84755-40010 |
GZG50 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-40070 |
GZG50 右側 |
1 | ||
| 84931-40080 |
GZG50 左側 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-40070 |
GZG50 右側 |
1 | ||
| 84931-40080 |
GZG50 左側 |
1 | ||
| 85490A - SOLENOID ASSY, FUEL LID OPENER | ||||
| 85490-50020 |
GZG50 |
1 | ||
| 85880B - RELAY ASSY, POWER SEAT | ||||
| 85880-40050 |
GZG50 |
2 | ||
| 85880B - RELAY ASSY, POWER SEAT | ||||
| 85880-40050 |
GZG50 |
2 | ||
| 85911A - RELAY, AUTO CURTAIN | ||||
| 85911-40030 |
GZG50 |
1 | ||
| 85982 - RELAY, LUGGAGE CLOSER | ||||
| 85982-40020 |
GZG50 |
1 | ||
| 85984 - RELAY, DOOR CLOSER | ||||
| 85984-40010 |
GZG50 右側 |
1 | ||
| 85984-40020 |
GZG50 左側 |
1 | ||
| 85984 - RELAY, DOOR CLOSER | ||||
| 85984-40010 |
GZG50 右側 |
1 | ||
| 85984-40020 |
GZG50 左側 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-40110 |
GZG50 |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-40020 |
GZG50 |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89222-40020 |
GZG50 |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89222-40030 |
GZG50 |
1 | ||
| 89225 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89222-40040 |
GZG50 |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-40050 |
GZG50 左側 |
1 | ||
| 89710-40040 |
GZG50 右側 |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-40050 |
GZG50 左側 |
1 | ||
| 89710-40040 |
GZG50 右側 |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90168-40059 | ||||
| 90170-14021 | ||||
| 90179-06159 | ||||
| 90189-05118 | ||||
| 90201-14027 | ||||
| 91511-B0610 | ||||
| 91621-J0612 | ||||
| 93315-14012 | ||||
| 93381-15010 | ||||
ILLUST NO. 8 OF 8(9704- )
ﾗﾂｹﾞｰｼﾞ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
GZG50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
GZG50 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
GZG50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GZG50 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
GZG50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
GZG50 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
GZG50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GZG50 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
GZG50 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
GZG50 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
GZG50 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
GZG50 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
GZG50 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
GZG50 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||

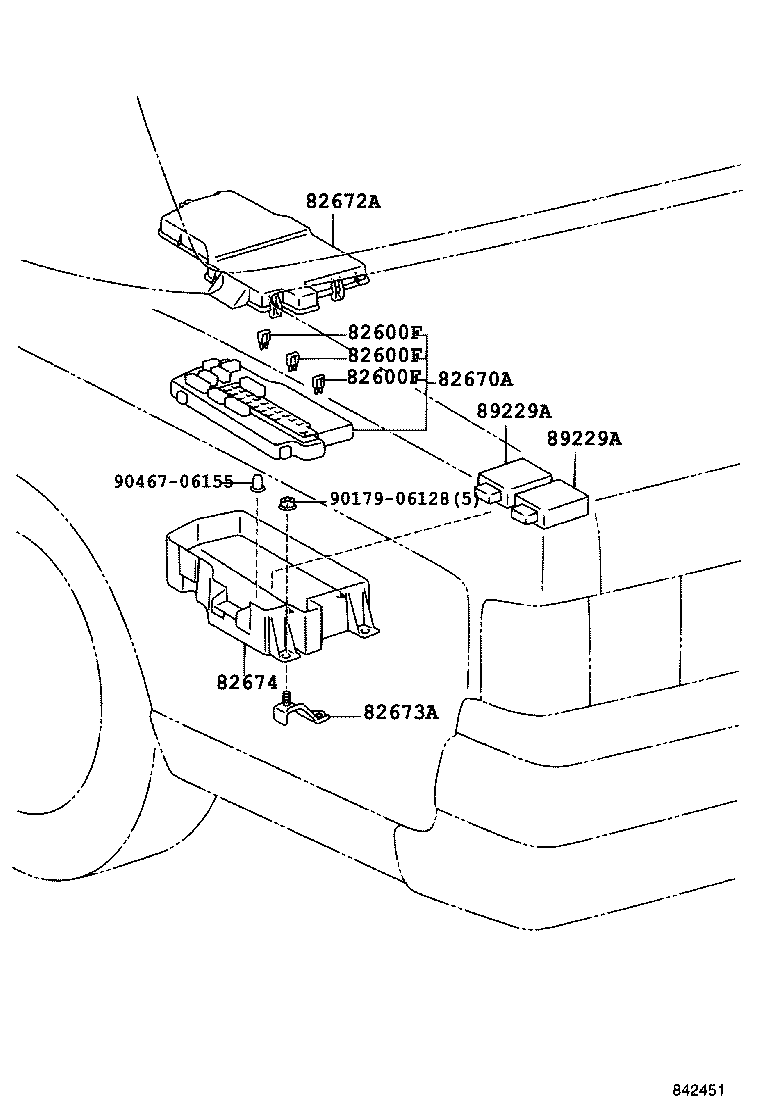

| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 82670-40010 |
GZG50 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-40020 |
GZG50 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-40040 |
GZG50 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-40010 |
GZG50 |
1 | ||
| 89229A - COMPUTER, MULTIPLEX NETWORK REAR LAMP | ||||
| 89229-40010 |
GZG50 |
2 | ||
| 89229A - COMPUTER, MULTIPLEX NETWORK REAR LAMP | ||||
| 89229-40010 |
GZG50 |
2 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90467-06155 | ||||
ILLUST NO. 5 OF 8(0004- )
ｺﾝﾋﾞﾈｰｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815 - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-50010 |
GZG50 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30190 |
GZG50 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-30080 |
GZG50 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-40070 |
GZG50 |
1 | ||
| 84310-40090 |
GZG50 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-40050 |
GZG50 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-40060 |
GZG50 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-40010 |
GZG50 |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-50070 |
GZG50 |
1 | ||
| Common parts | ||||
| 90464-00625 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
