GZG50-AEPGK (1997)
Toyota Century

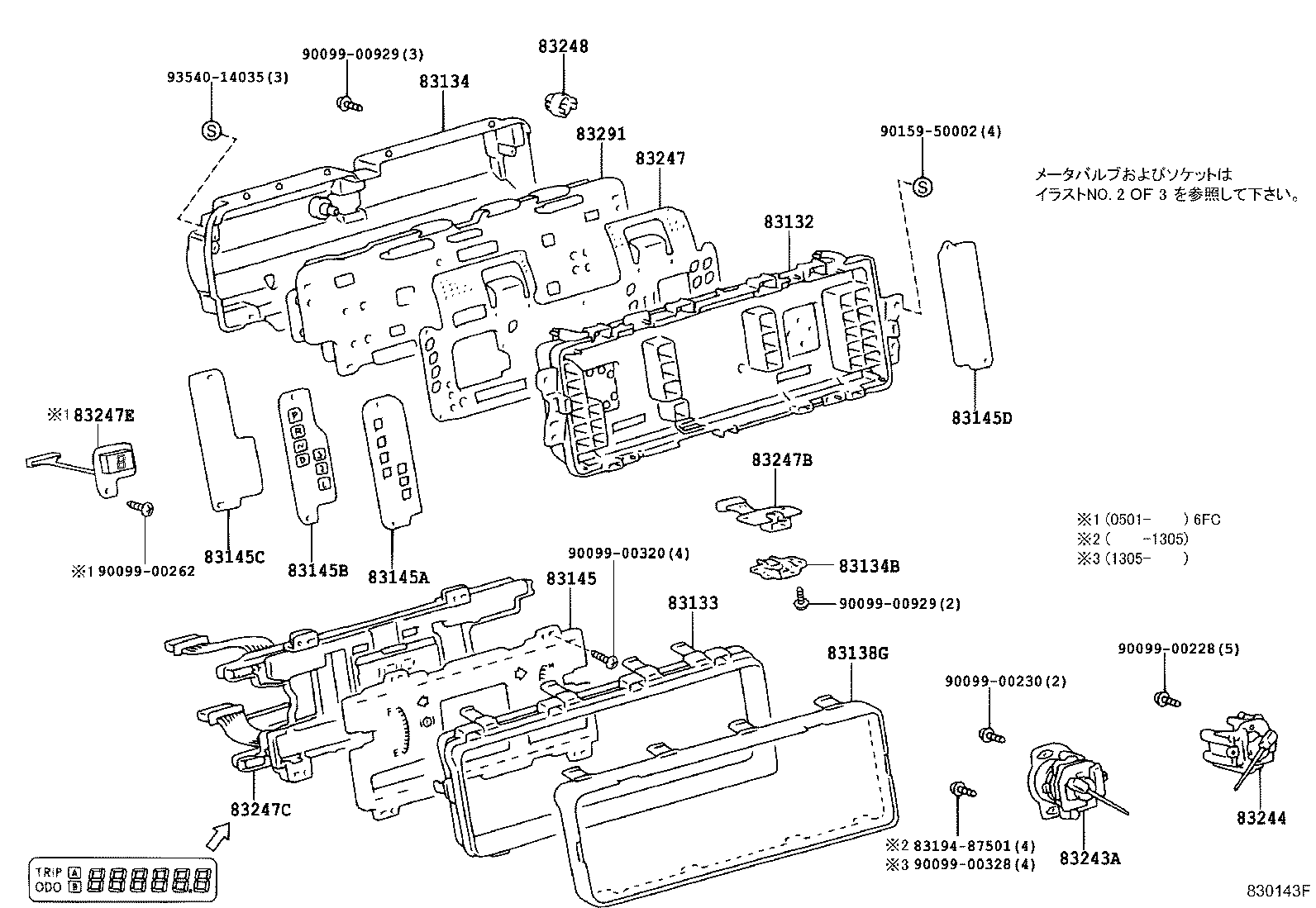

ILLUST NO. 1 OF 3(9704- )
ｽﾋﾟ-ﾄﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-40010 |
GZG50 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-40010 |
GZG50 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-40010 |
GZG50 |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-40010 |
GZG50 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-40010 |
GZG50 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-40010 |
GZG50 |
1 | ||
| 83831-40100 |
GZG50 |
1 | ||
| 83831-40160 |
GZG50 CNGｼﾔ |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-40010 |
GZG50..4FC |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-40010 |
GZG50..4FC |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83834-40010 |
GZG50..4FC |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83835-40100 |
GZG50 |
1 | ||
| 83835-40010 |
GZG50 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-40160 |
GZG50 CNGｼﾔ |
1 | ||
| 83882-40010 |
GZG50 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-40010 |
GZG50 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-40100 |
GZG50..4FC |
1 | ||
| 83861-40010 |
GZG50..4FC |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-40010 |
GZG50 |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83887-40010 |
GZG50 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-20010 |
GZG50 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-40030 |
GZG50 DENSO |
1 | ||
| 83291-40020 |
GZG50 DENSO,ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| 83291-40130 |
GZG50 DENSO,CNGｼﾔ |
1 | ||
| 83291-40100 |
GZG50 DENSO |
1 | ||
| 83291-40090 |
GZG50 DENSO,ｱﾘ(ｸﾛﾂｸ) |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00228 | ||||
| 90099-00230 | ||||
| 90099-00262 | ||||
| 90099-00320 | ||||
| 90099-00328 | ||||
| 90099-00929 | ||||
| 90159-50002 | ||||
| 93540-14035 | ||||
ILLUST NO. 3 OF 3(9704- )
ｸﾛﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-40060 |
GZG50 |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07008 |
GZG50 12V 2.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07008 |
GZG50 12V 2.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
4 | ||
| 83910E - CLOCK ASSY, REAR | ||||
| 83910-40070B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 83910-40070E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 83910-40070B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

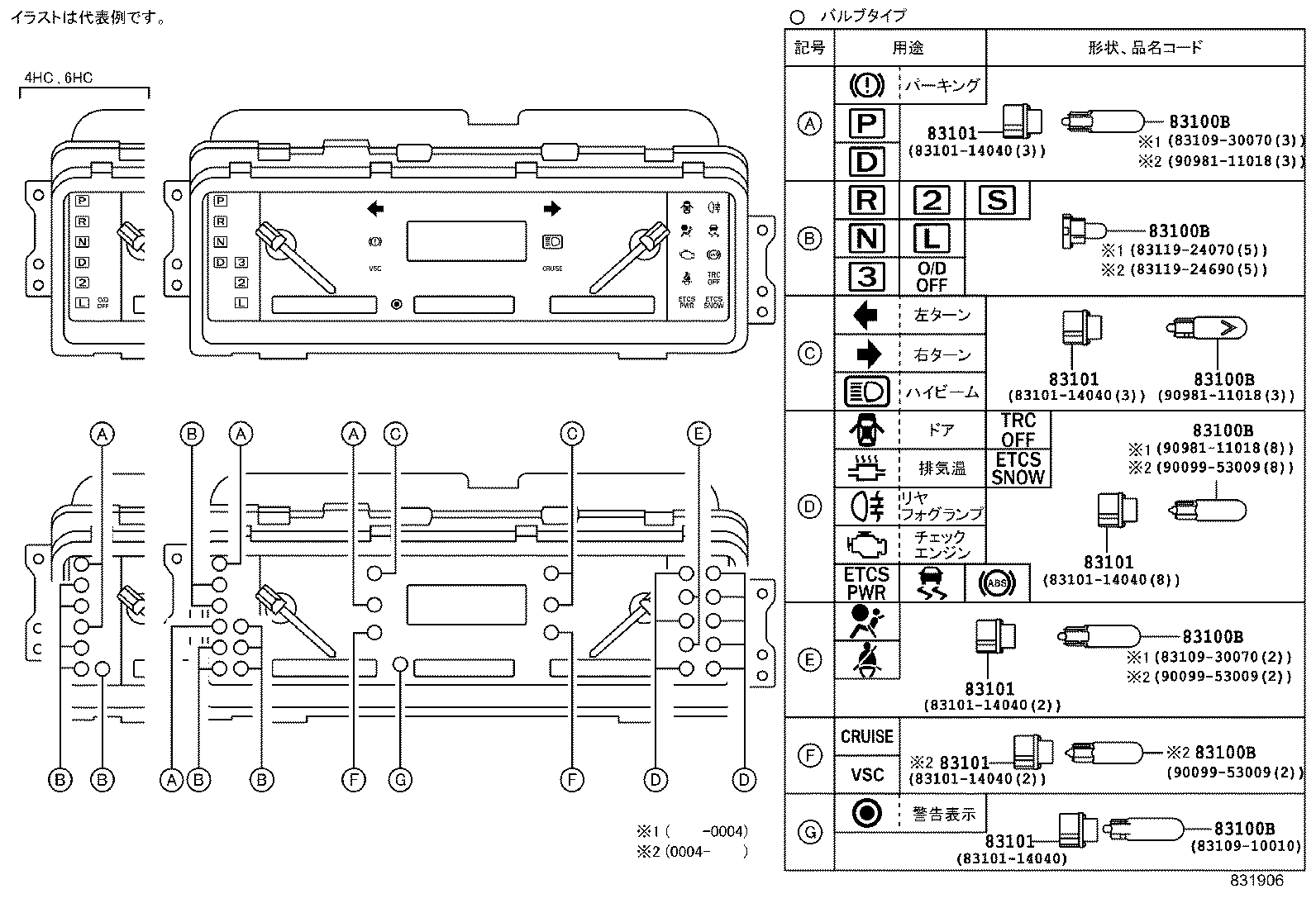

ILLUST NO. 2 OF 3(9704-0601)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GZG50 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24690 |
GZG50 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83109-10010 |
GZG50 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 83119-24070 |
GZG50 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GZG50 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
GZG50 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GZG50 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24690 |
GZG50 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83109-10010 |
GZG50 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 83119-24070 |
GZG50 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GZG50 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
GZG50 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GZG50 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24690 |
GZG50 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83109-10010 |
GZG50 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 83119-24070 |
GZG50 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GZG50 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
GZG50 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GZG50 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24690 |
GZG50 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83109-10010 |
GZG50 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 83119-24070 |
GZG50 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GZG50 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
GZG50 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GZG50 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24690 |
GZG50 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83109-10010 |
GZG50 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 83119-24070 |
GZG50 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GZG50 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
GZG50 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GZG50 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24690 |
GZG50 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83109-10010 |
GZG50 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 83119-24070 |
GZG50 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GZG50 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
GZG50 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
GZG50 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-24690 |
GZG50 14V 0.84W,ｿｹｯﾄ付き |
1 | ||
| 83109-10010 |
GZG50 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ |
1 | ||
| 83119-24070 |
GZG50 12V 1.4W ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GZG50 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 90099-53009 |
GZG50 14V0.84W 無し(ｿｹｯﾄ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GZG50 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GZG50 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GZG50 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GZG50 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GZG50 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GZG50 |
1 | ||
