Toyota Century GZG50 WIRING & CLAMP

GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005

Engine 1GZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(9704- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾜｲﾔ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-40061	GZG50	10/1998 - 04/2000	1
82121-40100	GZG50	04/2000 - 01/2005	1
82121-40120	GZG50 CNGｼﾔ	01/2003 - 01/2005	1
82121-40060	GZG50	04/1997 - 10/1998	1
82122 - WIRE, ENGINE, NO.2
82122-40020	GZG50	04/1997 - 01/2005	1
82123 - WIRE, ENGINE, NO.3
82123-40030	GZG50	04/1997 - 05/2001	1
82123-40050	GZG50	05/2001 - 01/2005	1
82124 - WIRE, ENGINE, NO.4
82124-40010	GZG50	04/1997 - 01/2005	1
82126 - WIRE, ENGINE
82126-40010	GZG50	01/2003 - 01/2005	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-40110	GZG50	04/1997 - 01/2005	2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-40110	GZG50	04/1997 - 01/2005	2
82823S - CAP, STARTER TERMINAL
82823-12090	GZG50	04/1997 - 01/2005	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22070	GZG50	04/1997 - 01/2005	1
Common parts
90119-06375
90119-08718
90179-06128
91621-B0816
91621-G0614

ILLUST NO. 4 OF 9(9704- )

Click highlighted areas on diagram

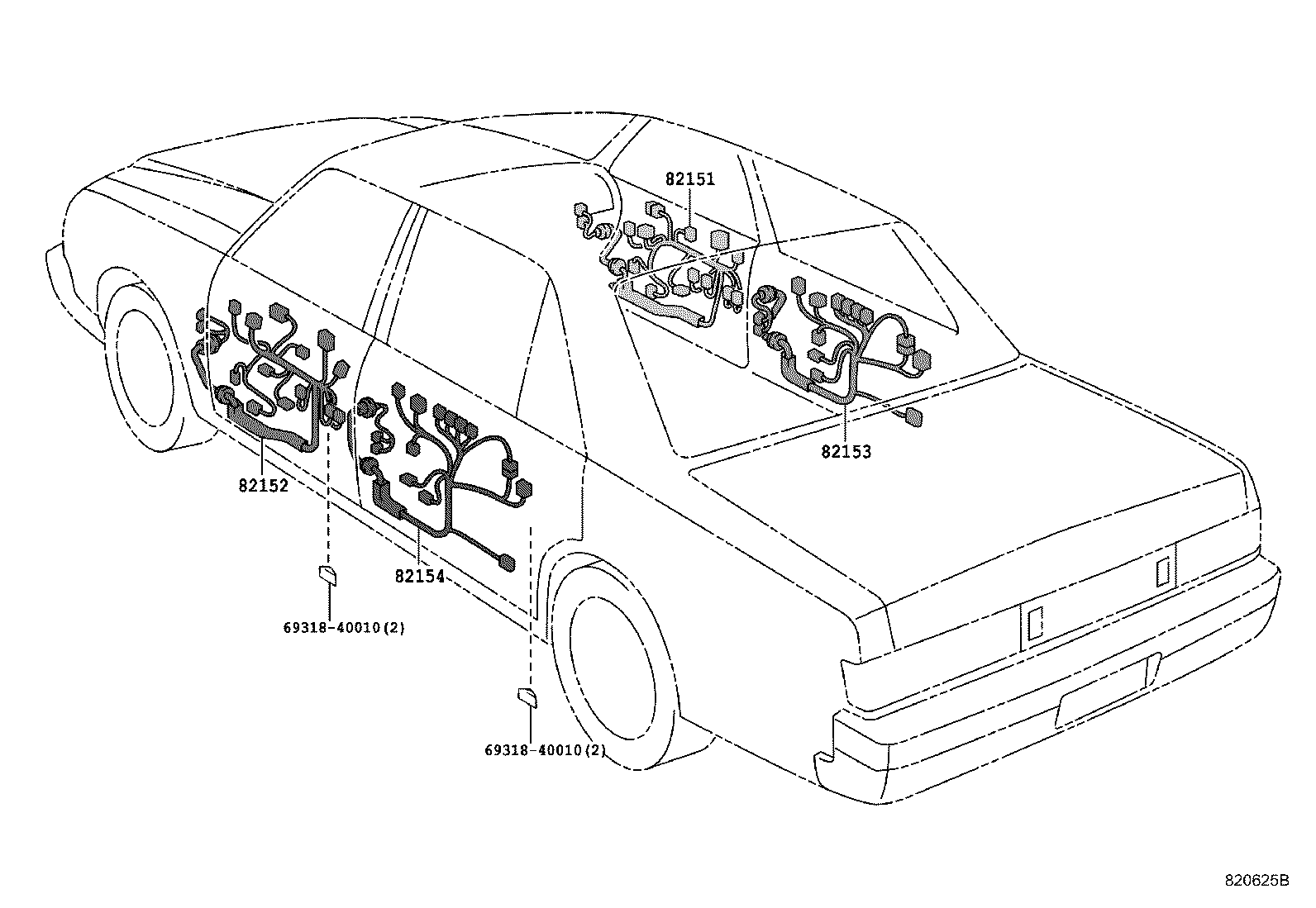

ﾄﾞｱﾜｲﾔ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-40080	GZG50	04/1997 - 01/2005	1
82152 - WIRE, FRONT DOOR, LH
82152-40050	GZG50	04/1997 - 01/2005	1
82153 - WIRE, REAR DOOR, NO.1
82153-40110	GZG50	04/1997 - 01/2005	1
82154 - WIRE, REAR DOOR, NO.2
82154-40110	GZG50	04/1997 - 01/2005	1
Common parts
69318-40010

ILLUST NO. 5 OF 9(9704-0501)

Click highlighted areas on diagram

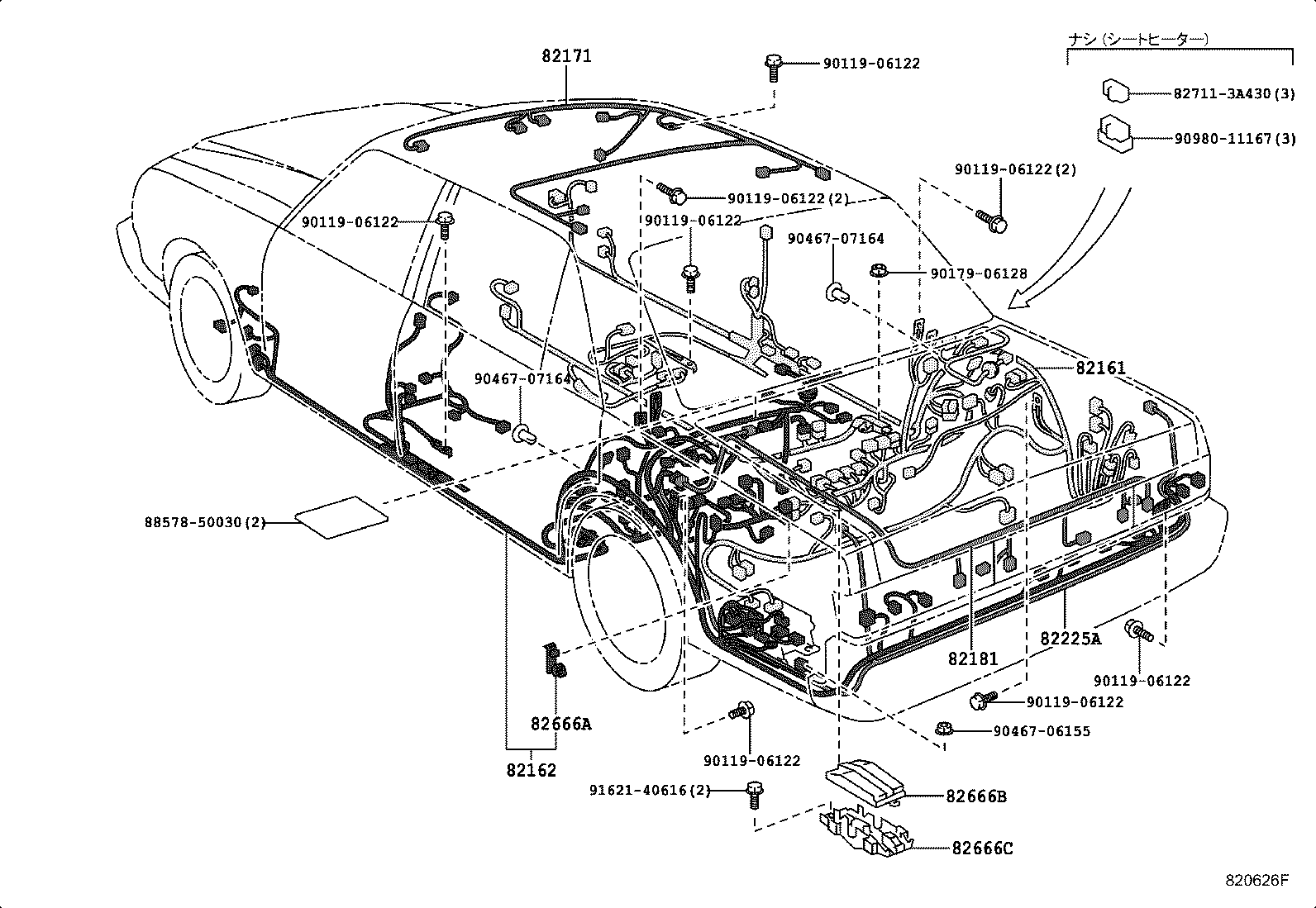

ﾙｰﾌ & ﾌﾛｱ & ﾗﾂｹﾞｰｼﾞﾜｲﾔ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-40141	GZG50	05/1999 - 04/2000	1
82161-40200	GZG50	04/2000 - 05/2001	1
82161-40280	GZG50 CNGｼﾔ	01/2003 - 01/2005	1
82161-40140	GZG50	04/1997 - 05/1999	1
82161-40240	GZG50	05/2001 - 01/2005	1
82162 - WIRE, FLOOR, NO.2
82162-40150	GZG50	04/1997 - 04/2000	1
82162-40270	GZG50	05/2002 - 01/2005	1
82162-40250	GZG50	05/2001 - 05/2002	1
82162-40210	GZG50	04/2000 - 05/2001	1
82171 - WIRE, ROOF, NO.1
82171-40101	GZG50	06/2004 - 01/2005	1
82171-40070	GZG50	04/1997 - 05/2001	1
82171-40100	GZG50	05/2001 - 06/2004	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-40070	GZG50	04/1997 - 01/2005	1
82225A - WIRE, LAMP, NO.2
82225-40010	GZG50	01/2003 - 01/2005	1
82666A - HOLDER, CONNECTOR NO.2
82666-22070	GZG50	04/1997 - 01/2005	1
82666B - HOLDER, CONNECTOR NO.3
82666-40050	GZG50	04/1997 - 01/2005	1
82666C - HOLDER, CONNECTOR NO.4
82666-40060	GZG50	04/1997 - 01/2005	1
Common parts
82711-3A430
88578-50030
90119-06122
90179-06128
90467-06155
90467-07164
90980-11167
91621-40616

ILLUST NO. 6 OF 9(9704- )

Click highlighted areas on diagram

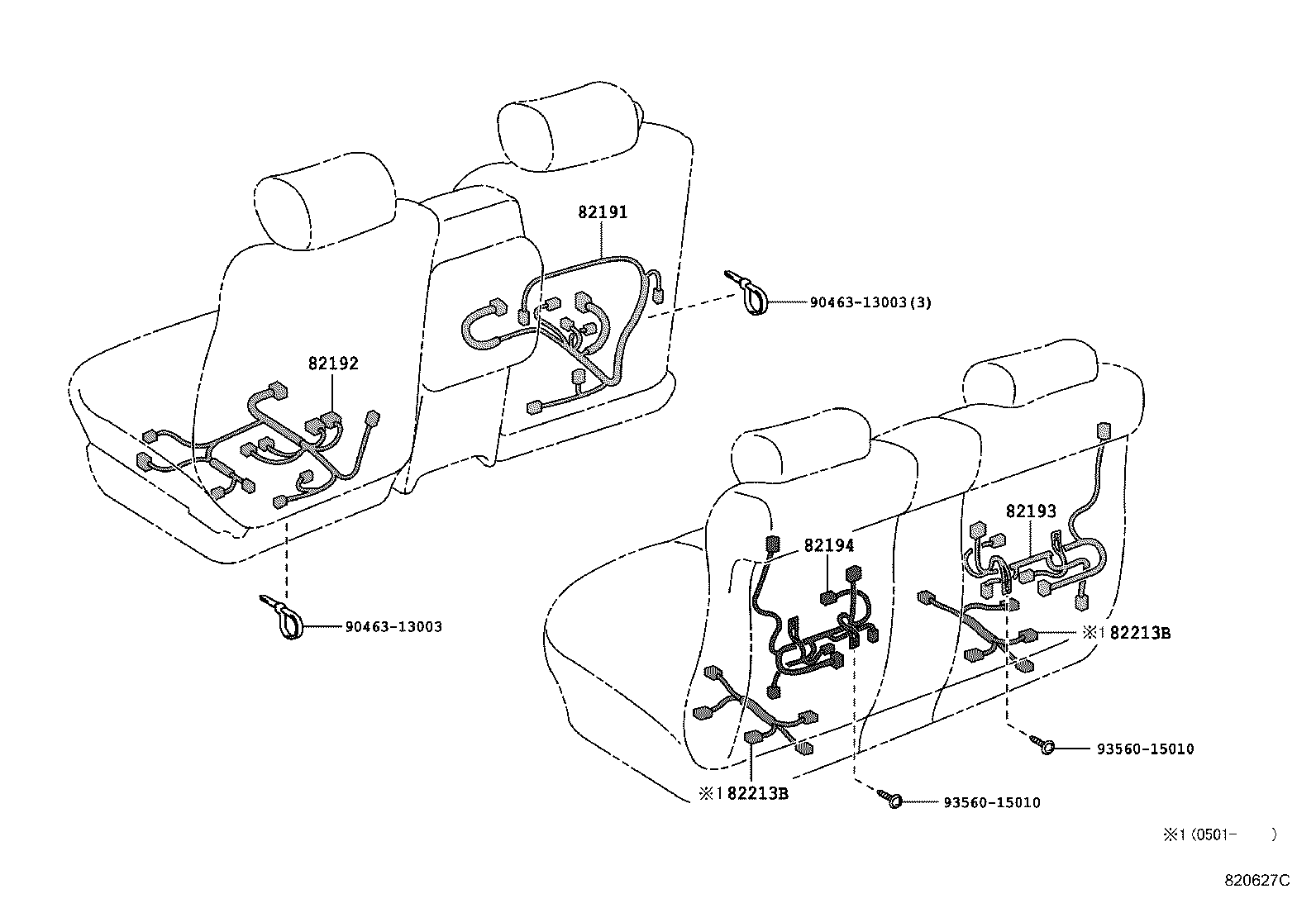

ｼｰﾄﾜｲﾔ

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-40040	GZG50	04/1997 - 01/2005	1
82192 - WIRE, FRONT SEAT, LH
82192-40120	GZG50	04/2000 - 01/2005	1
82192-40090	GZG50	04/1997 - 04/2000	1
82193 - WIRE, REAR SEAT, RH
82193-40110	GZG50	04/1997 - 05/2001	1
82193-40120	GZG50	05/2001 - 01/2005	1
82194 - WIRE, REAR SEAT, LH
82194-40140	GZG50	04/1997 - 05/2001	1
82194-40150	GZG50	05/2001 - 01/2005	1
Common parts
90463-13003
93560-15010

ILLUST NO. 8 OF 9(9704- )

Click highlighted areas on diagram

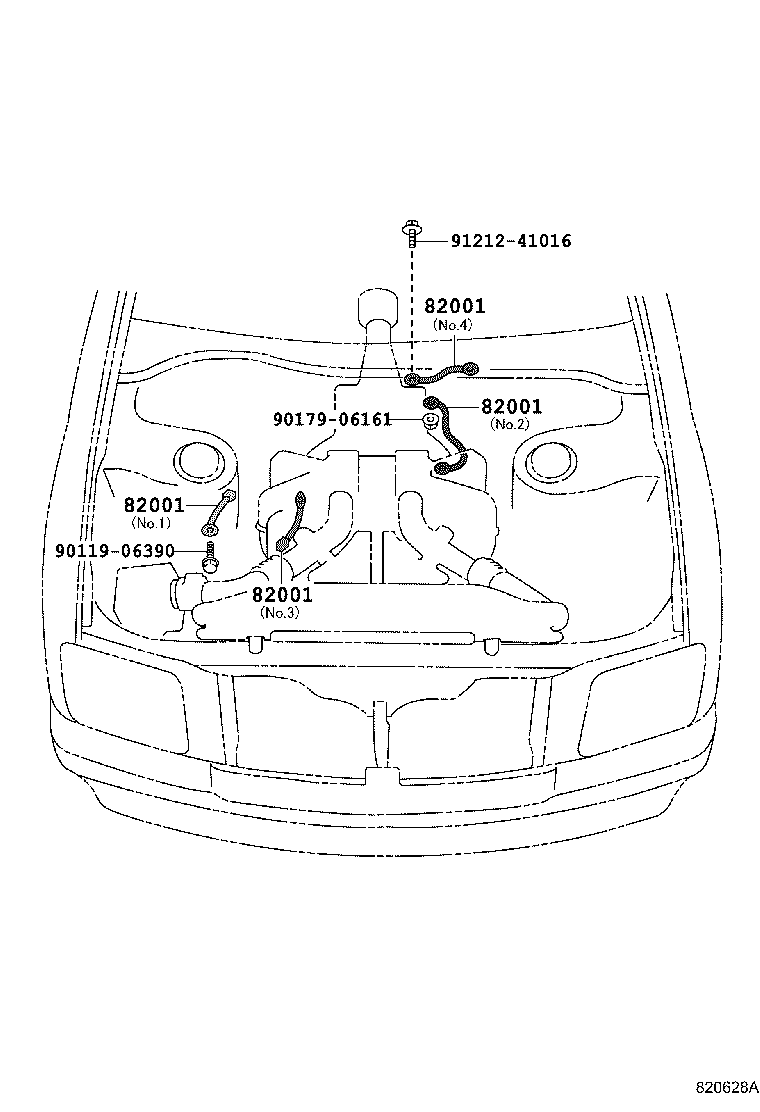

ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07354	GZG50 NO.2	04/1997 - 01/2005	1
90980-07239	GZG50 NO.1	04/1997 - 01/2005	1
90980-07394	GZG50 NO.4	04/1997 - 01/2005	1
90980-07393	GZG50 NO.3	04/1997 - 01/2005	1
82001 - CABLE, BOND, NO.1
90980-07354	GZG50 NO.2	04/1997 - 01/2005	1
90980-07239	GZG50 NO.1	04/1997 - 01/2005	1
90980-07394	GZG50 NO.4	04/1997 - 01/2005	1
90980-07393	GZG50 NO.3	04/1997 - 01/2005	1
82001 - CABLE, BOND, NO.1
90980-07354	GZG50 NO.2	04/1997 - 01/2005	1
90980-07239	GZG50 NO.1	04/1997 - 01/2005	1
90980-07394	GZG50 NO.4	04/1997 - 01/2005	1
90980-07393	GZG50 NO.3	04/1997 - 01/2005	1
82001 - CABLE, BOND, NO.1
90980-07354	GZG50 NO.2	04/1997 - 01/2005	1
90980-07239	GZG50 NO.1	04/1997 - 01/2005	1
90980-07394	GZG50 NO.4	04/1997 - 01/2005	1
90980-07393	GZG50 NO.3	04/1997 - 01/2005	1
Common parts
90119-06390
90179-06161
91212-41016

ILLUST NO. 9 OF 9(9704- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10399
90980-10619
90980-10795
90980-10825
90980-10907
90980-10908
90980-10942
90980-11019
90980-11060
90980-11074
90980-11095
90980-11096
90980-11148
90980-11156
90980-11159
90980-11162
90980-11314
90980-11399

ILLUST NO. 1 OF 9(9704- )

Click highlighted areas on diagram

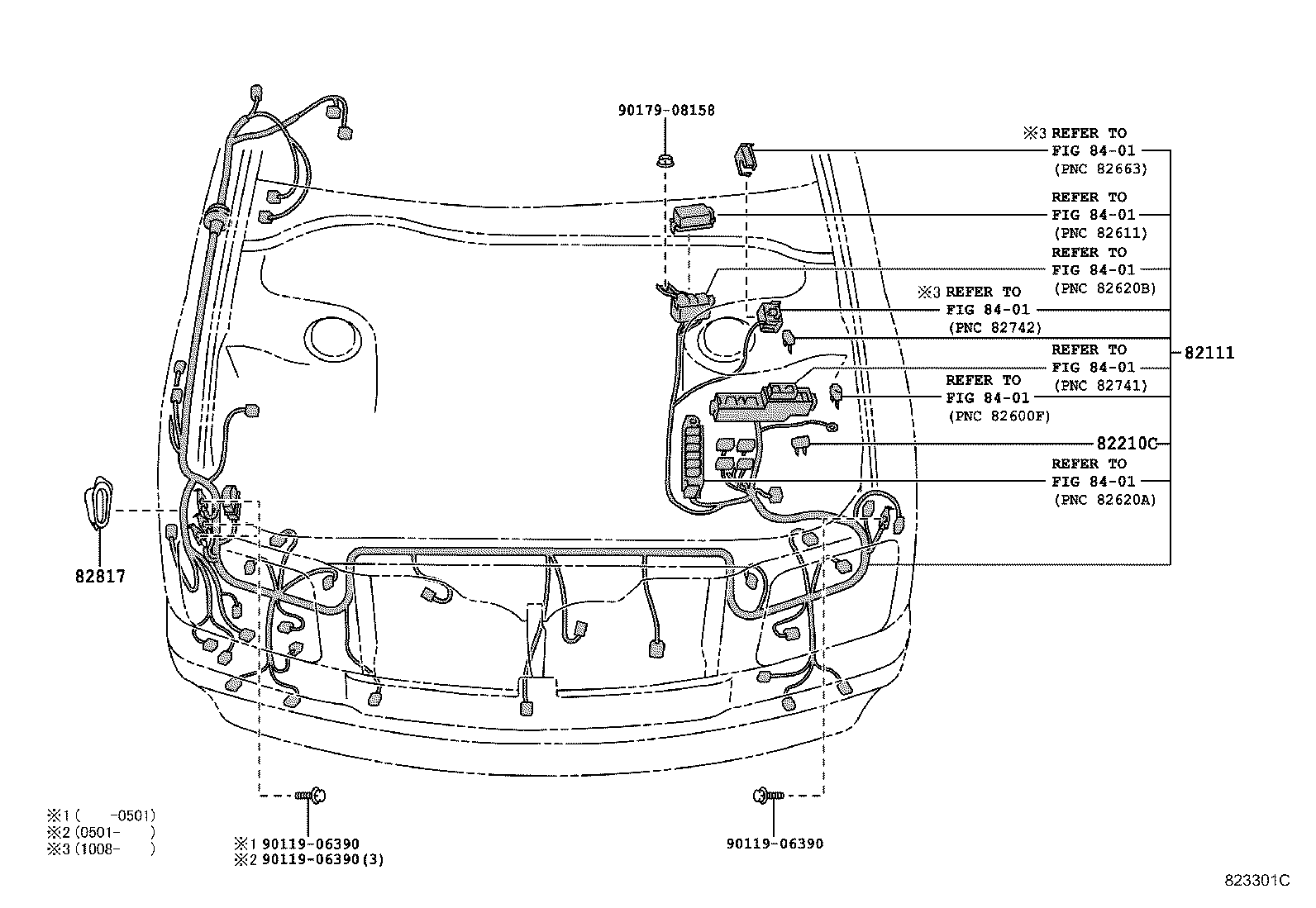

ｴﾝｼﾞﾝﾙｰﾑﾜｲﾔ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-40180	GZG50	04/2000 - 05/2001	1
82111-40150	GZG50	04/1997 - 10/1998	1
82111-40190	GZG50	05/2001 - 01/2005	1
82111-40210	GZG50 CNGｼﾔ	01/2003 - 01/2005	1
82111-40151	GZG50	10/1998 - 04/2000	1
82210C - FUSIBLE LINK
90982-08286	GZG50 140A,ｵｽ端子,赤茶	04/1997 - 01/2005	1
90982-08280	GZG50 30A,ﾒｽ端子,桃	04/1997 - 01/2005	1
90982-08203	GZG50 80A,ｵｽ端子,黒	04/1997 - 01/2005	1
90982-08281	GZG50 40A,ﾒｽ端子,緑	04/1997 - 01/2005	1
90982-08202	GZG50 60A,ｵｽ端子,黄	04/1997 - 01/2005	1
90982-08223	GZG50 30A,ｵｽ端子,ﾋﾟﾝｸ	04/1997 - 01/2005	1
90982-08257	GZG50 40A,ｵｽ端子,緑	04/1997 - 01/2005	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-5A790	GZG50	04/1997 - 01/2005	1
Common parts
90119-06390
90179-08158
Linked diagrams
8401

ILLUST NO. 3 OF 9(9704-0501)

Click highlighted areas on diagram

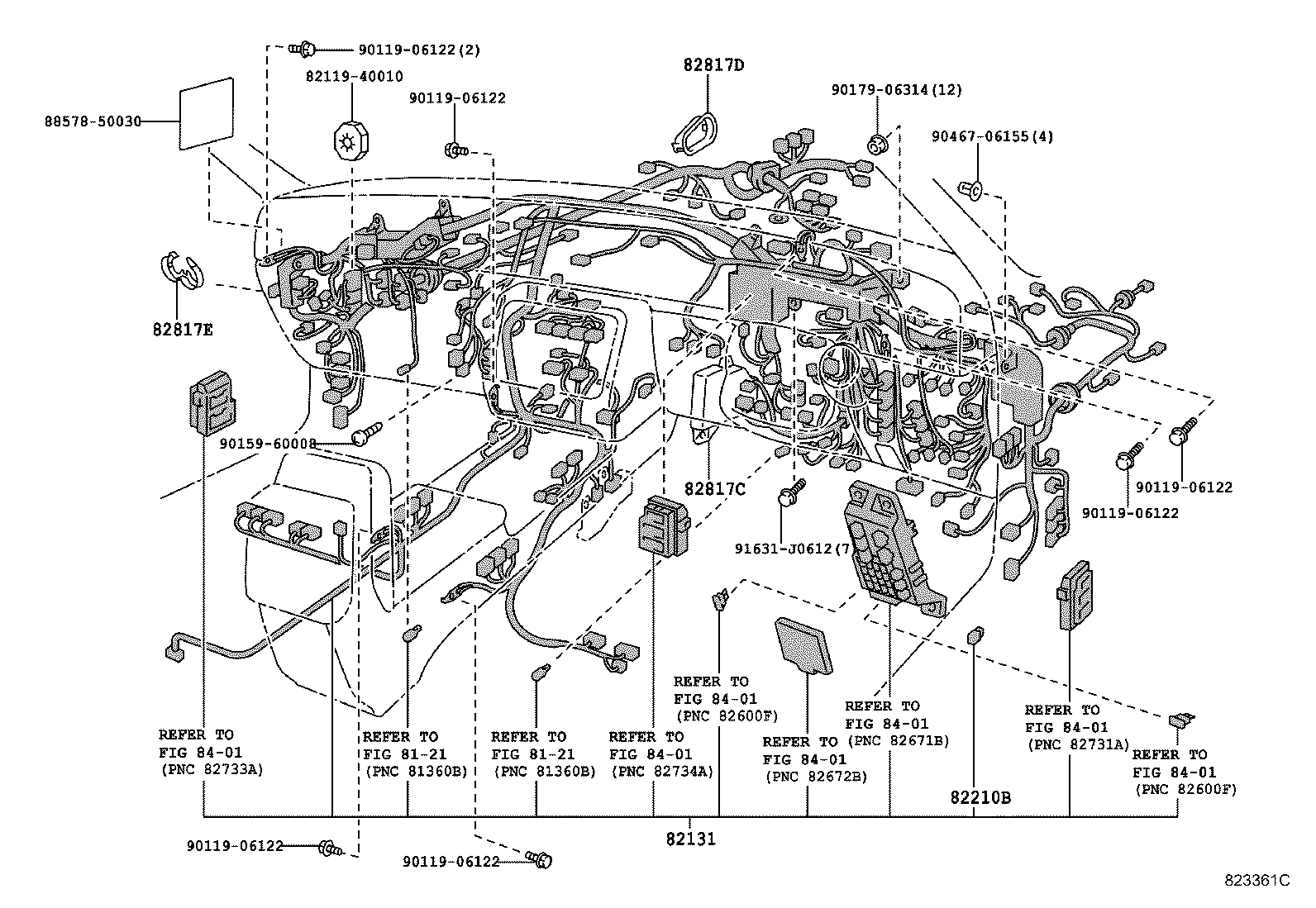

ｶｳﾙﾜｲﾔ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-40201	GZG50	10/1998 - 04/2000	1
82131-40200	GZG50	04/1997 - 10/1998	1
82131-40270	GZG50	04/2000 - 05/2001	1
82131-40330	GZG50 CNGｼﾔ	01/2003 - 01/2005	1
82131-40300	GZG50	05/2001 - 01/2005	1
82210B - FUSIBLE LINK
90982-08283	GZG50 30A,ﾒｽ端子,桃	04/1997 - 01/2005	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-40190	GZG50	04/1997 - 01/2005	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-5A790	GZG50	04/1997 - 01/2005	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-50650	GZG50	04/1997 - 01/2005	1
Common parts
82119-40010
88578-50030
90119-06122
90159-60008
90179-06314
90467-06155
91631-J0612
Linked diagrams
8121
8401

ILLUST NO. 7 OF 9(9704- )

Click highlighted areas on diagram

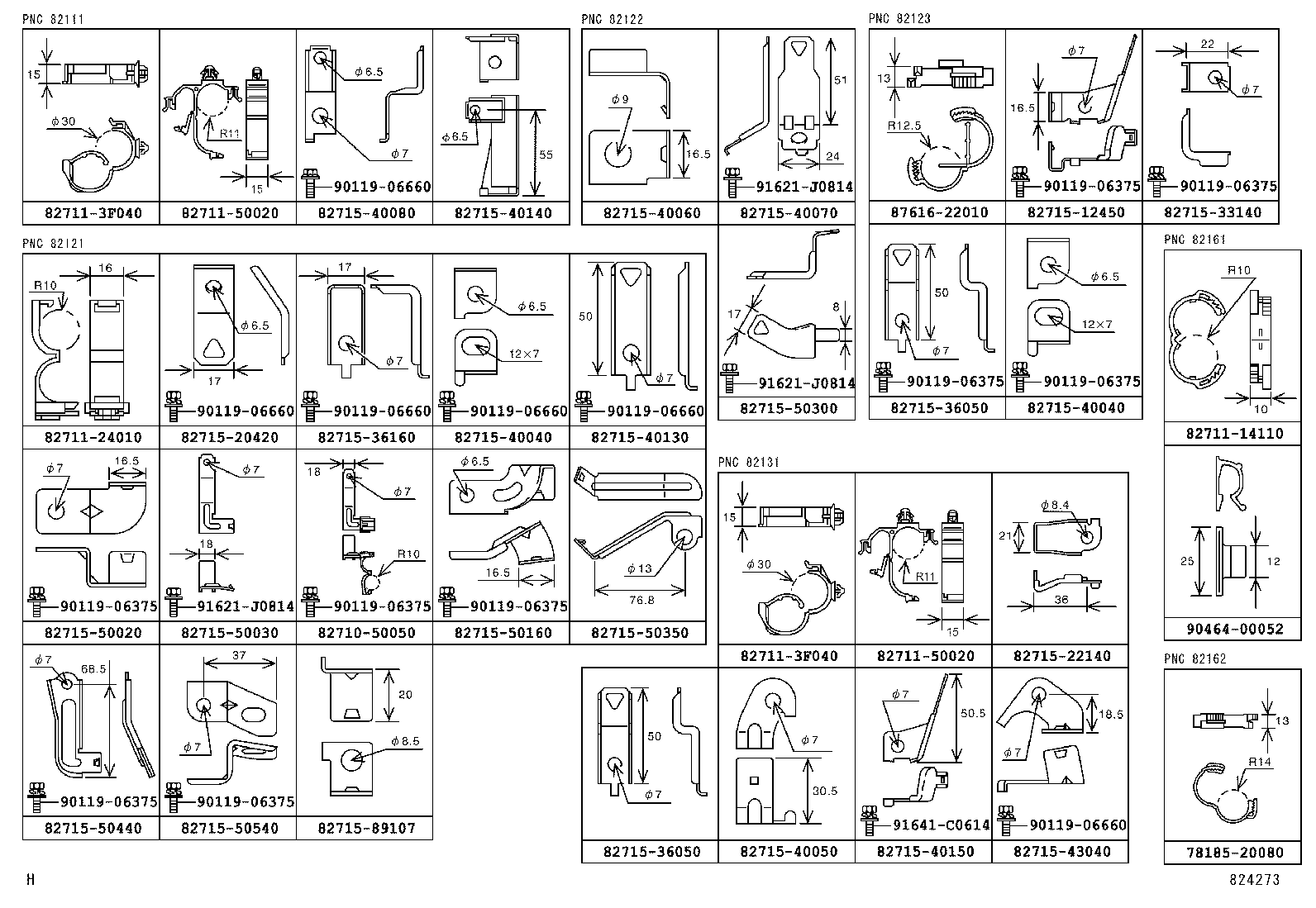

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ

Part #	Description	Period	Qty	Price
Common parts
78185-20080
82710-50050
82711-14110
82711-24010
82711-3F040
82711-50020
82715-12450
82715-20420
82715-22140
82715-33140
82715-36050
82715-36160
82715-40040
82715-40050
82715-40060
82715-40070
82715-40080
82715-40130
82715-40140
82715-40150
82715-43040
82715-50020
82715-50030
82715-50160
82715-50300
82715-50350
82715-50440
82715-50540
82715-89107
87616-22010
90119-06375
90119-06660
90464-00052
91621-J0814
91641-C0614
