GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704-0501)

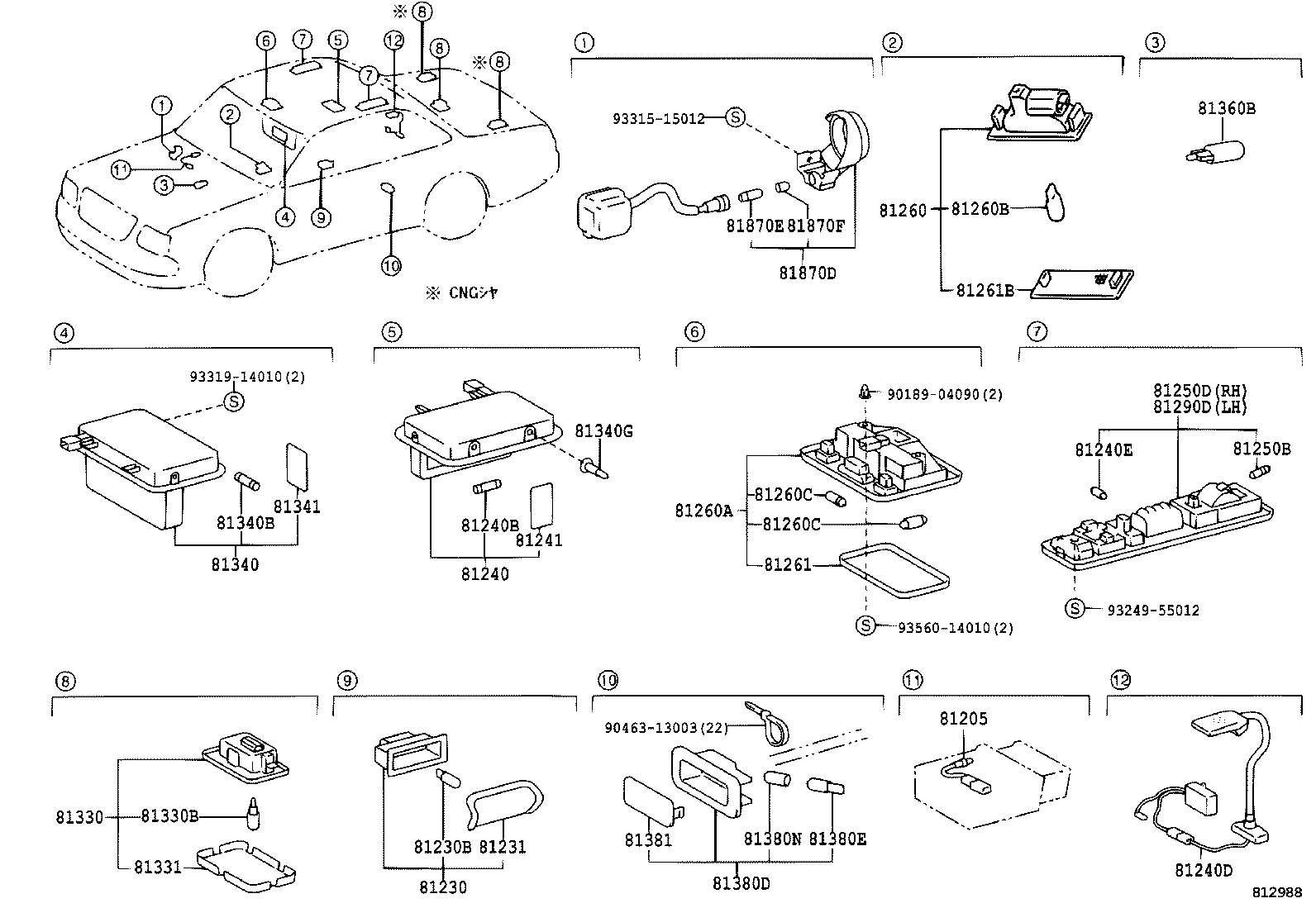

Click highlighted areas on diagram

diagram 81205 81230 81230B 81231 81240 81240B 81240D 81240E 81241 81250B 81250D 81260 81260A 81260B 81260C 81260C 81261 81261B 81290D 81330 81330B 81331 81340 81340B 81340G 81341 81360B 81380D 81380E 81380N 81381 81870D 81870E 81870F 9018904090 9046313003 9324955012 9331515012 9331914010 9356014010
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81205-40030

GZG50

 1
81230 - LAMP ASSY, COURTESY
81230-40030

GZG50

 4
81230B - BULB(FOR COURTESY LAMP)
90981-12010

GZG50

12V 5W

 4
81231 - LENS, COURTESY LAMP
81231-40030

GZG50

 4
81240 - LAMP ASSY, ROOM, NO.1
81340-40010E0

GZG50

ORCHID,TRIM4#,左側

 1
81350-40010B1

GZG50

BLUE GRAY,TRIM8#,右側

 1
81340-40010B1

GZG50

BLUE GRAY,TRIM8#,左側

 1
81350-40010E0

GZG50

ORCHID,TRIM4#,右側

 1
81350-40010B0

GZG50

LT. GRAY,TRIM1#,右側

 1
81340-40010B0

GZG50

LT. GRAY,TRIM1#,左側

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14007

GZG50

12V 3W

 2
81240D - LAMP ASSY, ROOM, NO.2
81024-40010

GZG50

 1
81240E - BULB, ROOM LAMP, NO.2
99132-12100

GZG50

12V 10W

 2
81241 - LENS, ROOM LAMP, NO.1
81341-50060

GZG50

 2
81250B - BULB, ROOM LAMP, NO.2
90981-12028

GZG50

12V 10W

 2
81250D - LAMP ASSY, REAR ROOM, RH
81250-40080E0

GZG50

ORCHID,TRIM4#

 1
81250-40080B0

GZG50

LT.GRAY,TRIM1#

 1
81250-40080B1

GZG50

BLUE GRAY,TRIM8#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-43010

GZG50

 2
81260A - LAMP ASSY, MAP
81260-40050B1

GZG50

BLUE GRAY,TRIM8#

 1
81260-40050B0

GZG50

LT.GRAY,TRIM1#

 1
81260-40050E0

GZG50

ORCHID,TRIM4#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

GZG50

12V 1.2W ｿｹｯﾄ無し

 2
81260C - BULB(FOR MAP LAMP)
90981-14006

GZG50

12V 8W

 1
90981-12028

GZG50

12V 10W

 2
81260C - BULB(FOR MAP LAMP)
90981-14006

GZG50

12V 8W

 1
90981-12028

GZG50

12V 10W

 2
81261 - LENS AND COVER, MAP LAMP
81265-50060

GZG50

 1
81261B - LENS,GLOVE BOX LAMP
81261-50010

GZG50

 2
81290D - LAMP ASSY, REAR ROOM, LH
81290-40070B1

GZG50

BLUE GRAY,TRIM8#

 1
81290-40070E0

GZG50

ORCHID,TRIM4#

 1
81290-40070B0

GZG50

LT.GRAY,TRIM1#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-50021

GZG50

CNGｼﾔ

 2
81330-50021

GZG50

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

GZG50

12V 3.8W,CNGｼﾔ

 2
90981-11020

GZG50

12V 3.8W

 1
81331 - LENS, LUGGAGE COMPARTMENT LAMP
81331-50010

GZG50

 1
81331-50010

GZG50

CNGｼﾔ

 2
81340 - LAMP ASSY, VANITY
81350-40020B0

GZG50

LT.GRAY,TRIM1#,右側

 1
81340-40020B1

GZG50

BLUE GRAY,TRIM8#,左側

 1
81340-40020E0

GZG50

ORCHID,TRIM4#,左側

 1
81350-40020B1

GZG50

BLUE GRAY,TRIM8#,右側

 1
81350-40020E0

GZG50

ORCHID,TRIM4#,右側

 1
81340-40020B0

GZG50

LT.GRAY,TRIM1#,左側

 1
81340B - BULB (FOR VANITY LAMP)
90981-14007

GZG50

12V 3W

 2
81340G - CLIP (FOR VANITY LAMP)
90467-07066B9

GZG50

LT.GRAY,TRIM1#

 4
90467-07066E6

GZG50

ORCHID,TRIM4#

 4
90467-07066B3

GZG50

BLUE GRAY,TRIM8#

 4
81341 - LENS, VANITY LAMP
81341-50060

GZG50

 2
81360B - BULB, STEP OR SPOT LAMP
90981-11041

GZG50..4FC,4HC

14V 1.4W

 2
81380D - LAMP ASSY, STEP
81380-40050B2

GZG50

MD.GRAY,TRIM1#

 2
81380-40050B3

GZG50

DK.BLUE GRAY,TRIM8#

 2
81380-40050E0

GZG50

ORCHID,TRIM4#

 2
81380E - BULB (FOR STEP LAMP)
90981-11018

GZG50

 2
81380N - CAP, STEP LAMP
81384-40020

GZG50

 2
81381 - LENS, STEP LAMP
81383-40020

GZG50

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-40020

GZG50

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

GZG50

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
90339-04023

GZG50

 1
Common parts
90189-04090
90463-13003
93249-55012
93315-15012
93319-14010
93560-14010
