GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704-0501)

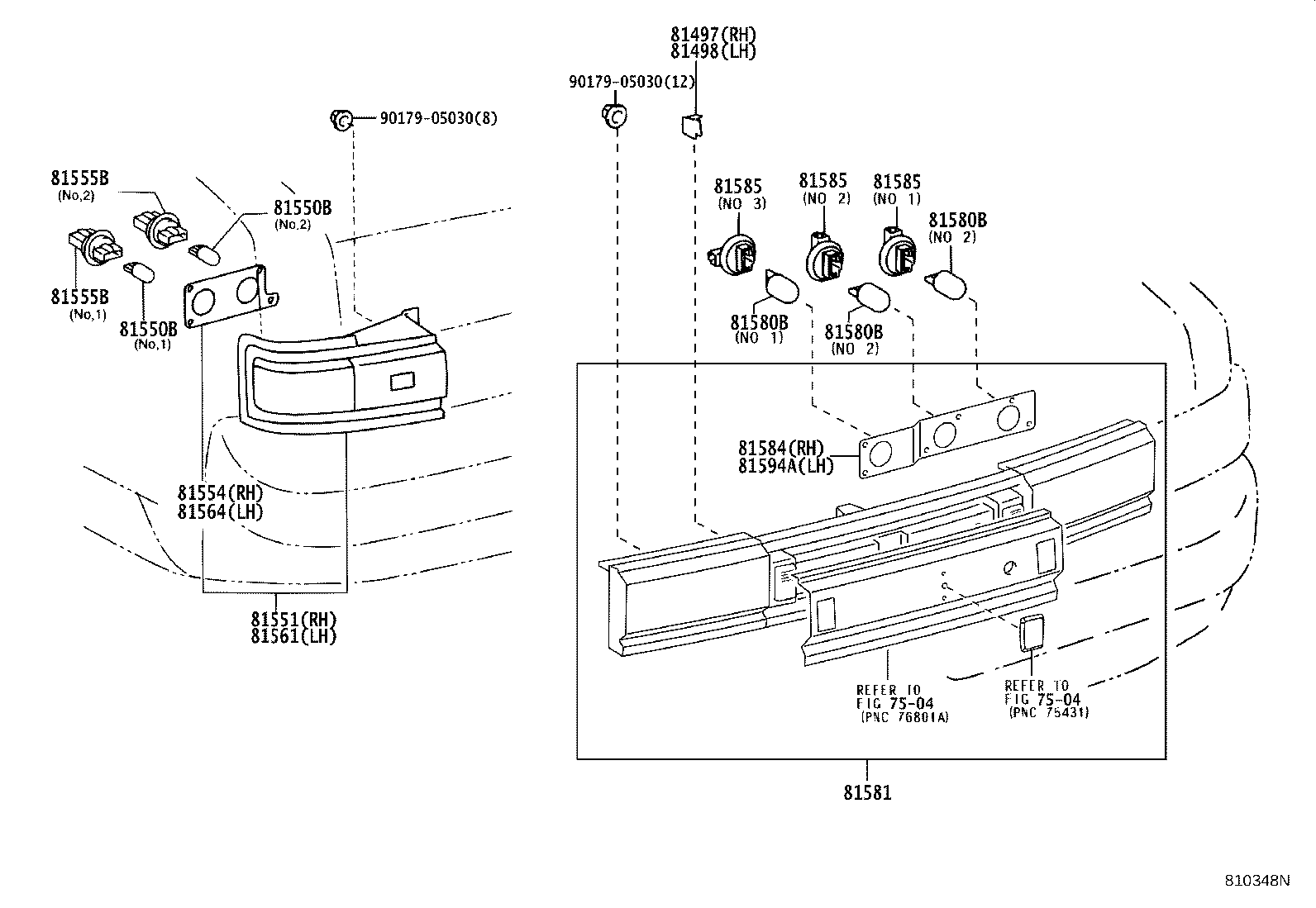

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-40010 |
GZG50 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-40010 |
GZG50 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
GZG50 12V 21/5W,NO.2 |
2 | ||
| 90981-13043 |
GZG50 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
GZG50 12V 21/5W,NO.2 |
2 | ||
| 90981-13043 |
GZG50 12V 21W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-40040 |
GZG50 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-40040 |
GZG50 |
1 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60003 |
GZG50 NO.1 |
2 | ||
| 90075-60002 |
GZG50 NO.2 |
2 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60003 |
GZG50 NO.1 |
2 | ||
| 90075-60002 |
GZG50 NO.2 |
2 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-40040 |
GZG50 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-40040 |
GZG50 |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
GZG50 12V 21W,NO.1 |
2 | ||
| 90981-13044 |
GZG50 12V 21/5W,NO.2 |
4 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
GZG50 12V 21W,NO.1 |
2 | ||
| 90981-13044 |
GZG50 12V 21/5W,NO.2 |
4 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
GZG50 12V 21W,NO.1 |
2 | ||
| 90981-13044 |
GZG50 12V 21/5W,NO.2 |
4 | ||
| 81581 - LENS, REAR LAMP | ||||
| 81581-40020 |
GZG50 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81581-40010 |
GZG50 |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-40010 |
GZG50 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81587-40010 |
GZG50 NO.3 |
2 | ||
| 81585-40010 |
GZG50 NO.1 |
2 | ||
| 81586-40010 |
GZG50 NO.2 |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81587-40010 |
GZG50 NO.3 |
2 | ||
| 81585-40010 |
GZG50 NO.1 |
2 | ||
| 81586-40010 |
GZG50 NO.2 |
2 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81587-40010 |
GZG50 NO.3 |
2 | ||
| 81585-40010 |
GZG50 NO.1 |
2 | ||
| 81586-40010 |
GZG50 NO.2 |
2 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81584-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90179-05030 | ||||
| Linked diagrams | ||||
| 7504 | ||||
