GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

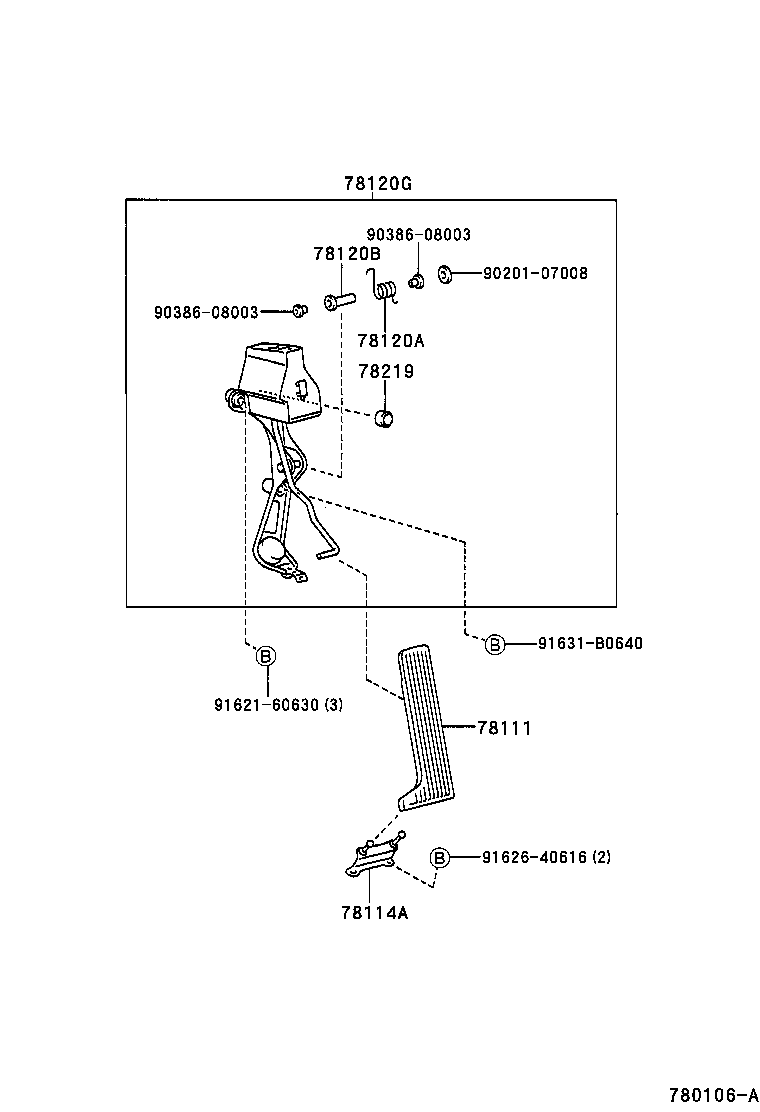

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30110 |
GZG50 |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-40020 |
GZG50 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90959-03144 |
GZG50 |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 78118-40040 |
GZG50 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-40010 |
GZG50 |
1 | ||
| 78219 - CAP, ACCELERATOR PEDAL STOPPER BOLT | ||||
| 78219-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90201-07008 | ||||
| 90386-08003 | ||||
| 91621-60630 | ||||
| 91626-40616 | ||||
| 91631-B0640 | ||||
