GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

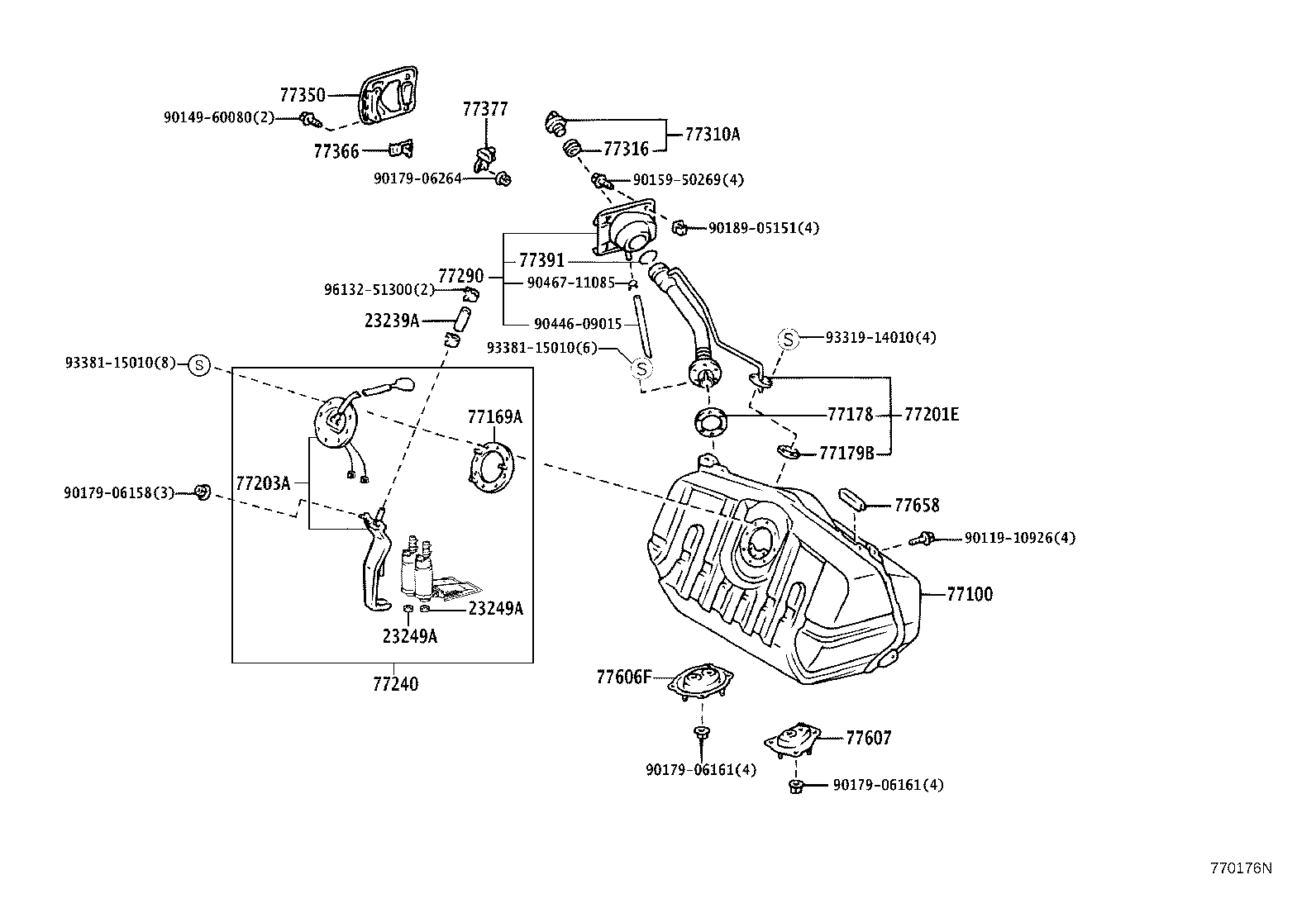

ILLUST NO. 1 OF 2(9704- )
Click highlighted areas on diagram
ﾌｭ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23239A - HOSE | ||||
| 23239-16010 |
1GZFE..GZG50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-40080 |
GZG50 CNGｼﾔ,NO.1 |
1 | ||
| 77001-40050 |
GZG50 |
1 | ||
| 77100-40090 |
GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-50020 |
GZG50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
GZG50 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-50010 |
GZG50 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-40020 |
GZG50 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-40020 |
GZG50 |
1 | ||
| 77240 - TUBE ASSY, FUEL SUCTION | ||||
| 77240-40010 |
GZG50 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-40020 |
GZG50 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
GZG50 |
1 | ||
| 77310-16011 |
GZG50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GZG50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-40010 |
GZG50 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-40010 |
GZG50 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-40010 |
GZG50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-40010 |
GZG50 CNGｼﾔ |
1 | ||
| 77391-30010 |
GZG50 |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-50020 |
GZG50 |
1 | ||
| 77607 - CASE SUB-ASSY, FUEL TANK COVER VENT, LH | ||||
| 77607-50020 |
GZG50 |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-10926 | ||||
| 90149-60080 | ||||
| 90159-50269 | ||||
| 90179-06158 | ||||
| 90179-06161 | ||||
| 90179-06264 | ||||
| 90189-05151 | ||||
| 90446-09015 | ||||
| 90467-11085 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96132-51300 | ||||

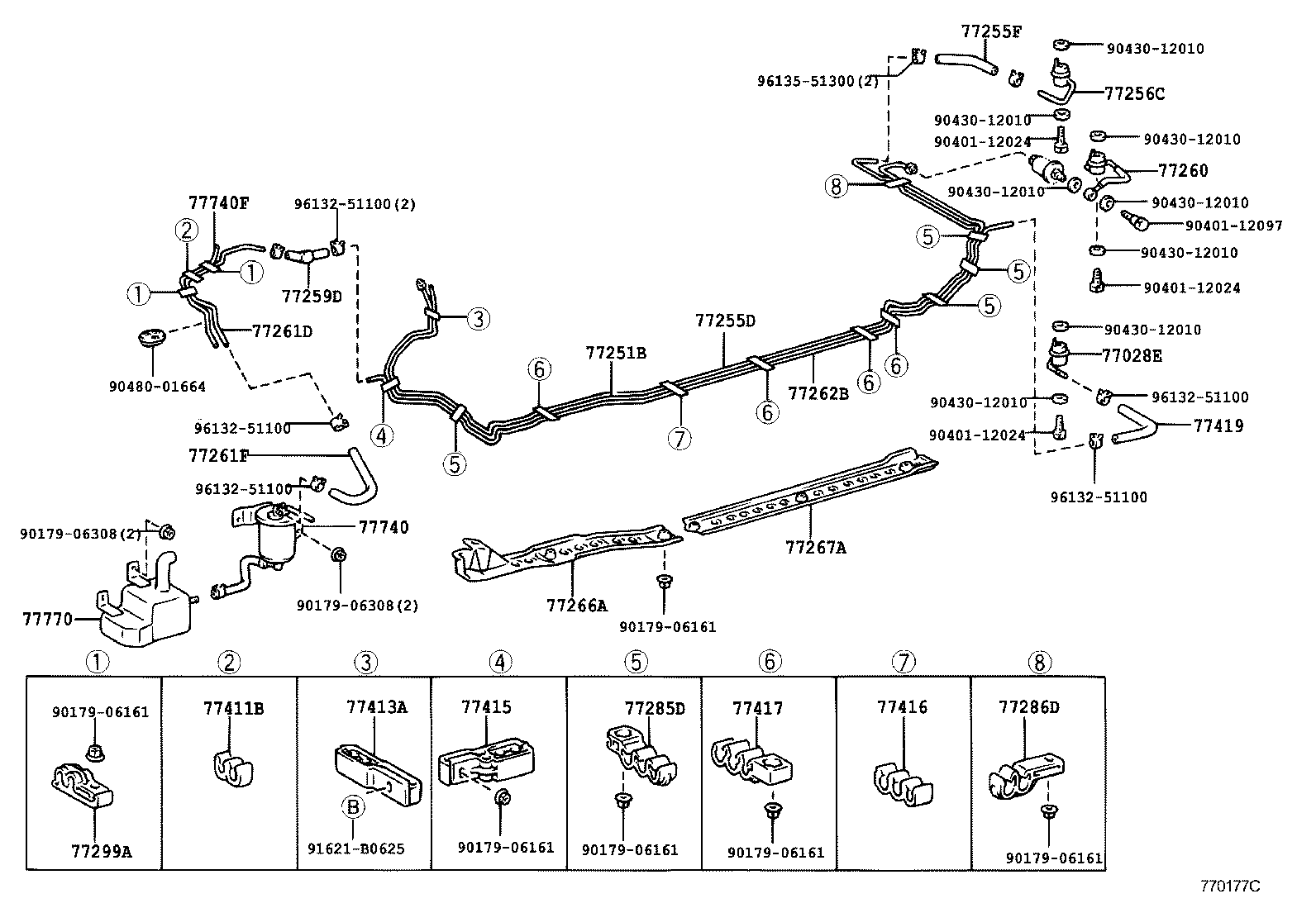

ILLUST NO. 2 OF 2(9704-0004)
Click highlighted areas on diagram
ﾌｭ-ｴﾙ ﾁｭ-ﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77028E - TUBE SUB-ASSY, FUEL TANK TO CANISTER, REAR | ||||
| 77028-50010 |
GZG50 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-40040 |
GZG50 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-40040 |
GZG50 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-08020 |
GZG50 *H,L=140 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77208-50020 |
GZG50 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-50050 |
GZG50 |
1 | ||
| 77260 - HOSE ASSY, FUEL MAIN | ||||
| 77260-50020 |
GZG50 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-50020 |
GZG50 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77279-40010 |
GZG50 |
1 | ||
| 77279-30070 |
GZG50 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-40010 |
GZG50 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-40010 |
GZG50 |
1 | ||
| 77266-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-40010 |
GZG50 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44110 |
GZG50 CNGｼﾔ |
2 | ||
| 77286-30040 |
GZG50 |
4 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-24020 |
GZG50 |
1 | ||
| 77286-24020 |
GZG50 CNGｼﾔ |
5 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-50010 |
GZG50 |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-50010 |
GZG50 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30060 |
GZG50 |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-30020 |
GZG50 |
1 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-30040 |
GZG50 |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-50010 |
GZG50 |
4 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 95333-06020 |
GZG50 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-40060 |
GZG50 |
1 | ||
| 77740-32090 |
GZG50 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 25737-32010 |
GZG50 |
1 | ||
| 77770 - TANK ASSY, CHARCOAL CANISTER | ||||
| 77770-32010 |
GZG50..4FC,4HC |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06308 | ||||
| 90401-12024 | ||||
| 90401-12097 | ||||
| 90430-12010 | ||||
| 90480-01664 | ||||
| 91621-B0625 | ||||
| 96132-51100 | ||||
| 96135-51300 | ||||
ILLUST NO. 2 OF 2(0004- )
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77028E - TUBE SUB-ASSY, FUEL TANK TO CANISTER, REAR | ||||
| 77028-50010 |
GZG50 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-40040 |
GZG50 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-40040 |
GZG50 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-08020 |
GZG50 *H,L=140 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77208-50020 |
GZG50 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-50050 |
GZG50 |
1 | ||
| 77260 - HOSE ASSY, FUEL MAIN | ||||
| 77260-50020 |
GZG50 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-50020 |
GZG50 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77279-40010 |
GZG50 |
1 | ||
| 77279-30070 |
GZG50 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-40010 |
GZG50 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-40010 |
GZG50 |
1 | ||
| 77266-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-40010 |
GZG50 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44110 |
GZG50 CNGｼﾔ |
2 | ||
| 77286-30040 |
GZG50 |
4 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-24020 |
GZG50 |
1 | ||
| 77286-24020 |
GZG50 CNGｼﾔ |
5 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-50010 |
GZG50 |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-50010 |
GZG50 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30060 |
GZG50 |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-30020 |
GZG50 |
1 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-30040 |
GZG50 |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-50010 |
GZG50 |
4 | ||
| 77419 - HOSE, FUEL, NO.3 | ||||
| 95333-06020 |
GZG50 |
1 | ||
| 77704 - CANISTER SUB-ASSY, CHARCOAL | ||||
| 77704-12490 |
GZG50 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-40060 |
GZG50 |
1 | ||
| 77740-32090 |
GZG50 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 25737-32010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06308 | ||||
| 90401-12024 | ||||
| 90401-12097 | ||||
| 90412-09008 | ||||
| 90430-12010 | ||||
| 90480-01664 | ||||
| 91621-B0625 | ||||
| 96132-51100 | ||||
| 96135-51300 | ||||
ILLUST NO. 2 OF 3(0301-0501)
Click highlighted areas on diagram

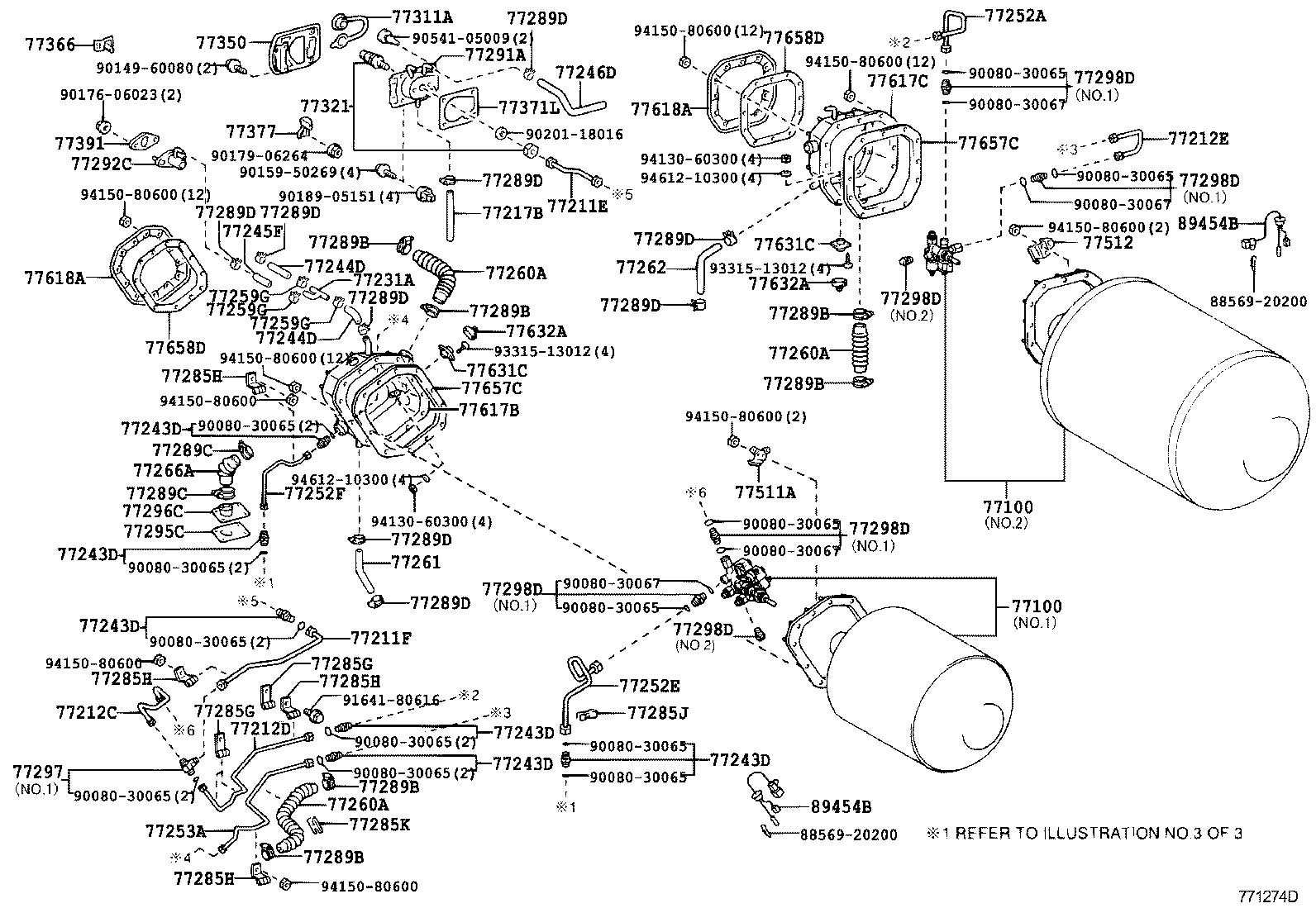

CNGｼｬ, ﾌｭ-ｴﾙ ﾀﾝｸ(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77100-40080 |
GZG50 CNGｼﾔ,NO.1 |
1 | ||
| 77001-40050 |
GZG50 |
1 | ||
| 77100-40090 |
GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-40080 |
GZG50 CNGｼﾔ,NO.1 |
1 | ||
| 77001-40050 |
GZG50 |
1 | ||
| 77100-40090 |
GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 77211E - TUBE, FUEL TANK FILLER, NO.1 | ||||
| 77211-40020 |
GZG50 |
1 | ||
| 77211F - TUBE, FUEL TANK FILLER, NO.1 | ||||
| 77211-40030 |
GZG50 |
1 | ||
| 77212C - TUBE, FUEL TANK FILLER, NO.2 | ||||
| 77212-40020 |
GZG50 |
1 | ||
| 77212D - TUBE, FUEL TANK FILLER, NO.2 | ||||
| 77212-40030 |
GZG50 |
1 | ||
| 77212E - TUBE, FUEL TANK FILLER, NO.2 | ||||
| 77212-40040 |
GZG50 |
1 | ||
| 77217B - HOSE, FUEL TANK INLET | ||||
| 77217-40010 |
GZG50 |
1 | ||
| 77231A - CONNECTOR, FUEL TANK BREATHER TUBE | ||||
| 77231-40020 |
GZG50 |
1 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-37010 |
GZG50 |
8 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-37010 |
GZG50 |
8 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-37010 |
GZG50 |
8 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-37010 |
GZG50 |
8 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-37010 |
GZG50 |
8 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-37010 |
GZG50 |
8 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-40010 |
GZG50 |
2 | ||
| 77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1 | ||||
| 77244-40010 |
GZG50 |
2 | ||
| 77245F - TUBE, FUEL EVAPORATION BREATHER, NO.2 | ||||
| 77245-40020 |
GZG50 |
1 | ||
| 77246D - TUBE, FUEL EVAPORATION BREATHER, NO.3 | ||||
| 77246-40010 |
GZG50 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-40010 |
GZG50 |
1 | ||
| 77252E - TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN) | ||||
| 77251-40060 |
GZG50 |
1 | ||
| 77252F - TUBE, FUEL MAIN, REAR | ||||
| 77252-40030 |
GZG50 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77252-40020 |
GZG50 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90467-20009 |
GZG50 |
3 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90467-20009 |
GZG50 |
3 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90467-20009 |
GZG50 |
3 | ||
| 77260A - DUCT ASSY, FUEL TANK VALVE COVER | ||||
| 77261-33090 |
GZG50 |
3 | ||
| 77260A - DUCT ASSY, FUEL TANK VALVE COVER | ||||
| 77261-33090 |
GZG50 |
3 | ||
| 77260A - DUCT ASSY, FUEL TANK VALVE COVER | ||||
| 77261-33090 |
GZG50 |
3 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-40040 |
GZG50 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-40030 |
GZG50 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-40010 |
GZG50 |
1 | ||
| 77266-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 90461-10722 |
GZG50 |
3 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 90461-10722 |
GZG50 |
3 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 90461-10818 |
GZG50 |
4 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 90461-10818 |
GZG50 |
4 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 90461-10818 |
GZG50 |
4 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 90461-10818 |
GZG50 |
4 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 90464-00373 |
GZG50 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 90464-00116 |
GZG50 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-10400 |
GZG50 |
6 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-10400 |
GZG50 |
6 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-10400 |
GZG50 |
6 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-10400 |
GZG50 |
6 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-10400 |
GZG50 |
6 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 96111-10400 |
GZG50 |
6 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 96111-10560 |
GZG50 |
2 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 96111-10560 |
GZG50 |
2 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 96112-10220 |
GZG50 |
10 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-40010 |
GZG50 |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77292-40010 |
GZG50 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-40020 |
GZG50 |
1 | ||
| 77296C - PLATE, FUEL HOSE GROMMET SUPPORT | ||||
| 77298-40030 |
GZG50 |
1 | ||
| 77297 - CONNECTOR, FUEL TUBE | ||||
| 77297-37030 |
GZG50 NO.2 |
2 | ||
| 77297-37030 |
GZG50 NO.1 |
1 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77311A - CAP, FUEL INLET COUPLER | ||||
| 77311-0W010 |
GZG50 |
1 | ||
| 77321 - COUPLER, FUEL INLET | ||||
| 77321-37010 |
GZG50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-40010 |
GZG50 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-40010 |
GZG50 |
1 | ||
| 77371L - RING, FUEL TANK FILLER PIPE SHIELD | ||||
| 77371-40010 |
GZG50 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-40010 |
GZG50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-40010 |
GZG50 CNGｼﾔ |
1 | ||
| 77391-30010 |
GZG50 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77511-40030 |
GZG50 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-40020 |
GZG50 |
1 | ||
| 77617B - COVER, FUEL TANK VALVE, REAR | ||||
| 77617-40010 |
GZG50 |
1 | ||
| 77617C - COVER, FUEL TANK VALVE, REAR | ||||
| 77617-40020 |
GZG50 |
1 | ||
| 77618A - COVER, FUEL TANK VALVE, LOWER | ||||
| 77618-40010 |
GZG50 |
2 | ||
| 77618-40010 |
GZG50 |
2 | ||
| 77618A - COVER, FUEL TANK VALVE, LOWER | ||||
| 77618-40010 |
GZG50 |
2 | ||
| 77618-40010 |
GZG50 |
2 | ||
| 77631C - COVER, FUEL TANK VALVE HANDLE, UPPER | ||||
| 77631-40010 |
GZG50 |
2 | ||
| 77631C - COVER, FUEL TANK VALVE HANDLE, UPPER | ||||
| 77631-40010 |
GZG50 |
2 | ||
| 77632A - COVER, FUEL TANK VALVE HANDLE, LOWER | ||||
| 77632-40010 |
GZG50 |
2 | ||
| 77632A - COVER, FUEL TANK VALVE HANDLE, LOWER | ||||
| 77632-40010 |
GZG50 |
2 | ||
| 77657C - SEAL, FUEL TANK VALVE COVER, NO.1 | ||||
| 77657-40010 |
GZG50 |
2 | ||
| 77657C - SEAL, FUEL TANK VALVE COVER, NO.1 | ||||
| 77657-40010 |
GZG50 |
2 | ||
| 77658D - SEAL, FUEL TANK VALVE COVER, NO.2 | ||||
| 77658-40020 |
GZG50 |
2 | ||
| 77658D - SEAL, FUEL TANK VALVE COVER, NO.2 | ||||
| 77658-40020 |
GZG50 |
2 | ||
| 89454B - SENSOR, FUEL TEMPERATURE | ||||
| 89454-33020 |
GZG50 |
2 | ||
| 89454B - SENSOR, FUEL TEMPERATURE | ||||
| 89454-33020 |
GZG50 |
2 | ||
| Common parts | ||||
| 88569-20200 | ||||
| 90080-30065 | ||||
| 90080-30067 | ||||
| 90149-60080 | ||||
| 90159-50269 | ||||
| 90176-06023 | ||||
| 90179-06264 | ||||
| 90189-05151 | ||||
| 90201-18016 | ||||
| 90541-05009 | ||||
| 91641-80616 | ||||
| 93315-13012 | ||||
| 94130-60300 | ||||
| 94150-80600 | ||||
| 94612-10300 | ||||

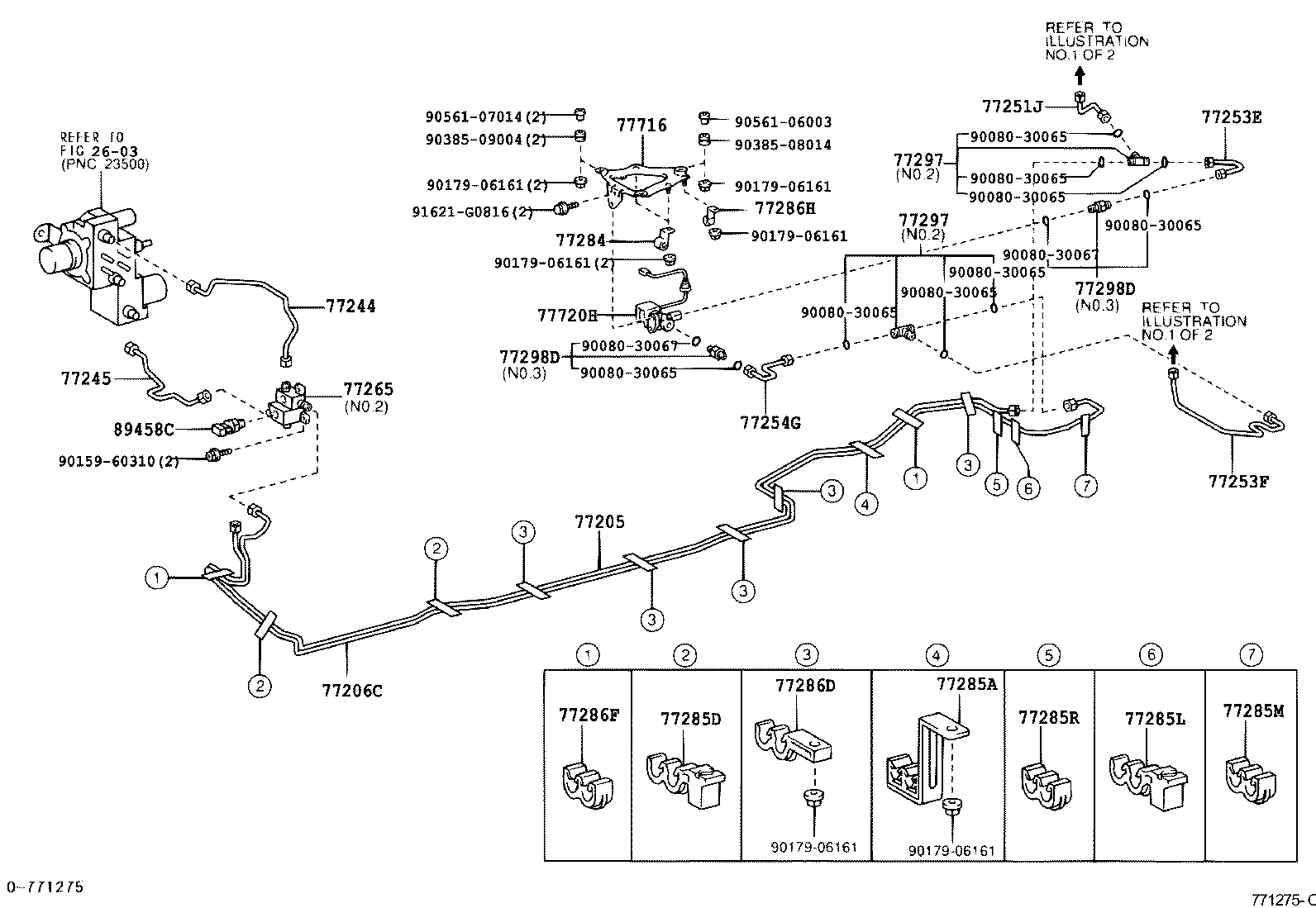

ILLUST NO. 3 OF 3(0301-0501)
Click highlighted areas on diagram
CNGｼｬ,ﾌｭ-ｴﾙ ﾁｭ-ﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-40010 |
GZG50 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-40010 |
GZG50 |
1 | ||
| 77244 - TUBE, FUEL MAIN, NO.4 | ||||
| 77243-40010 |
GZG50 |
1 | ||
| 77245 - TUBE, FUEL MAIN, NO.5 | ||||
| 77244-40010 |
GZG50 |
1 | ||
| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-40070 |
GZG50 |
1 | ||
| 77253E - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-40040 |
GZG50 |
1 | ||
| 77253F - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-40010 |
GZG50 |
1 | ||
| 77254G - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-40010 |
GZG50 |
1 | ||
| 77265 - CONNECTOR, FUEL MAIN TUBE | ||||
| 77265-40010 |
GZG50 NO.2 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 90461-10818 |
GZG50 |
2 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-40010 |
GZG50 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44110 |
GZG50 CNGｼﾔ |
2 | ||
| 77286-30040 |
GZG50 |
4 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44110 |
GZG50 |
1 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 90959-01450 |
GZG50 |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 90959-01450 |
GZG50 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-24020 |
GZG50 |
1 | ||
| 77286-24020 |
GZG50 CNGｼﾔ |
5 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 90959-01450 |
GZG50 |
2 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 90461-10818 |
GZG50 |
1 | ||
| 77297 - CONNECTOR, FUEL TUBE | ||||
| 77297-37030 |
GZG50 NO.2 |
2 | ||
| 77297-37030 |
GZG50 NO.1 |
1 | ||
| 77297 - CONNECTOR, FUEL TUBE | ||||
| 77297-37030 |
GZG50 NO.2 |
2 | ||
| 77297-37030 |
GZG50 NO.1 |
1 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77298D - ADAPTER, FUEL TUBE JOINT | ||||
| 77298-40010 |
GZG50 NO.2 |
2 | ||
| 77298-37040 |
GZG50 NO.1 |
4 | ||
| 77298-37040 |
GZG50 NO.3 |
2 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-40010 |
GZG50 |
1 | ||
| 77720H - VALVE ASSY, FUEL OUTLET | ||||
| 77720-40010 |
GZG50 |
1 | ||
| 89458C - SENSOR, FUEL PRESSURE | ||||
| 89458-33020 |
GZG50 |
2 | ||
| Common parts | ||||
| 90080-30065 | ||||
| 90080-30067 | ||||
| 90159-60310 | ||||
| 90179-06161 | ||||
| 90385-08014 | ||||
| 90385-09004 | ||||
| 90561-06003 | ||||
| 90561-07014 | ||||
| 91621-G0816 | ||||
| Linked diagrams | ||||
| 2603 | ||||

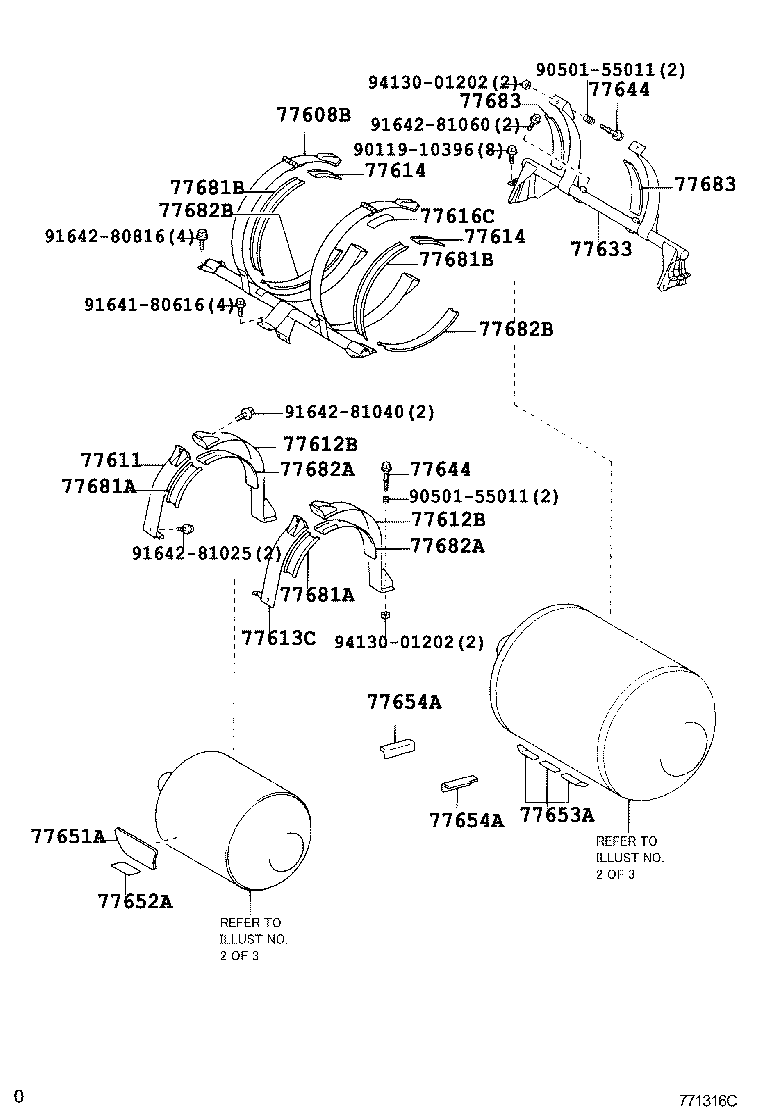

ILLUST NO. 1 OF 3(0301-0501)
Click highlighted areas on diagram
CNGｼｬ,ﾌｭｰｴﾙ ﾀﾝｸ(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77608B - FRAME SUB-ASSY, FUEL TANK, LOWER | ||||
| 77608-40010 |
GZG50 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77611-40010 |
GZG50 |
1 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77612-40010 |
GZG50 |
2 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77612-40010 |
GZG50 |
2 | ||
| 77613C - BAND, FUEL TANK, NO.3 | ||||
| 77611-40020 |
GZG50 |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-40030 |
GZG50 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-40030 |
GZG50 |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77681-40040 |
GZG50 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77609-40010 |
GZG50 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-40010 |
GZG50 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-40010 |
GZG50 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-40010 |
GZG50 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-40010 |
GZG50 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-40010 |
GZG50 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-40010 |
GZG50 |
2 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-40010 |
GZG50 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-40010 |
GZG50 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-40010 |
GZG50 |
2 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77681-40020 |
GZG50 |
2 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77681-40020 |
GZG50 |
2 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-40010 |
GZG50 |
2 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-40010 |
GZG50 |
2 | ||
| 77682B - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-40020 |
GZG50 |
2 | ||
| 77682B - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-40020 |
GZG50 |
2 | ||
| 77683 - SEAT, FUEL TANK BAND, NO.3 | ||||
| 77682-40030 |
GZG50 |
2 | ||
| 77683 - SEAT, FUEL TANK BAND, NO.3 | ||||
| 77682-40030 |
GZG50 |
2 | ||
| Common parts | ||||
| 90119-10396 | ||||
| 90501-55011 | ||||
| 91641-80616 | ||||
| 91642-80816 | ||||
| 91642-81025 | ||||
| 91642-81040 | ||||
| 91642-81060 | ||||
| 94130-01202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
