GZG50-AEPGK (1997)
Toyota Century

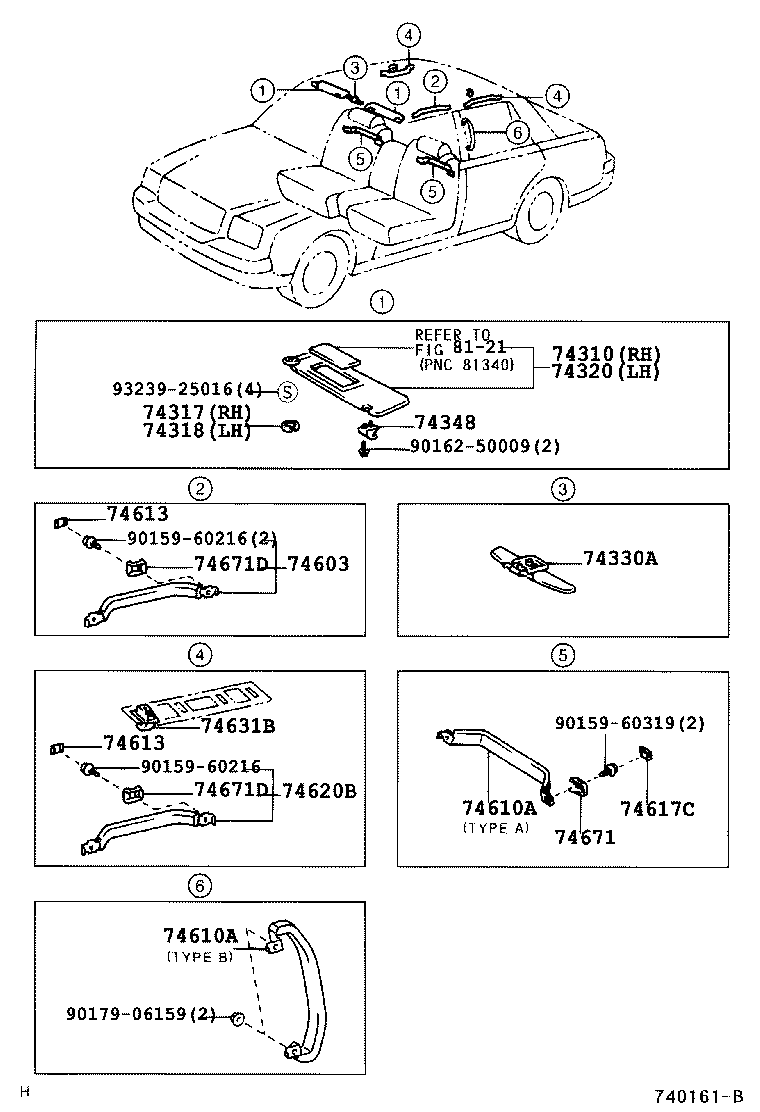

ILLUST NO. 1 OF 2(9704-0501)
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-40071B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74310-40120B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74310-40160B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74310-40070B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74310-40071B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74310-40070E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74310-40070B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74310-40071E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74310-40160B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74310-40120E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74310-40120B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74310-40160E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-40010B0 |
GZG50 LT.GRAY,TRIM1# |
1 | ||
| 74317-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74317-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74318-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74318-40010B0 |
GZG50 LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-40020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74320-40020B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74320-40021B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74320-40021B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74320-40021E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74320-40070B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74320-40070B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74320-40070E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74320-40020B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74330A - VISOR ASSY, CENTER | ||||
| 74330-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74330-40010B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74330-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-50020B0 |
GZG50 BLUE GRAY,TRIM8# |
2 | ||
| 74348-50020B1 |
GZG50 LT.GRAY,TRIM1# |
2 | ||
| 74348-50020E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-40040B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74610-40040E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74610-40040B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74620-40010B0 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM1# |
2 | ||
| 74620-40010B1 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM8# |
2 | ||
| 74620-51010B0 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 74620-51010B1 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM8# |
1 | ||
| 74620-40010E0 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ORCHID,TRIM4# |
2 | ||
| 74620-51010E0 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ORCHID,TRIM4# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74620-40010B0 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.GRAY,TRIM1# |
2 | ||
| 74620-40010B1 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM8# |
2 | ||
| 74620-51010B0 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT. GRAY,TRIM1# |
1 | ||
| 74620-51010B1 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLUE GRAY,TRIM8# |
1 | ||
| 74620-40010E0 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ORCHID,TRIM4# |
2 | ||
| 74620-51010E0 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,ORCHID,TRIM4# |
1 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-40010 |
GZG50 |
6 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-40010 |
GZG50 |
6 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-40010 |
GZG50 |
4 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-40050B0 |
GZG50 LT. GRAY,TRIM1# |
2 | ||
| 74610-40050B1 |
GZG50 BLUE GRAY,TRIM8# |
2 | ||
| 74610-40050E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 74631B - HOOK, COAT | ||||
| 74605-40010B0 |
GZG50 LT.GRAY,TRIM1# |
2 | ||
| 74605-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
2 | ||
| 74605-40010E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 74671 - SUPPORT, ASSIST GRIP | ||||
| 74671-24010 |
GZG50 |
4 | ||
| 74671D - SUPPORT, ASSIST GRIP | ||||
| 74671-24010 |
GZG50 |
6 | ||
| 74671D - SUPPORT, ASSIST GRIP | ||||
| 74671-24010 |
GZG50 |
6 | ||
| Common parts | ||||
| 90159-60216 | ||||
| 90159-60319 | ||||
| 90162-50009 | ||||
| 90179-06159 | ||||
| 93239-25016 | ||||
| Linked diagrams | ||||
| 8121 | ||||

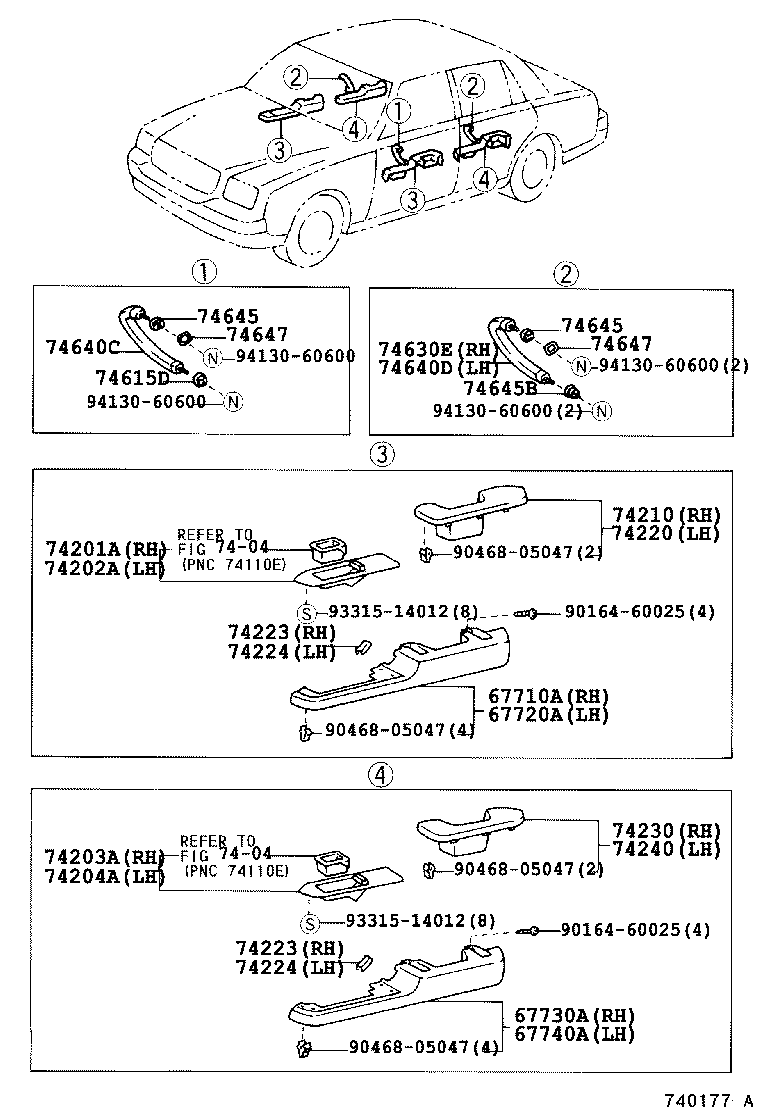

ILLUST NO. 2 OF 2(9704- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67710A - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67710-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67710-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67720A - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67720-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67720-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67730A - PANEL ASSY, REAR DOOR TRIM, UPPER RH | ||||
| 67730-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67730-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67730-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67740A - PANEL ASSY, REAR DOOR TRIM, UPPER LH | ||||
| 67740-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67740-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67740-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 74201A - PANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH | ||||
| 74201-40031 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74201-40020 |
GZG50 |
1 | ||
| 74201-40030 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74201-40021 |
GZG50 |
1 | ||
| 74202A - PANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH | ||||
| 74202-40040 |
GZG50 |
1 | ||
| 74202-40041 |
GZG50 |
1 | ||
| 74202-40051 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74202-40050 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74203A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH | ||||
| 74203-40050 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74203-40040 |
GZG50 |
1 | ||
| 74203-40041 |
GZG50 |
1 | ||
| 74203-40051 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74204A - PANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH | ||||
| 74204-40040 |
GZG50 |
1 | ||
| 74204-40041 |
GZG50 |
1 | ||
| 74204-40050 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74204-40051 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74210-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74210-40010B0 |
GZG50 GRAY,TRIM1# |
1 | ||
| 74210-40020B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 74210-40010E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 74210-40020E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 74210-40010B0 |
GZG50 GRAY,TRIM10 |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74220-40010B0 |
GZG50 GRAY,TRIM10 |
1 | ||
| 74220-40020B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 74220-40010B0 |
GZG50 GRAY,TRIM1# |
1 | ||
| 74220-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74220-40020E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 74220-40010E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 74223-40010B0 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 74223-40010E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 74223-40010B0 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 74223-40010E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74224-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 74224-40010B0 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 74224-40010E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74224-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 74224-40010B0 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 74224-40010E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74250-40010B0 |
GZG50 GRAY,TRIM1# |
1 | ||
| 74250-40010B0 |
GZG50 GRAY,TRIM10 |
1 | ||
| 74250-40010E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 74250-40020B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 74250-40020E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 74250-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-40010B0 |
GZG50 GRAY,TRIM10 |
1 | ||
| 74260-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74260-40010B0 |
GZG50 GRAY,TRIM1# |
1 | ||
| 74260-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74260-40010E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 74260-40020B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 74260-40020E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 74615D - ESCUTCHEON, DOOR ASSIST GRIP | ||||
| 74615-40040 |
GZG50 |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74650-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74650-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 74650-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74640-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 74640-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74640D - GRIP ASSY, REAR DOOR ASSIST LH | ||||
| 74660-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 74660-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74660-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 74645 - ESCUTCHEON, DOOR ASSIST GRIP | ||||
| 74645-40010 |
GZG50 |
3 | ||
| 74645 - ESCUTCHEON, DOOR ASSIST GRIP | ||||
| 74645-40010 |
GZG50 |
3 | ||
| 74645B - ESCUTCHEON, DOOR ASSIST GRIP | ||||
| 74625-40010 |
GZG50 |
2 | ||
| 74647 - BASE, DOOR ASSIST GRIP | ||||
| 74647-40010 |
GZG50 |
3 | ||
| 74647 - BASE, DOOR ASSIST GRIP | ||||
| 74647-40010 |
GZG50 |
3 | ||
| Common parts | ||||
| 90164-60025 | ||||
| 90468-05047 | ||||
| 93315-14012 | ||||
| 94130-60600 | ||||
| Linked diagrams | ||||
| 7404 | ||||
