GZG50-AEPGK (1997)
Toyota Century

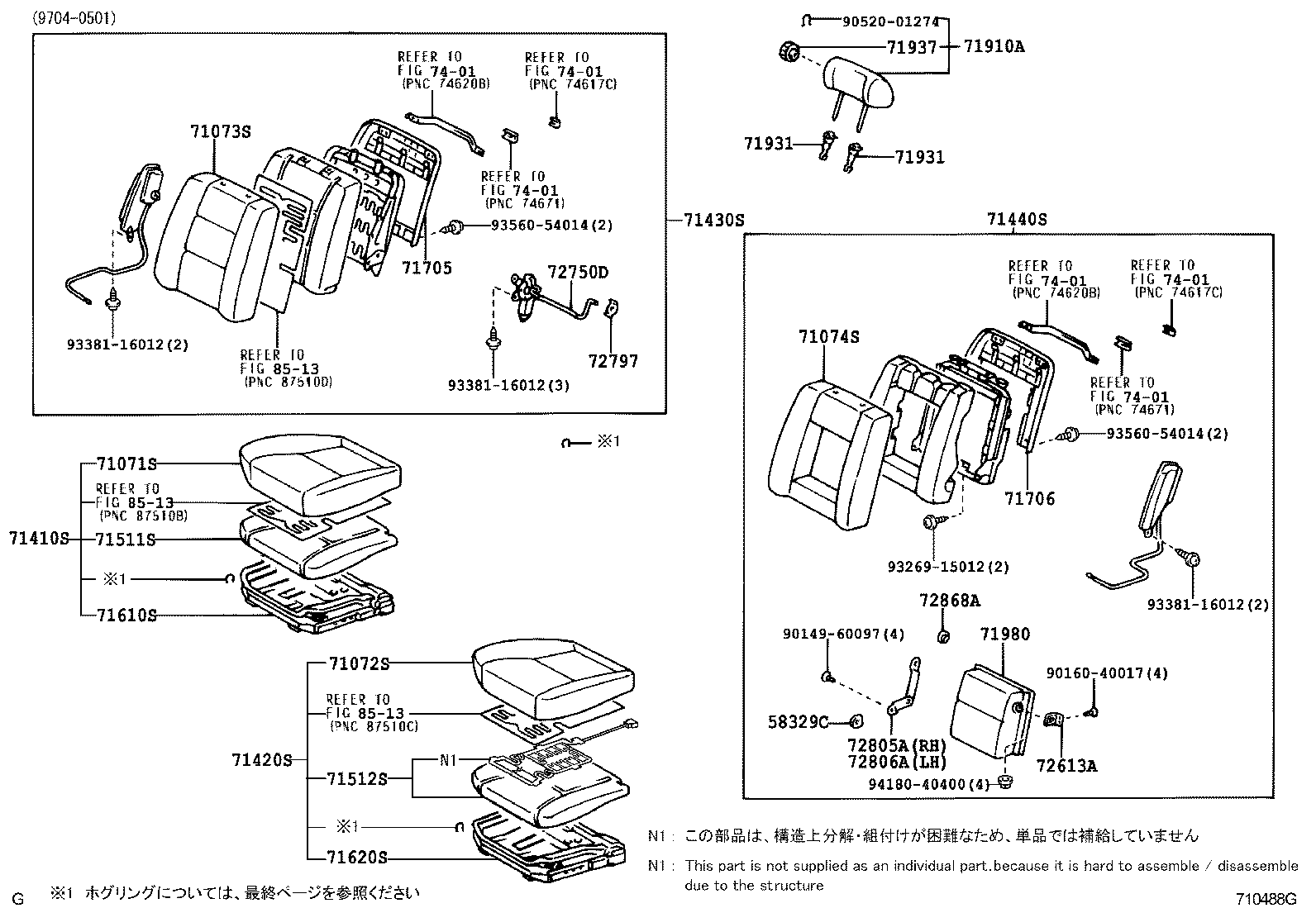

ILLUST NO. 1 OF 2(9704-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58329C - SPACER, FOOTREST | ||||
| 58329-30010 |
GZG50 |
2 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-40290E2 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71071-40300B5 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71071-40290B5 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71071-40290B6 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71071-40300B4 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71071-40290E3 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71071-40290B4 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71071-40290E2 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71071-40310E1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71071-40300E2 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71071-40290B4 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71071-40310B1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-40300B4 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71072-40290B4 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71072-40290E2 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71072-40310B1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71072-40290B4 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71072-40290B6 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71072-40300E2 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71072-40310E1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71072-40300B5 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71072-40290E2 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71072-40290B5 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71072-40290E3 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-40150B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71073-40170E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71073-40170B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71073-40160E1 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71073-40160B3 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71073-40150B3 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71073-40150E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71073-40160B2 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71073-40150B4 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71073-40150B2 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71073-40150E2 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71073-40150E1 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-40120B3 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71074-40120B2 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71074-40120E1 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71074-40130B1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71074-40120E2 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71074-40120B4 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71074-40120E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71074-40120B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71074-40130E1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-40320E0 |
GZG50 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71410-40320B0 |
GZG50 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71410-40310J0 |
GZG50 ***,DK.BLUE GRAY,TRIM8# |
1 | ||
| 71410-40330E0 |
GZG50 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71410-40310E1 |
GZG50 ***,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71410-40310B0 |
GZG50 ***,MD.GRAY,TRIM1# |
1 | ||
| 71410-40310B0 |
GZG50 ***,MD.GRAY,TRIM10 |
1 | ||
| 71410-40310E0 |
GZG50 ***,ORCHID,TRIM4# |
1 | ||
| 71410-40310E0 |
GZG50 ***,ORCHID,TRIM40 |
1 | ||
| 71410-40320J0 |
GZG50 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71410-40330B0 |
GZG50 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71410-40310B1 |
GZG50 ***,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-40310B0 |
GZG50 ***,MD.GRAY,TRIM1# |
1 | ||
| 71420-40310J0 |
GZG50 ***,DK.BLUE GRAY,TRIM8# |
1 | ||
| 71420-40320B0 |
GZG50 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71420-40320J0 |
GZG50 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71420-40310B0 |
GZG50 ***,MD.GRAY,TRIM10 |
1 | ||
| 71420-40310B1 |
GZG50 ***,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71420-40330B0 |
GZG50 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71420-40330E0 |
GZG50 ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71420-40310E0 |
GZG50 ***,ORCHID,TRIM40 |
1 | ||
| 71420-40320E0 |
GZG50 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71420-40310E1 |
GZG50 ***,ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71420-40310E0 |
GZG50 ***,ORCHID,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-40200B0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71430-40200E0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71430-40200J0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71430-40190B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71430-40210E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71430-40190B1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71430-40190E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71430-40190B0 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71430-40190J0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71430-40190E1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71430-40190E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71430-40210B0 |
GZG50 ﾎﾝｶﾞﾜ ｼ-ﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-40220B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71440-40220E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71440-40230E0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71440-40230B0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71440-40240B0 |
GZG50 ﾎﾝｶﾞﾜ ｼ-ﾄ,MD.GRAY,TRIM1# |
1 | ||
| 71440-40220E1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71440-40220B1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71440-40220B0 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71440-40240E0 |
GZG50 ﾎﾝｶﾞﾜ ｼ-ﾄ,ORCHID,TRIM4# |
1 | ||
| 71440-40220J0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71440-40220E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71440-40230J0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-40090 |
GZG50 |
1 | ||
| 71511-40100 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-40010 |
GZG50 |
1 | ||
| 71502-40020 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-40070 |
GZG50 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-40100 |
GZG50 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-40110B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71705-40080B1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71705-40080J0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71705-40110E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71705-40080B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71705-40080E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71705-40080B0 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71705-40080E1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71705-40080E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-40130E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71706-40140B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71706-40130E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71706-40130B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71706-40140E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71706-40130E1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71706-40130J0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71706-40130B1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 71706-40130B0 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-40010B0 |
GZG50 MD.GRAY,TRIM1#,右側 |
1 | ||
| 71910-40010E0 |
GZG50 ORCHID,TRIM4#,右側 |
1 | ||
| 71920-40060B0 |
GZG50 MD.GRAY,TRIM1#,左側 |
1 | ||
| 71910-40010J0 |
GZG50 DK.BLUE GRAY,TRIM8#,右側 |
1 | ||
| 71920-40070B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1#,左側 |
1 | ||
| 71920-40060J0 |
GZG50 DK.BLUE GRAY,TRIM8#,左側 |
1 | ||
| 71910-40010B1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10,右側 |
1 | ||
| 71910-40010E1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40,右側 |
1 | ||
| 71910-40010E0 |
GZG50 ORCHID,TRIM40,右側 |
1 | ||
| 71920-40060E0 |
GZG50 ORCHID,TRIM4#,左側 |
1 | ||
| 71920-40060B0 |
GZG50 MD.GRAY,TRIM10,左側 |
1 | ||
| 71920-40070E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4#,左側 |
1 | ||
| 71910-40070B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1#,右側 |
1 | ||
| 71920-40060B1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10,左側 |
1 | ||
| 71920-40060E0 |
GZG50 ORCHID,TRIM40,左側 |
1 | ||
| 71910-40070E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4#,右側 |
1 | ||
| 71910-40010B0 |
GZG50 MD.GRAY,TRIM10,右側 |
1 | ||
| 71920-40060E1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40,左側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-91410B4 |
GZG50 ﾛｯｸ付,MD.GRAY,TRIM1#,助手席側 |
2 | ||
| 71930-40010E0 |
GZG50 ﾛｯｸ付,ORCHID,TRIM4#,運転席側 |
1 | ||
| 71930-40010B0 |
GZG50 ﾛｯｸ付,MD.GRAY,TRIM1#,運転席側 |
1 | ||
| 71930-91410E3 |
GZG50 ﾛｯｸ付,ORCHID,TRIM4#,助手席側 |
2 | ||
| 71931-40010B1 |
GZG50 ﾛｯｸ無,DK.BLUE GRAY,TRIM8# |
1 | ||
| 71931-40010E0 |
GZG50 ﾛｯｸ無,ORCHID,TRIM4#,運転席側 |
1 | ||
| 71930-91410B5 |
GZG50 ﾛｯｸ付,DK.BLUE GRAY,TRIM8#,助手席側 |
2 | ||
| 71931-40010B0 |
GZG50 ﾛｯｸ無,MD.GRAY,TRIM1#,運転席側 |
1 | ||
| 71930-40010B1 |
GZG50 ﾛｯｸ付,DK.BLUE GRAY,TRIM8#,運転席側 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-91410B4 |
GZG50 ﾛｯｸ付,MD.GRAY,TRIM1#,助手席側 |
2 | ||
| 71930-40010E0 |
GZG50 ﾛｯｸ付,ORCHID,TRIM4#,運転席側 |
1 | ||
| 71930-40010B0 |
GZG50 ﾛｯｸ付,MD.GRAY,TRIM1#,運転席側 |
1 | ||
| 71930-91410E3 |
GZG50 ﾛｯｸ付,ORCHID,TRIM4#,助手席側 |
2 | ||
| 71931-40010B1 |
GZG50 ﾛｯｸ無,DK.BLUE GRAY,TRIM8# |
1 | ||
| 71931-40010E0 |
GZG50 ﾛｯｸ無,ORCHID,TRIM4#,運転席側 |
1 | ||
| 71930-91410B5 |
GZG50 ﾛｯｸ付,DK.BLUE GRAY,TRIM8#,助手席側 |
2 | ||
| 71931-40010B0 |
GZG50 ﾛｯｸ無,MD.GRAY,TRIM1#,運転席側 |
1 | ||
| 71930-40010B1 |
GZG50 ﾛｯｸ付,DK.BLUE GRAY,TRIM8#,運転席側 |
1 | ||
| 71937 - HANDLE, FRONT SEAT HEADREST REGULATOR | ||||
| 71937-30010B2 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 71937-30010E2 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 71937-30010B3 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 71980 - FOOTREST ASSY, FRONT SEAT, NO.1 | ||||
| 71980-40110B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 71980-40100J0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 71980-40090E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 71980-40100B0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 71980-40110E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71980-40100E0 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 71980-40090E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71980-40090B0 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 71980-40090E1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM40 |
1 | ||
| 71980-40090B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71980-40090J0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71980-40090B1 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM10 |
1 | ||
| 72613A - STRIKER, FRONT SEAT LOCK | ||||
| 72613-91401B3 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 72613-91401B4 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 72613-91401E2 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-40060 |
GZG50 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
GZG50 |
1 | ||
| 72805A - LINK SUB-ASSY, FRONT SEAT FOOTREST, RH | ||||
| 72805-30060 |
GZG50 |
1 | ||
| 72806A - LINK SUB-ASSY, FRONT SEAT FOOTREST, LH | ||||
| 72806-30060 |
GZG50 |
1 | ||
| 72868A - COVER, CENTER ARMREST HINGE | ||||
| 72868-30030 |
GZG50 |
2 | ||
| Common parts | ||||
| 90149-60097 | ||||
| 90160-40017 | ||||
| 90520-01274 | ||||
| 93269-15012 | ||||
| 93381-16012 | ||||
| 93560-54014 | ||||
| 94180-40400 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8513 | ||||

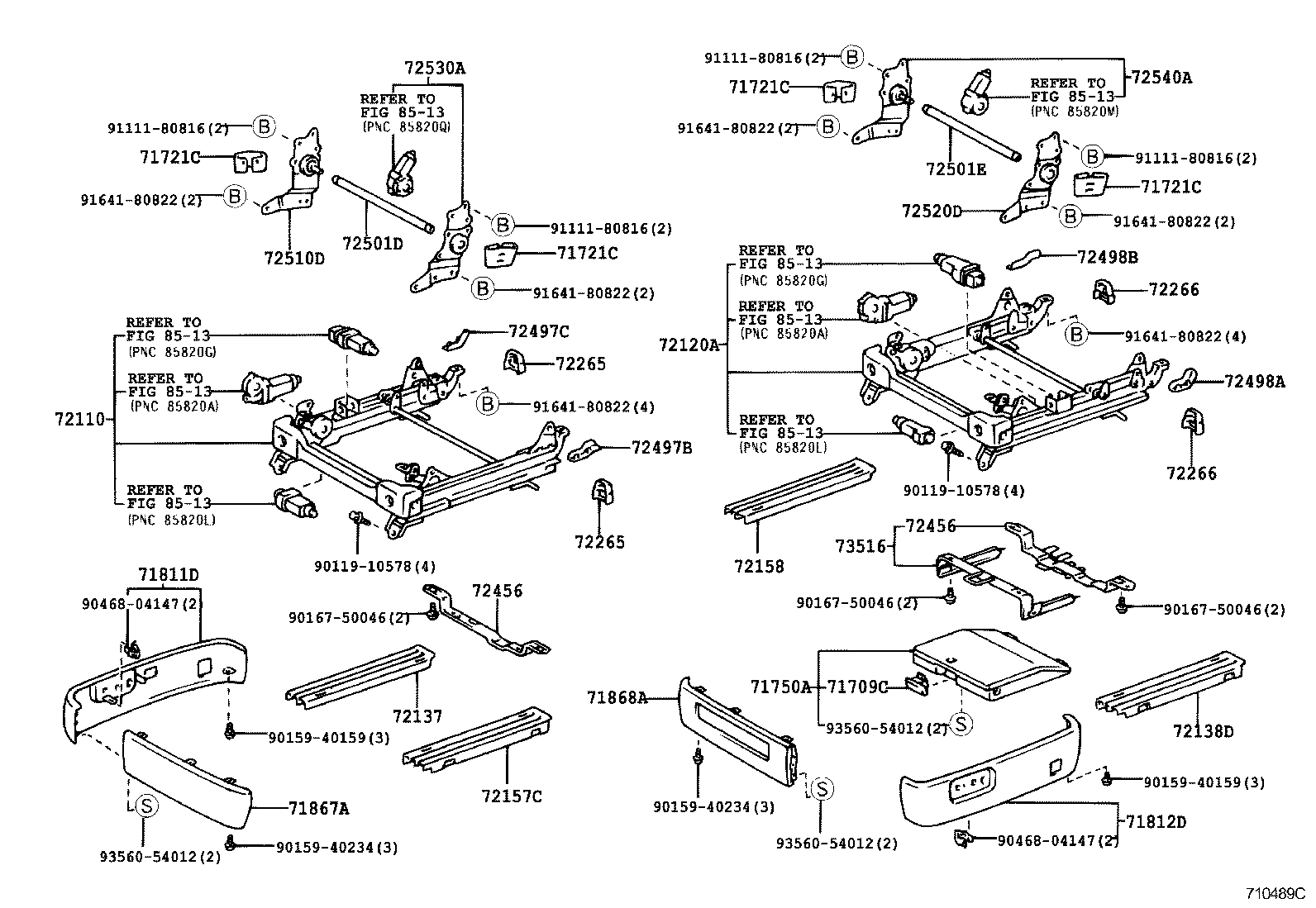

ILLUST NO. 2 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71709C - LOCK SUB-ASSY, SEAT UNDER TRAY | ||||
| 71709-50020 |
GZG50 |
1 | ||
| 71721C - FABRIC, FOR SEAT | ||||
| 71721-40010E1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),ORCHID,TRIM40 |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM40 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM10 |
4 | ||
| 71721-40010B2 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),MD.GRAY,TRIM10 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM1# |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM4# |
4 | ||
| 71721-40010B1 |
GZG50 GRAY,TRIM8# |
4 | ||
| 71721C - FABRIC, FOR SEAT | ||||
| 71721-40010E1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),ORCHID,TRIM40 |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM40 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM10 |
4 | ||
| 71721-40010B2 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),MD.GRAY,TRIM10 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM1# |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM4# |
4 | ||
| 71721-40010B1 |
GZG50 GRAY,TRIM8# |
4 | ||
| 71721C - FABRIC, FOR SEAT | ||||
| 71721-40010E1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),ORCHID,TRIM40 |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM40 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM10 |
4 | ||
| 71721-40010B2 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),MD.GRAY,TRIM10 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM1# |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM4# |
4 | ||
| 71721-40010B1 |
GZG50 GRAY,TRIM8# |
4 | ||
| 71721C - FABRIC, FOR SEAT | ||||
| 71721-40010E1 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),ORCHID,TRIM40 |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM40 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM10 |
4 | ||
| 71721-40010B2 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ),MD.GRAY,TRIM10 |
4 | ||
| 71721-40010B0 |
GZG50 -,TRIM1# |
4 | ||
| 71721-40010E0 |
GZG50 ORCHID,TRIM4# |
4 | ||
| 71721-40010B1 |
GZG50 GRAY,TRIM8# |
4 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-50030 |
GZG50 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-50030B1 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71811-50030E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71811-50030B2 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-50040B1 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71812-50040E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71812-50040B2 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-50010B2 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71867-50010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 71867-50010B1 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-50010B1 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 71868-50010B2 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 71868-50010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 72110 - REGULATOR ASSY, POWER SEAT, RH | ||||
| 72110-40130 |
GZG50 |
1 | ||
| 72120A - REGULATOR ASSY, POWER SEAT, LH | ||||
| 72120-40120 |
GZG50 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72157-40020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 72157-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 72157-40020B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72158-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 72158-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 72158-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72158-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 72158-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 72158-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 72157-40020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 72157-40020B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-50030 |
GZG50 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-50030 |
GZG50 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-50030 |
GZG50 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-50030 |
GZG50 |
2 | ||
| 72456 - BRACKET, SEAT FRAME SET, NO.2 | ||||
| 72456-50010 |
GZG50 |
2 | ||
| 72456 - BRACKET, SEAT FRAME SET, NO.2 | ||||
| 72456-50010 |
GZG50 |
2 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-50030 |
GZG50 |
1 | ||
| 72497C - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-50030 |
GZG50 |
1 | ||
| 72498A - COVER, VERTICAL ADJUSTER BRACKET, LH | ||||
| 72498-50040 |
GZG50 |
1 | ||
| 72498B - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-50040 |
GZG50 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-50020 |
GZG50 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-40050 |
GZG50 長さ=440 |
1 | ||
| 72501-50020 |
GZG50 長さ=398 |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-40040 |
GZG50 |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-40050 |
GZG50 |
1 | ||
| 72530A - ADJUSTER ASSY, RECLINING SEAT, INNER RH | ||||
| 72530-40040 |
GZG50 |
1 | ||
| 72540A - ADJUSTER ASSY, RECLINING SEAT, INNER LH | ||||
| 72540-40050 |
GZG50 |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73507-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-10578 | ||||
| 90159-40159 | ||||
| 90159-40234 | ||||
| 90167-50046 | ||||
| 90468-04147 | ||||
| 91111-80816 | ||||
| 91641-80822 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8513 | ||||
(9704- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
