GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

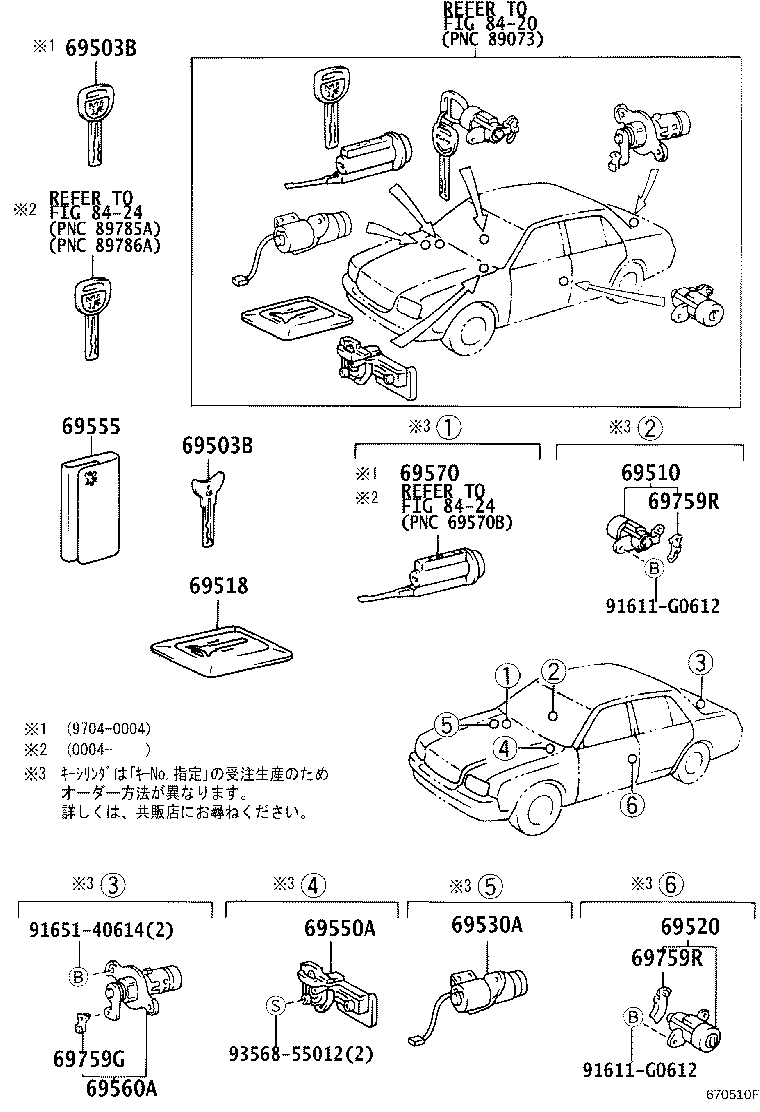

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503B - KEY, CUT | ||||
| 69515-40030 |
GZG50 ﾏｽﾀｰｷｰ |
1 | ||
| 69516-40030 |
GZG50 ｻﾌﾞｷｰ |
1 | ||
| 69515-50080 |
GZG50 ﾏｽﾀｰｷｰ,ｶｰﾄﾞ |
1 | ||
| 69515-60030 |
GZG50 ﾏｽﾀｰｷｰ,ｶｰﾄﾞ |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-40030 |
GZG50 ﾏｽﾀｰｷｰ |
1 | ||
| 69516-40030 |
GZG50 ｻﾌﾞｷｰ |
1 | ||
| 69515-50080 |
GZG50 ﾏｽﾀｰｷｰ,ｶｰﾄﾞ |
1 | ||
| 69515-60030 |
GZG50 ﾏｽﾀｰｷｰ,ｶｰﾄﾞ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-40040 |
GZG50 |
1 | ||
| 69518 - CARD, SPARE KEY | ||||
| 69518-40020 |
GZG50 |
1 | ||
| 69518-40010 |
GZG50 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-40040 |
GZG50 |
1 | ||
| 69530A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL | ||||
| 69530-50010 |
GZG50 |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-50020 |
GZG50 |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-40010 |
GZG50 |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-40020 |
GZG50 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-30160 |
GZG50 |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24080 |
GZG50 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
GZG50 右側 |
1 | ||
| 69759-12080 |
GZG50 左側 |
1 | ||
| 69759-12090 |
GZG50 右側 |
1 | ||
| 69759-12080 |
GZG50 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12090 |
GZG50 右側 |
1 | ||
| 69759-12080 |
GZG50 左側 |
1 | ||
| 69759-12090 |
GZG50 右側 |
1 | ||
| 69759-12080 |
GZG50 左側 |
1 | ||
| Common parts | ||||
| 91611-G0612 | ||||
| 91651-40614 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8424 | ||||
