GZG50-AEPGK (1997)
Toyota Century

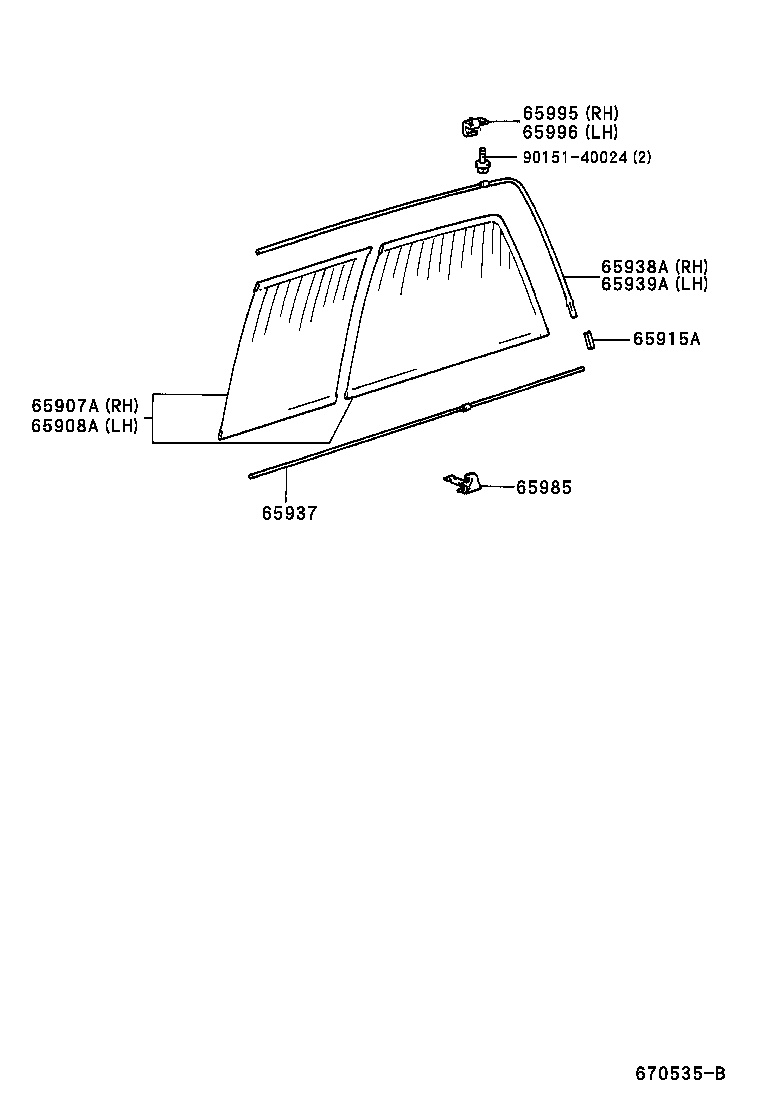

ILLUST NO. 2 OF 3(9704- )
ｱﾘ(ｶ-ﾃﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907A - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-40040 |
GZG50 |
1 | ||
| 65908A - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-40040 |
GZG50 |
1 | ||
| 65915A - BRACKET, CURTAIN RAIL | ||||
| 65915-40010 |
GZG50 |
2 | ||
| 65937 - RAIL, CURTAIN, NO.2 | ||||
| 65937-40020 |
GZG50 |
2 | ||
| 65938A - RAIL, CURTAIN, NO.3 | ||||
| 65938-40020 |
GZG50 |
1 | ||
| 65939A - RAIL, CURTAIN, NO.4 | ||||
| 65939-40010 |
GZG50 |
1 | ||
| 65985 - HOLDER, CURTAIN RAIL | ||||
| 65985-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 65985-40021E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 65985-40020E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 65985-40020B0 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 65985-40021B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
2 | ||
| 65985-40021B0 |
GZG50 MD.GRAY,TRIM1# |
2 | ||
| 65995 - CLAMP, CURTAIN RAIL, NO.1 | ||||
| 65995-40020B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 65995-40020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 65995-40022E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 65995-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 65995-40021B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 65995-40022B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 65995-40021E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 65995-40022B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 65995-40021B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 65996 - CLAMP, CURTAIN RAIL, NO.2 | ||||
| 65996-40020B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 65996-40021E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 65996-40020B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 65996-40020E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 65996-40021B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 65996-40022E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 65996-40022B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 65996-40021B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 65996-40022B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90151-40024 | ||||

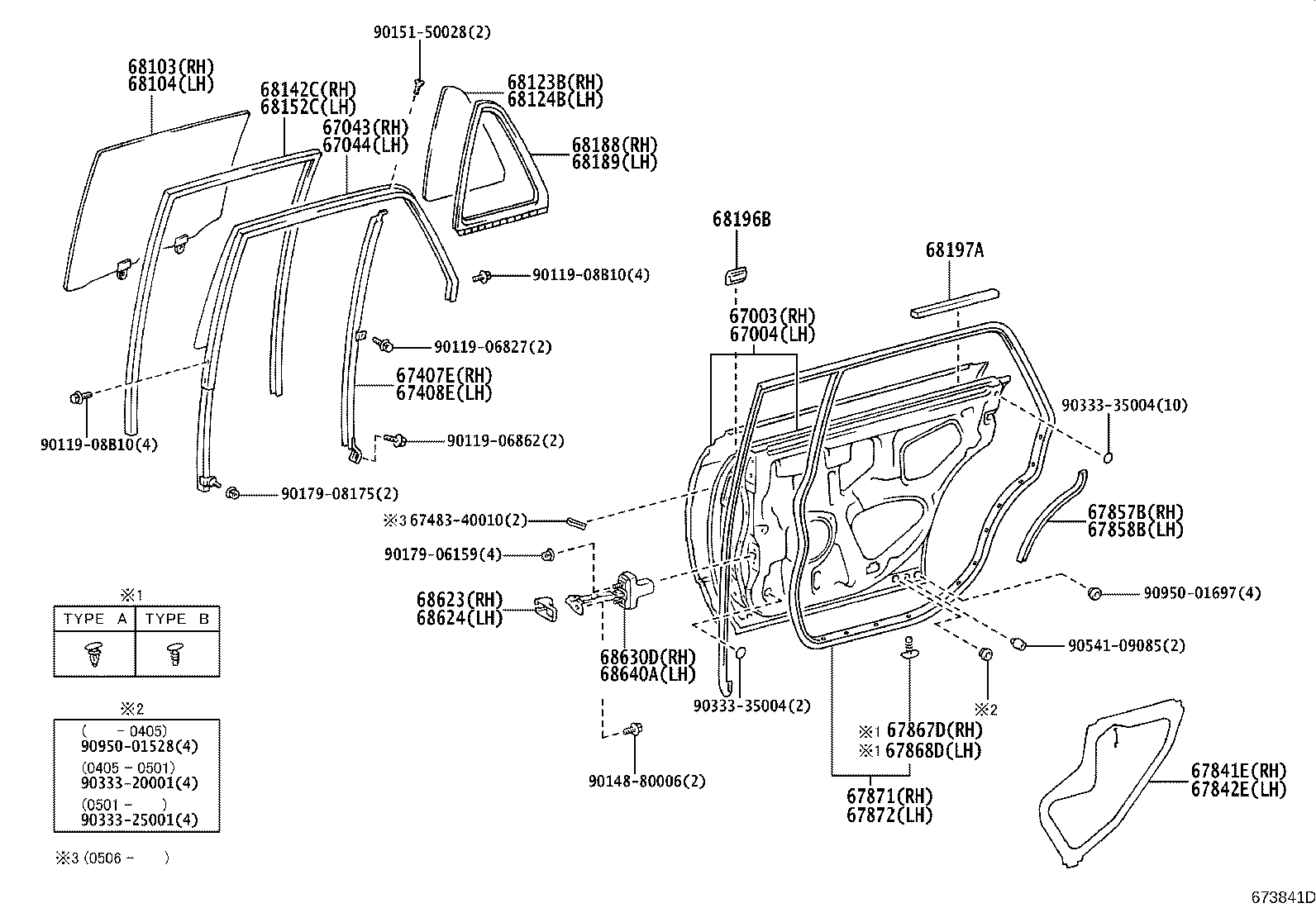

ILLUST NO. 3 OF 3(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-40050 |
GZG50 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-40090 |
GZG50 ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 67004-40050 |
GZG50 |
1 | ||
| 67043 - FRAME SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 67043-40050 |
GZG50 |
1 | ||
| 67044 - FRAME SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 67044-40040 |
GZG50 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-40020 |
GZG50 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-40010 |
GZG50 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-40010 |
GZG50 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-40010 |
GZG50 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-40010 |
GZG50 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-40010 |
GZG50 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
17 | ||
| 67868-30040 |
GZG50 |
20 | ||
| 67868-30040 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
GZG50 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 67868-30040 |
GZG50 |
20 | ||
| 67867-12150 |
GZG50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-40010 |
GZG50 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-40010 |
GZG50 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-40030 |
GZG50 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68103-40010 |
GZG50 *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-40010 |
GZG50 *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104-40030 |
GZG50 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-40010 |
GZG50 *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68123-40040 |
GZG50 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-40010 |
GZG50 *TT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68124-40040 |
GZG50 *SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-40030 |
GZG50 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-40030 |
GZG50 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-40020 |
GZG50 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-40020 |
GZG50 |
1 | ||
| 68196B - SEAL, REAR DOOR BELT, FRONT RH | ||||
| 68196-40010 |
GZG50 |
2 | ||
| 68197A - SEAL, REAR DOOR BELT, FRONT LH | ||||
| 68197-40010 |
GZG50 |
2 | ||
| 68623 - COVER, DOOR CHECK, RH | ||||
| 68623-40010 |
GZG50 |
1 | ||
| 68624 - COVER, DOOR CHECK, LH | ||||
| 68623-40010 |
GZG50 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-40010 |
GZG50 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-40030 |
GZG50 ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 68640-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 67483-40010 | ||||
| 90119-06827 | ||||
| 90119-06862 | ||||
| 90119-08B10 | ||||
| 90148-80006 | ||||
| 90151-50028 | ||||
| 90179-06159 | ||||
| 90179-08175 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90541-09085 | ||||
| 90950-01528 | ||||
| 90950-01697 | ||||

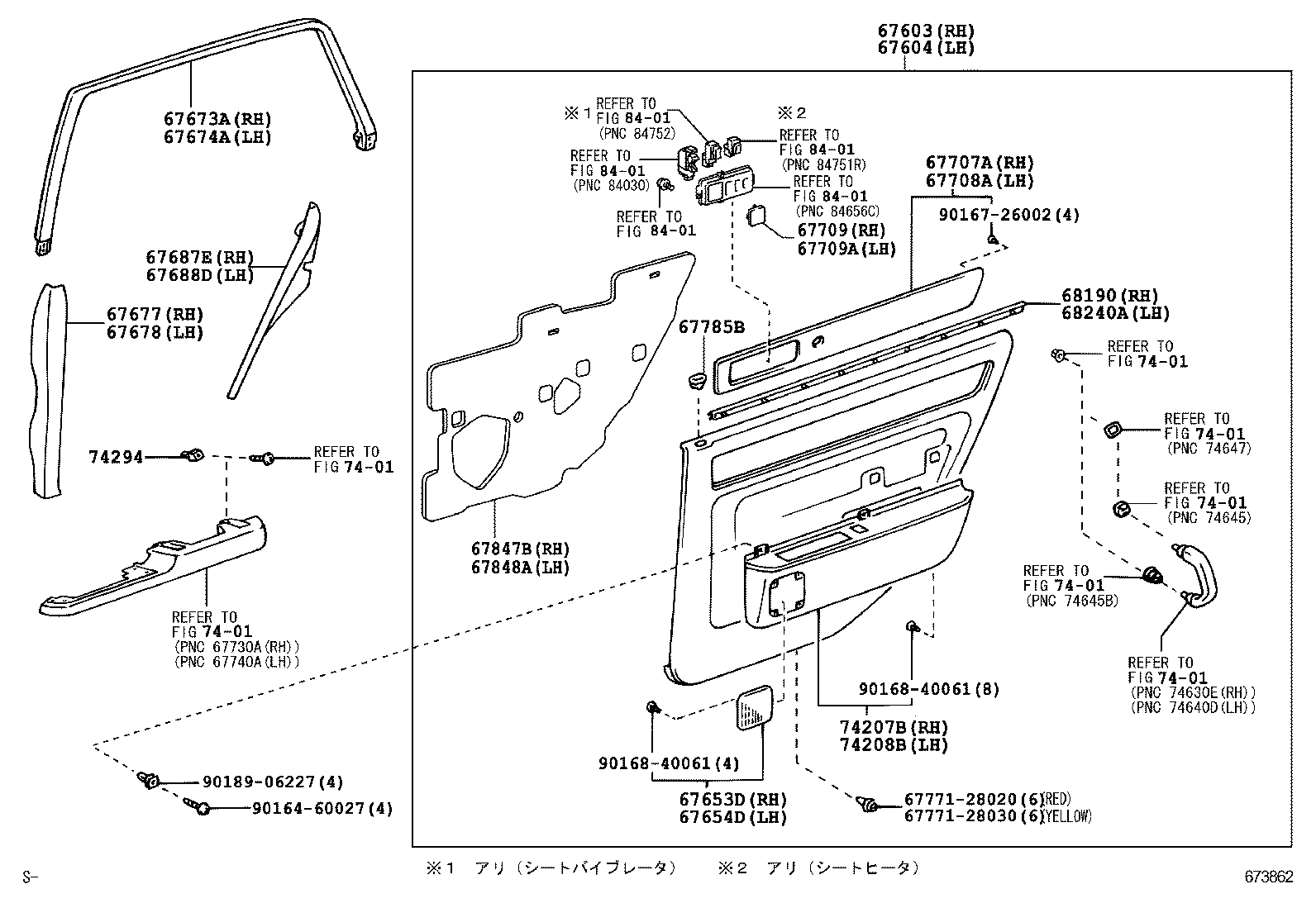

ILLUST NO. 1 OF 3(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-40350J0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67630-40350E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 67630-40350E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67630-40390E0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 67630-40360J0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 67630-40350B0 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 67630-40360E0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 67630-40350B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67630-40360B0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 67630-40390B0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-40430B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67640-40430E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67640-40570B0 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),MD.GRAY,TRIM1# |
1 | ||
| 67640-40430B0 |
GZG50 MD.GRAY,TRIM10 |
1 | ||
| 67640-40440E0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ),ORCHID,TRIM4# |
1 | ||
| 67640-40430E0 |
GZG50 ORCHID,TRIM40 |
1 | ||
| 67640-40440J0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ),DK. BLUE GRAY,TRIM8# |
1 | ||
| 67640-40440B0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ),MD.GRAY,TRIM1# |
1 | ||
| 67640-40570E0 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),ORCHID,TRIM4# |
1 | ||
| 67640-40430J0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67640-40470E0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 67640-40570J0 |
GZG50 ｱﾘ(ｳｴﾙｷﾔﾌﾞ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 67640-40470B0 |
GZG50 ｱﾘ(ﾘﾔｼ-ﾄ ﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ),MD. GRAY,TRIM1# |
1 | ||
| 67653D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, RH | ||||
| 67651-40030B1 |
GZG50 MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-40030B0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67651-40030E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67654D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, LH | ||||
| 67651-40030B1 |
GZG50 MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-40030E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67651-40030B0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-40010B2 |
GZG50 DK. BLUE GRAY,TRIM8# |
1 | ||
| 67673-40010B3 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67673-40010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-40010B2 |
GZG50 DK. BLUE GRAY,TRIM8# |
1 | ||
| 67674-40010B3 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67674-40010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67677 - COVER, SIDE TRIM BOARD, REAR RH | ||||
| 67677-40010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67677-40010B3 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67677-40010B2 |
GZG50 DK. BLUE GRAY,TRIM8# |
1 | ||
| 67678 - COVER, SIDE TRIM BOARD, REAR LH | ||||
| 67678-40010B3 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67678-40010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67678-40010B2 |
GZG50 DK. BLUE GRAY,TRIM8# |
1 | ||
| 67687E - COVER, SIDE TRIM BOARD, REAR RH | ||||
| 67687-40010B3 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67687-40010B2 |
GZG50 DK. BLUE GRAY,TRIM8# |
1 | ||
| 67687-40010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67688D - COVER, SIDE TRIM BOARD, REAR LH | ||||
| 67688-40010B3 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 67688-40010B2 |
GZG50 DK. BLUE GRAY,TRIM8# |
1 | ||
| 67688-40010E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 67707A - ORNAMENT SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67707-40040 |
GZG50 |
1 | ||
| 67707-40020 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 67708A - ORNAMENT SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67708-40020 |
GZG50 ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
1 | ||
| 67708-40040 |
GZG50 |
1 | ||
| 67709 - GRILLE SUB-ASSY, DOOR SPEAKER, RH | ||||
| 67609-40020C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 67709A - GRILLE SUB-ASSY, DOOR SPEAKER, LH | ||||
| 67609-40020C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-40020 |
GZG50 |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-40010 |
GZG50 |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-40010 |
GZG50 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-40020 |
GZG50 |
1 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-40010 |
GZG50 |
1 | ||
| 74207B - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH | ||||
| 74207-40050B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 74207-40060E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 74207-40050B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 74207-40060B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),MD.GRAY,TRIM1# |
1 | ||
| 74207-40050E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74208B - PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH | ||||
| 74208-40050B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 74208-40050E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 74208-40060B0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 74208-40060E0 |
GZG50 ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 74208-40050B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 74294 - PLATE, REAR DOOR ARMREST, NO.2 | ||||
| 74294-32010 |
GZG50 |
4 | ||
| Common parts | ||||
| 67771-28020 | ||||
| 67771-28030 | ||||
| 90164-60027 | ||||
| 90167-26002 | ||||
| 90168-40061 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
