GZG50-AEPGK (1997)
Toyota Century

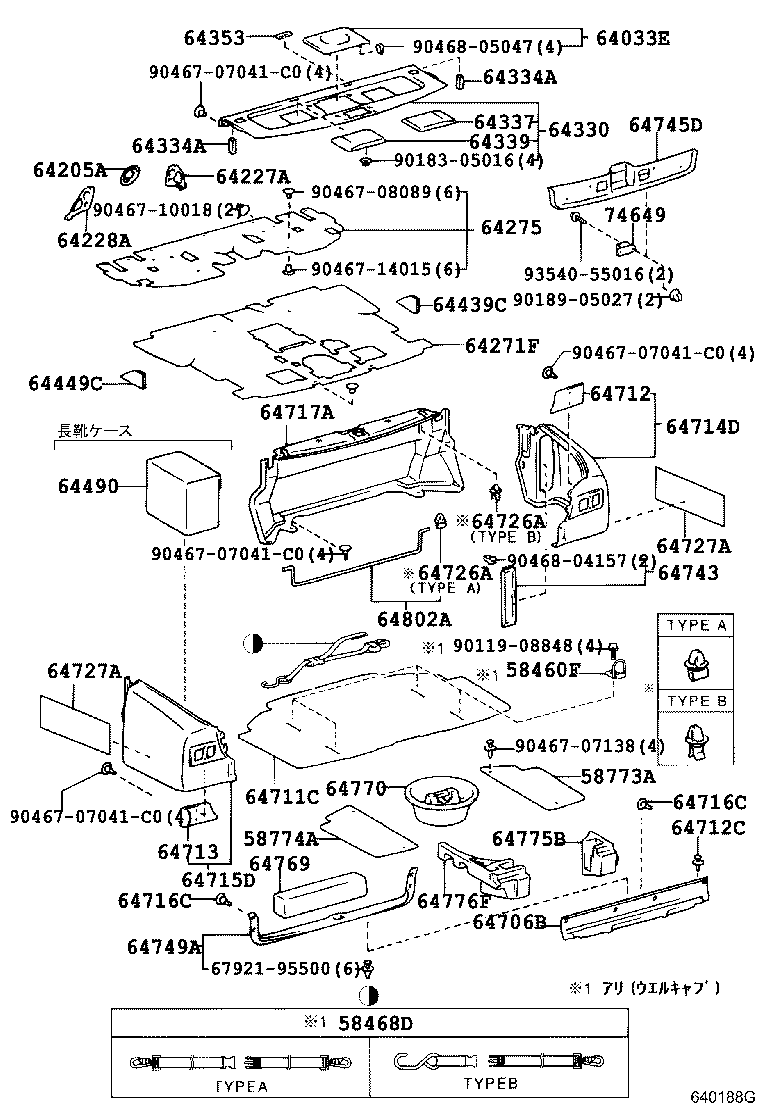

ILLUST NO. 1 OF 2(9704-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GZG50 |
4 | ||
| 58468D - BUCKLE, WHEEL CHAIR BELT | ||||
| 58468-40010 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 58468-40020 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 58773A - COVER, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58773-40010 |
GZG50 |
1 | ||
| 58773-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 58774A - COVER, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58774-40020 |
GZG50 |
1 | ||
| 64033E - GRILLE SUB-ASSY, REAR SPEAKER | ||||
| 64033-40010E0 |
GZG50 ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),ORCHID,TRIM4# |
1 | ||
| 64033-40010B1 |
GZG50 ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-50070E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64033-50070B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64033-40010B0 |
GZG50 ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 64033-50070B2 |
GZG50 MEDIUM GRAY,TRIM1# |
1 | ||
| 64205A - COVER SUB-ASSY, ROOM PARTITION | ||||
| 64275-50010 |
GZG50 |
1 | ||
| 64227A - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-40010 |
GZG50 |
1 | ||
| 64227-40011 |
GZG50 |
1 | ||
| 64228A - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-40011 |
GZG50 |
1 | ||
| 64228-40010 |
GZG50 |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-40020 |
GZG50 |
1 | ||
| 64275 - PAD, ROOM PARTITION TRIM, NO.2 | ||||
| 64274-40020 |
GZG50 |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-40060B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64330-40060B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64330-40060E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64334A - PAD, PACKAGE TRAY TRIM | ||||
| 64334-40010 |
GZG50 |
2 | ||
| 64334A - PAD, PACKAGE TRAY TRIM | ||||
| 64334-40010 |
GZG50 |
2 | ||
| 64337 - GARNISH, PACKAGE TRAY TRIM, RH | ||||
| 64337-30150B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64337-30150B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64337-30150E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64339 - GARNISH, PACKAGE TRAY TRIM, LH | ||||
| 64339-30080B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64339-30080E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64339-30080B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64353 - COVER, PACKAGE TRAY TRIM BELT HOLE | ||||
| 64353-22030B0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64353-22030B1 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64353-22030E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64439C - COVER, LUGGAGE ROOM BOX SIDE, RH | ||||
| 64439-40010 |
GZG50 |
1 | ||
| 64449C - COVER, LUGGAGE ROOM BOX SIDE, LH | ||||
| 64449-40010 |
GZG50 |
1 | ||
| 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE | ||||
| 64490-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64706B - COVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-40030C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64711C - CARPET, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-40060C0 |
GZG50 ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),BLACK,TRIM1#,4#,8# |
1 | ||
| 64711-40070 |
GZG50 CNGｼﾔ |
1 | ||
| 64711-40040C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-40030C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-07138 |
GZG50 |
2 | ||
| 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64713-40020C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64710-40030C0 |
GZG50 CNGｼﾔ,BLACK,TRIM1#,4#,8# |
1 | ||
| 64714-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64714-40011C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-40011C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64720-40010C0 |
GZG50 CNGｼﾔ,BLACK,TRIM1#,4#,8# |
1 | ||
| 64715-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-07041C0 |
GZG50 BLACK,TRIM1#,4#,8# |
8 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-07041C0 |
GZG50 BLACK,TRIM1#,4#,8# |
8 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64717-40050 |
GZG50 CNGｼﾔ |
1 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-40040 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 64726-40030 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-40040 |
GZG50 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 64726-40030 |
GZG50 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64743 - COVER, SIDE TRIM TOOL BAG | ||||
| 64743-50010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64745D - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64769 - CASE SUB-ASSY, TOOL BAG | ||||
| 64769-40020C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64771-24020 |
GZG50 |
1 | ||
| 64775B - GUARD, SPARE WHEEL | ||||
| 64775-40040 |
GZG50 CNGｼﾔ,(NO.2) |
1 | ||
| 64775-40020 |
GZG50 |
1 | ||
| 64775-40030 |
GZG50 CNGｼﾔ,(NO.1) |
1 | ||
| 64776F - GUARD, SPARE WHEEL, NO.2 | ||||
| 64776-40030 |
GZG50 CNGｼﾔ |
1 | ||
| 64776-40020 |
GZG50 |
1 | ||
| 64802A - FRAME SUB-ASSY, BACK WINDOW | ||||
| 64802-40020 |
GZG50 |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-30010 |
GZG50 |
1 | ||
| Common parts | ||||
| 67921-95500 | ||||
| 90119-08848 | ||||
| 90183-05016 | ||||
| 90189-05027 | ||||
| 90467-07041C0 | ||||
| 90467-07138 | ||||
| 90467-08089 | ||||
| 90467-10018 | ||||
| 90467-14015 | ||||
| 90468-04157 | ||||
| 90468-05047 | ||||
| 93540-55016 | ||||
ILLUST NO. 2 OF 2(9704- )
ｱﾘ(ﾘﾔ ｶ-ﾃﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65916A - PLATE, CURTAIN RAIL BRACKET | ||||
| 65916-40010B0 |
GZG50 LT. GRAY,TRIM1# |
2 | ||
| 65916-40010B1 |
GZG50 BLUE GRAY,TRIM8# |
2 | ||
| 65916-40010E0 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 65960D - CURTAIN ASSY, REAR WINDOW | ||||
| 65960-40010 |
GZG50 |
1 | ||
| 65983 - HANGER, BACK WINDOW CURTAIN | ||||
| 65983-40050B0 |
GZG50 LT. GRAY,TRIM1# |
1 | ||
| 65983-40050B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 65983-40050E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 65991C - CLIP, REAR WINDOW CURTAIN | ||||
| 90467-06151E1 |
GZG50 ORCHID,TRIM4# |
2 | ||
| 90467-06151B5 |
GZG50 BLUE GRAY,TRIM8# |
2 | ||
| 90467-06151B4 |
GZG50 LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 91652-60630 | ||||
| Linked diagrams | ||||
| 8514 | ||||

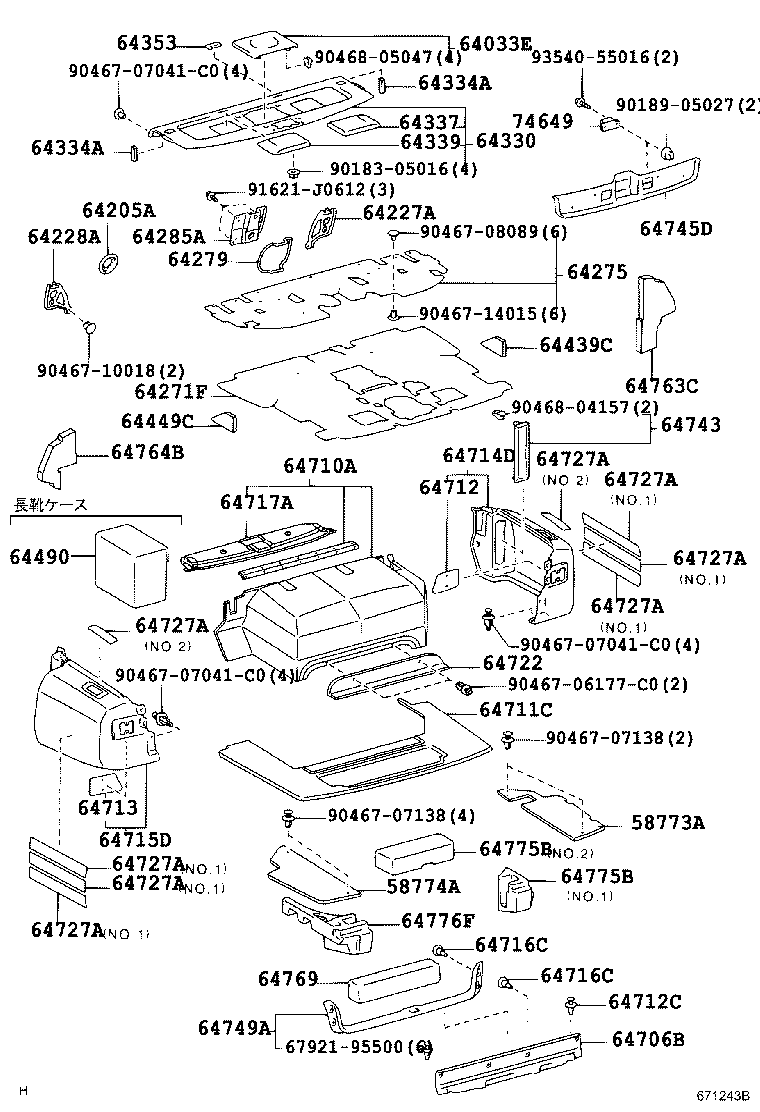

ILLUST NO. 1 OF 2(0301-0501)
CNGｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58773A - COVER, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58773-40010 |
GZG50 |
1 | ||
| 58773-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 58774A - COVER, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58774-40020 |
GZG50 |
1 | ||
| 64033E - GRILLE SUB-ASSY, REAR SPEAKER | ||||
| 64033-40010E0 |
GZG50 ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),ORCHID,TRIM4# |
1 | ||
| 64033-40010B1 |
GZG50 ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-50070E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64033-50070B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64033-40010B0 |
GZG50 ｱﾘ(ﾘﾔ ｶ-ﾃﾝ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 64033-50070B2 |
GZG50 MEDIUM GRAY,TRIM1# |
1 | ||
| 64205A - COVER SUB-ASSY, ROOM PARTITION | ||||
| 64275-50010 |
GZG50 |
1 | ||
| 64227A - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-40010 |
GZG50 |
1 | ||
| 64227-40011 |
GZG50 |
1 | ||
| 64228A - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-40011 |
GZG50 |
1 | ||
| 64228-40010 |
GZG50 |
1 | ||
| 64271F - TRIM, ROOM PARTITION | ||||
| 64271-40020 |
GZG50 |
1 | ||
| 64275 - PAD, ROOM PARTITION TRIM, NO.2 | ||||
| 64274-40020 |
GZG50 |
1 | ||
| 64279 - PROTECTOR, ROOM PARTITION | ||||
| 64279-40010 |
GZG50 |
1 | ||
| 64285A - COVER, ROOM PARTITION, NO.3 | ||||
| 64285-40010 |
GZG50 |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-40060B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64330-40060B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64330-40060E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64334A - PAD, PACKAGE TRAY TRIM | ||||
| 64334-40010 |
GZG50 |
2 | ||
| 64334A - PAD, PACKAGE TRAY TRIM | ||||
| 64334-40010 |
GZG50 |
2 | ||
| 64337 - GARNISH, PACKAGE TRAY TRIM, RH | ||||
| 64337-30150B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64337-30150B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64337-30150E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64339 - GARNISH, PACKAGE TRAY TRIM, LH | ||||
| 64339-30080B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64339-30080E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64339-30080B2 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64353 - COVER, PACKAGE TRAY TRIM BELT HOLE | ||||
| 64353-22030B0 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 64353-22030B1 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 64353-22030E1 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 64439C - COVER, LUGGAGE ROOM BOX SIDE, RH | ||||
| 64439-40010 |
GZG50 |
1 | ||
| 64449C - COVER, LUGGAGE ROOM BOX SIDE, LH | ||||
| 64449-40010 |
GZG50 |
1 | ||
| 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE | ||||
| 64490-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64706B - COVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-40030C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64710-40050 |
GZG50 |
1 | ||
| 64711C - CARPET, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-40060C0 |
GZG50 ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),BLACK,TRIM1#,4#,8# |
1 | ||
| 64711-40070 |
GZG50 CNGｼﾔ |
1 | ||
| 64711-40040C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64712-40030C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-07138 |
GZG50 |
2 | ||
| 64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64713-40020C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64710-40030C0 |
GZG50 CNGｼﾔ,BLACK,TRIM1#,4#,8# |
1 | ||
| 64714-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64714-40011C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-40011C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64720-40010C0 |
GZG50 CNGｼﾔ,BLACK,TRIM1#,4#,8# |
1 | ||
| 64715-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-07041C0 |
GZG50 BLACK,TRIM1#,4#,8# |
8 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-07041C0 |
GZG50 BLACK,TRIM1#,4#,8# |
8 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64717-40050 |
GZG50 CNGｼﾔ |
1 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-40020 |
GZG50 |
1 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-40010 |
GZG50 CNGｼﾔ,NO.1 |
6 | ||
| 64727-40020 |
GZG50 CNGｼﾔ,NO.2 |
2 | ||
| 64727-40010 |
GZG50 |
2 | ||
| 64743 - COVER, SIDE TRIM TOOL BAG | ||||
| 64743-50010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64745D - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-40010C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64763C - SILENCER, DECK SIDE TRIM, RH | ||||
| 64763-40010 |
GZG50 |
1 | ||
| 64764B - SILENCER, DECK SIDE TRIM, LH | ||||
| 64764-40010 |
GZG50 |
1 | ||
| 64769 - CASE SUB-ASSY, TOOL BAG | ||||
| 64769-40020C0 |
GZG50 BLACK,TRIM1#,4#,8# |
1 | ||
| 64775B - GUARD, SPARE WHEEL | ||||
| 64775-40040 |
GZG50 CNGｼﾔ,(NO.2) |
1 | ||
| 64775-40020 |
GZG50 |
1 | ||
| 64775-40030 |
GZG50 CNGｼﾔ,(NO.1) |
1 | ||
| 64775B - GUARD, SPARE WHEEL | ||||
| 64775-40040 |
GZG50 CNGｼﾔ,(NO.2) |
1 | ||
| 64775-40020 |
GZG50 |
1 | ||
| 64775-40030 |
GZG50 CNGｼﾔ,(NO.1) |
1 | ||
| 64776F - GUARD, SPARE WHEEL, NO.2 | ||||
| 64776-40030 |
GZG50 CNGｼﾔ |
1 | ||
| 64776-40020 |
GZG50 |
1 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-30010 |
GZG50 |
1 | ||
| Common parts | ||||
| 67921-95500 | ||||
| 90183-05016 | ||||
| 90189-05027 | ||||
| 90467-06177C0 | ||||
| 90467-07041C0 | ||||
| 90467-07138 | ||||
| 90467-08089 | ||||
| 90467-10018 | ||||
| 90467-14015 | ||||
| 90468-04157 | ||||
| 90468-05047 | ||||
| 91621-J0612 | ||||
| 93540-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
