GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

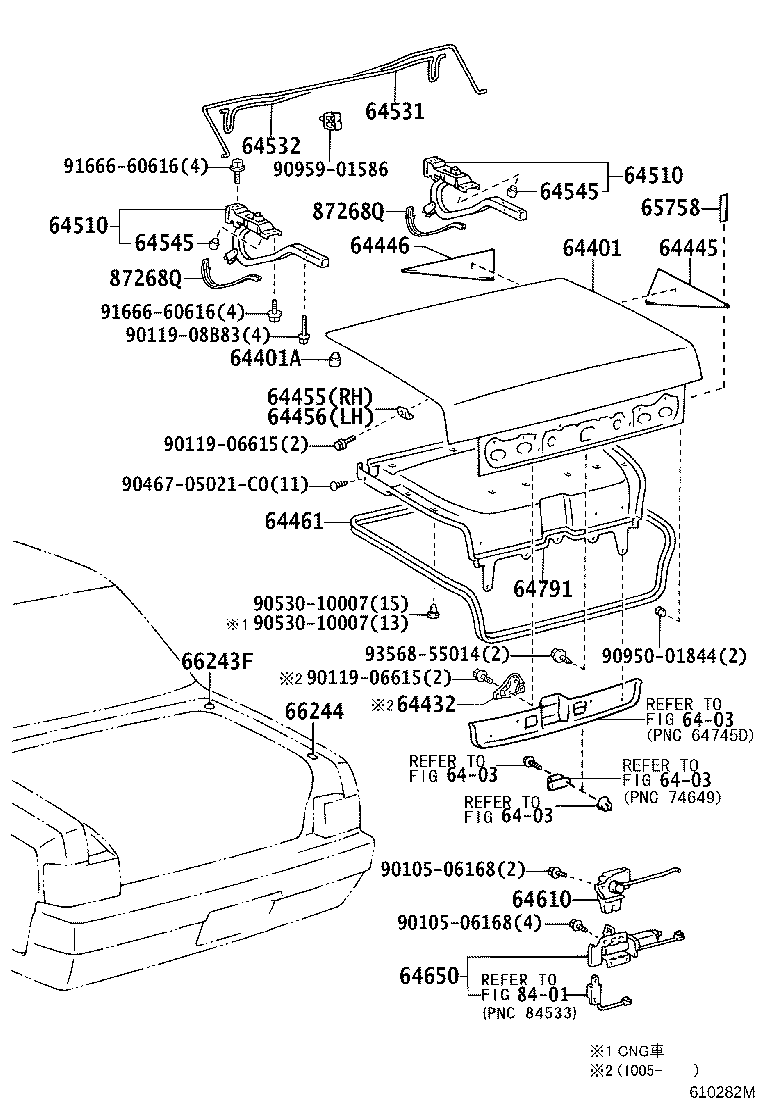

Click highlighted areas on diagram

diagram 6403 6403 6403 6403 64401 64401A 64432 64445 64446 64455 64456 64461 64510 64510 64531 64532 64545 64545 64610 64650 64791 65758 66243F 66244 8401 87268Q 87268Q 9010506168 9010506168 9011906615 9011906615 9011908B83 9046705021C0 9053010007 9053010007 9095001844 9095901586 9166660616 9166660616 9356855014
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-40030

GZG50

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06056

GZG50

 2
64445 - PAD, LUGGAGE COMPARTMENT DOOR SILENCER, NO.1
64445-40010

GZG50

 4
64446 - PAD, LUGGAGE COMPARTMENT DOOR SILENCER, NO.2
64446-40010

GZG50

 4
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-50010

GZG50

 1
64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64456-50010

GZG50

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-40020

GZG50

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-40020

GZG50

 2
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-40020

GZG50

 2
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-40010

GZG50

 1
64531-40020

GZG50

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-40020

GZG50

 1
64532-40010

GZG50

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-11011

GZG50

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-11011

GZG50

 2
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-40020

GZG50

 1
64650 - CLOSER ASSY, LUGGAGE DOOR
64650-40040

GZG50

 1
64791 - COVER, BACK DOOR TRIM
64791-40030C0

GZG50

CNGｼﾔ,BLACK,TRIM1#,4#,8#

 1
64791-40020C0

GZG50

BLACK,TRIM1#,4#,8#

 1
65758 - SEAL, TAIL GATE, LOWER
65758-40010

GZG50

 2
66243F - PROTECTOR, REAR BODY, NO.1
66243-40010

GZG50

 2
66244 - PROTECTOR, REAR BODY, NO.2
66244-40010

GZG50

 2
87268Q - PROTECTOR
82817-40290

GZG50

 2
87268Q - PROTECTOR
82817-40290

GZG50

 2
Common parts
90105-06168
90119-06615
90119-08B83
90467-05021C0
90530-10007
90950-01844
90959-01586
91666-60616
93568-55014
Linked diagrams
6403
8401
