GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

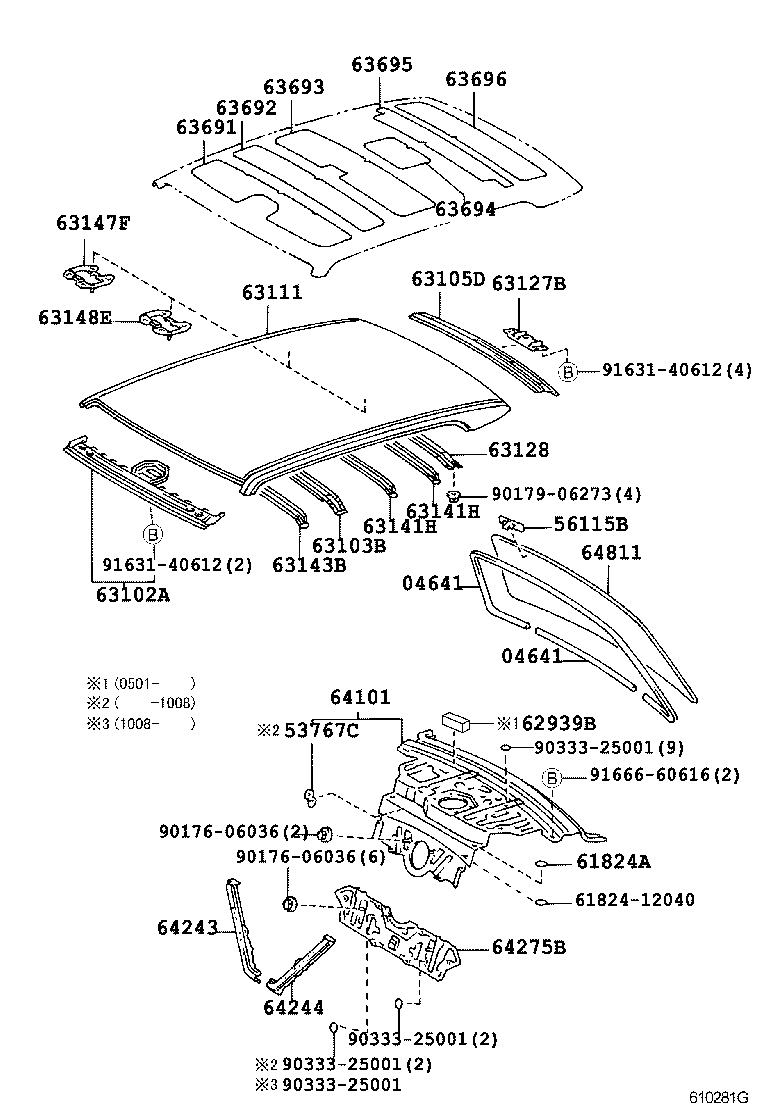

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56117-44030 |
GZG50 長さ=2872 |
1 | ||
| 64813-52010 |
GZG50 長さ=742 |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56117-44030 |
GZG50 長さ=2872 |
1 | ||
| 64813-52010 |
GZG50 長さ=742 |
1 | ||
| 53767C - BRACKET, WIRERING HARNESS | ||||
| 53767-20040 |
GZG50 |
1 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56116-35050 |
GZG50 |
2 | ||
| 61824A - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12040 |
GZG50 |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-40010 |
GZG50 |
1 | ||
| 63103B - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-40020 |
GZG50 |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-40010 |
GZG50 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-40030 |
GZG50 |
1 | ||
| 63127B - DAMPER, BACK WINDOW UPPER FREME | ||||
| 63127-40010 |
GZG50 |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-40010 |
GZG50 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-40020 |
GZG50 |
2 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-40020 |
GZG50 |
2 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-40010 |
GZG50 |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-40010 |
GZG50 |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63148-40010 |
GZG50 |
1 | ||
| 63691 - PAD, ROOF SILENCER, NO.21 | ||||
| 63691-40010 |
GZG50 |
1 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-40010 |
GZG50 |
1 | ||
| 63693 - PAD, ROOF SILENCER, NO.23 | ||||
| 63693-40010 |
GZG50 |
1 | ||
| 63694 - PAD, ROOF SILENCER, NO.24 | ||||
| 63694-40010 |
GZG50 |
1 | ||
| 63695 - PAD, ROOF SILENCER, NO.25 | ||||
| 63695-40010 |
GZG50 |
1 | ||
| 63696 - PAD, ROOF SILENCER, NO.26 | ||||
| 63696-40010 |
GZG50 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-40090 |
GZG50 |
1 | ||
| 64101-40110 |
GZG50 CNGｼﾔ |
1 | ||
| 64243 - PANEL, ROOM PARTITION, NO.2 RH | ||||
| 64243-40010 |
GZG50 |
1 | ||
| 64244 - PANEL, ROOM PARTITION, NO.2 LH | ||||
| 64244-40010 |
GZG50 |
1 | ||
| 64275B - COVER, ROOM PARTITION | ||||
| 64275-40030 |
GZG50 |
1 | ||
| 64275-40040 |
GZG50 ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-40160 |
GZG50 *EHTL,厚さ=5.3,ｸﾞﾘｰﾝ |
1 | ||
| 64801-40170 |
GZG50 *EHSERL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-40190 |
GZG50 *EHSERL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64801-40180 |
GZG50 *EHTL,厚さ=5.3,ｸﾞﾘｰﾝ,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64801-40260 |
GZG50 *EHSERL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64801-40230 |
GZG50 *EHTL,T=5.3,ｸﾞﾘｰﾝ |
1 | ||
| 64801-40240 |
GZG50 *EHSERL,厚さ=5.3,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64801-40250 |
GZG50 *EHTL,厚さ=5.3,ｸﾞﾘｰﾝ,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 61824-12040 | ||||
| 90176-06036 | ||||
| 90179-06273 | ||||
| 90333-25001 | ||||
| 91631-40612 | ||||
| 91666-60616 | ||||
