GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

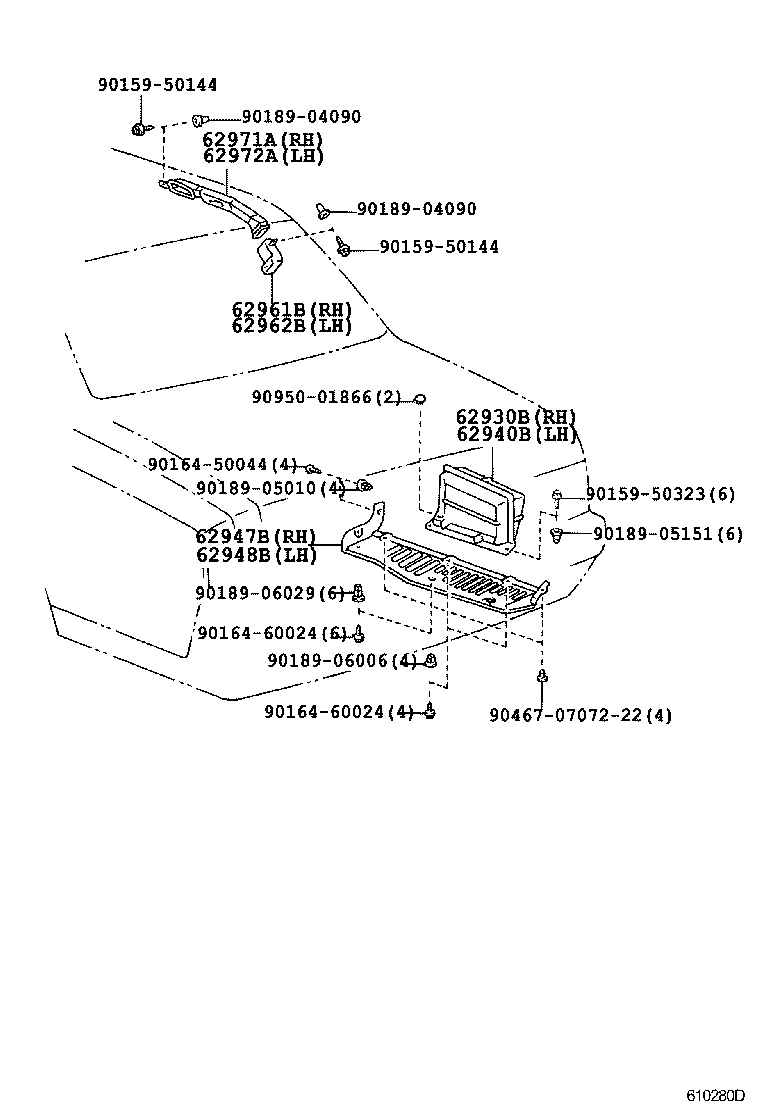

Click highlighted areas on diagram

diagram 62930B 62940B 62947B 62948B 62961B 62962B 62971A 62972A 9015950144 9015950144 9015950323 9016450044 9016460024 9016460024 9018904090 9018904090 9018905010 9018905151 9018906006 9018906029 904670707222 9095001866
Part # Description Qty Price
62930B - DUCT ASSY, QUARTER VENT, RH
62930-40010

GZG50

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-40020

GZG50

 1
62947B - SHIELD, QUARTER VENT DUCT WATER, RH
62947-40010

GZG50

 1
62948B - SHIELD, QUARTER VENT DUCT WATER, LH
62948-40010

GZG50

 1
62961B - DUCT, QUARTER VENT, NO.2 RH
62961-40010

GZG50

 1
62962B - DUCT, QUARTER VENT, NO.2 LH
62962-40010

GZG50

 1
62971A - DUCT, ROOF SIDE AIR, NO.1 RH
62971-40010

GZG50

 1
62972A - DUCT, ROOF SIDE AIR, NO.1 LH
62972-40010

GZG50

 1
Common parts
90159-50144
90159-50323
90164-50044
90164-60024
90189-04090
90189-05010
90189-05151
90189-06006
90189-06029
90467-0707222
90950-01866
