GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

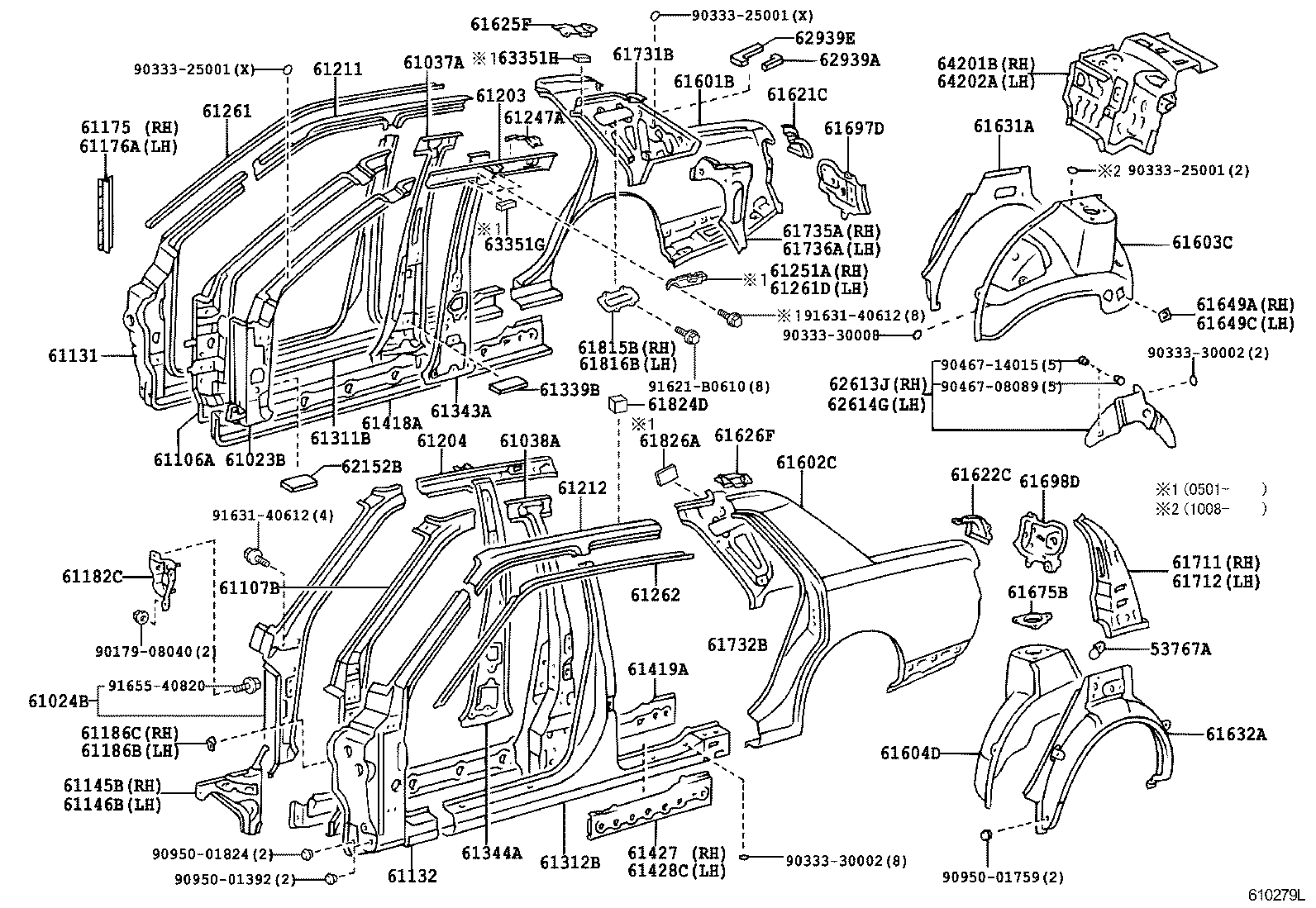

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53767A - BRACKET, BATTERY WIRRING HARNESS | ||||
| 53767-20040 |
GZG50 |
1 | ||
| 53767-20040 |
GZG50 |
1 | ||
| 53767-20040 |
GZG50 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-40020 |
GZG50 |
1 | ||
| 61023-40021 |
GZG50 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-40020 |
GZG50 |
1 | ||
| 61024-40021 |
GZG50 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-40010 |
GZG50 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-40050 |
GZG50 ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 61038-40010 |
GZG50 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-40900 |
GZG50 |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-40900 |
GZG50 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-40030 |
GZG50 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-40030 |
GZG50 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-40010 |
GZG50 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-40010 |
GZG50 |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-40010 |
GZG50 |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-40010 |
GZG50 |
1 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61182-40010 |
GZG50 |
1 | ||
| 61186B - BRACKET, INSTRUMENT PANEL SIDE, NO.3 LH | ||||
| 61186-40010 |
GZG50 |
1 | ||
| 61186C - BRACKET, FRONT PILLAR TO COWL SIDE PANEL, RH | ||||
| 61186-40010 |
GZG50 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-40030 |
GZG50 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-40030 |
GZG50 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-40020 |
GZG50 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-40020 |
GZG50 |
1 | ||
| 61247A - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-40010 |
GZG50 |
2 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-40020 |
GZG50 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-40020 |
GZG50 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-40020 |
GZG50 |
1 | ||
| 61311-40030 |
GZG50 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-40020 |
GZG50 |
1 | ||
| 61312-40030 |
GZG50 |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-50020 |
GZG50 |
2 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-40010 |
GZG50 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-40010 |
GZG50 |
1 | ||
| 61344-40050 |
GZG50 ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-40010 |
GZG50 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-40010 |
GZG50 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-40010 |
GZG50 |
1 | ||
| 61427-40020 |
GZG50 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-40020 |
GZG50 |
1 | ||
| 61428-40010 |
GZG50 |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-40904 |
GZG50 CNG ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 61601-40902 |
GZG50 |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-40905 |
GZG50 |
1 | ||
| 61602-40905 |
GZG50 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-40901 |
GZG50 |
1 | ||
| 61603-40900 |
GZG50 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-40901 |
GZG50 |
1 | ||
| 61604-40900 |
GZG50 |
1 | ||
| 61604-40902 |
GZG50 ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-40010 |
GZG50 |
1 | ||
| 61621-40010 |
GZG50 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-40010 |
GZG50 |
1 | ||
| 61622-40010 |
GZG50 |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-40010 |
GZG50 |
1 | ||
| 61625-40010 |
GZG50 |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-40010 |
GZG50 |
1 | ||
| 61626-40010 |
GZG50 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-40900 |
GZG50 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-40900 |
GZG50 |
1 | ||
| 61649A - PLATE, QUARTER WHEEL HOUSE | ||||
| 61649-40010 |
GZG50 |
1 | ||
| 61649C - PLATE, QUARTER WHEEL HOUSE, LH | ||||
| 61649-40010 |
GZG50 |
1 | ||
| 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-40020 |
GZG50 |
2 | ||
| 61675-40021 |
GZG50 |
2 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-40900 |
GZG50 |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-40900 |
GZG50 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-40030 |
GZG50 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-40030 |
GZG50 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-40900 |
GZG50 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-40900 |
GZG50 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-40010 |
GZG50 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-40010 |
GZG50 |
1 | ||
| 61736-40030 |
GZG50 |
1 | ||
| 61736-40010 |
GZG50 |
1 | ||
| 61815B - COVER, ROOF SIDE, INNER UPPER RH | ||||
| 61815-40010 |
GZG50 |
1 | ||
| 61816B - COVER, ROOF SIDE, INNER UPPER LH | ||||
| 61816-40010 |
GZG50 |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12110 |
GZG50 |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
GZG50 |
2 | ||
| 62613J - INSURATOR, QUARTER WHEEL HOUSE, NO.2 RH | ||||
| 62613-40010 |
GZG50 |
1 | ||
| 62614G - INSURATOR, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 62614-40010 |
GZG50 |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-33010 |
GZG50 |
2 | ||
| 62939E - SILENCER, QUARTER VENT | ||||
| 62939-40010 |
GZG50 |
2 | ||
| 64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH | ||||
| 64201-40900 |
GZG50 |
1 | ||
| 64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH | ||||
| 64202-40900 |
GZG50 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90467-08089 | ||||
| 90467-14015 | ||||
| 90950-01392 | ||||
| 90950-01759 | ||||
| 90950-01824 | ||||
| 91621-B0610 | ||||
| 91631-40612 | ||||
| 91655-40820 | ||||
