GZG50-AEPGK (1997)
Toyota Century

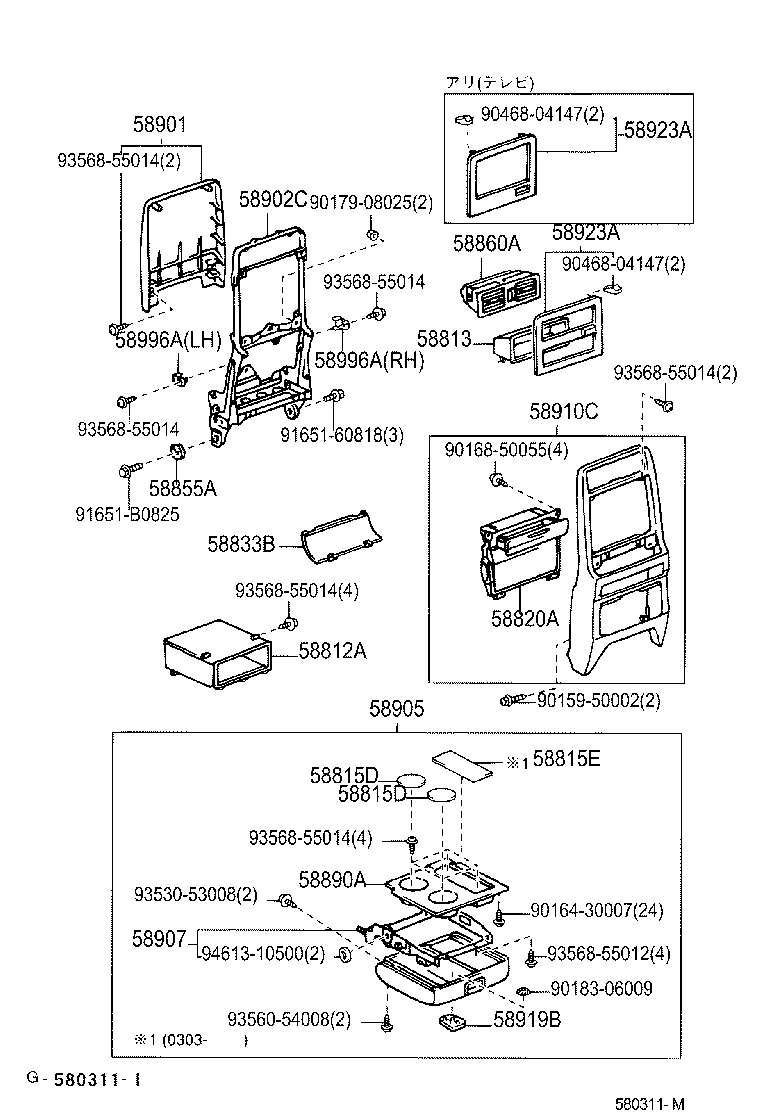

ILLUST NO. 2 OF 2(9704-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-40020 |
GZG50 |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-40020 |
GZG50 |
1 | ||
| 58815D - SHEET, CONSOLE BOX, NO.1 | ||||
| 58815-40010 |
GZG50 |
2 | ||
| 58815D - SHEET, CONSOLE BOX, NO.1 | ||||
| 58815-40010 |
GZG50 |
2 | ||
| 58815E - SHEET, CONSOLE BOX, NO.2 | ||||
| 58815-40020 |
GZG50 |
1 | ||
| 58820A - BOX ASSY, CONSOLE COMPARTMENT | ||||
| 58820-40010B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 58820-40010E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 58820-40010B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-40080 |
GZG50 |
1 | ||
| 58855A - STOPPER, LOWER CONSOLE BOX | ||||
| 58855-40010 |
GZG50 |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-40010 |
GZG50 |
1 | ||
| 58890A - PANEL ASSY, EQUIPMENT SET | ||||
| 58890-40070 |
GZG50 ｱﾘ(ﾃﾚﾎﾝ) |
1 | ||
| 58890-40080 |
GZG50 |
1 | ||
| 58901 - PANEL SUB-ASSY, BOX | ||||
| 58901-40050B1 |
GZG50 BLUE GRAY,TRIM8# |
1 | ||
| 58901-40050B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 58901-40050E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-40010 |
GZG50 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-40140B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 58905-40140B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 58905-40150B0 |
GZG50 ｱﾘ(ﾃﾚﾎﾝ),MD.GRAY,TRIM1# |
1 | ||
| 58905-40150E0 |
GZG50 ｱﾘ(ﾃﾚﾎﾝ),ORCHID,TRIM4# |
1 | ||
| 58905-40140E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 58905-40150B1 |
GZG50 ｱﾘ(ﾃﾚﾎﾝ),DK.BLUE GRAY,TRIM8# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-40070 |
GZG50 |
1 | ||
| 58907-40040 |
GZG50 |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-40050B0 |
GZG50 MD.GRAY,TRIM1# |
1 | ||
| 58910-40050E0 |
GZG50 ORCHID,TRIM4# |
1 | ||
| 58910-40050B1 |
GZG50 DK.BLUE GRAY,TRIM8# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-40030 |
GZG50 |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58904-40030 |
GZG50 |
1 | ||
| 58904-40010 |
GZG50 ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58904-40030 |
GZG50 |
1 | ||
| 58904-40010 |
GZG50 ｱﾘ(ﾃﾚﾋﾞ) |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-40050 |
GZG50 左側 |
1 | ||
| 58996-40040 |
GZG50 右側 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-40050 |
GZG50 左側 |
1 | ||
| 58996-40040 |
GZG50 右側 |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90164-30007 | ||||
| 90168-50055 | ||||
| 90179-08025 | ||||
| 90183-06009 | ||||
| 90468-04147 | ||||
| 91651-60818 | ||||
| 91651-B0825 | ||||
| 93530-53008 | ||||
| 93560-54008 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 94613-10500 | ||||
ILLUST NO. 1 OF 2(9704-0501)4FC ; (0501- )6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-40010 |
GZG50..4FC |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-40070 |
GZG50..4FC |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-40020 |
GZG50 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58840-40010 |
GZG50 |
1 | ||
| 58840-40030 |
GZG50 ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ) |
1 | ||
| 58840-40020 |
GZG50 |
1 | ||
| 58840-40040 |
GZG50 ｱﾘ(ﾍﾙﾌﾟﾈﾂﾄ) |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-40190B0 |
GZG50..4FC MD.GRAY,TRIM1# |
1 | ||
| 58810-40191E0 |
GZG50..4FC ORCHID,TRIM4# |
1 | ||
| 58810-40191B0 |
GZG50..4FC MD.GRAY,TRIM1# |
1 | ||
| 58810-40190B1 |
GZG50..4FC DK.BLUE GRAY,TRIM8# |
1 | ||
| 58810-40190E0 |
GZG50..4FC ORCHID,TRIM4# |
1 | ||
| 58810-40191B1 |
GZG50..4FC DK.BLUE GRAY,TRIM8# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58802-40041 |
GZG50..4FC |
1 | ||
| 58802-40040 |
GZG50..4FC |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-40020 |
GZG50..4FC |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-40040B1 |
GZG50..4FC BLUE GRAY,TRIM8# |
1 | ||
| 58920-40040E0 |
GZG50..4FC ORCHID,TRIM4# |
1 | ||
| 58920-40040B0 |
GZG50..4FC MD.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55554-20040 | ||||
| 61824-12110 | ||||
| 90164-30007 | ||||
| 90183-05094 | ||||
| 90468-04147 | ||||
| 90468-04177 | ||||
| 90541-03027 | ||||
| 93530-53008 | ||||
| 93540-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8610 | ||||
