GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

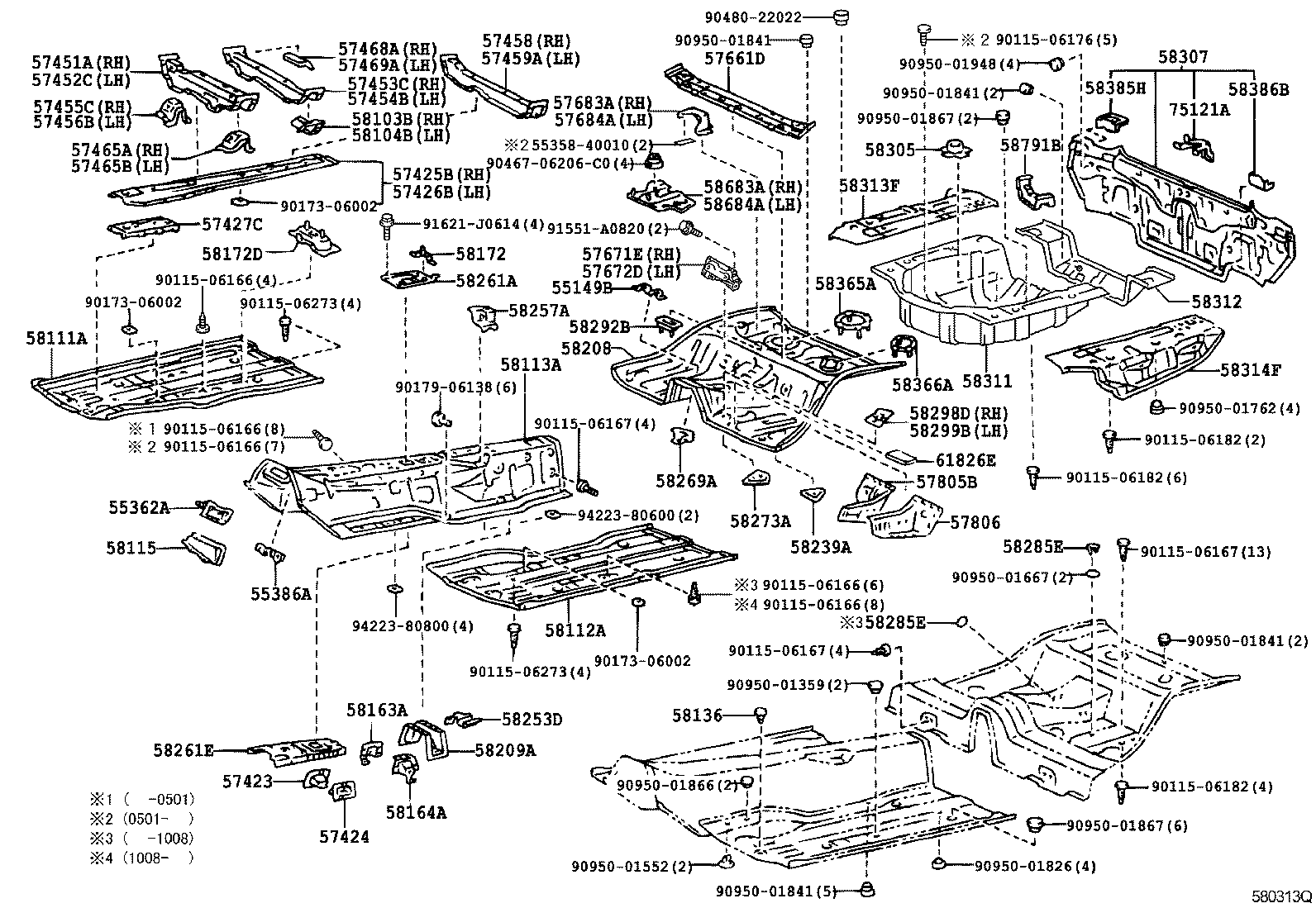

ILLUST NO. 1 OF 2(9704- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55149B - BRACKET, JUNCTION BLOCK | ||||
| 55149-40010 |
GZG50 |
1 | ||
| 55362A - BRACKET, PARKING BRAKE MOUNTING | ||||
| 55362-40020 |
GZG50 |
1 | ||
| 55386A - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-40020 |
GZG50 |
1 | ||
| 57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH | ||||
| 57423-50010 |
GZG50 |
1 | ||
| 57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH | ||||
| 57424-50010 |
GZG50 |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-50020 |
GZG50 |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-50020 |
GZG50 |
1 | ||
| 57427C - REINFORCEMENT, FRONT FLOOR, UPPER | ||||
| 57427-50010 |
GZG50 |
2 | ||
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-50020 |
GZG50 |
1 | ||
| 57452C - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-50020 |
GZG50 |
1 | ||
| 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH | ||||
| 57453-40020 |
GZG50 |
1 | ||
| 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH | ||||
| 57454-40010 |
GZG50 |
1 | ||
| 57455C - BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH | ||||
| 57455-50020 |
GZG50 |
1 | ||
| 57456B - BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 57456-50020 |
GZG50 |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-40030 |
GZG50 |
1 | ||
| 57459A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-40010 |
GZG50 |
1 | ||
| 57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-50020 |
GZG50 |
1 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57466-50020 |
GZG50 |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-50020 |
GZG50 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-50020 |
GZG50 |
1 | ||
| 57661D - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-40010 |
GZG50 |
1 | ||
| 57661-40011 |
GZG50 |
1 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57683-50020 |
GZG50 |
1 | ||
| 57684A - BRACKET, FUEL TANK MOUNTING, NO.2 | ||||
| 57684-50020 |
GZG50 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-50020 |
GZG50 |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-50020 |
GZG50 |
1 | ||
| 58103B - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH | ||||
| 58103-40010 |
GZG50 |
1 | ||
| 58104B - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH | ||||
| 58104-40010 |
GZG50 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-50902 |
GZG50 |
1 | ||
| 58111-40903 |
GZG50 CNGｼﾔ |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-50902 |
GZG50 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-40901 |
GZG50 |
1 | ||
| 58113-40901 |
GZG50 |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-40010 |
GZG50 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-30020 |
GZG50 |
2 | ||
| 90333-30002 |
GZG50 |
2 | ||
| 58163A - RETAINER, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58163-40020 |
GZG50 |
1 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-40010 |
GZG50 |
1 | ||
| 58172D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58172-40030 |
GZG50 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-40010 |
GZG50 CNGｼﾔ |
1 | ||
| 58211-50080 |
GZG50 |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-50020 |
GZG50 |
1 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-50020 |
GZG50 |
2 | ||
| 58253D - BRACKET, PARKING BRAKE CABLE | ||||
| 58253-50010 |
GZG50 |
1 | ||
| 58257A - CLAMP, PARKING BRAKE CABLE, NO.2 | ||||
| 58257-50010 |
GZG50 |
1 | ||
| 58261E - COVER, TRANSMISSION | ||||
| 58261-50020 |
GZG50 |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-50010 |
GZG50 |
1 | ||
| 58273A - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, RH | ||||
| 58273-50020 |
GZG50 |
2 | ||
| 58285E - COVER, CENTER FLOOR HOLE | ||||
| 58285-50010 |
GZG50 |
4 | ||
| 58285E - COVER, CENTER FLOOR HOLE | ||||
| 58285-50010 |
GZG50 |
4 | ||
| 58292B - REINFORCEMENT, FUEL FILTER MOUNTING | ||||
| 58292-50020 |
GZG50 |
1 | ||
| 58298D - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-40020 |
GZG50 |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58299-40020 |
GZG50 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-50010 |
GZG50 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-40010 |
GZG50 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-40030 |
GZG50 CNGｼﾔ |
1 | ||
| 58311-40020 |
GZG50 |
1 | ||
| 58312 - PANEL, REAR BODY FLOOR, NO.1 | ||||
| 58312-40010 |
GZG50 |
1 | ||
| 58312-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-40020 |
GZG50 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-40020 |
GZG50 |
1 | ||
| 58365A - BRACKET, FUEL TANK SUPPORT, RH | ||||
| 58365-50010 |
GZG50 |
1 | ||
| 58365-40010 |
GZG50 CNGｼﾔ |
1 | ||
| 58366A - BRACKET, FUEL TANK SUPPORT, LH | ||||
| 58366-50010 |
GZG50 |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-40010 |
GZG50 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-40010 |
GZG50 |
2 | ||
| 58683A - PANEL, CENTER FLOOR SILENCER, RH | ||||
| 58683-40020 |
GZG50 |
1 | ||
| 58684A - PANEL, CENTER FLOOR SILENCER, LH | ||||
| 58684-40010 |
GZG50 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-50030 |
GZG50 |
1 | ||
| 61826E - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-22010 |
GZG50 |
2 | ||
| 75121A - BRACKET, REAR LICENSE PLATE | ||||
| 75121-40020 |
GZG50 |
2 | ||
| Common parts | ||||
| 55358-40010 | ||||
| 90115-06166 | ||||
| 90115-06167 | ||||
| 90115-06176 | ||||
| 90115-06182 | ||||
| 90115-06273 | ||||
| 90173-06002 | ||||
| 90179-06138 | ||||
| 90467-06206C0 | ||||
| 90480-22022 | ||||
| 90950-01359 | ||||
| 90950-01552 | ||||
| 90950-01667 | ||||
| 90950-01762 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01866 | ||||
| 90950-01867 | ||||
| 90950-01948 | ||||
| 91551-A0820 | ||||
| 91621-J0614 | ||||
| 94223-80600 | ||||
| 94223-80800 | ||||
ILLUST NO. 2 OF 2(0301-0501)
Click highlighted areas on diagram
CNGｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH | ||||
| 58316-40010 |
GZG50 |
1 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-40010 |
GZG50 |
2 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-40010 |
GZG50 |
2 | ||
| 58352C - REINFORCEMENT, REAR FLOOR PANEL, NO.2 | ||||
| 58352-40010 |
GZG50 |
1 | ||
| 58364B - BRACKET, FUEL TANK SUPPORT | ||||
| 58364-40010 |
GZG50 |
1 | ||
| 58653C - SHEET, REAR FLOOR SILENCER, NO.2 | ||||
| 58653-40020 |
GZG50 |
1 | ||
| 77606G - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-40020 |
GZG50 |
1 | ||
| 77607B - CASE SUB-ASSY, FUEL TANK COVER VENT, LH | ||||
| 77607-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90115-06242 | ||||
| 90115-06254 | ||||
| 92613-00630 | ||||
